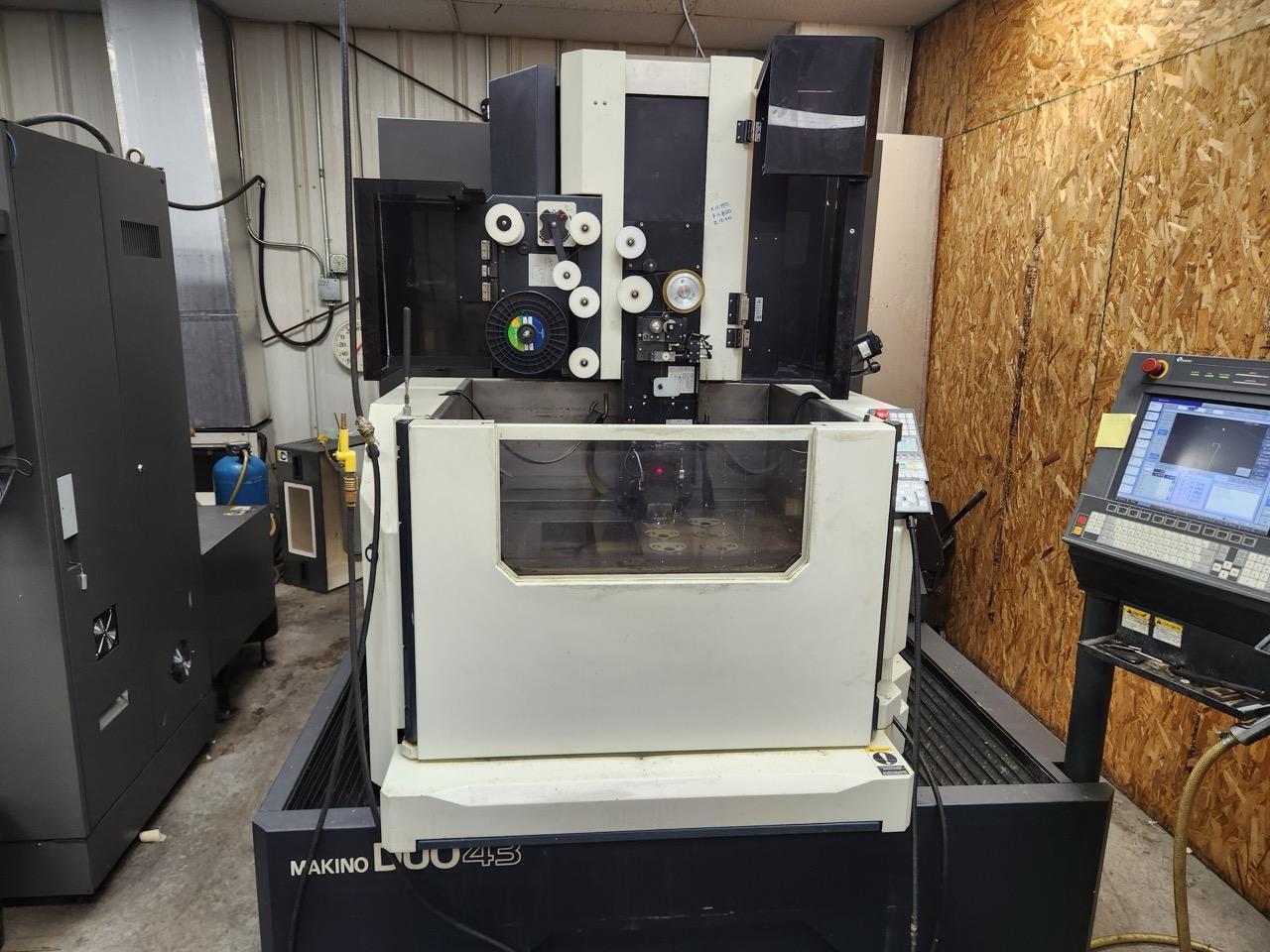

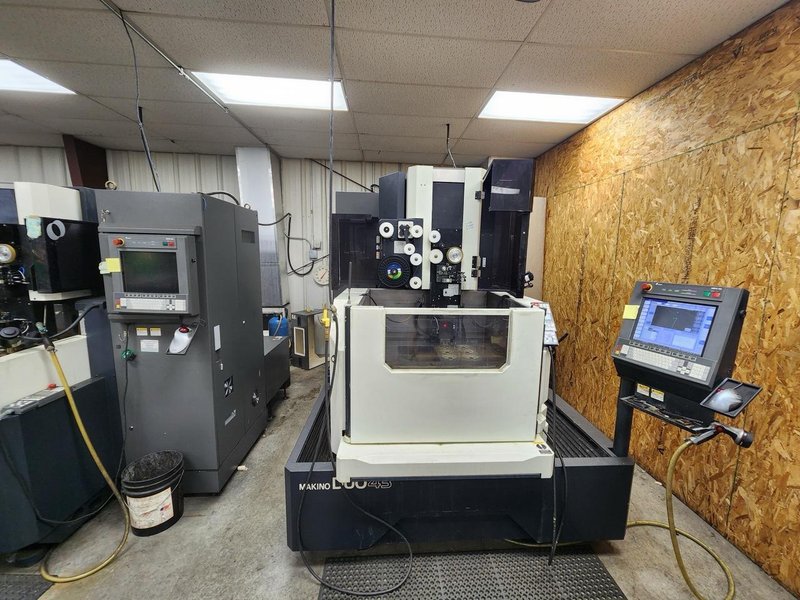

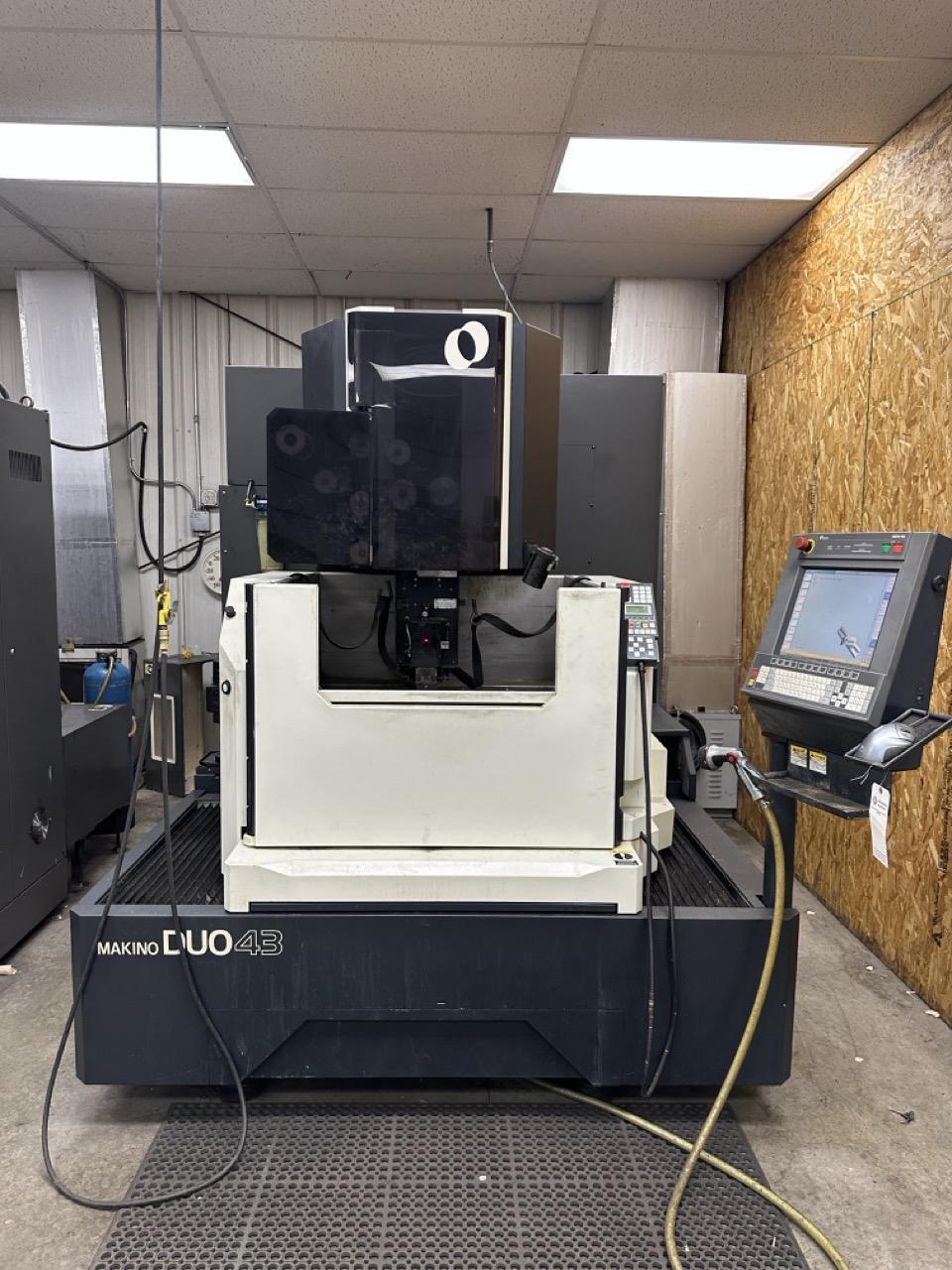

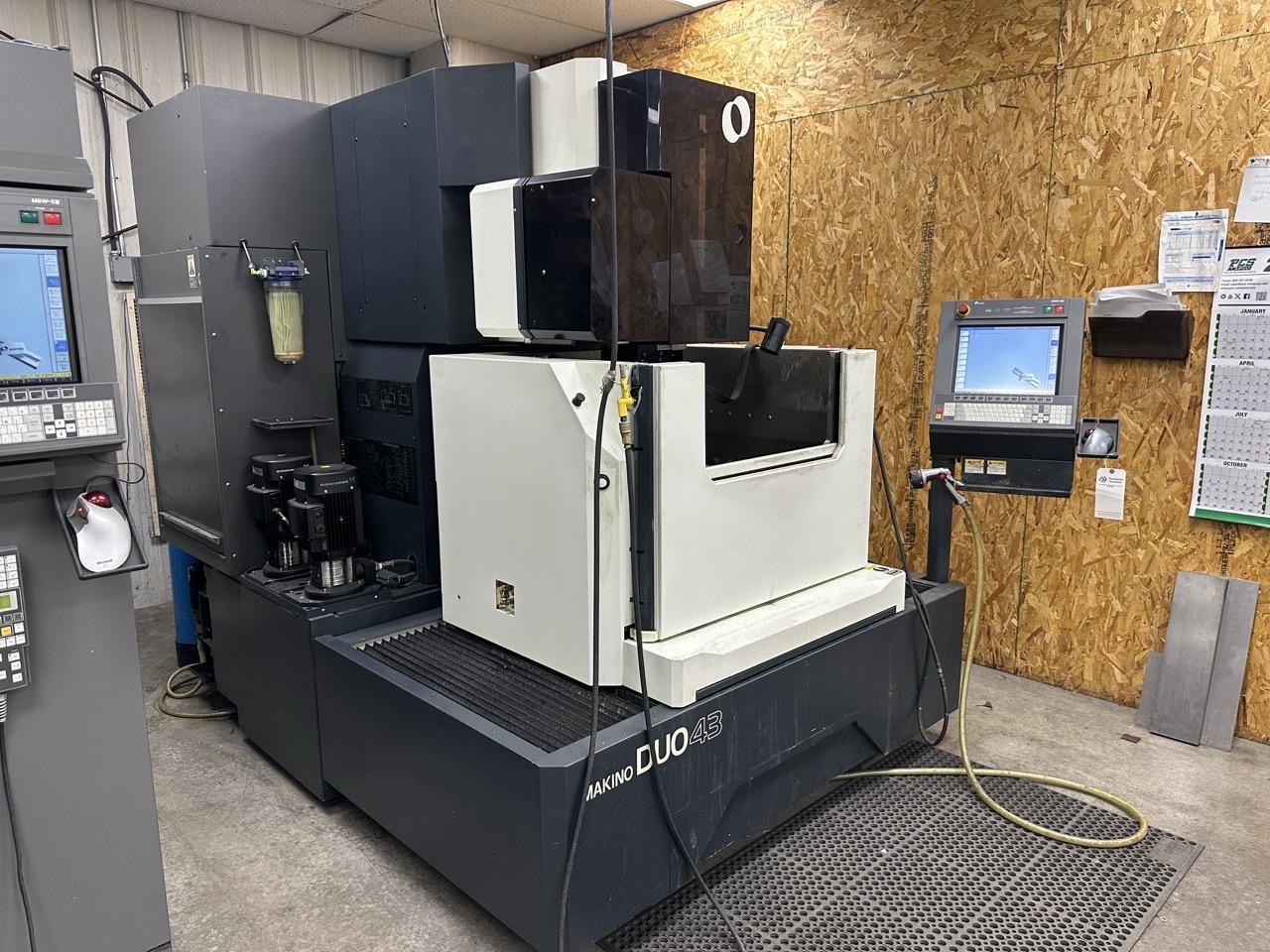

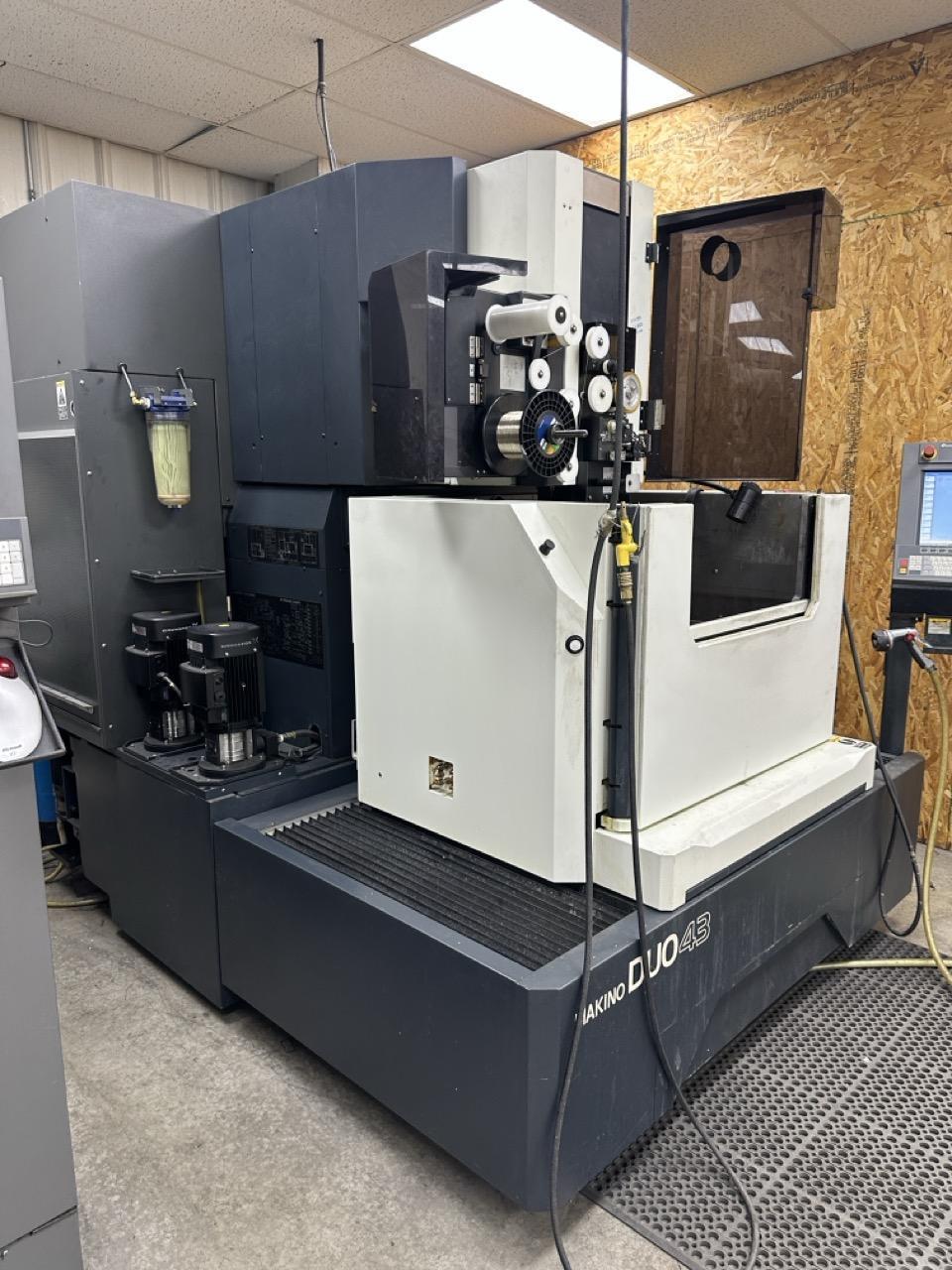

Makino Duo 43 CNC Wire EDM, 2011

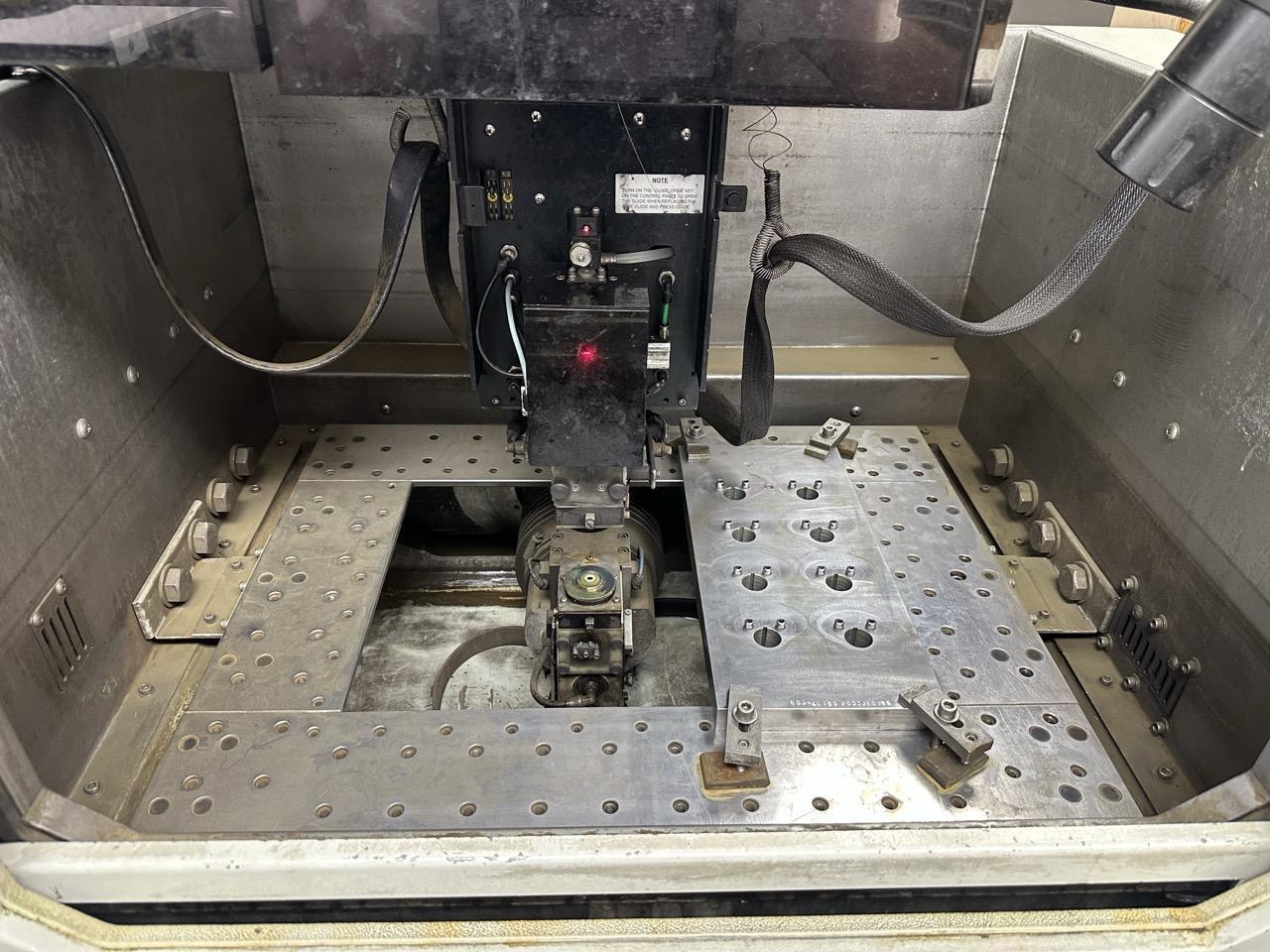

X, Y & Z Axis Travel: 17.8″ x 11.8″ x 12.6″ U & V Axis Travel: ±3.97″ Table Size: 27.95″ x 22.04″ Maximum Load on Table: 1,764 Lbs. Distance Floor to Table Top: 39.37″ Ball Screw Diameter X & Y: 1.259″Ø Ball Screw Diameter U, V & Z: .984″ Ball Screw Diameter Class: 5 Jog / Rapid Feed X, Y & Z Axis: 1.97,5.9,23.62 / 78.7 IPM Jog / Rapid Feed U & V Axis: 1.97,5.9,23.62 / 39.3 IPM Servo Feed: 0.00039 ⁓ 1.97 IPM Positioning Resolution: 0.000004″ Feedback X, Y, U, V & Z: 0.000004″ Rotary Encoders Feedback X & Y: 0.000002″ Glass Scales Servo System: PWM Digital AC Servos Maximum Taper Angle: ±15°/3.93″ Thickness With Optional “C” Guides: ±45°/3.93″ Thickness Work Piece Size Inside of Work Tank: 27.95″ x 22.04″ x 11.81″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
