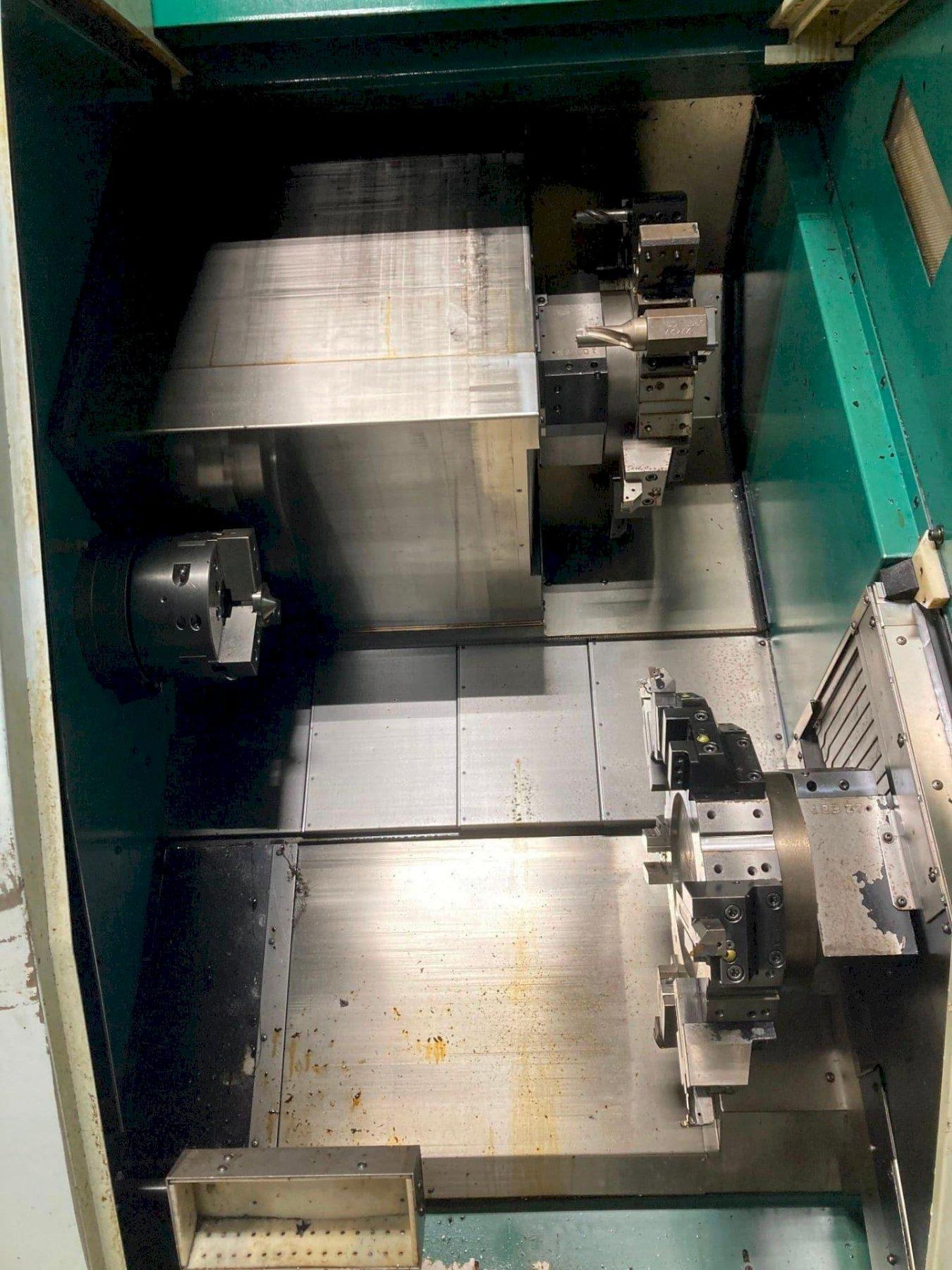

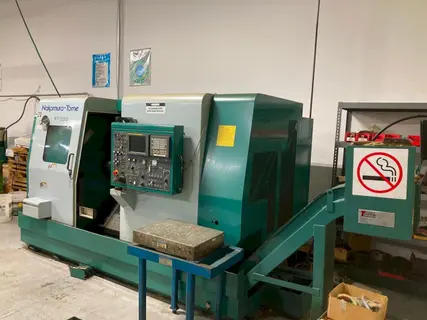

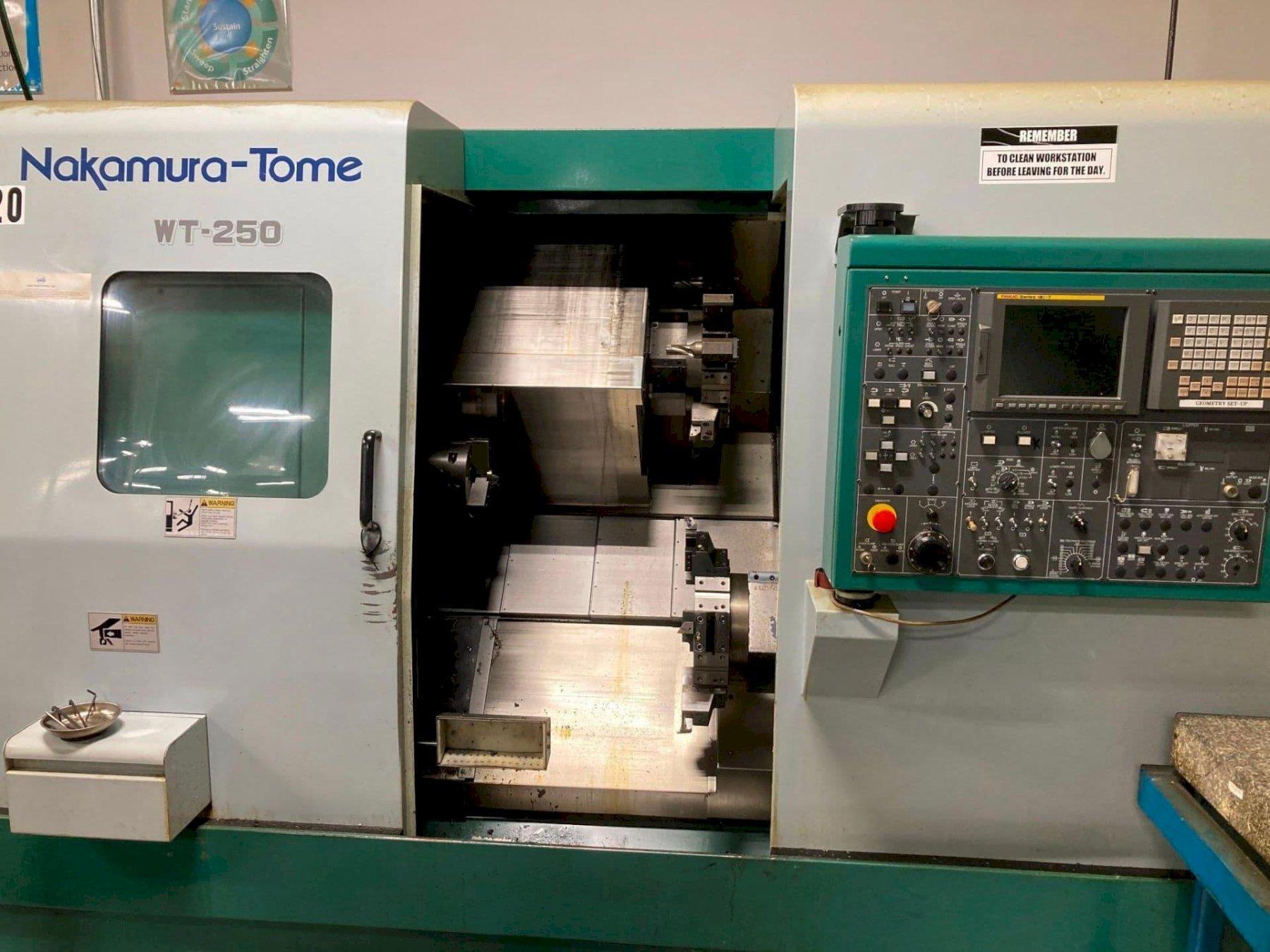

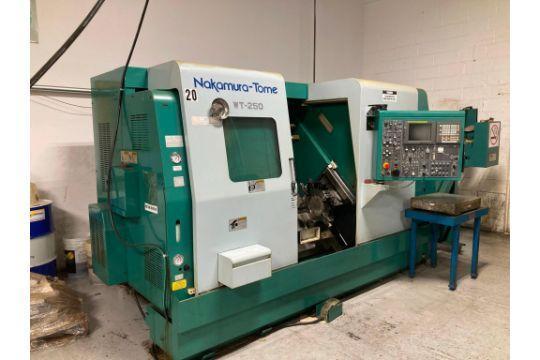

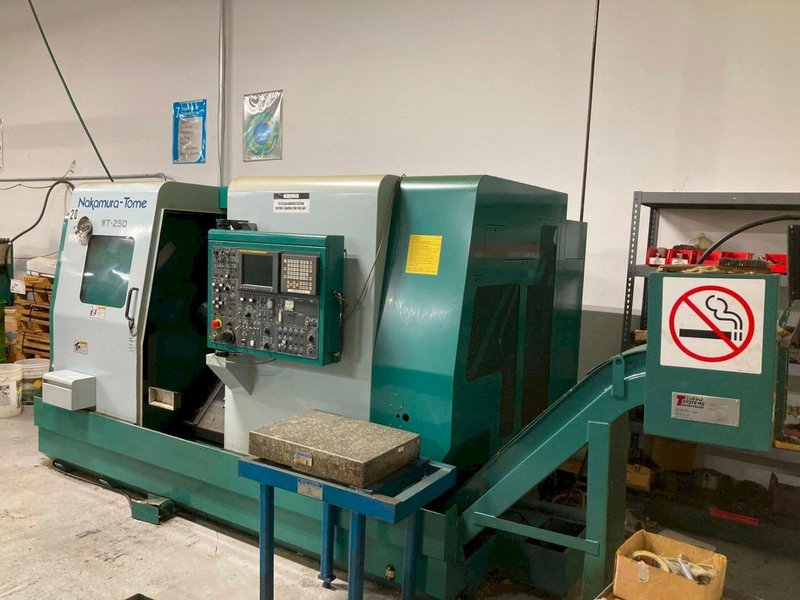

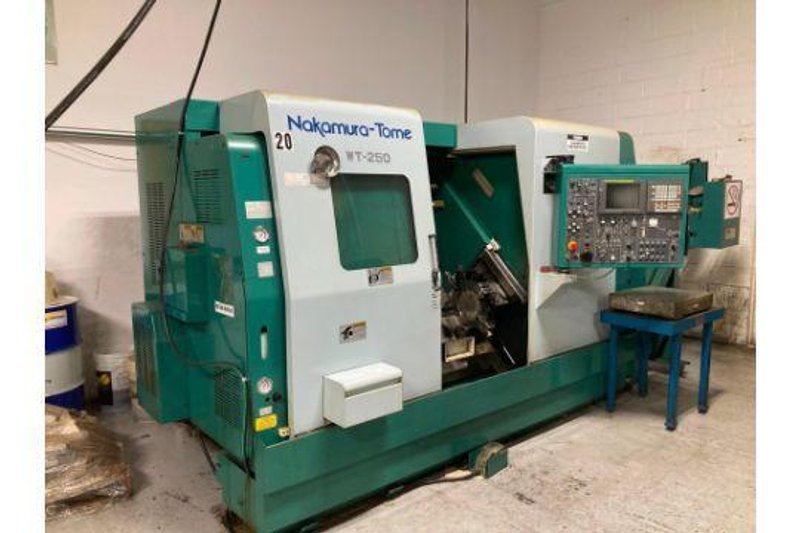

Nakamura-Tome WT-250 CNC Lathe, 2001 – Twin Turret, Chip Conveyor, Parts Catcher

Cutting time – 4,926 hours Swing Over Bed 9.84” Swing Over Carriage 9.84” Max Turing Diameter 9.84” St. Turning Diameter 3.94” Max Turning Length 17.13” Max Bar Size 2.01” Spindle Motor 20 HP Spindle Speed 4500 RPM Spindle Nose A2-5 / Hole Through Spindle 2.48” Hole Through Draw Tube 2.05” X-Axis Travel 7.68” Z-Axis Travel 23.62” Rapid Traverse X Axis 472 IPM Rapid Traverse Z Axis 945 IPM Turret (2) 12 Position Turrets Machine Dimensions 136” x 76” x 80” (with Chip Conveyor) Machine Weight 13,243 lbs

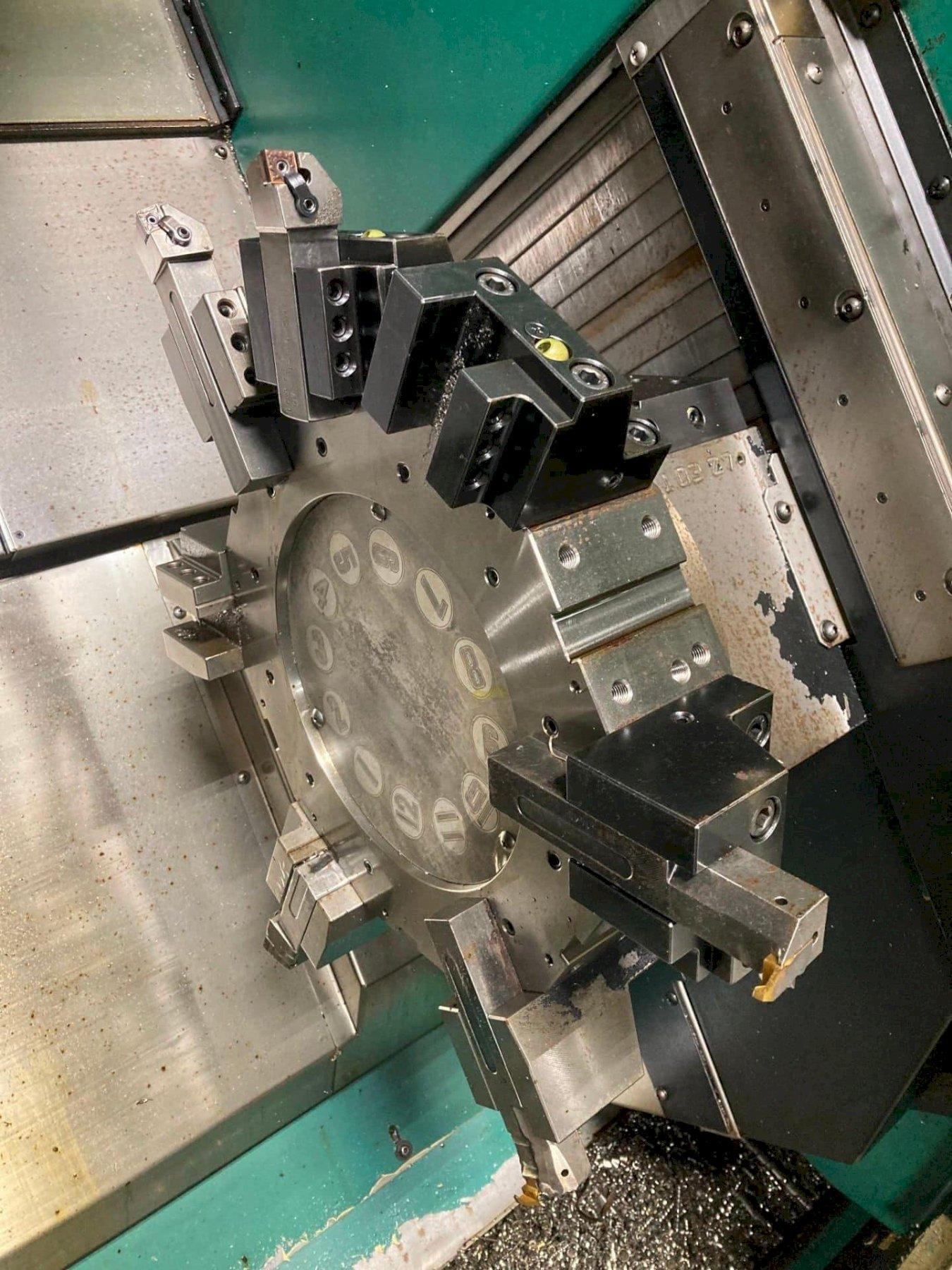

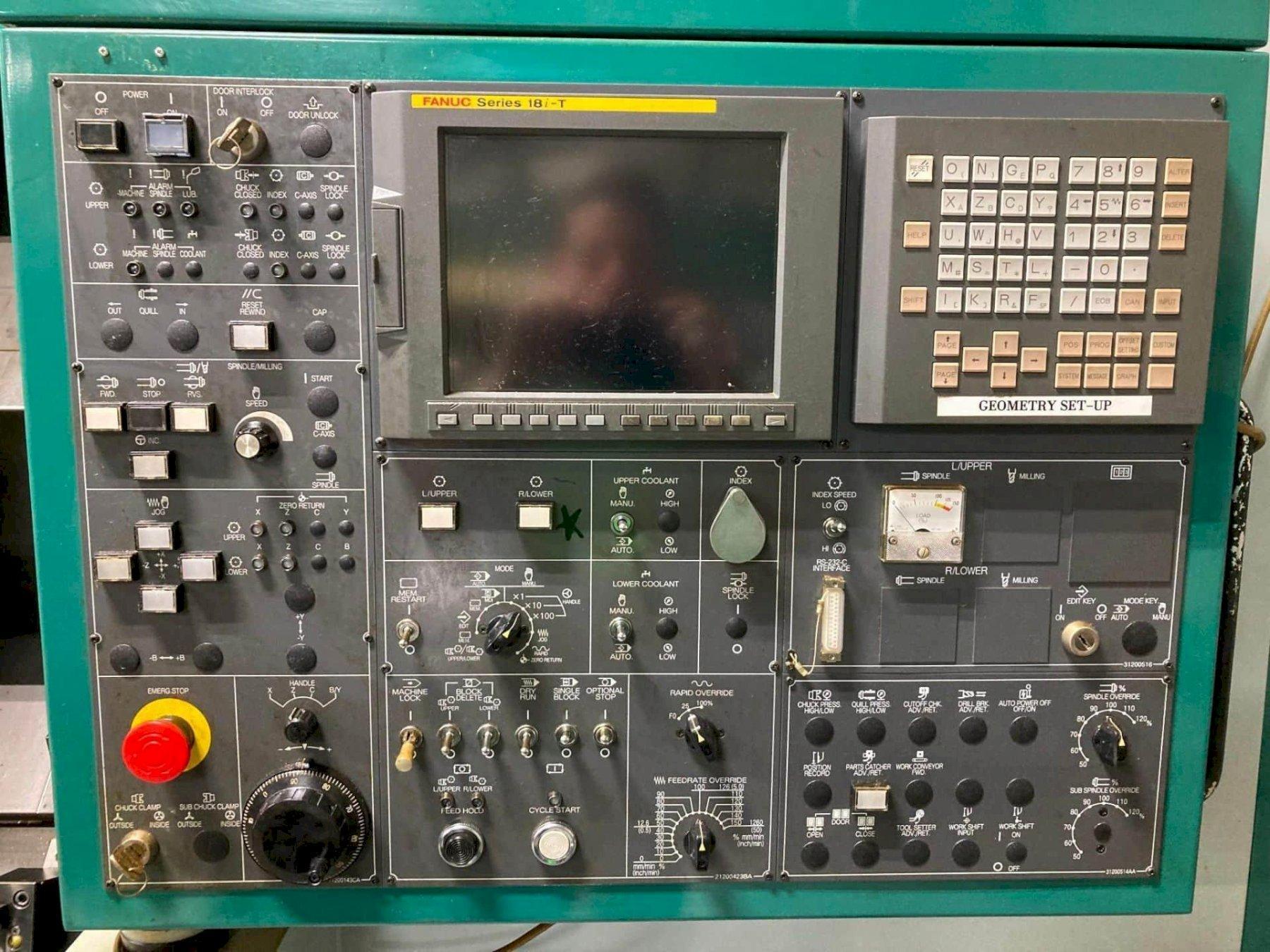

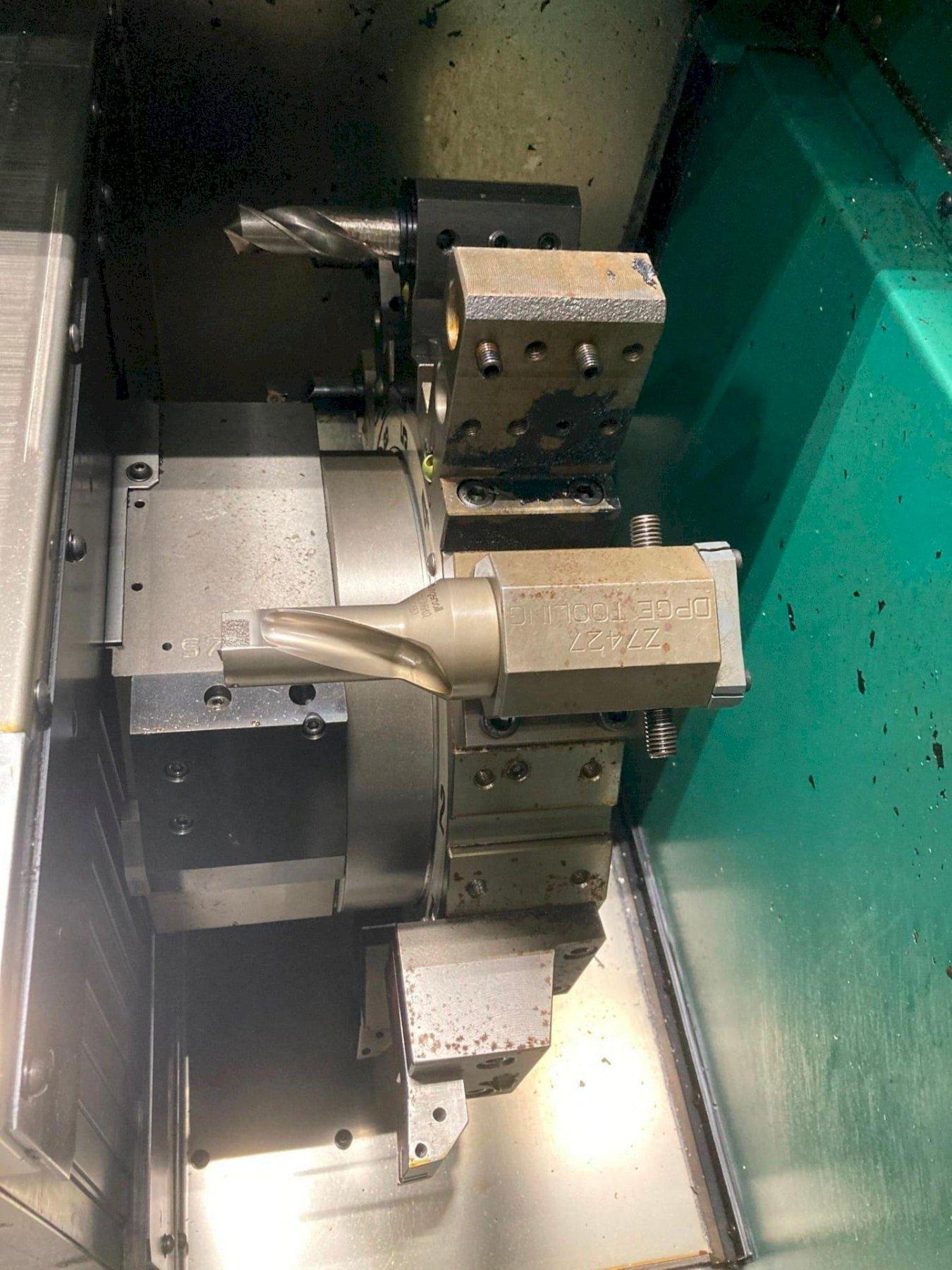

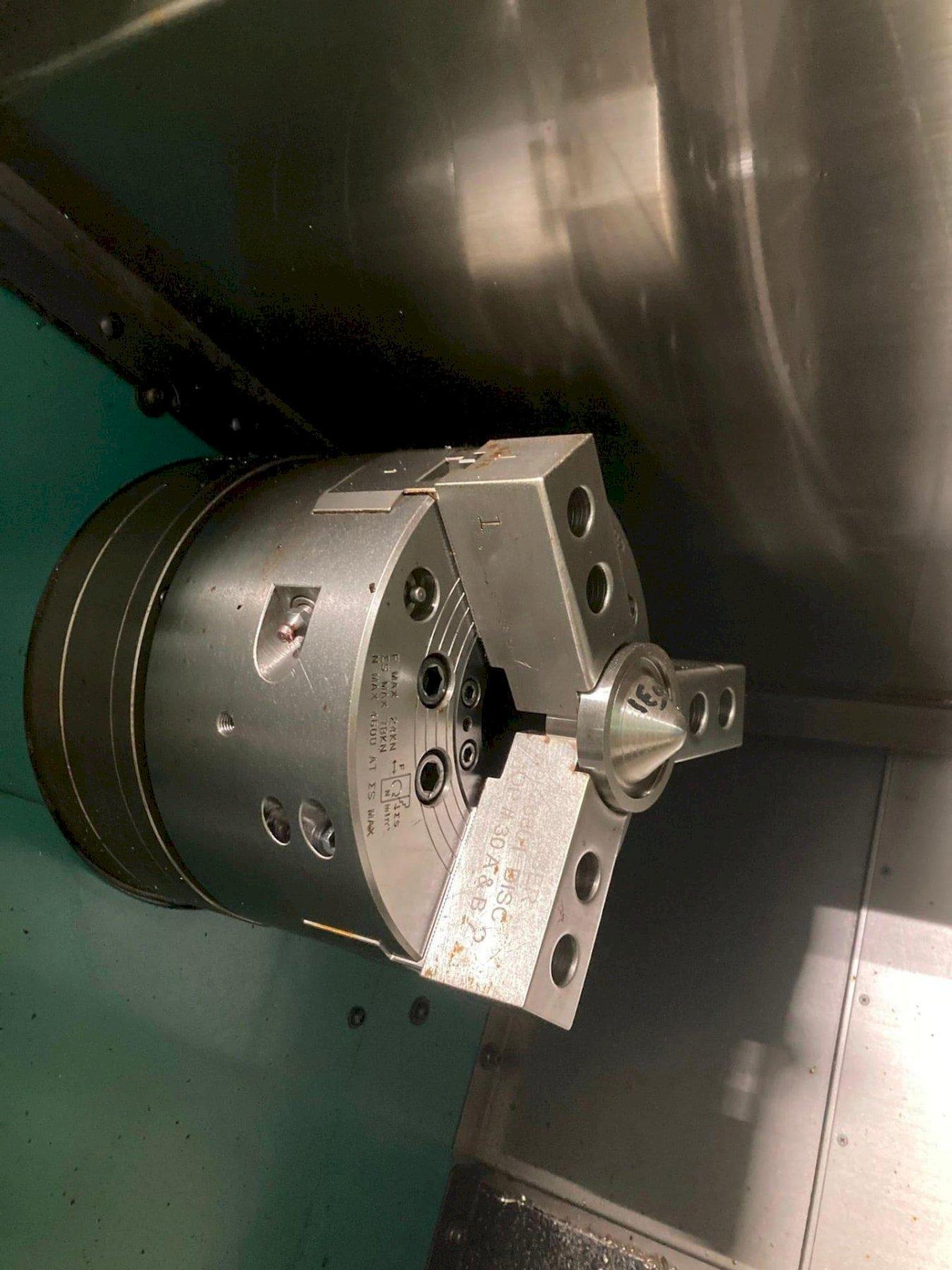

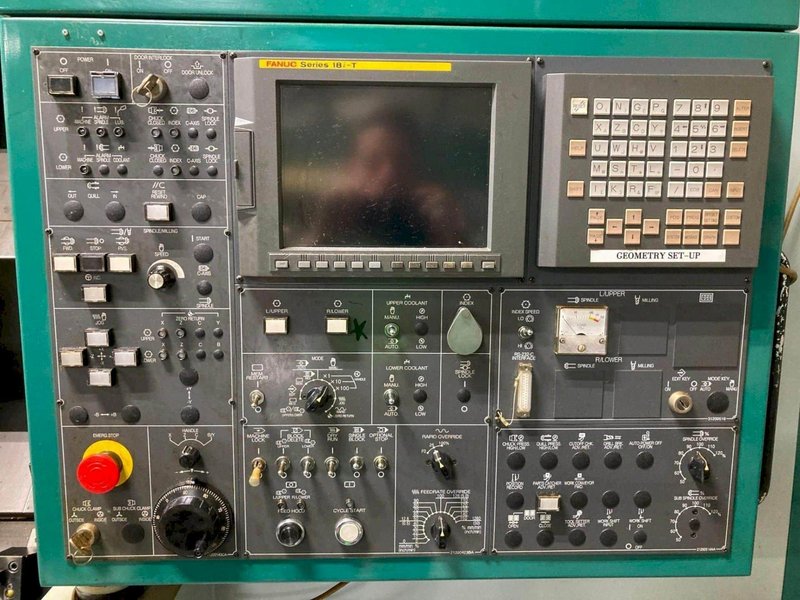

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With (subject to buyer verification): Fanuc Series 18i-T Control (2) 12 Position Turrets Nikko Nomura 8” 3-Jaw Hydraulic Chuck Chip Conveyor Parts Catcher NO Tailstock

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
