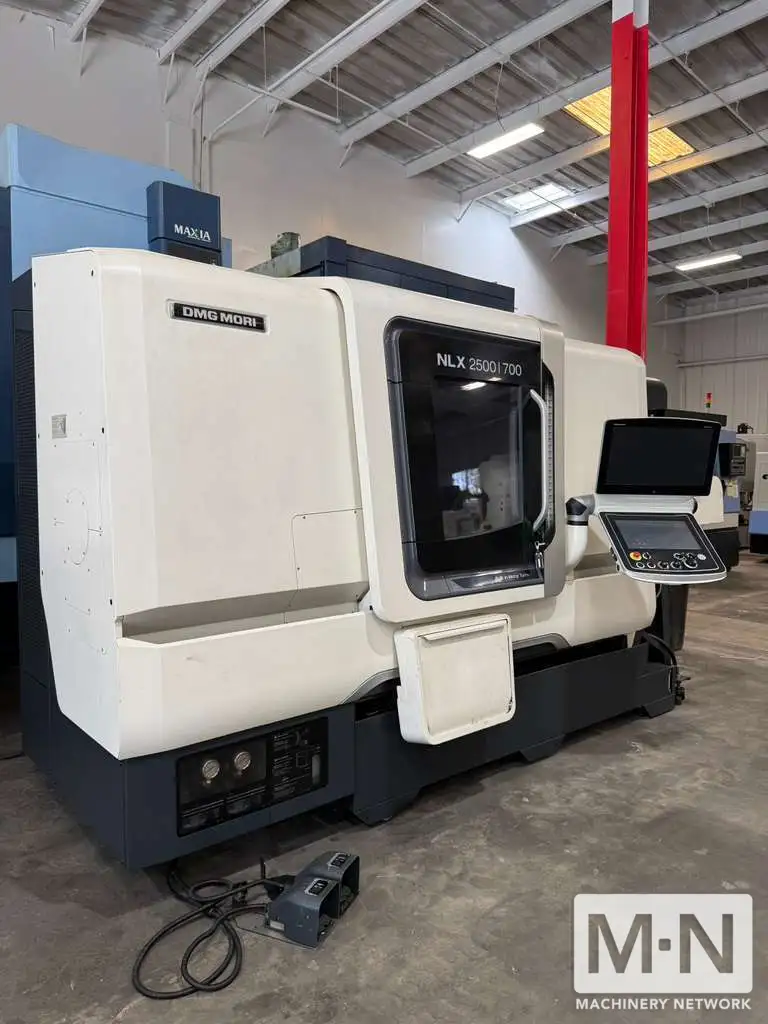

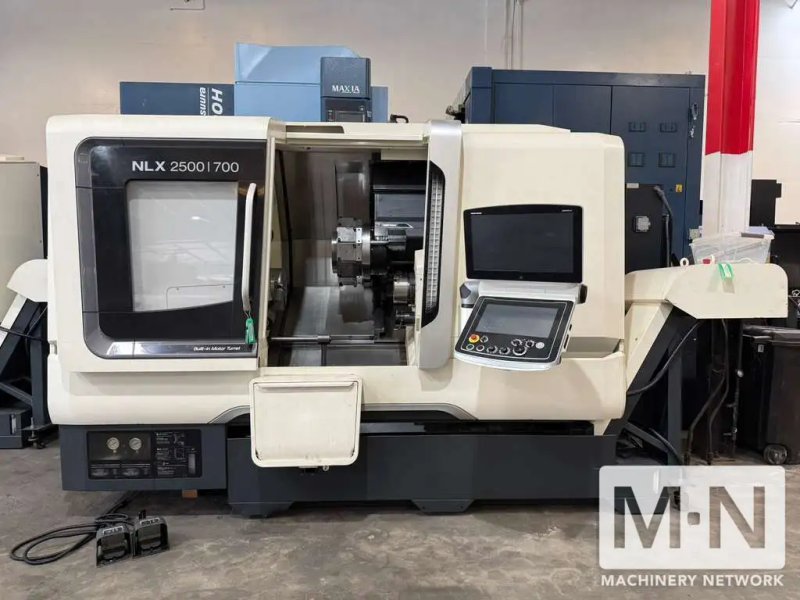

DMG Mori NLX-2500SY/700 CNC Lathe, 2019 w/ Sub Spindle & Y-Axis

DMG Mori NLX-2500SY/700 CNC Lathe, 2019 w/ Sub Spindle & Y-Axis

Name: DMG Mori NLX-2500SY/700 CNC Lathe, 2019 w/ Sub Spindle & Y-Axis
Brand: DMG MORI
SKU: 53506
Availability: InStock

Brand

DMG MORI

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMG MORI

Model:

NLX2500SY/700

Year:

2019

Stock #:

53506

Status:

For Sale

ImperialMetric

Swing	36.2"	919.48 mm
Max. Turning Length	27.7"	703.58 mm
Max. Turning Diameter	14.4"	365.76 mm
X-Axis	10.2"	259.08 mm
Y-Axis	3.9" (±1.95")	3.9" (±1.95")
Z-Axis	31.2"	792.48 mm
B-Axis	28.8"	28.8"
C-Axis	360°	360°
Rapid Traverse X-Axis	1181 ipm
Rapid Traverse Y-Axis	393 ipm
Rapid Traverse Z-Axis	1181 ipm
Rapid Traverse B-Axis	1181 ipm
Chuck Size	10"	254 mm
Bar Capacity	3.1"	78.74 mm
Spindle Bore	3.58 in
Spindle Nose	A2-8	A2-8
Power	25 hp	18.6 kW
Max RPM	4,000 RPM	4,000 RPM
Turret Stations	12	12
Live Tooling	Yes	Yes
Live Milling Power	7.5 hp
Live Milling Max RPM	10000 rpm
Sub Spindle	Yes	Yes
Sub Spindle Power	15 hp
Sub Spindle Max RPM	6000 rpm
Sub Spindle Chuck	8 in
Sub Spindle Bore	2.8 in
Sub Spindle Nose	A2-5	A2-5
Dimensions	156.7" × 82.9" × 86.6"	156.7" × 82.9" × 86.6"
Weight	13,992 Lbs	13,992 Lbs

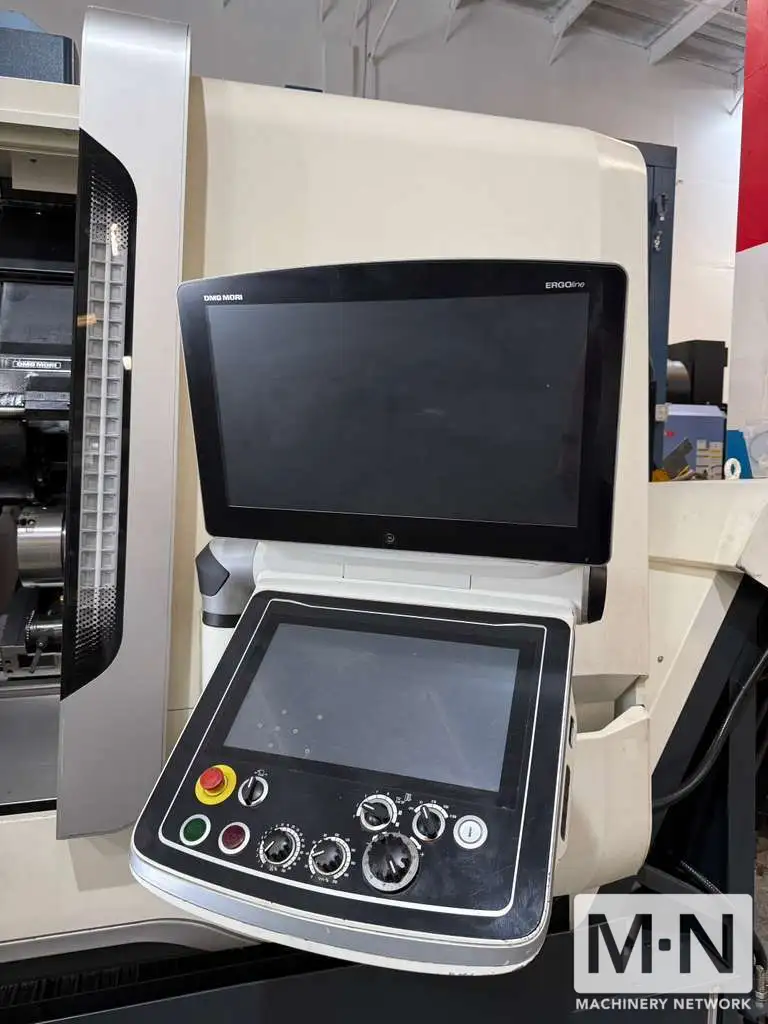

M730UM with CELOS – ERGOline Touch CNC Control

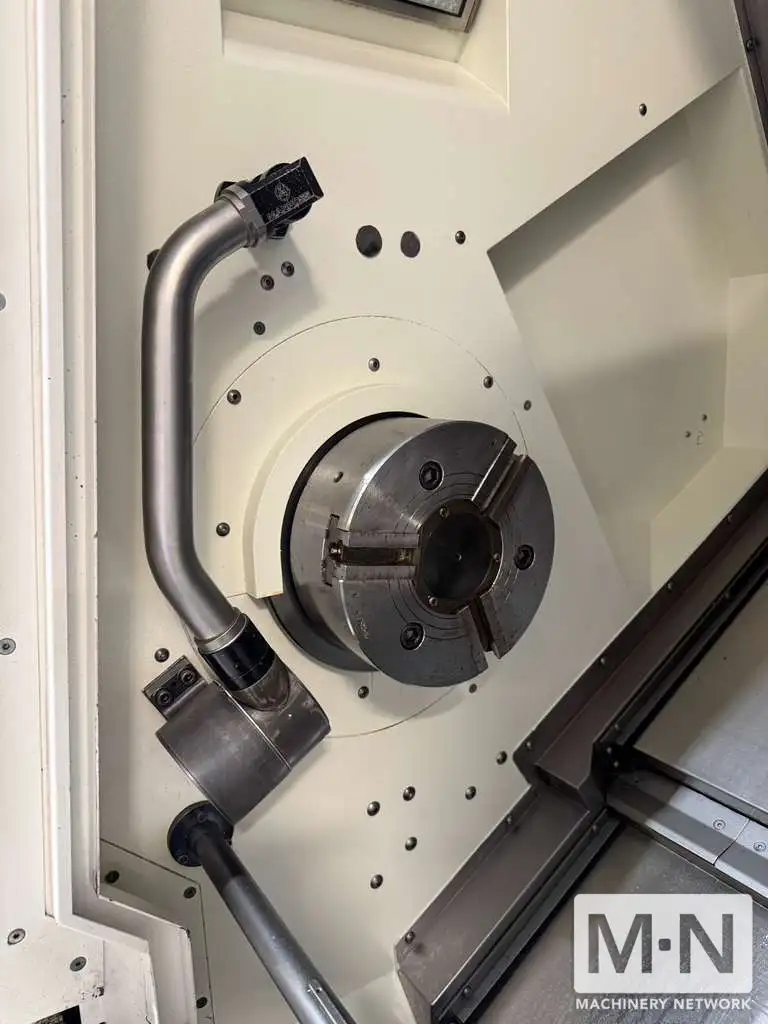

10 inch 3-Jaw Kitagawa BB210 Chuck on Main Spindle
8 inch 3-Jaw Kitagawa B208 Chuck on Sub Spindle

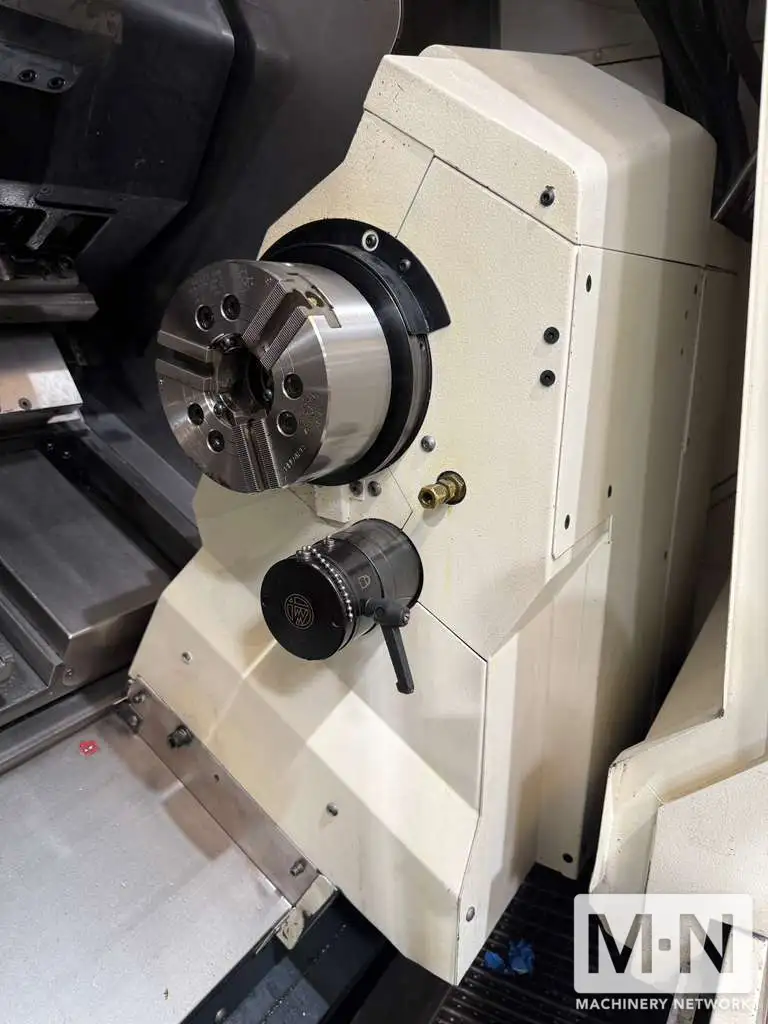

Sub Spindle
Sub Spindle Ejector
Servo Controlled C-Axis on Both Spindles

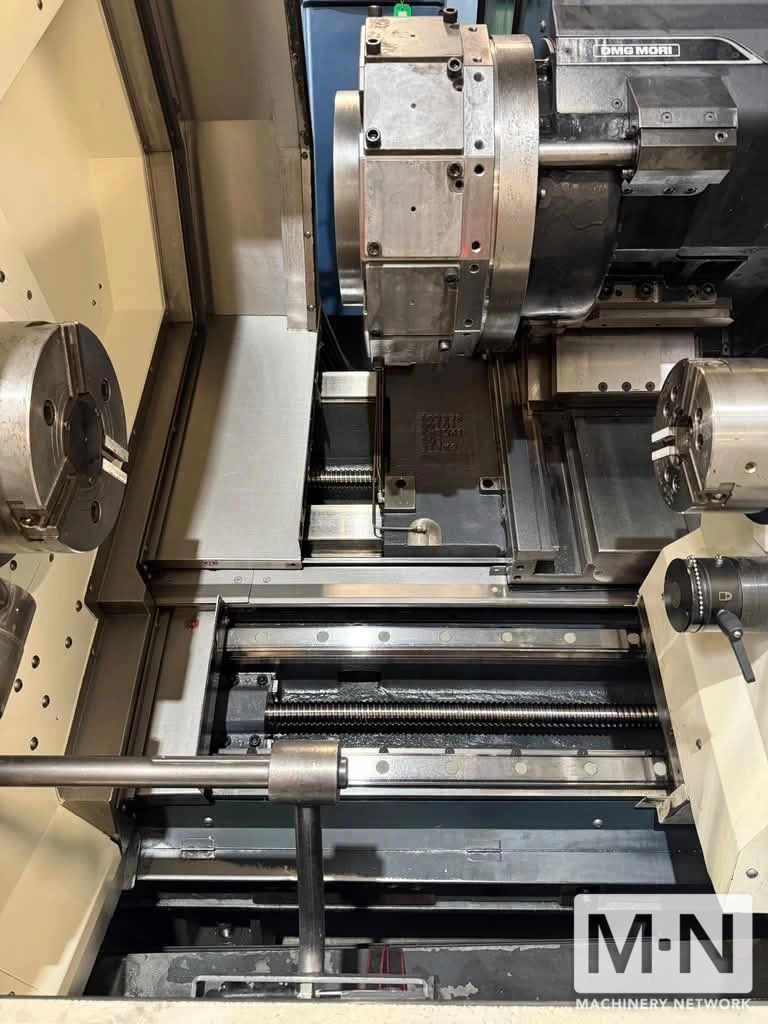

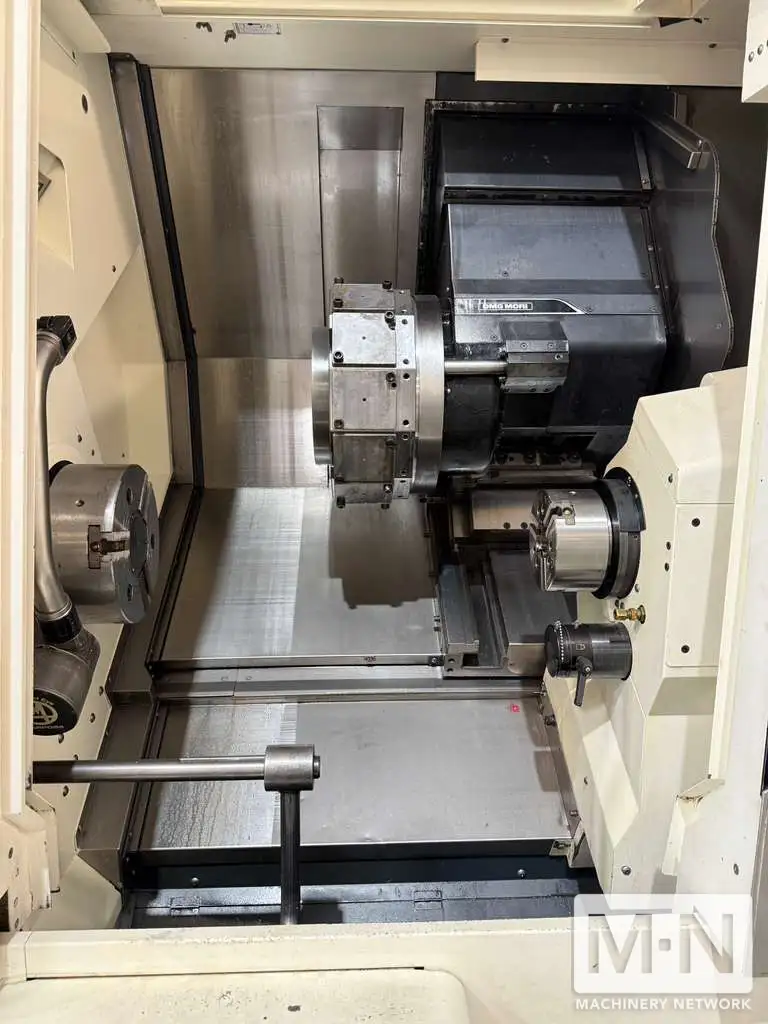

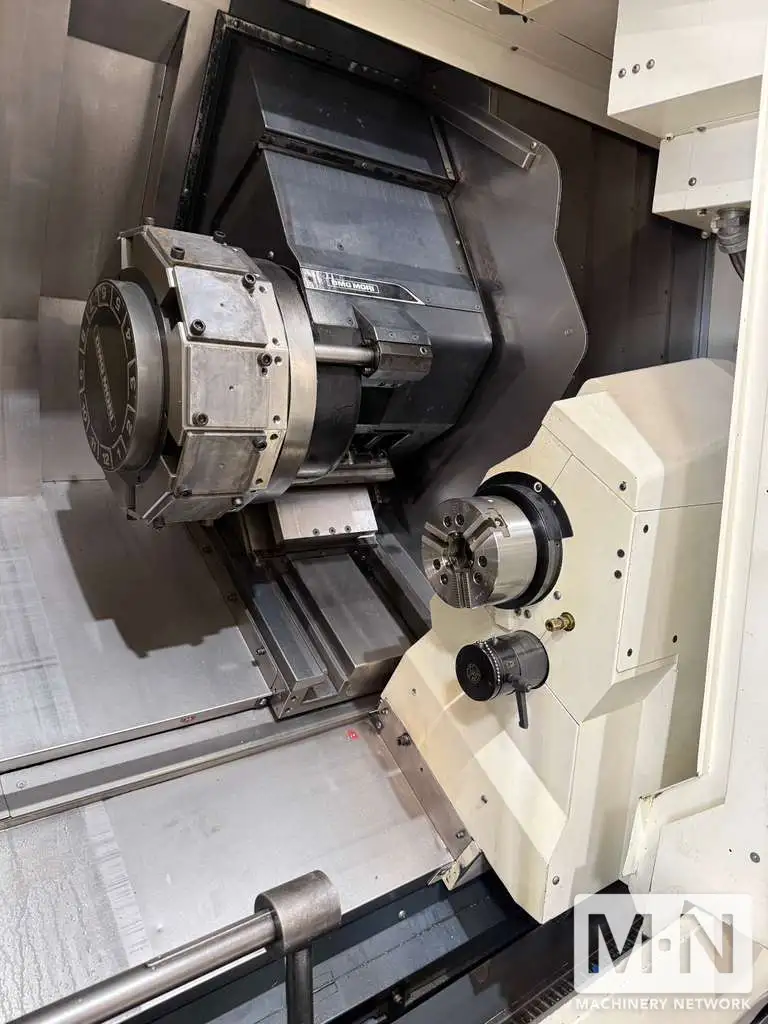

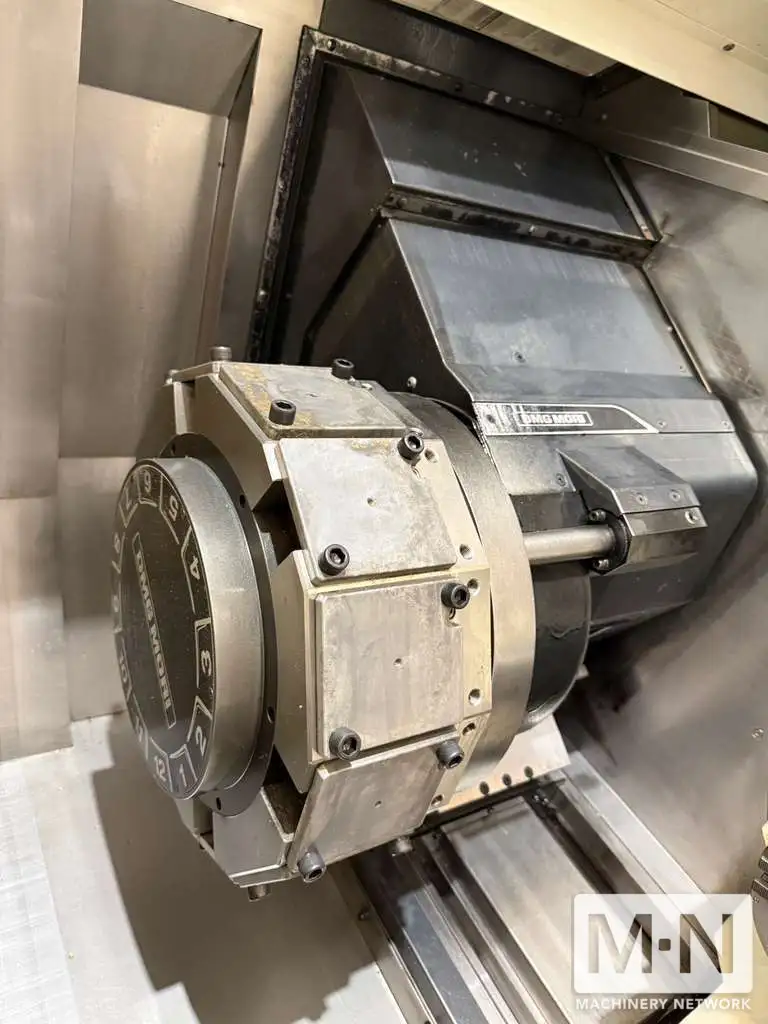

12-Station Live Tool Turret – BMT
Y-Axis on Turret
Tool Presetter
Parts Catcher
High-Pressure Coolant
LNS Chip Blaster
Coolant Tank
Chip Conveyor
Books & Manuals
Foot Switch
