3" x .23" (76MM x 6MM) OTO MILLS TUBE MILL MODEL 766, MFG-2005 UNUSED
Brand
Category
Type
Model
766
Stock #
114302
Year
Not specified
Condition
Not specified
Location
Not specified
|
TECHNICAL SPECIFICATIONS
MATERIAL..................Carbon steel 360N/mm2
STRIP WIDTH ...............78mm to 250mm
STRIP THICKNESS.............2mm to 6mm
TUBE DIAMETER.............25.4mm to 76.2mm
SQUARE PROFILE SECTIONS.......20 x 20mm to 60 x 60mm
RECTANGULAR PROFILE SECTIONS....20 X 40mm TO 80 X 80mm
MAXIMUM SPEED.............140 m/min
COOLING SYSTEM..............Emulsion 600 l/min max
WELDING SET-UP.............High Frequency
Line Direction...............Right to Left
AS DELIVERED FROM OEM;

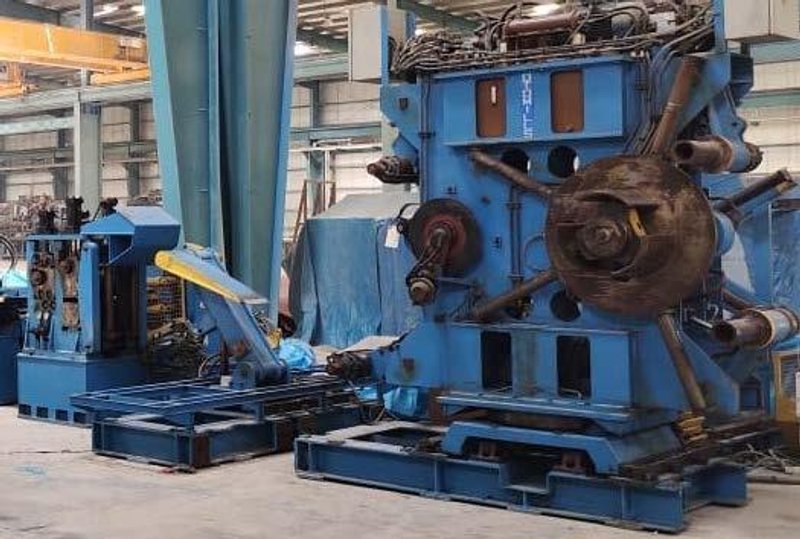

1 - Uncoiler, Double end w/Hydraulic Expansion
1 - Shear End Welder, Semi- Auto
1 - Accumulator, "Floop" Vertical type

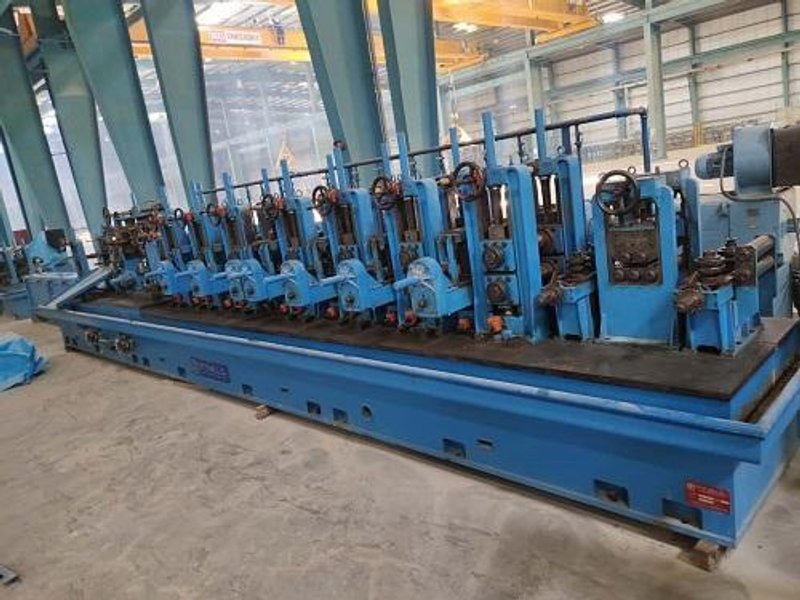

TUBE MILL with (3) -DC Motors
Universal Driven
Single Point Adjustment

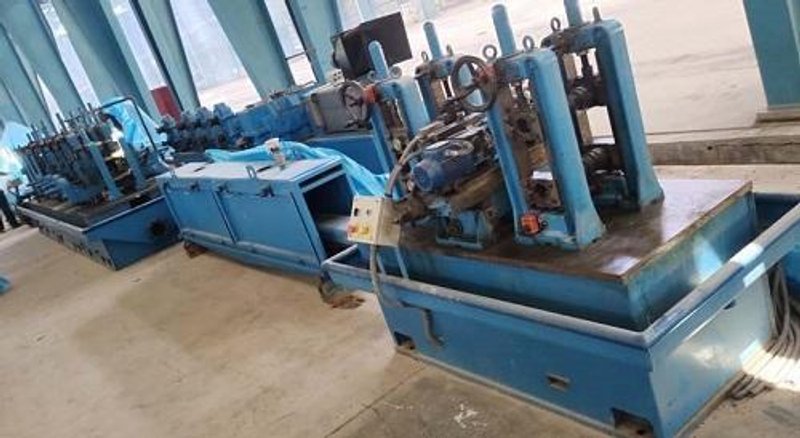

FORMING SECTION
1 - Entry Side Guide Rolls & Vertical Stand
4 - Breakdown Stands
6 - Idle Side Rolls
3 - Driven Fin Stands
WELDING SECTION:
1 - Seam Guide Stand
1 - 3-Roll Weld Box
1 - Scarfing Station
SIZING SECTION
3 - Driven Sizing Stands
3 - Idle Side Rolls
1 - Straightener
With Turkshead 4-Roll Stands

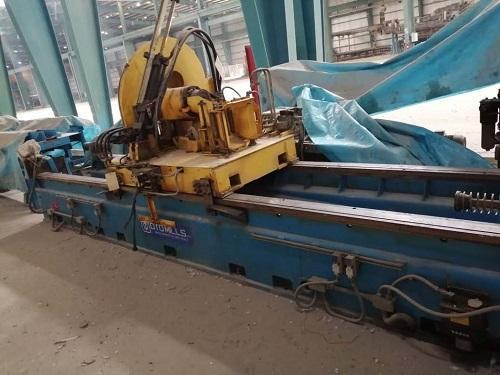

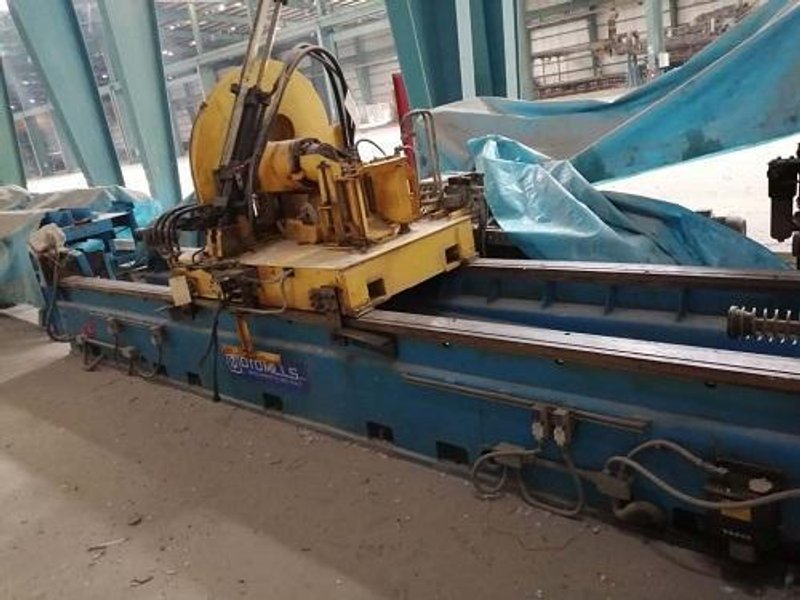

FLYING CUT OFF SAW
MODEL TCGH 140
RELIANCE CONTROLS, SIEMENS S7 PLC
|
