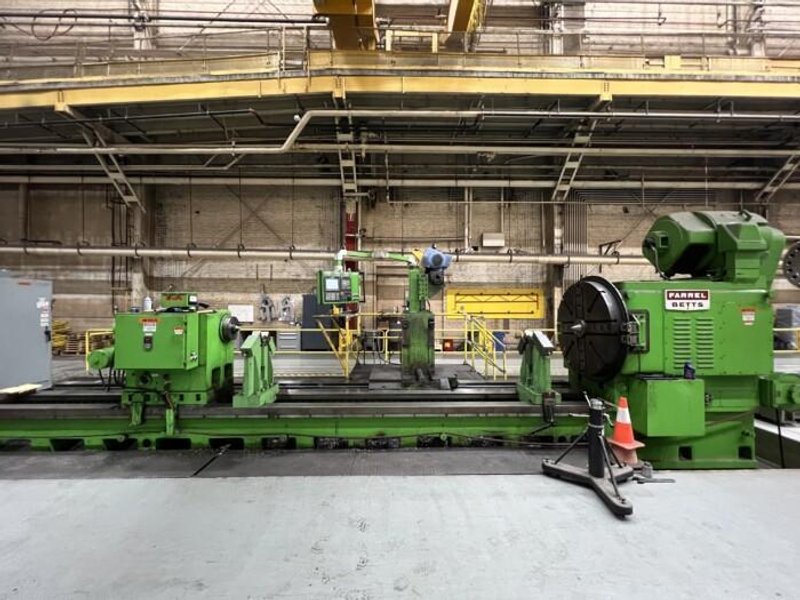

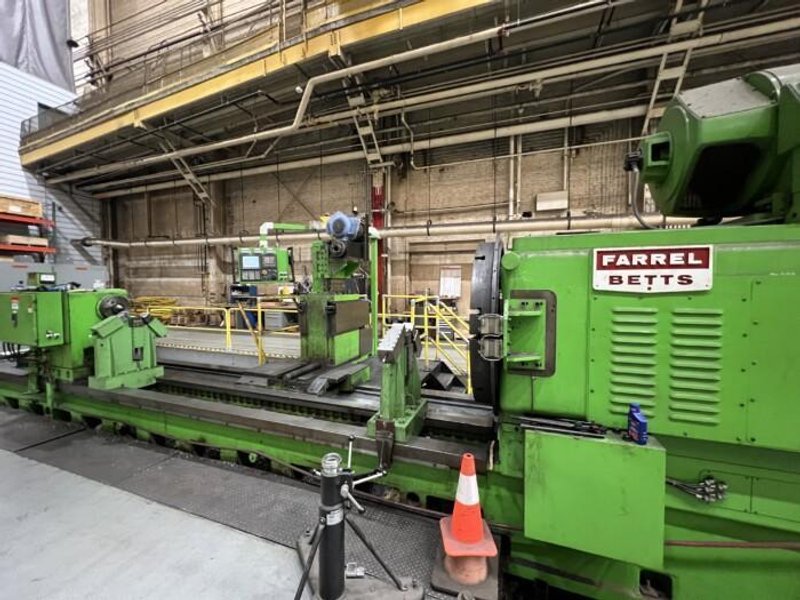

Farrel 56" x 240" CNC Lathe w/ Live Spindle & C Axis

Farrel 56" x 240" CNC Lathe w/ Live Spindle & C Axis

Name: Farrel 56" x 240" CNC Lathe w/ Live Spindle & C Axis
Brand: FARREL
SKU: 20202-IS
Availability: InStock

Brand

FARREL

Location

Not specified

Specifications
Files & Videos

Description

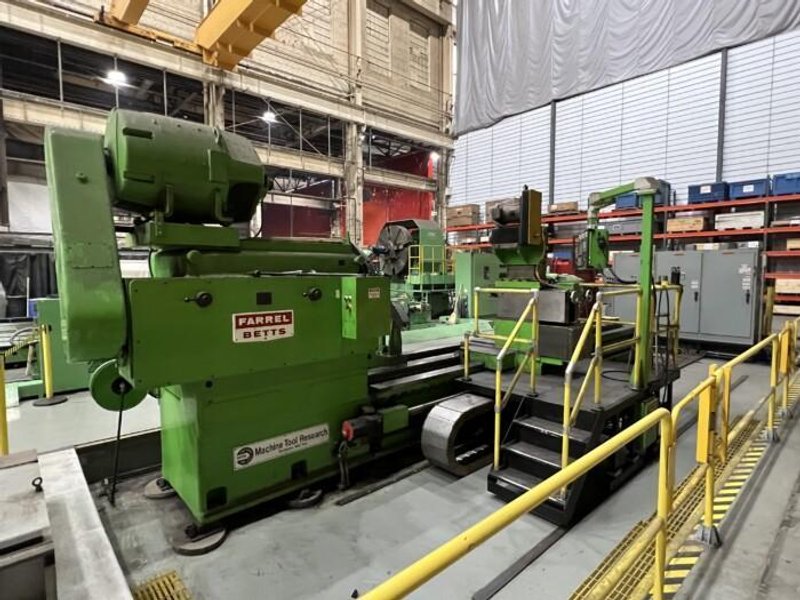

Product: Farrel 56" x 240" CNC Lathe w/ Live Spindle & C Axis
Model:
Stock #: 20202-IS
Serial No.: 14M1485
Year: 2015 Rebuild & Retrofit

Specifications:


Swing Over Bed Ways	56"
Swing Over Carriage	45"
Distance Between Centers	240"
Maximum Weight Capacity	50 Tons (100,000 Lbs.)
Spindle Speeds	2 - 256 RPM
Spindle Motor	75 HP
Faceplate Diameter	48" (4 top jaws)
Cross Slide Travel	15"
Tool Slides (2)	2" Wide (KM, CAPTO, etc.)
Tool(s) Slide Travel	12"
Quill Diameter	12"
Quill Travel	12"
Milling Spindle Speeds	0 - 500 - 1000 (10 HP)

Equipped With:

Fanuc 0i-TD CNC Control (2015)

Heidenhain Linear Scales

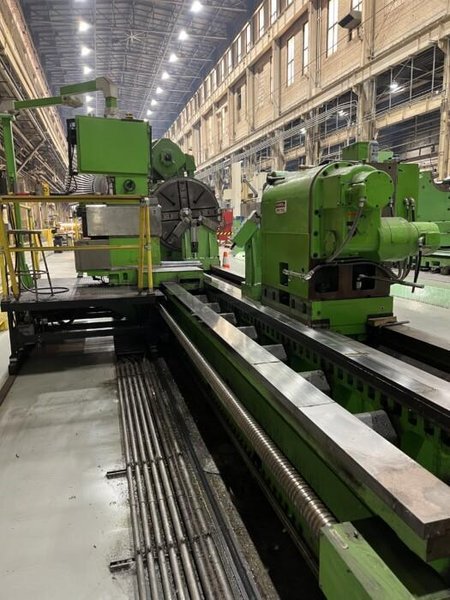

4 Bed Ways (Carriage Can Pass the Tailstock)

75 HP Spindle Motor w/ Encoder (Special low speed option allows the spindle to index slowly for the operator to line up his work by eye to the mill. Once positioned properly, the face plate can be clamped in position for linear milling with the Z carriage axis. Using the spindle positioning option in the control, the position of the faceplate is displayed for reference)

Ballscrews on Carriage & Cross Slide

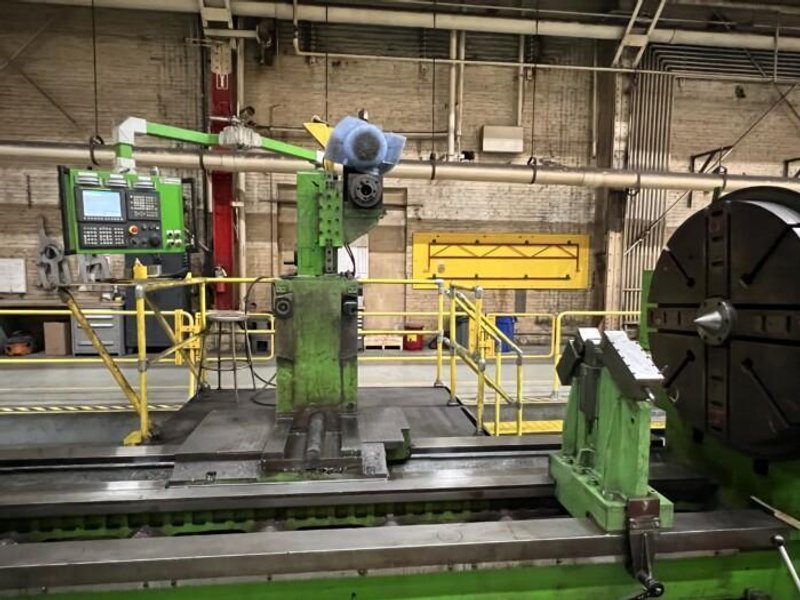

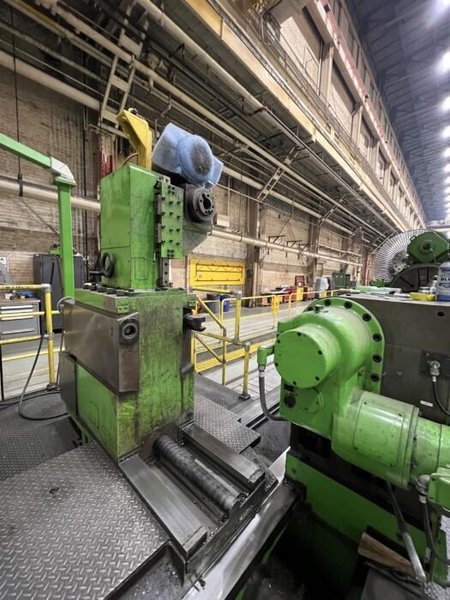

Y Axis Milling Tower w/ 10 HP Spindle (manual 10″ handwheel adjustment)

(2) 2″ Wide Tool Slides

*Complete MTR (OEM) Rebuild Specifications Available Upon Request.

*The machine has run very low production turbine components since the rebuild.
