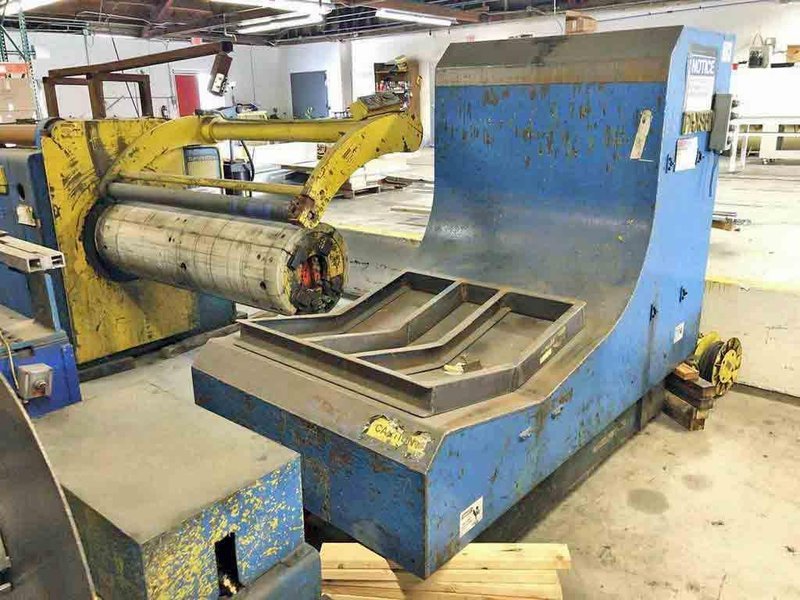

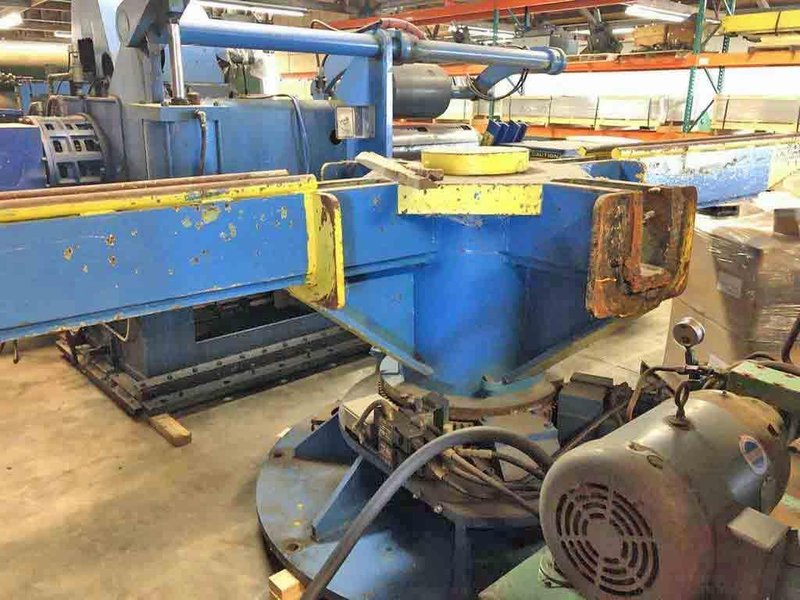

60" x 7.00" x 24,000# Cincinnati Forte Slitting Line (14296)
Brand
Category
Model
60" x 7" x 24,000#
Stock #
14296
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width of Workpiece | 60 inches |
| Max Thickness of Workpiece (in.) | 0.119 inches |
|
60" x 7.00" x 24,000# Cincinnati Forte Slitting LinE

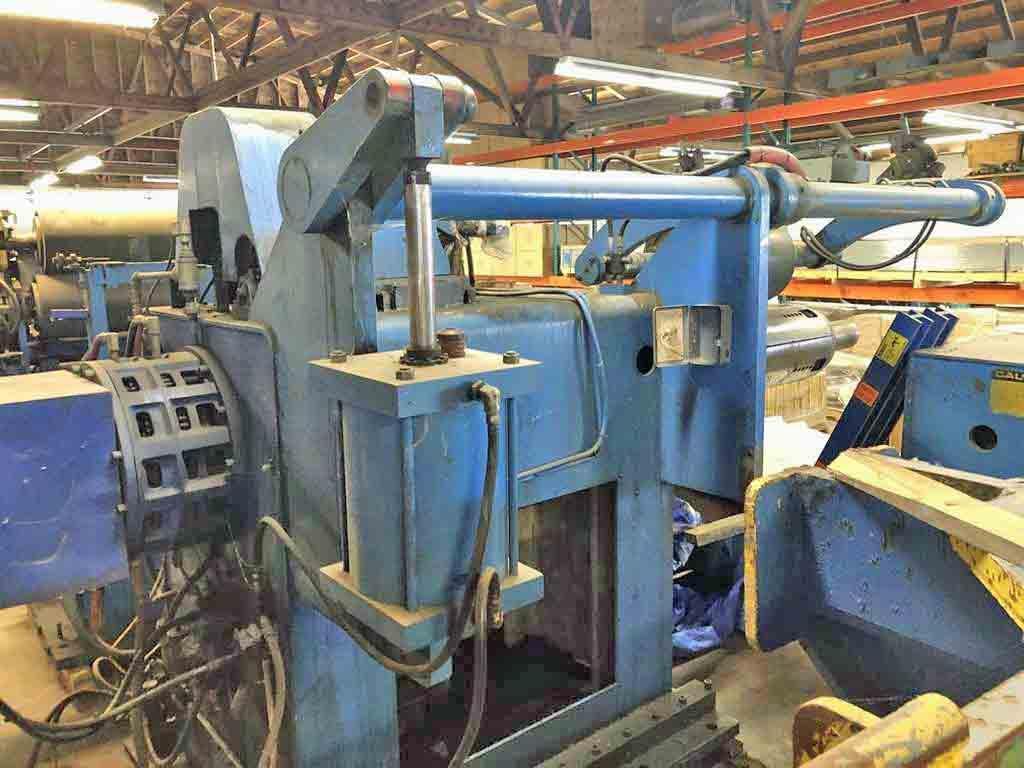

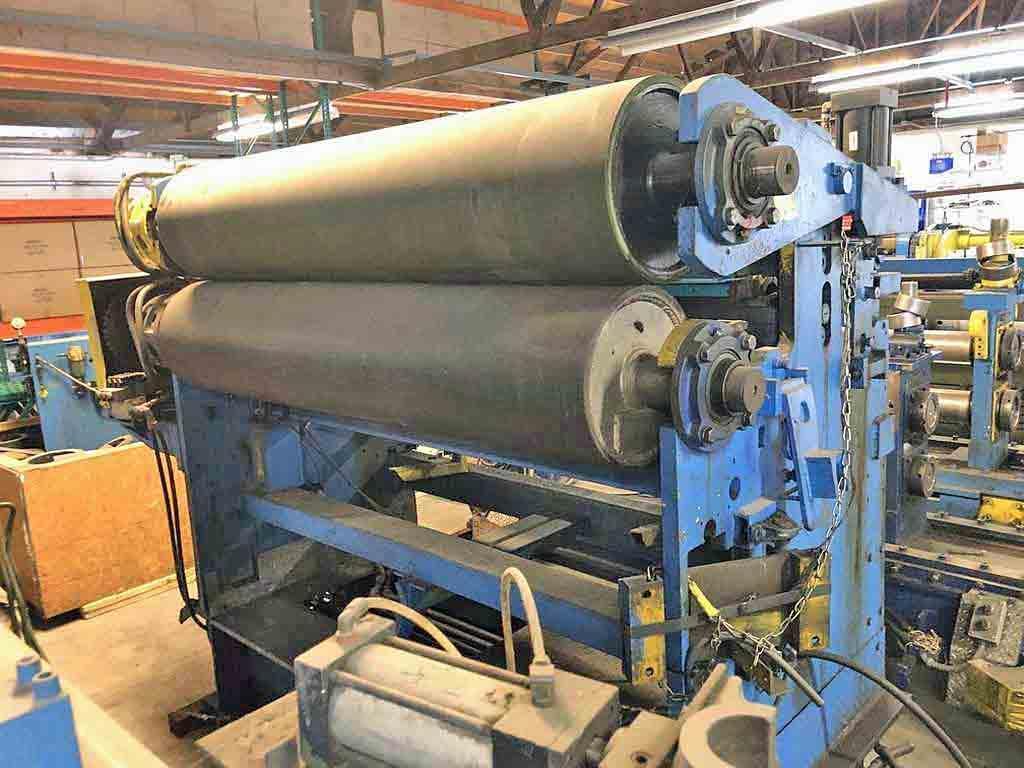

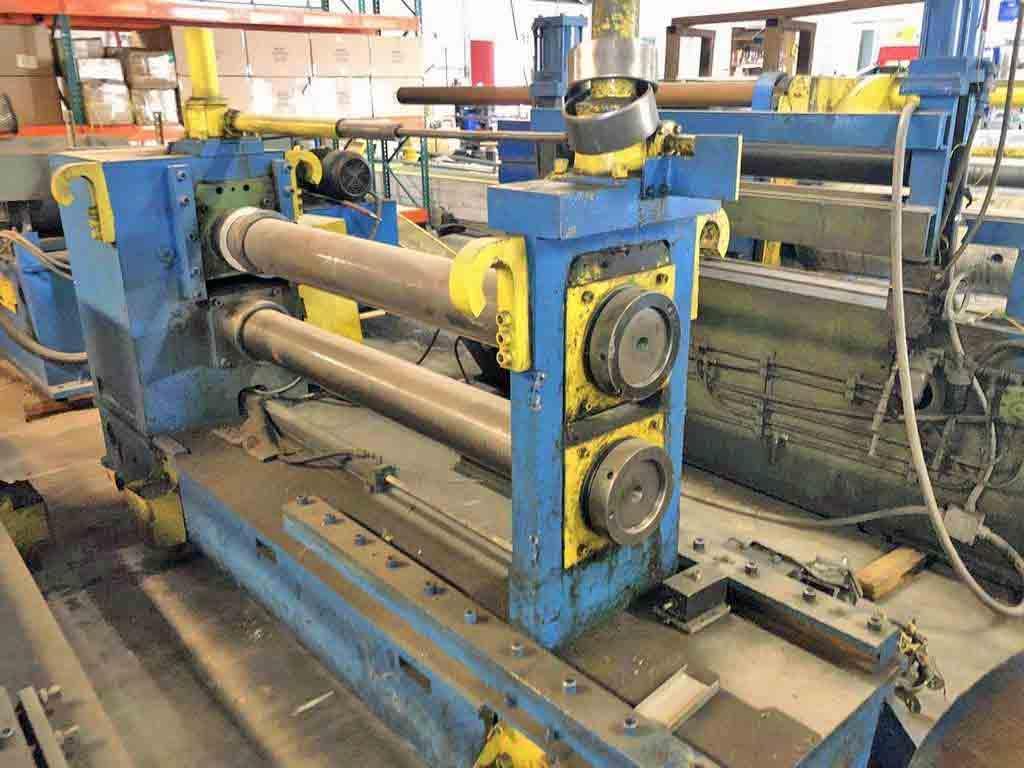

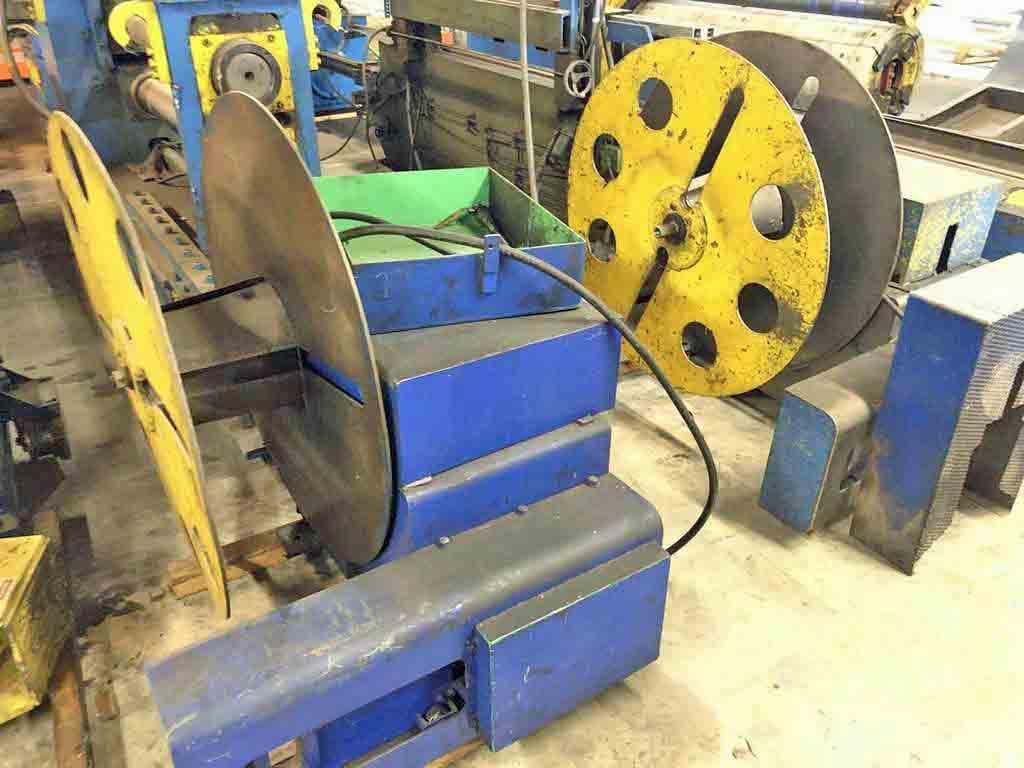

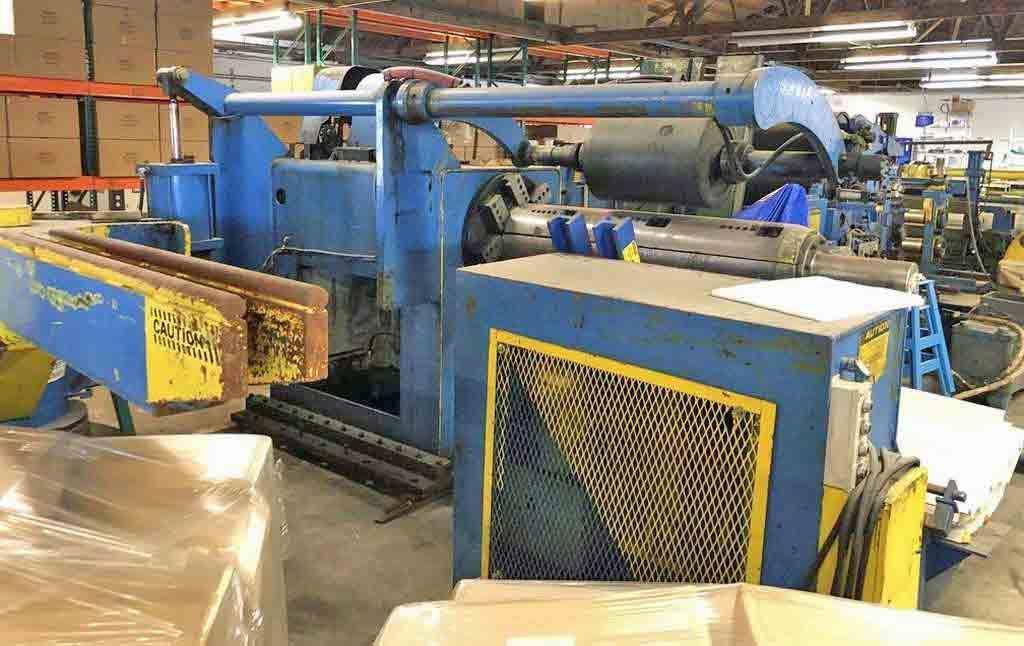

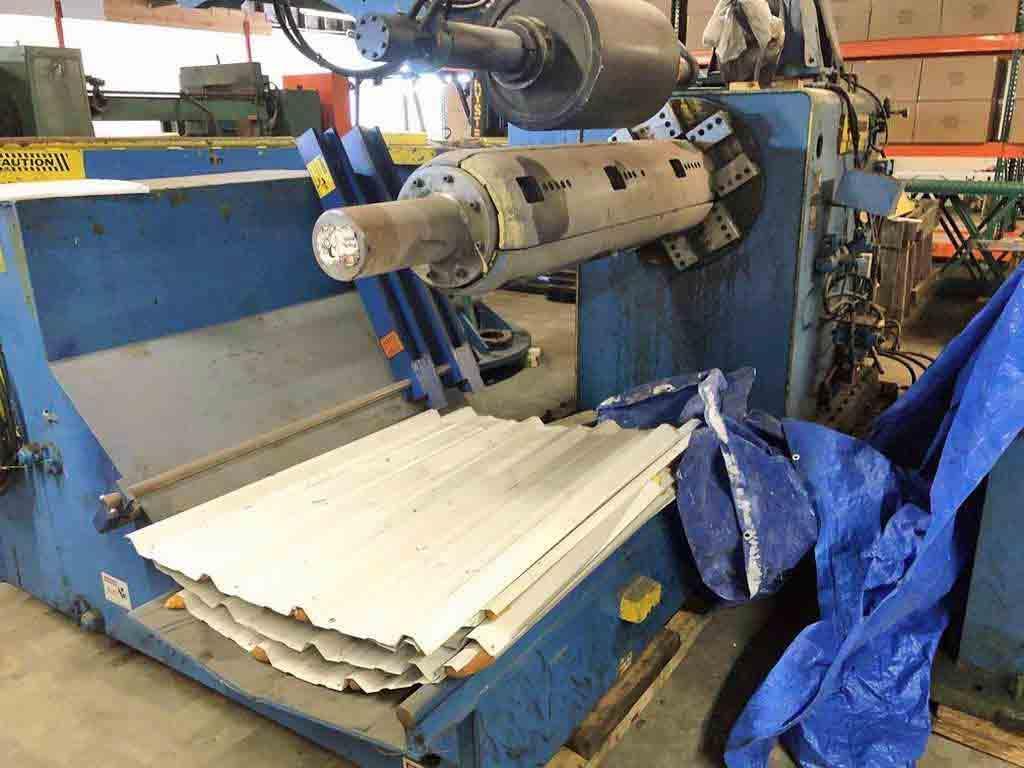

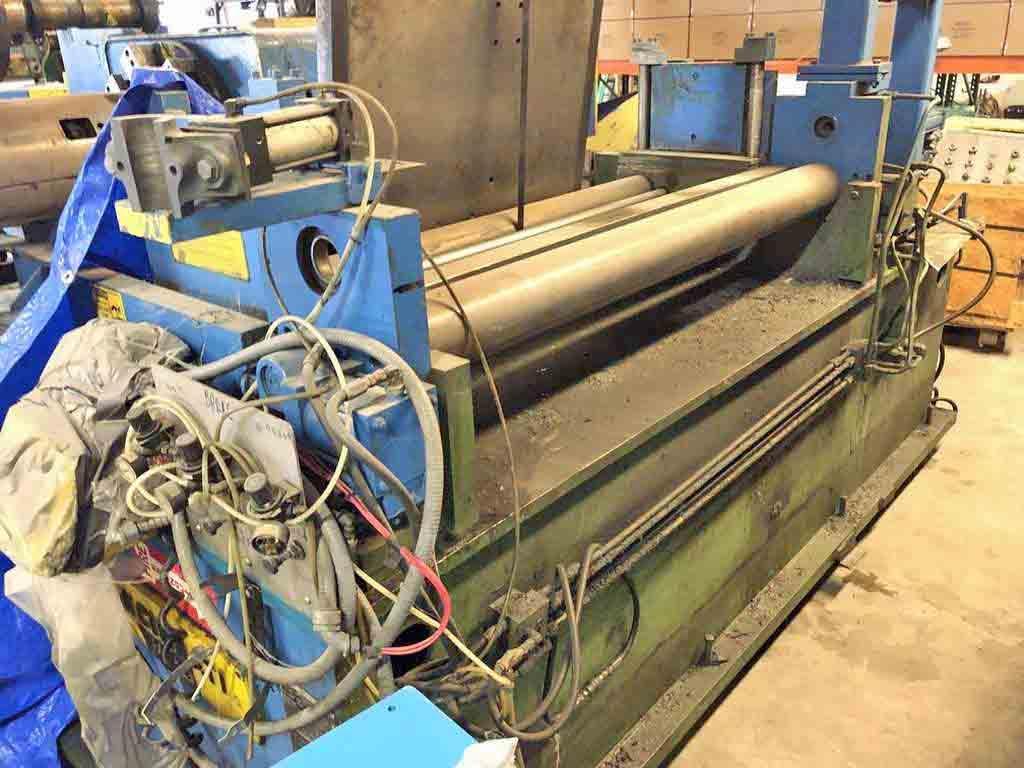

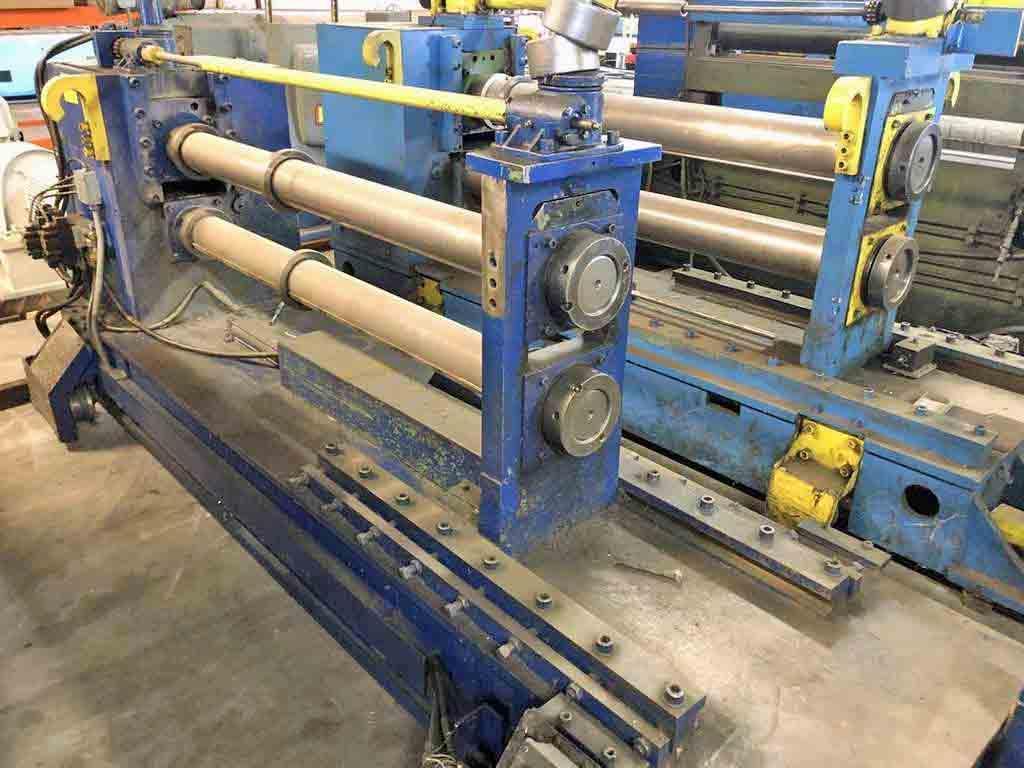

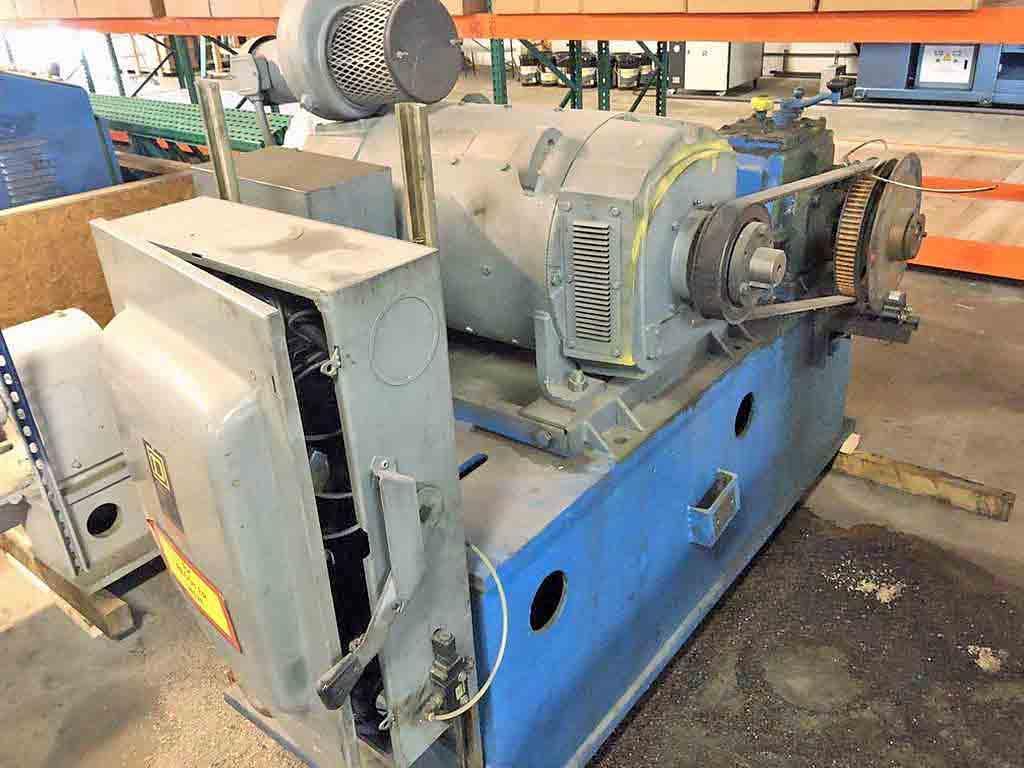

Stock # 14296 Materials: CRS, Alum. Max. Coil Width: 60" Thickness Range: 0.010" - 0.119" Max. Coil Weight (Entry): 24,000# Max. Coil Weight (Exit): 20,000# Max. Shear: 45,000 PSI Max. Yield: 45,000 PSI Coil I.D. (Entry): 16" - 24" Coil I.D. (Exit): 16" / 20" & 24" Max. Coil O.D.: 60" Line Direction: Left to Right Mode of Operation: Driven Line Speed: 250 / 500 FPM Approx. Consisting of the following: -Entry Turnstile: Four (4) Arms x 25,000# per Arm Powered Rotation Slotted for C-Hooks -Entry Coil Car: Mast Type Floor Mounted Powered Lift and Traverse Self-Contained Hydraulics Machine Mounted Controls -Uncoiler: Single Mandrel Type Hydraulic Expansion Holddown with Powered Snubber Roll Wichita Water Cooled Brake AC Feedup Drive Slide Base Paper Winder -Outboard Support - A & B: Powered Extension / Retraction -Entry Unit: Extending Blade Peeler Manual Side Guides Powered Entry Pinch Rolls (incomplete) PVC Applicator Idler Pinch Rolls for PVC Application Rotary Crop Shear -Stationary Slitter Base: 20 HP AC Leeson Feedup Motor, 1750 RPM Renold Gear Reducer, 41.8/1 ratio 75 HP Baldor DC Motor, 1760 RPM, (New in 2001) Powered Head Lock -Two (2) Slitter Heads: Injector Type Powered Traverse Powered Top Arbor Adjust Powered Outboard Retraction "Over the Arbor" design for slitting widths between 48 - 60" Head #1 - 5" Diameter Arbors Head #2 - 7" Diameter Arbors -Pit Section: Inspection Table Powered Cross Over Table -Tension Stand: Combination Drag and Roll Type Strip Separator Arm "Drag" Type with two (2) Cylinders Two (2) 14" Diameter Tension Rolls Two (2) Wichita Water Cooled Brakes -Recoiler: 16" Dia. Drum Hydraulic Pushoff Hydraulic Expansion & Gripper Overarm Separator Assembly 150 HP Baldor AC Motor, 1150/2000 RPM Two (2) Speed Transmission, 2:1 and 1:1 ratios Bolt-on Risers for 20" & 24" -Exit Coil Car: Mast Type Floor Mounted Powered Lift and Traverse Self-Contained Hydraulics Narrow Coil Retainers Machine Mounted Controls -Exit Turnstile: Two (2) Arms x 20,000# Per Arm Powered Rotation Slotted for C-Hook Powered Lift / Retract -Two (2) Scrap Winders: Hydraulically Powered Manual Scrap Dump Level Wind -Electrical Controls: Main Operators Control Console Auxiliary Operators Control Console 75 HP DC Drive for Slitter Head (New in 2003) 150 HP DC Drive for Recoiler (New in 2001) -Slitter Tooling: Approx. Knife Count 80 - 0.250" x 5" ID 50 - 0.500" x 5" ID 59 - 0.250" x 7" ID (beveled) 47 - 0.250" x 7" ID (beveled) 58 - 0.250" x 7" ID Rubbers Spacers Shims Separator Tooling -Hydraulics System -Water Cooler -Removed and in Storage **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
