Features:

Retrofit With New CNC Controls In 1996
Siemens 840C CNC Control
Openside Design With Sliding Column
Ram With Milling Attachment
ROD800 Encoder & Brake for Table Indexing For Drilling & Tapping Operations



Serial Number
B186 / 50538
CAPACITY:

Table Diameter 248"


Maximum Swing 566.9"


Maximum Height Under Rail 204.7"


Maximum Turning height 192.91"


Ram Vertical Travel 98.42"


Column Travel 165.35"


Main Motor 150 HP


Table Speeds, 3-Ranges 0-25 RPM


Table Weight Capacity 250 Tons


Milling Spindle Motor 29.91 HP (22 KW)


Milling Spindle Speeds 50-400 RPM


Approximate Floor Space 756" x 594"


Approximate Overall Height 315"

Equipped With:
Siemens 840C CNC Control, New 1996
248" T-Slotted Table w/ 4-Top Jaws

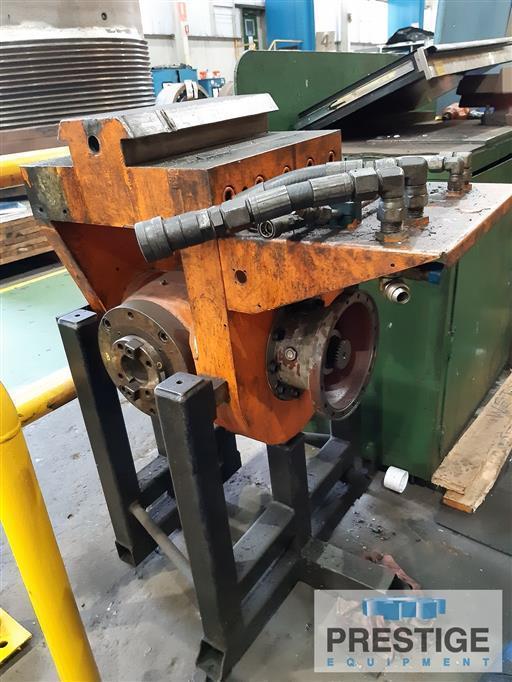

Ram W/ Milling Attachment
ROD800 Encoder & Brake for Table Indexing For Drilling & Tapping Operations




Features:

Retrofit With New CNC Controls In 1996
Siemens 840C CNC Control
Openside Design With Sliding Column
Ram With Milling Attachment
ROD800 Encoder & Brake for Table Indexing For Drilling & Tapping Operations
