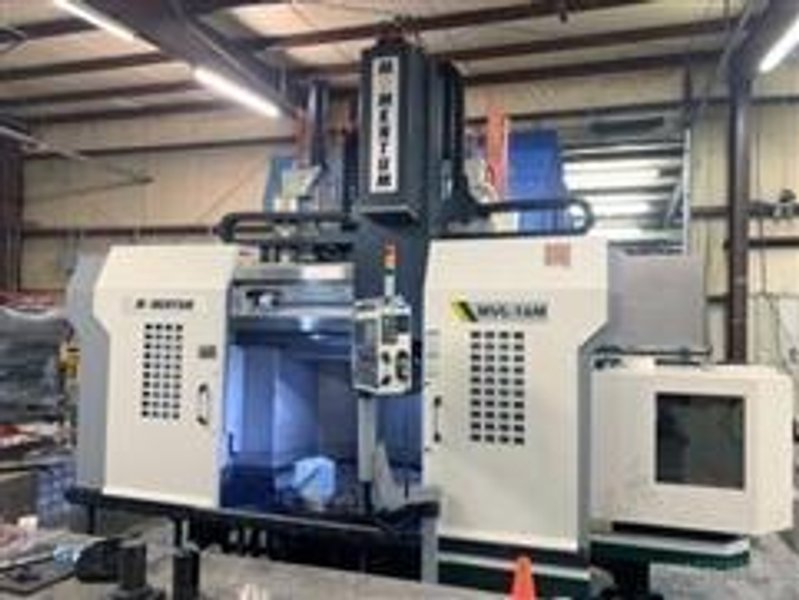

63" Momentum MVL-16M CNC Vertical Boring Mill With Milling

SPECIFICATIONS:
Table Diameter 62.99"
Max. Table Weight 22,046 Lbs.
Max. Table Torque 17,701
Boring Mill Jaws 4
Maximum Turning Diameter 78.74"
Maximum Height Under Ram Face 70.08"
Maximum Cutting Height 63.18"
Table Speeds Low / High Range 65 To 280 RPM
Milling Spindle Speeds 486-3000 RPM
Milling Spindle Taper #50
Max Milling Spindle Torque 604
Ram Diameter 10" X 10"
Ram Vertical Travel Z Axis 39.37"
Ram Horizontal Travel 45.87"
Rail Travel 35.43"
Feed Rate 0.039 To 78.4 IPM
Rapid Traverse 393 IPM
Floor Space R-L 161" x F-B 204"
Machine Height 213.78"
Machine Weight 36,800 lbs. Lbs.
Main Motor 73.7 / 60.3 HP / 60 HP T220/3/60
Milling Spindle Horsepower 29.5
Required Electrical Power 460/3/60



Equipped With:
Fanuc Oi-TF CNC Control
Ram W/ 16 Station Automatic Tool Changer
Live Milling Spindle
C-Axis Table
Right Angle Head
Coolant Through Spindle
Chip Conveyor
Full Enclosure


Note: Machine is in plant under power.
Less than 3,000 hours turning time.
