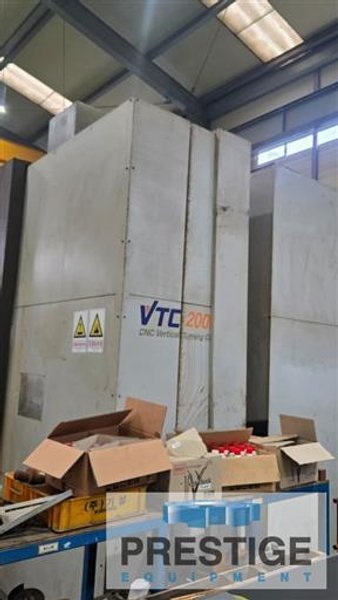

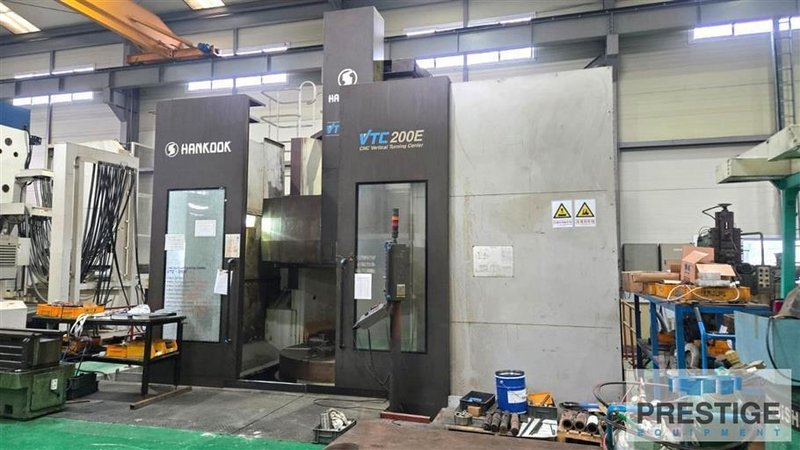

Hankook VTC 200E 78"/98" CNC Vertical Turning Center w/Milling
Brand
Category
Model
VTC 200E
Stock #
44595
Year
2010
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

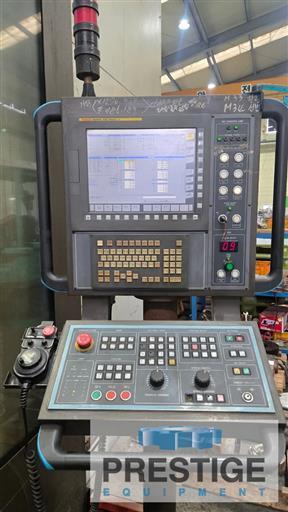

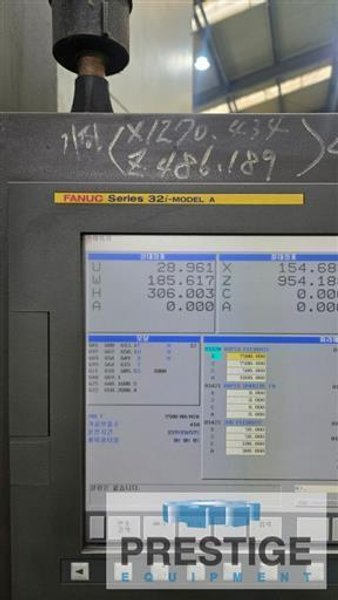

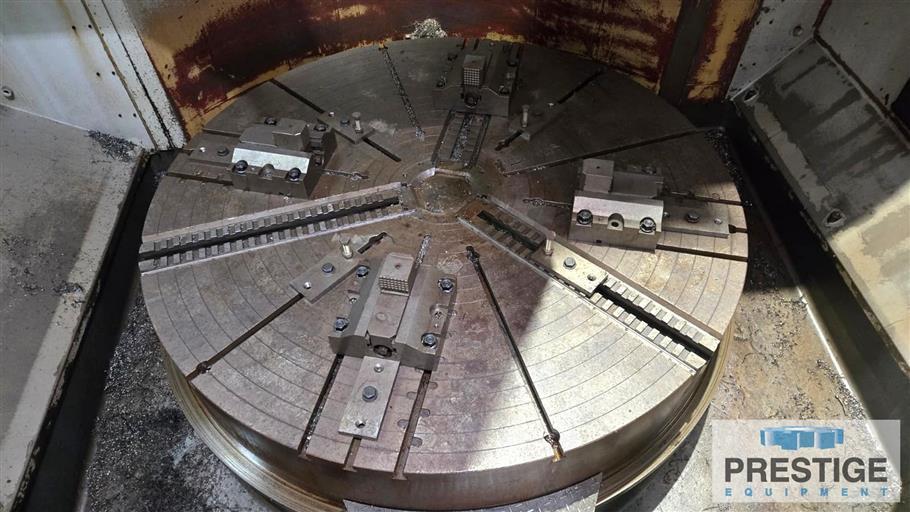

Table Diameter 78.74" Maximum Cutting Diameter 98.42" Maximum Swing 106.29" Maximum Turning Height 78.74" Z-Axis, Vertical Ram Travel 33.5" Vertical Travel of Cross Rail 31.5" Live Spindle Milling Speeds 0 to 3000 RPM Live Spindle Milling Motor 25 HP /30 HP Ram Cross Section...................... 9.44" x 9.44" 9.44" x 9.44" Table Speeds ................... 1 to 200 RPM Table Speed Ranges 2 Steps Table Indexing 360,000 degrees Table Weight Capacity 26,400 Lbs Table Motor 60 HP / 73 HP Equipped With: Fanuc System 32i-A CNC Control Linear Scales 24-Station Automatic Tool Changer (12 Turning & 12 Milling) C-Axis for Milling & Drilling Operations Chip Conveyor 73 HP Main Table Drive Motor |
