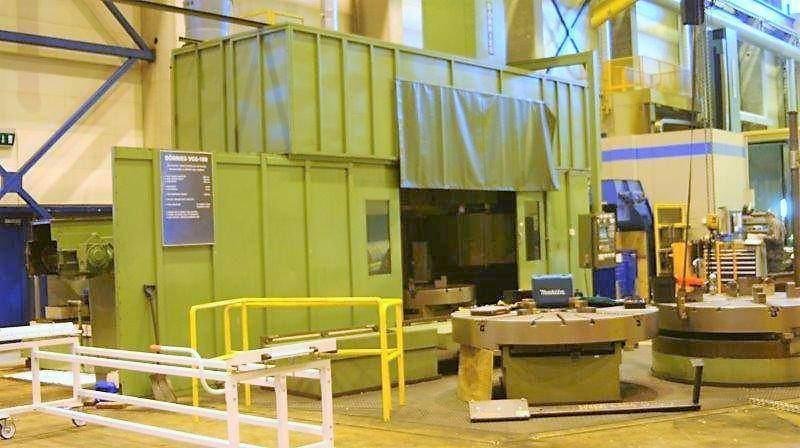

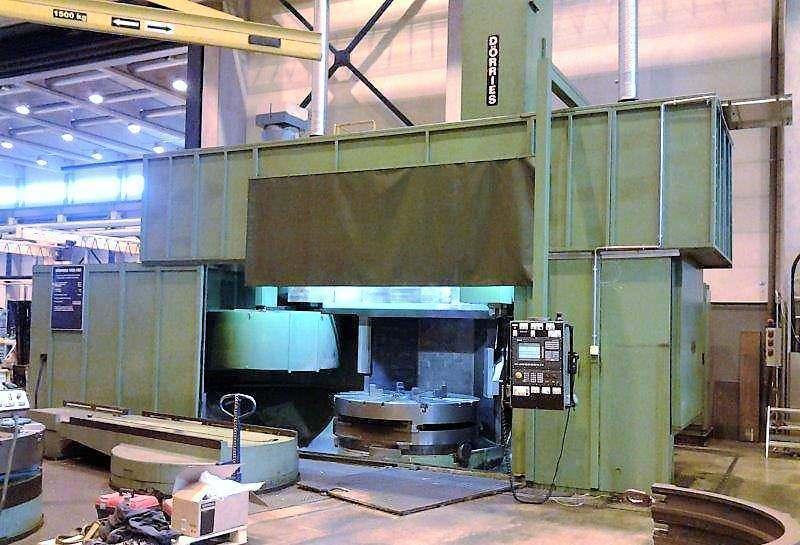

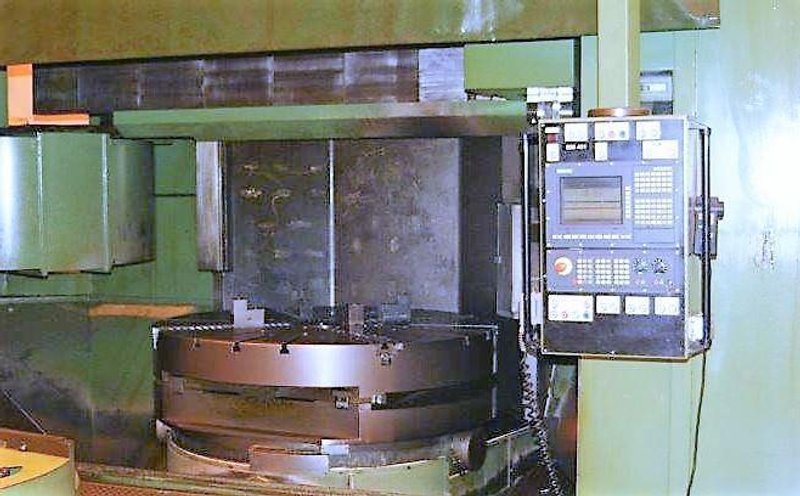

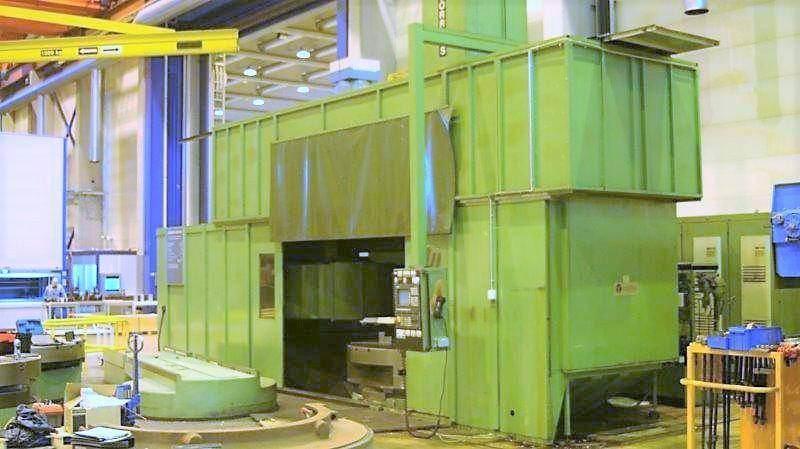

Dorries VCE 180 80" CNC Vertical Boring Mill W/Milling & Pallet Shuttle

Brand
DORRIES
Category
Boring Mills
Type
Boring Mills, Vertical, CNC (Including VTL)
Model
VCE 180 Milling
Stock #
25307
Year
2005
Condition
Not specified

Location

Not specified
REQUEST FINANCING
CAPACITY:
Pallet Diameter 80.3"
Maximum Swing 86.6"
Maximum Turning Height 70.86"
Horizontal Travel of Ram Head 51.96
Vertical Travel of Ram Head 59.05"
Table Speeds 2.5-280 RPM
Table Weight Capacity 26,400 Lbs.
Feeds .004 - 236 IPM
Main Motor 100 HP
Spindle Motor 20 HP
Spindle Speeds 45 - 1350 RPM
Floor Space 393" x 381"
Height 267"
Approximate Weight 94,772 Lbs.



Equipped With:

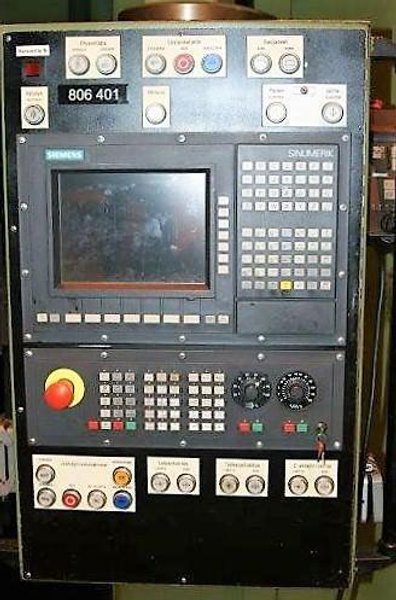

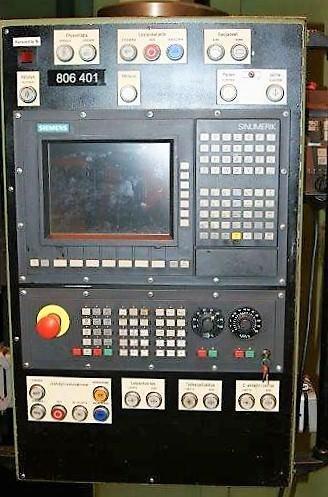

Siemens Sinumerik 840C CNC Control (2015 Retrofit)

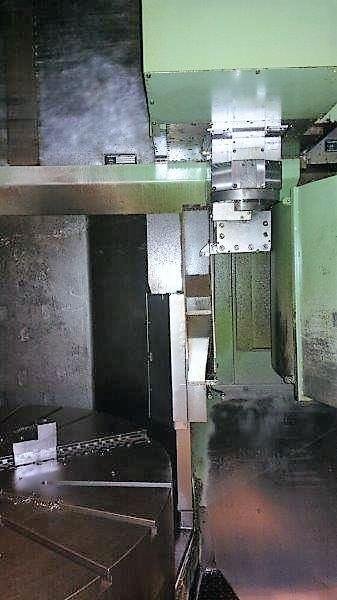

Vertical Ram with Live Spindle

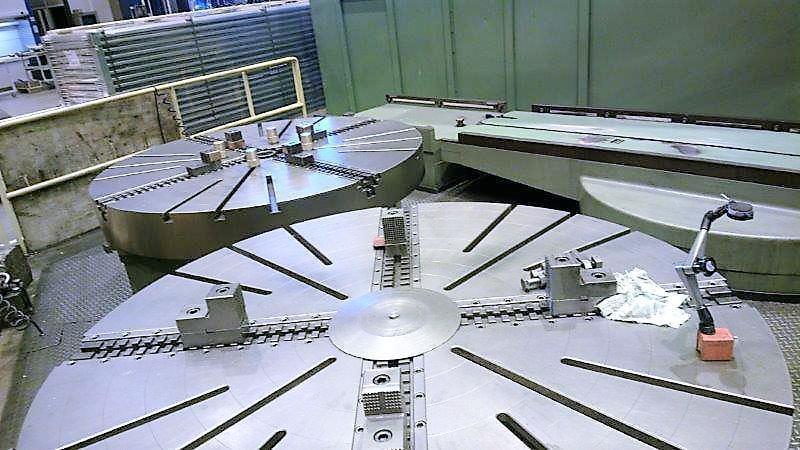

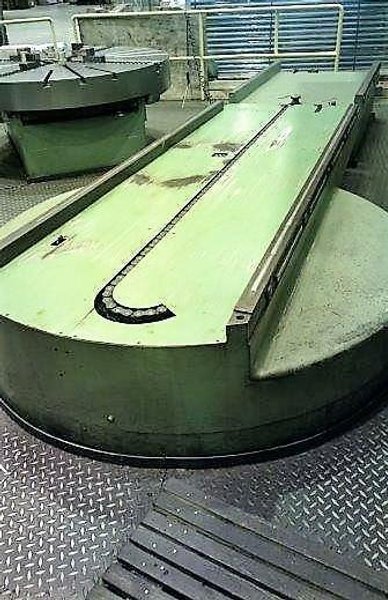

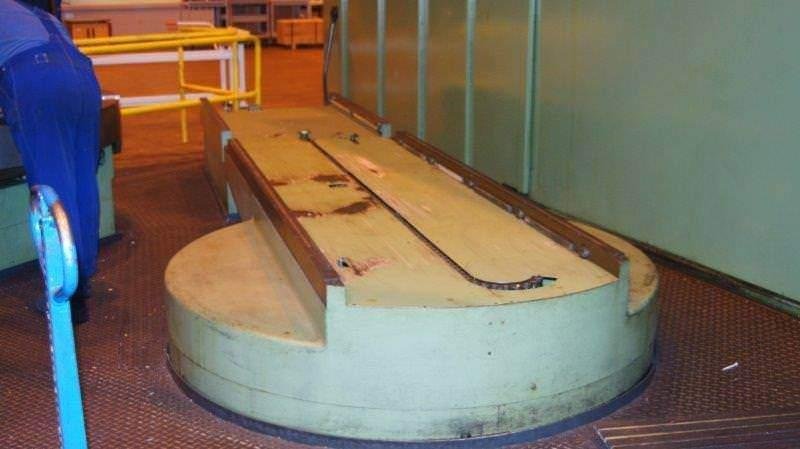

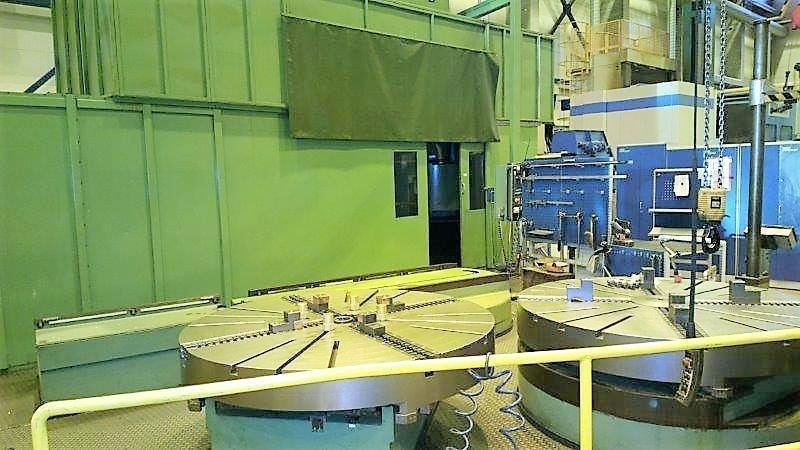

Pallet Changer (3-Pallets)
16-Station Automatic Tool Changer

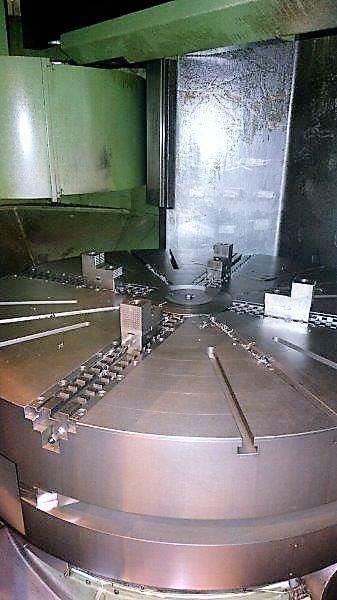

C-Axis Table


NOTE: View Video On Our Website www.prestigeequipment.com
