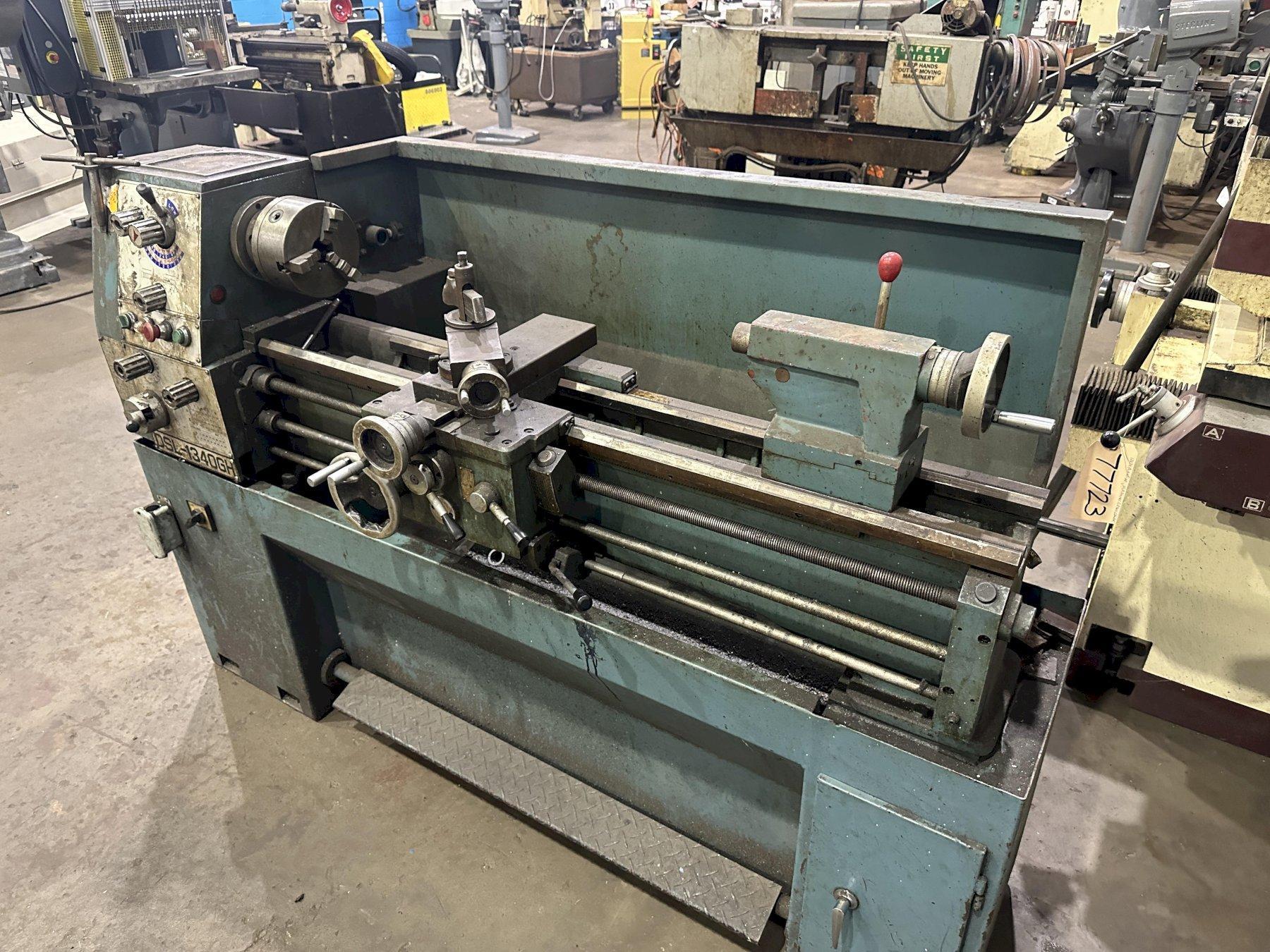

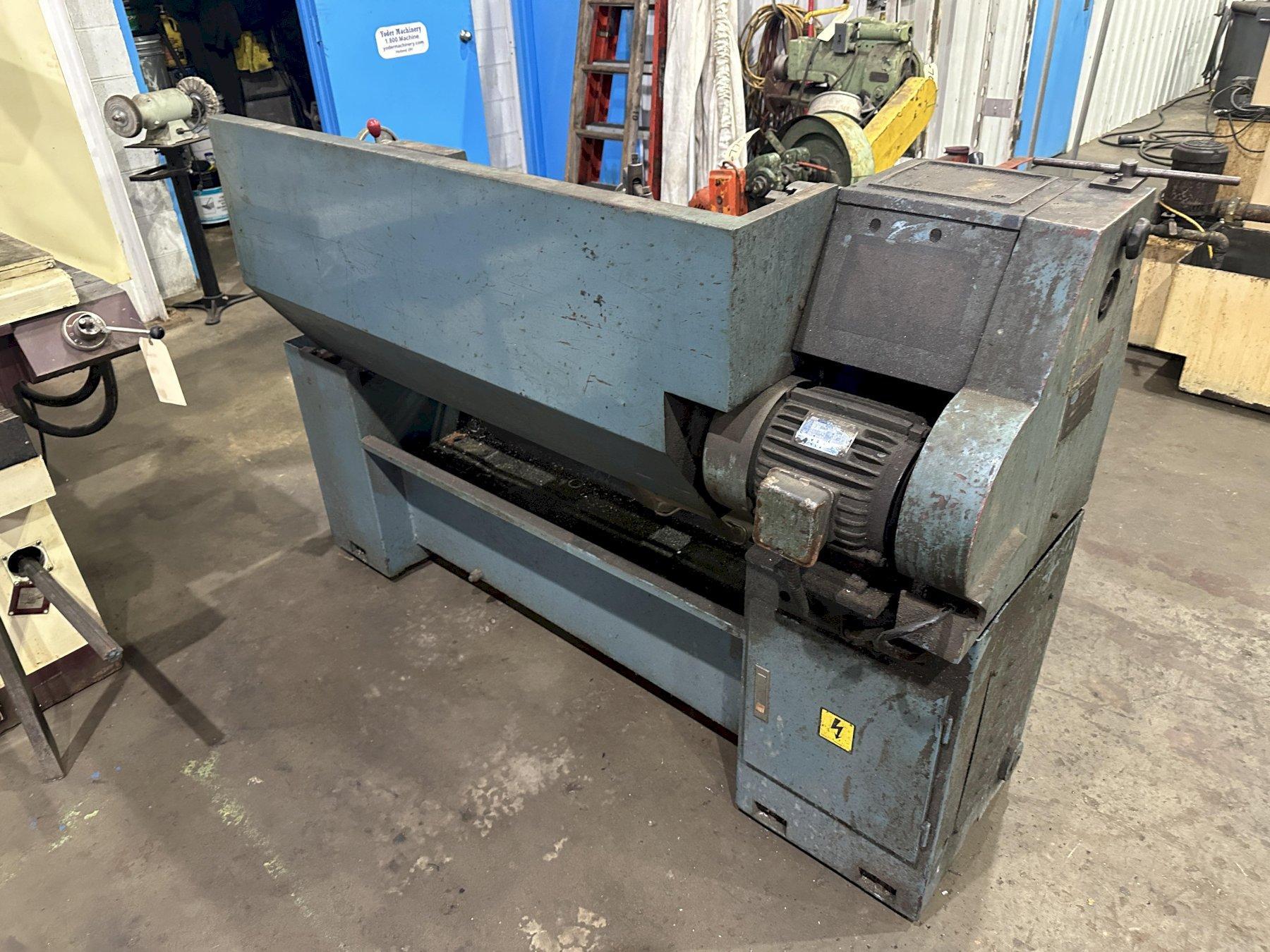

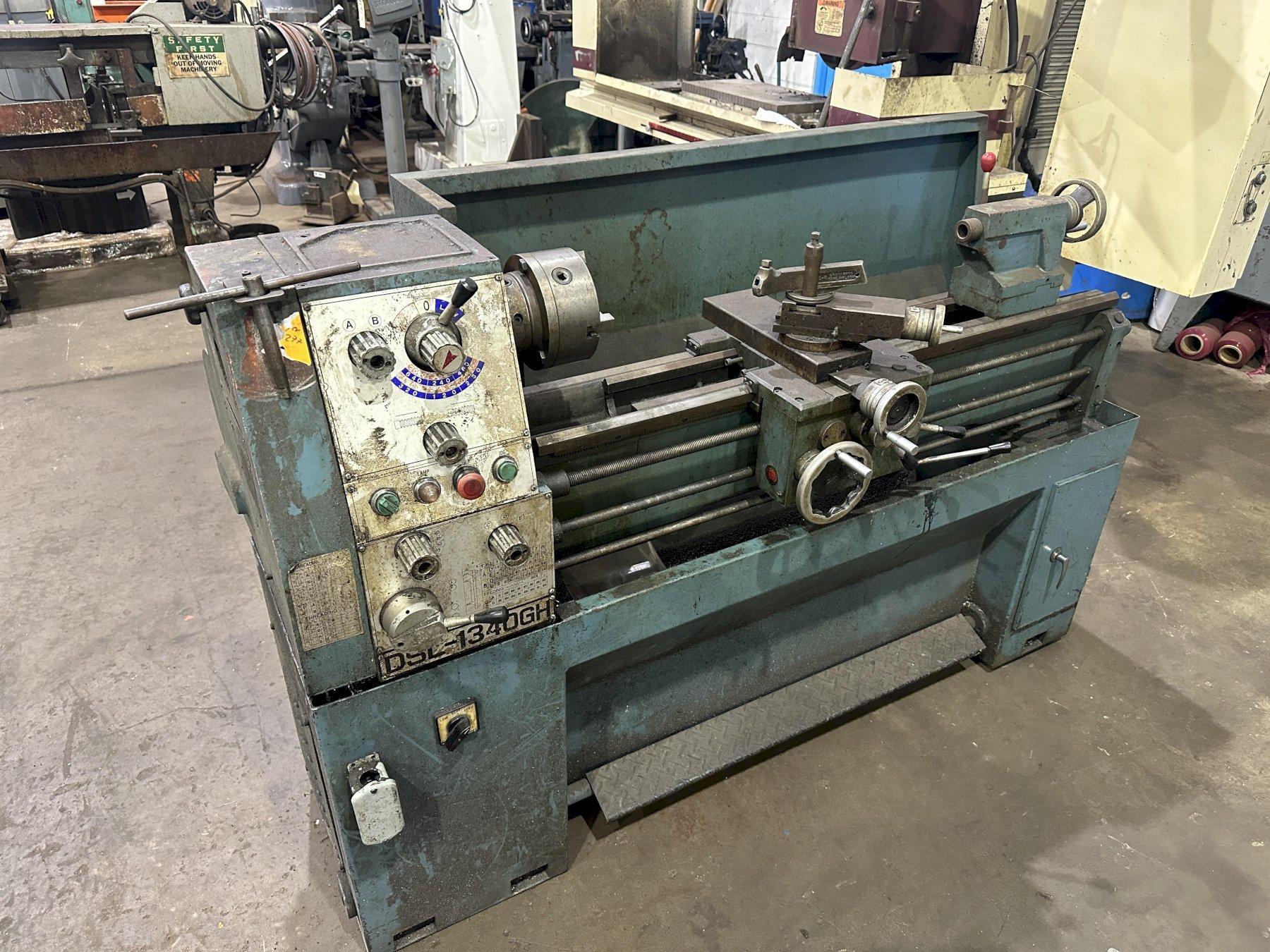

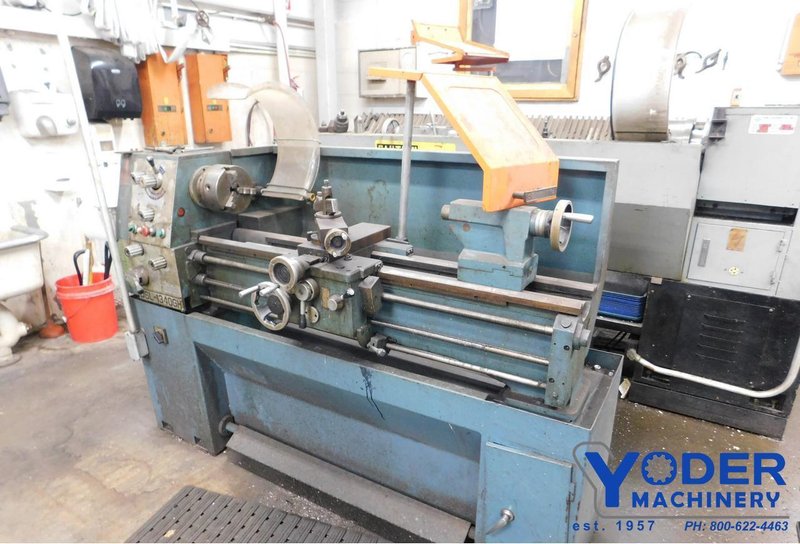

13" X 40" DARSIN DSL1340 GH GAP ENGINE LATHE: STOCK #77716
Brand
Not specified
Category
Type
Model
DSL1340
Stock #
77716
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL ..................... 78100 MODEL ...................... DSL1340 SWING OVER WAYS ............ 13" SWING IN GAP ............... 18-3/4" LENGTH OF GAP .............. 8-1/8" SWING OVER CROSS SLIDE ..... 7-25/32" DISTANCE BETWEEN CENTERS ... 40" SPINDLE SPEEDS ............. 40 TO 2000 RPM DIAMETER OF SPINDLE HOLE ... 1-1/2" ENGLISH THREADS ............ 4 TO 28 TPI METRIC THREADS ............. .25 TO 7.5 MMPI FEEDS LONGITUDINAL ......... .005 TO .0057 IPE TAPER IN TAILSTOCK ......... 3 MT COOLANT WITH CHIP PANS ..... YES MAIN MOTOR ................. 2 HORSEPOWER |
