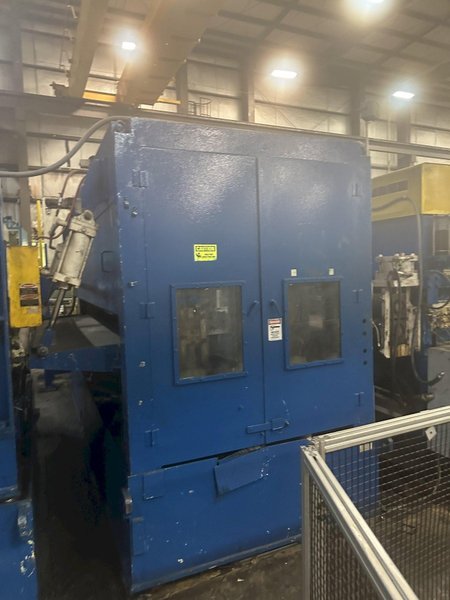

72" X .128" X 70,000 # AUTOMATIC FEED CO. SERVO FEEDLINE WITH HER-VOSS LEVELER. STOCK # 1162623

72" X .128" X 70,000 # AUTOMATIC FEED CO. SERVO FEEDLINE WITH HER-VOSS LEVELER. STOCK # 1162623

Name: 72" X .128" X 70,000 # AUTOMATIC FEED CO. SERVO FEEDLINE WITH HER-VOSS LEVELER. STOCK # 1162623
Brand: AUTOMATIC FEED
SKU: 1162623
Availability: InStock

Brand

AUTOMATIC FEED

Location

Ohio

Specifications
Files & Videos

FEED SYSTEM:

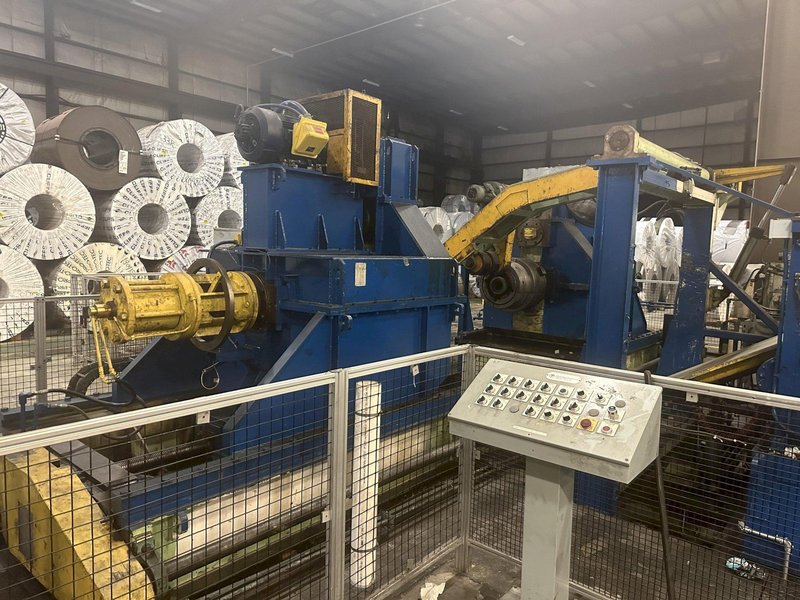

PIT COIL CAR......................: YES
DOUBLE STUB UNCOILER..............: YES
CAPACITY..........................: 70,000 LBS
HYDRAULIC EXPANSION...............: YES
EXPANSION RANGE...................: 20" - 24"
COIL O.D. CAPACITY................: 86"
HOLD DOWN ROLL....................: YES
DRIVE MOTOR.......................: 15 HP DC
SLIDING BASE ON EACH HEAD.........: YES
PEELER/PINCH ROLL UNIT............: YES
CROP SHEAR........................: YES
HYDRAULIC DOWNCUT TYPE............: YES

MASHING UNIT:

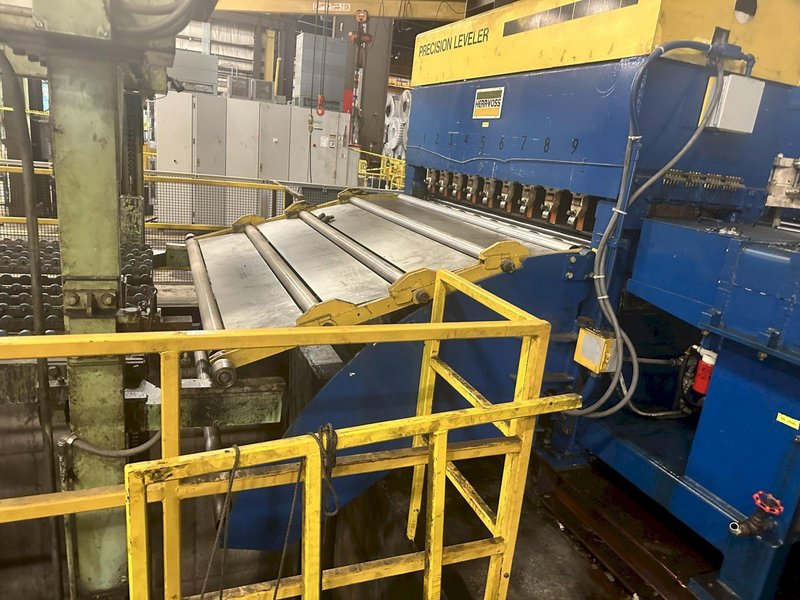

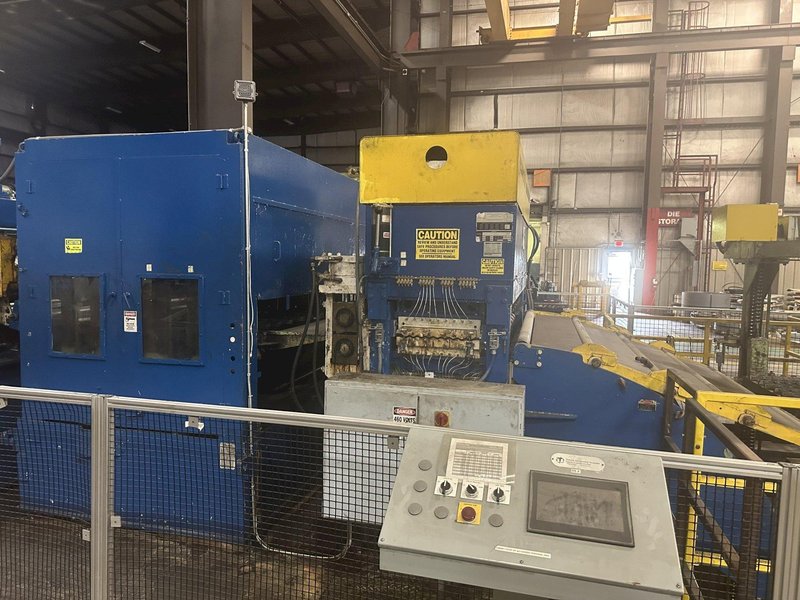

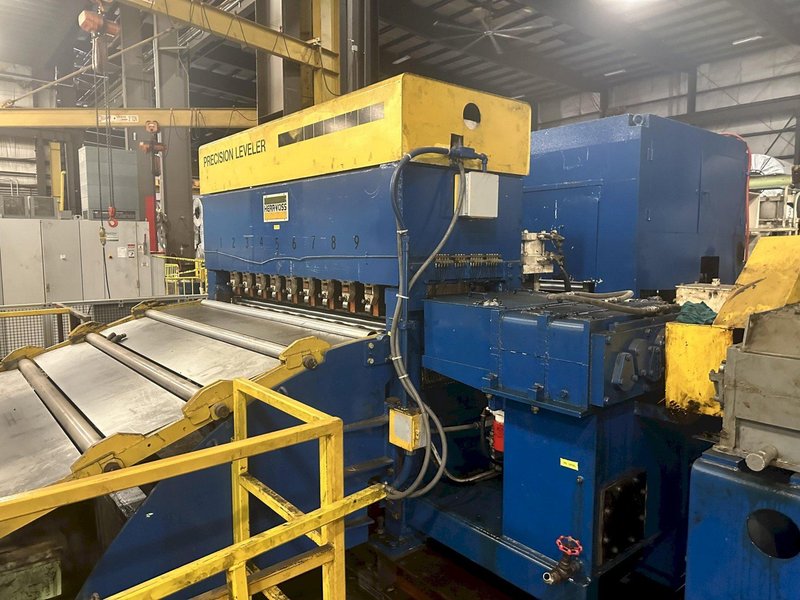

HERR VOSS 6-HI PRECISION LEVELER
MODEL.............................: VKL 84/1.750-19/9 6-HI, LH
CAPACITY..........................: 72"
THICKNESS.........................: .023" - .128" @ 60,000 PSI YIELD
WORK ROLL SIZE....................: 84" X 1.75" DIAM.
# OF WORK ROLLS...................: 19
# OF BACK UP ROLLS................: 9 FLIGHTS

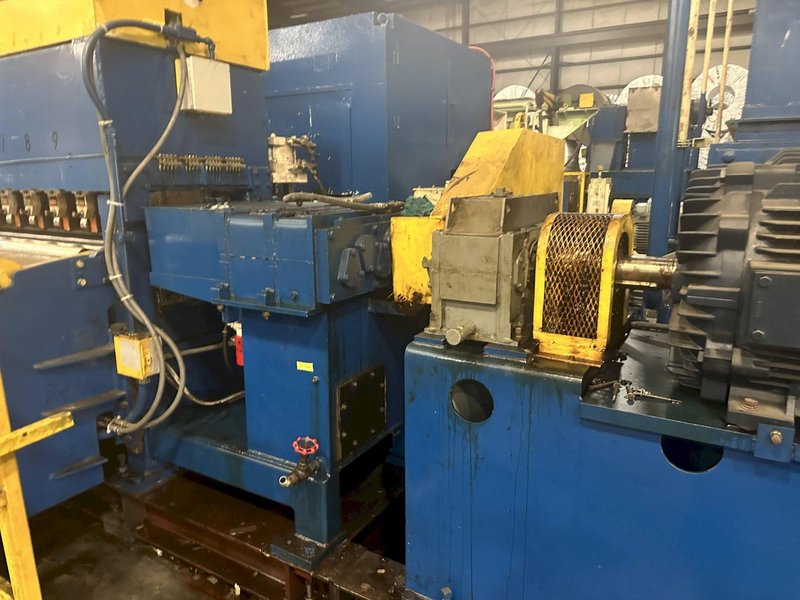

MOTOR SIZE........................: 200 HP
RPM...............................: 1750
WEIGHT............................: APPROX 26,000 LBS

LOOPING PIT

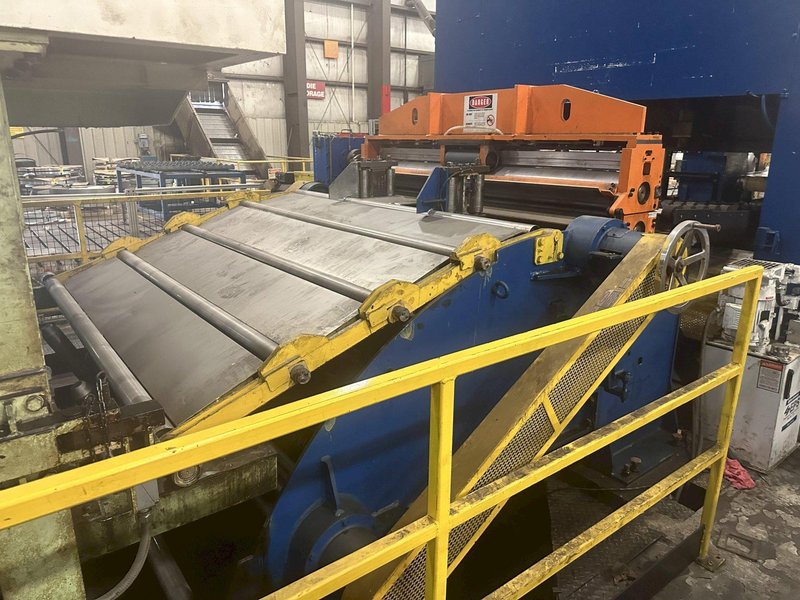

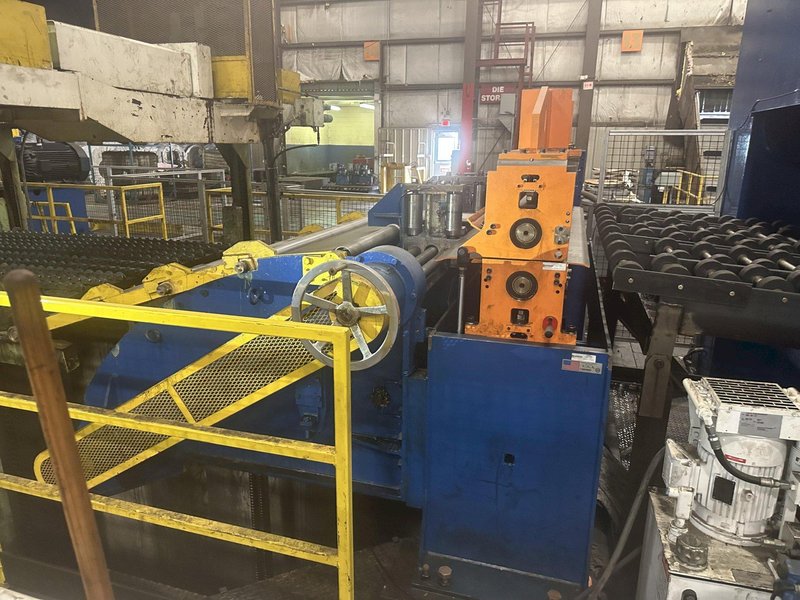

ROLL FEED UNIT
FEEDING LENGTH....................: 2" MIN TO 120" MAX
LINE SPEED........................: APPROX 80 IN/MIN
