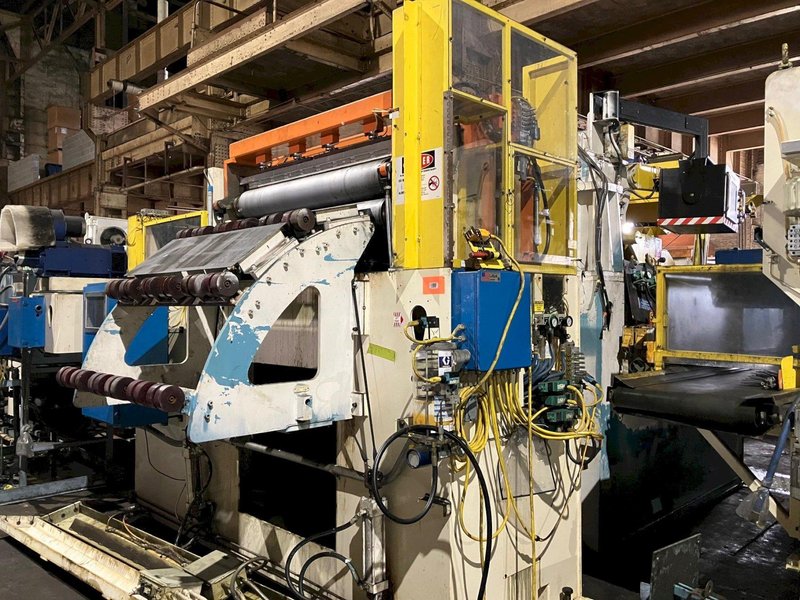

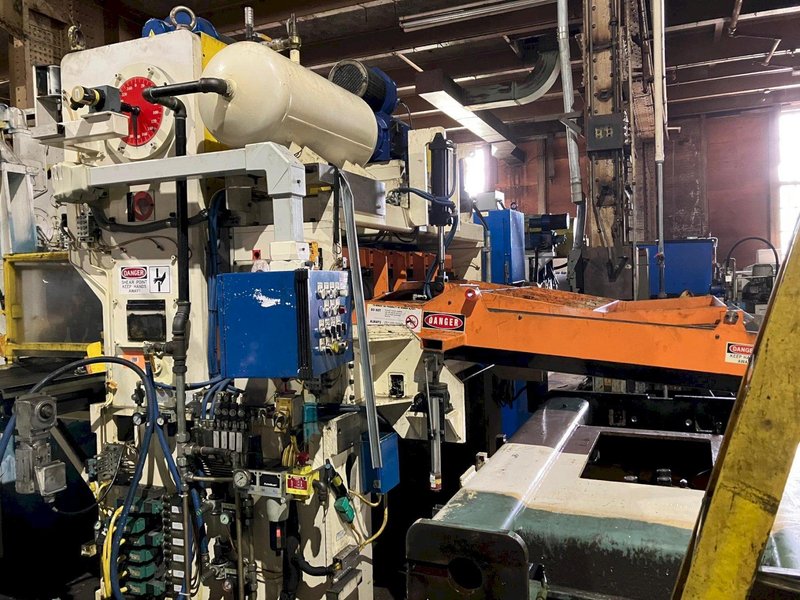

50,000 lbs x 48" x .125" Automatic Feed Co. Coil Feed Line, Uncoiler, Car, Peeler, Pinch Roll, Crop Shear, Straightener, Threading Table, Servo Feeder, Exit Chopper

Preliminary Specifications

Automatic Feed Company Coil Feed Line
Model: 504872
Year: 2000

50,000 lbs Coil Weight Capacity
48" Max. Width Capacity
72" Coil O.D.
10" Min. Width Capacity
.125" Max. Thickness at 48"
.177" Thickness at 24"
.020" Min. Thickness at 48"
2" - 36" Feeding Length
60 SPM
100 Feet per/min
Feeding Angle Adjustable
Right to Left Feed Direction
Controls - Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F

Material: CRS, HD Galvanized, Electro Galvanized

Line Consist of the Following

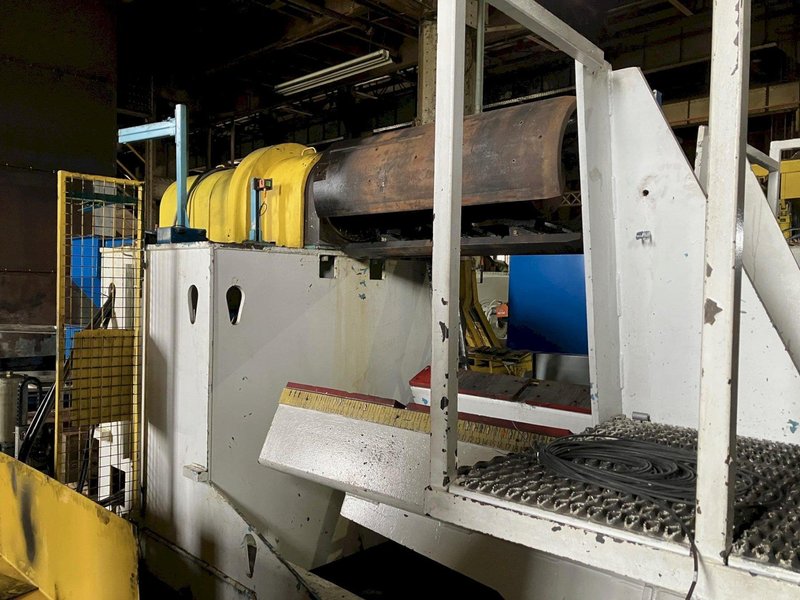

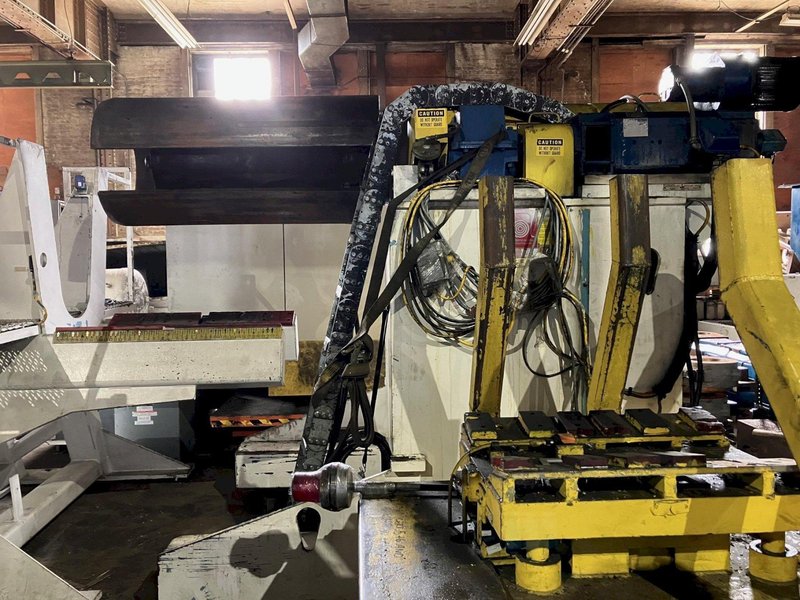

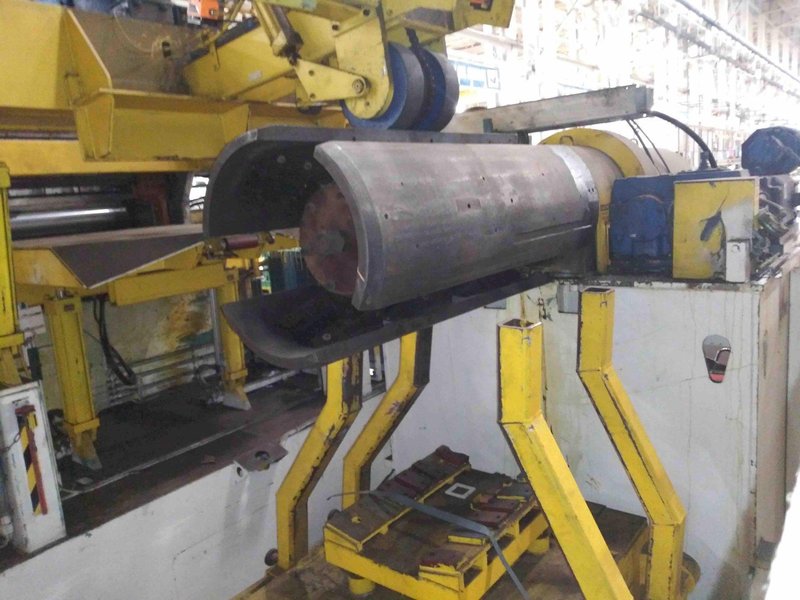

Reel Uncoiler & Coil Car

Peeler / Hold Down
Peeler Table

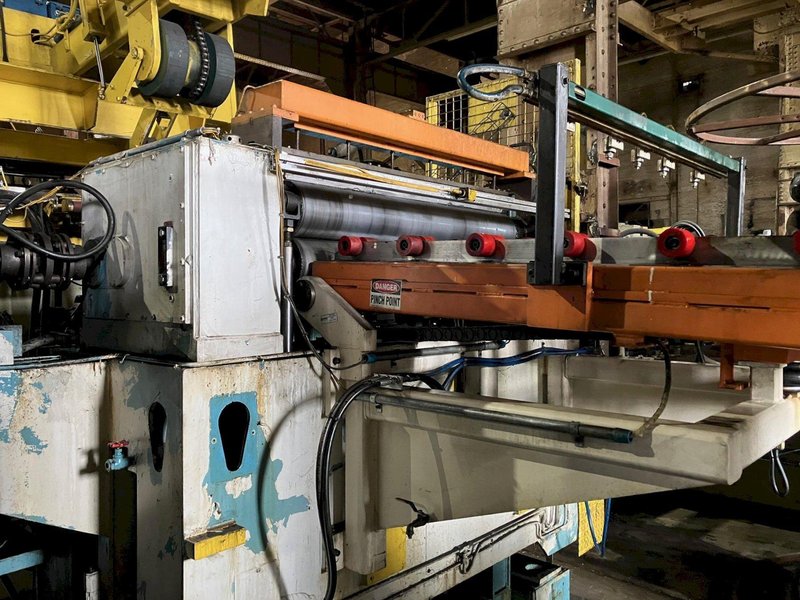

Straightener Exit Pinch Roll / Crop Shear
Scrap Tub

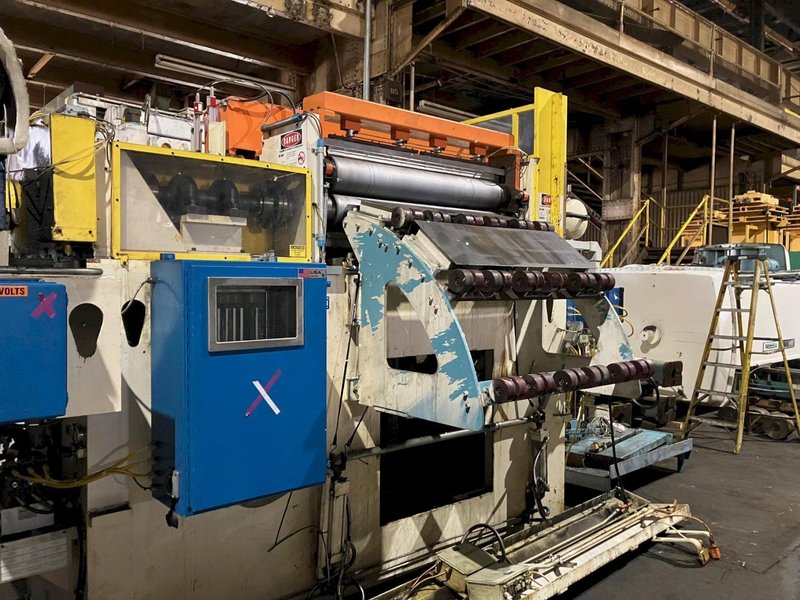

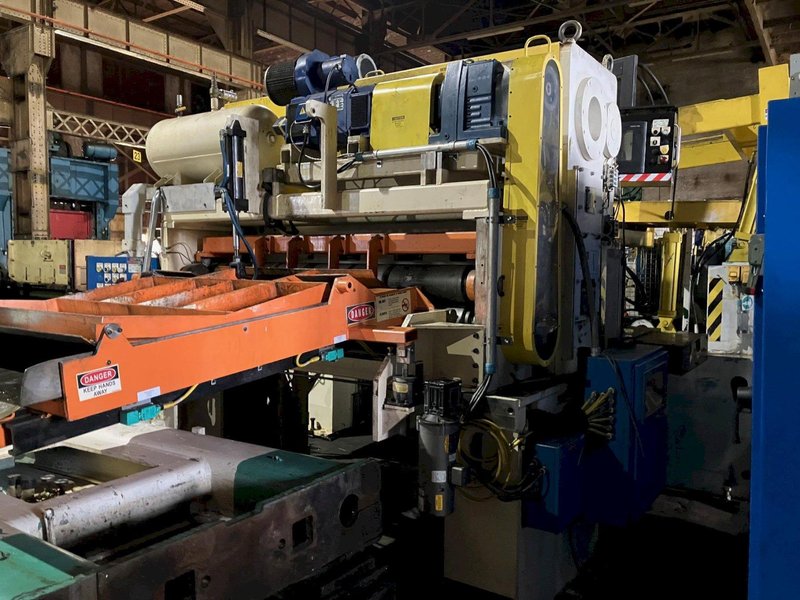

Straightener (Year Mfg 2012)
(7) Straightening Rolls, (3) Upper Rolls, (4) Lower Rolls

Thread Tables

Servo Feeder

Exit Feed Scrap Chopper (Year Mfg 2012)

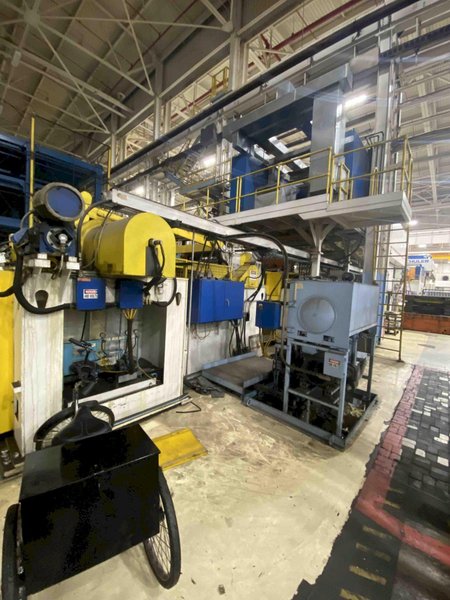

NOTE: The "Balcony/Platform" shown in pictures/drawings NOT included

Feed Line Came Out of Running Service

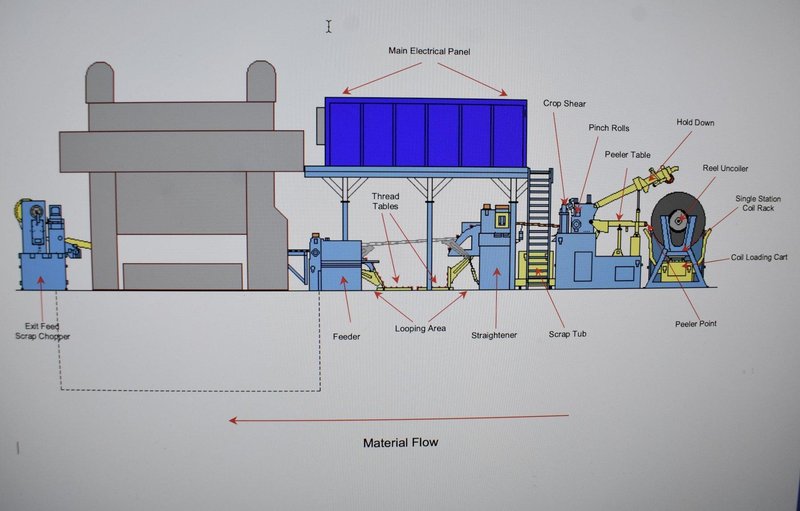

LINK BELOW with Line Layout / GA Drawing of coil feed line (See Link Below Pictures on Quote)

Specifications Subject To Verification; Subject To Prior Sale & Price Change
