50,000 lbs x 48" x .125" AUTOMATIC FEED CO #504872 COIL FEED LINE
Brand
Category
Type
Model
504872
Stock #
115707
Year
2000
Condition
Used
Location
Not specified
|
50,000 lbs x 48" x .125" Automatic Feed Co. Coil Feed Line,
Uncoiler,Car, Peeler, Pinch Roll, Crop Shear, Straightener, Threading Table, Servo Feeder, Exit Chopper
Automatic Feed Company Coil Feed Line
Model: 504872
Year: 2000
50,000 lbs Coil Weight Capacity
48" Max. Width Capacity
72" Coil O.D.
10" Min. Width Capacity
.125" Max. Thickness at 48"
.177" Thickness at 24"
.020" Min. Thickness at 48"
2" - 36" Feeding Length
60 SPM
100 Feet per/min
Feeding Angle Adjustable
Right to Left Feed Direction
Controls - Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F
Material: CRS, HD Galvanized, Electro Galvanized

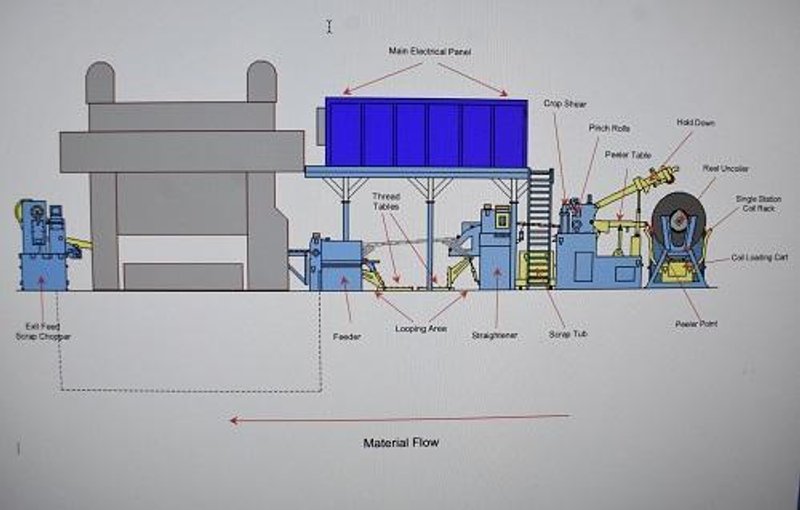

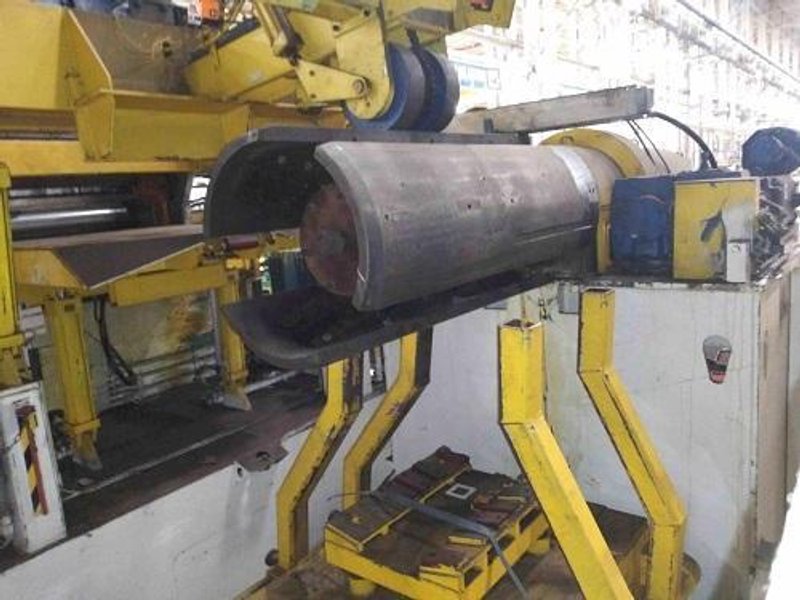

Line Consist of the Following Reel Uncoiler & Coil Car
Peeler / Hold Down
Peeler Table
Straightener Exit Pinch Roll / Crop Shear
Scrap Tub
Straightener (Year Mfg 2012)
(7) Straightening Rolls, (3) Upper Rolls, (4) Lower Rolls
Thread Tables
Servo Feeder
Exit Feed Scrap Chopper (Year Mfg 2012)
|
