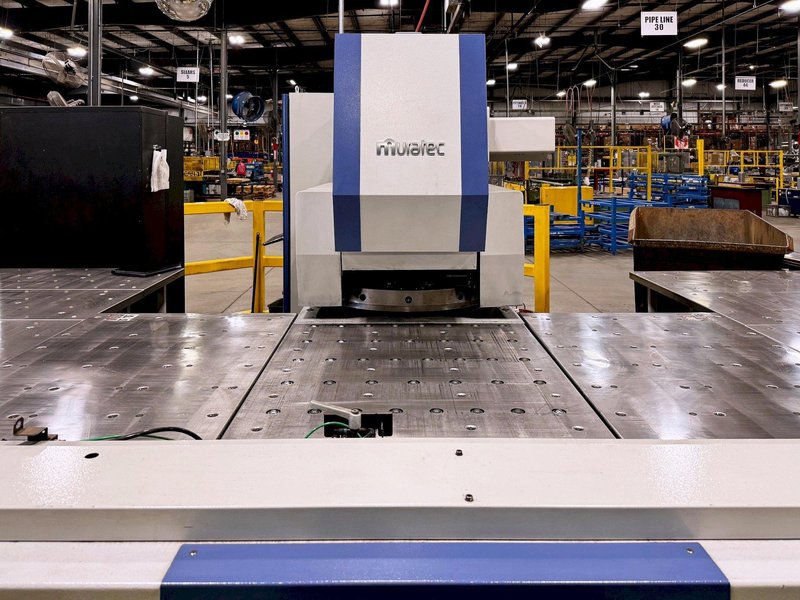

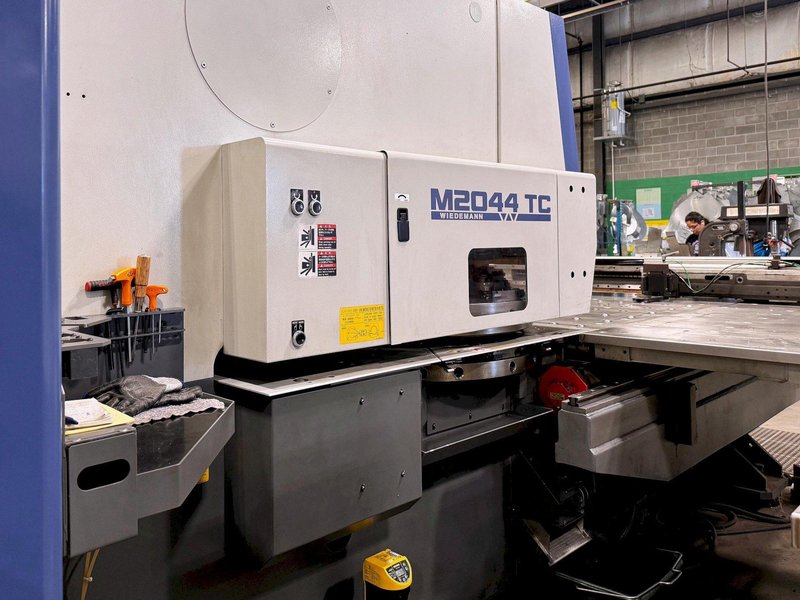

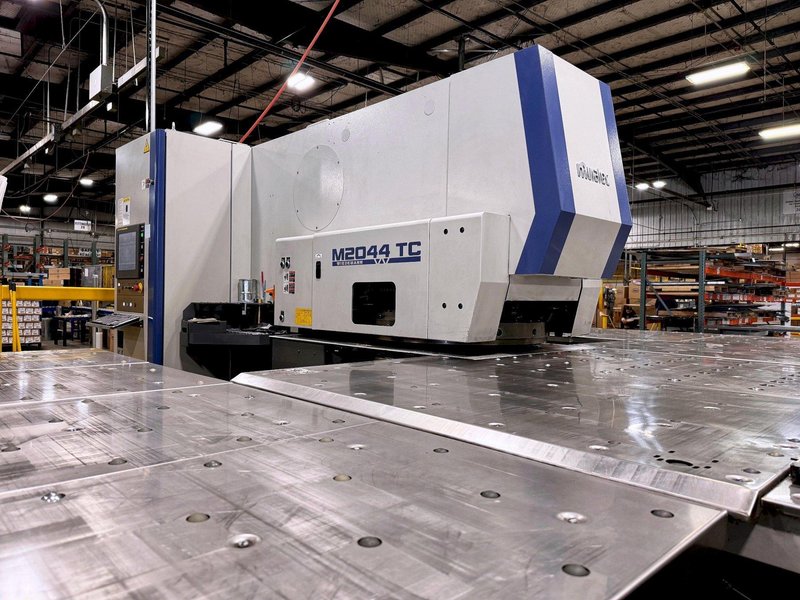

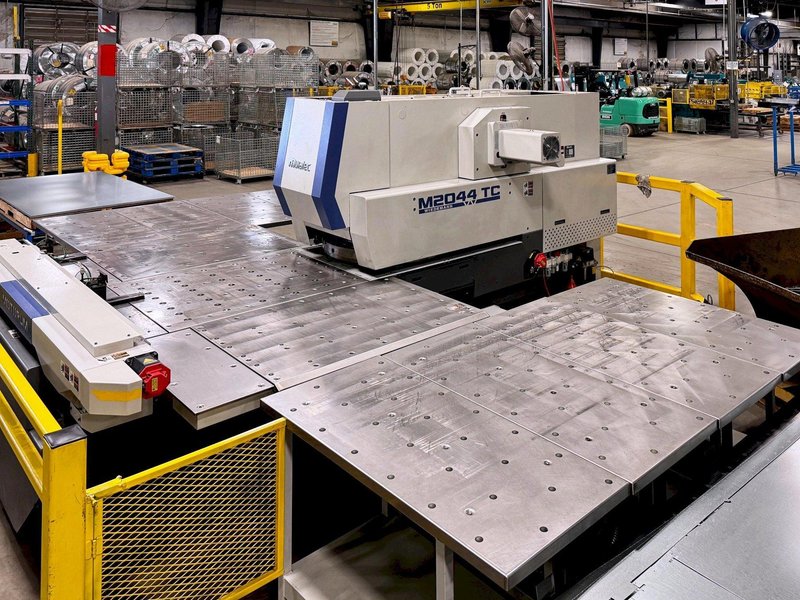

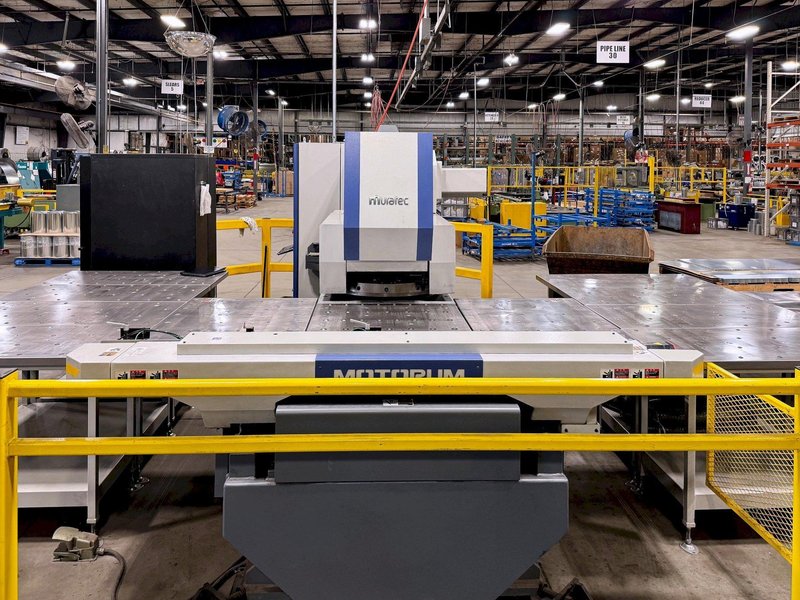

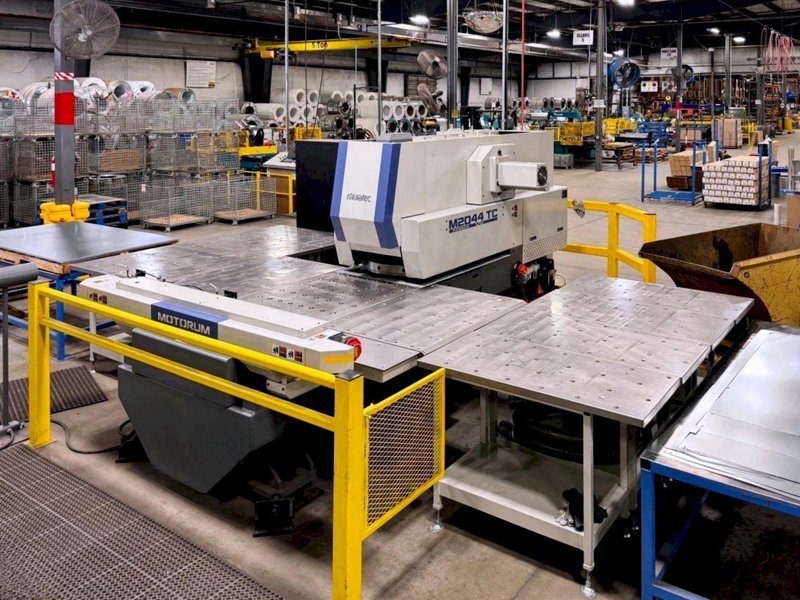

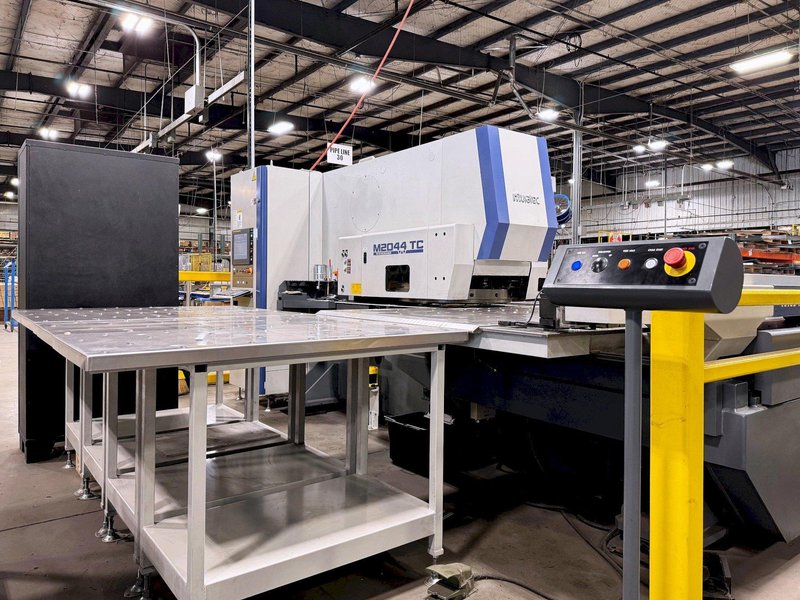

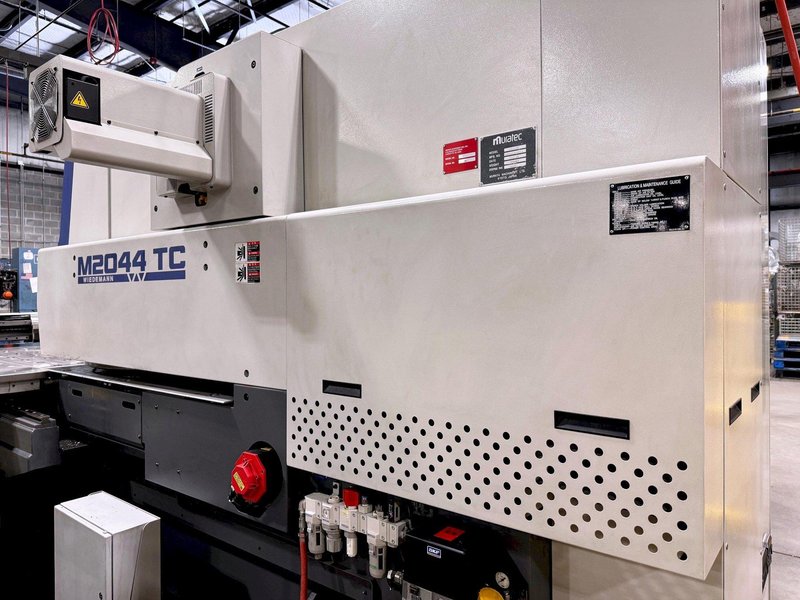

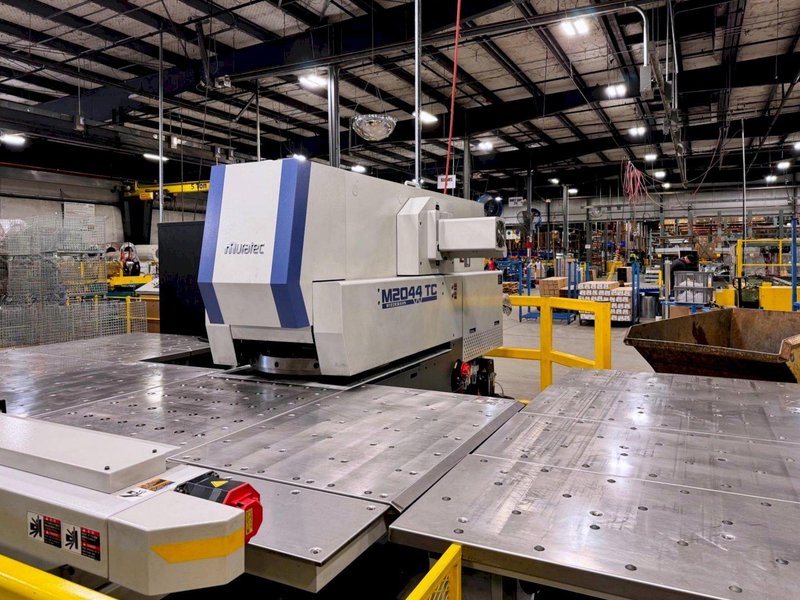

Muratec Motorum M2044TC
Brand
Category
Type
Model
Motorum M2044TC
Stock #
100467
Year
2020
Condition
Like New
Location
Not specified

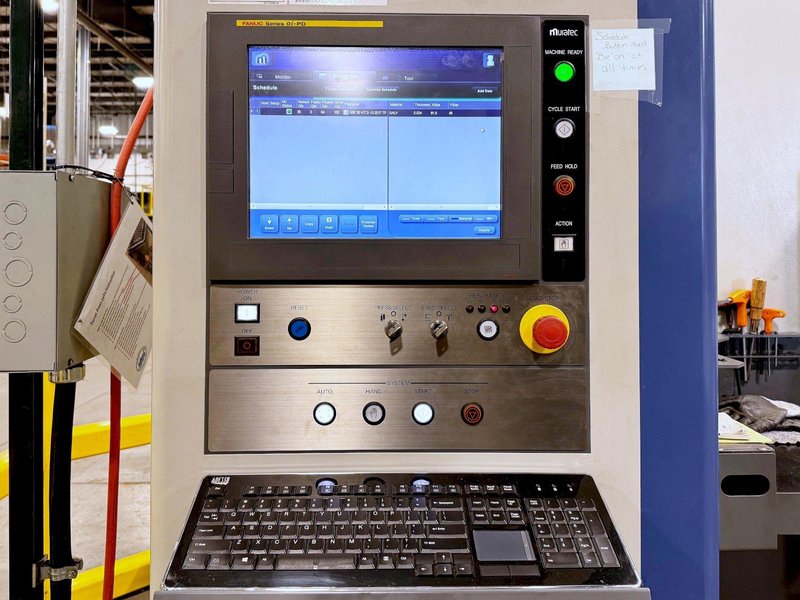

| Control | Fanuc Model 0i-Pd |
| Display | 15” Color LCD (Panel I Computer) |
| Punching Capacity | 22.4 Tons |
| Press Drive | AC Servo Motor |
| Ram Stroke | 1.18" |
| Die Penetration Control | Variable Die Penetration |
| Punching Accuracy | ± 0.004" |
| Axis Repeatability | ± 0.001" |
| Hit Rates | Axis Move 0.984" / Hits/Min. 240 |
| Max. Sheet Weight | 231 Lbs. |
| Max. Material Thickness | 0.250" |
| Max. Hole Diameter | 3.50" / Diameter Hole In .080” |
| Throat | 51.18” |
| Table Travel X | 51.18” |
| Table Travel Y | 52.56” |
| Sheet Size (No Reposition) | 49.213” X 49.213” |
| Sheet Size (One Reposition) | 49.213” X 98.425” |
| Tabletop Style | Urethane Ball Transfer |
| Max. Axis Speeds | X Axis - 2953 IPM |
| Max. Axis Speeds | Y Axis - 2953 IPM |
| Max. Diagonal Speed | 4173 IPM |

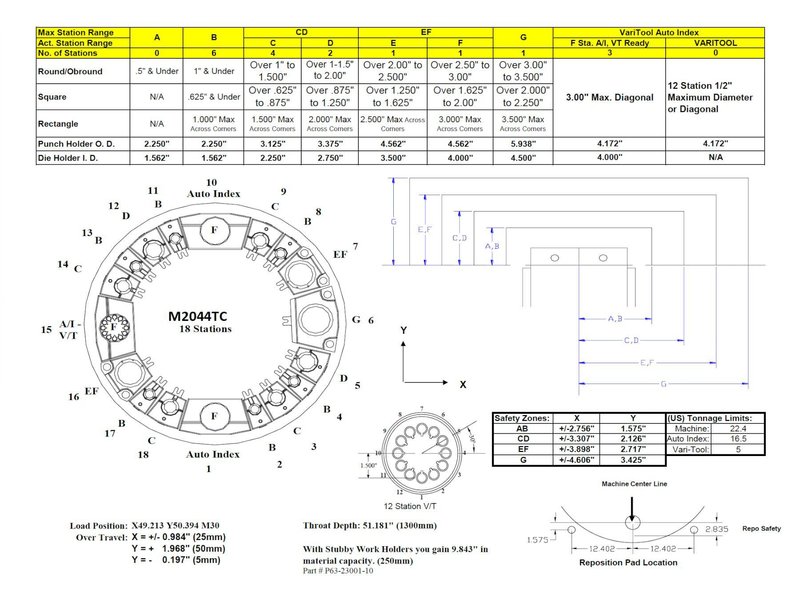

| Tooling Style | 114, 112, Mate Marathon, Wilson HP |
| Turret Rotation | 33 RPM |
| Upper Turret To Die Clearance | 0.838" |
| Upper Turret Thickness | 3.94” |

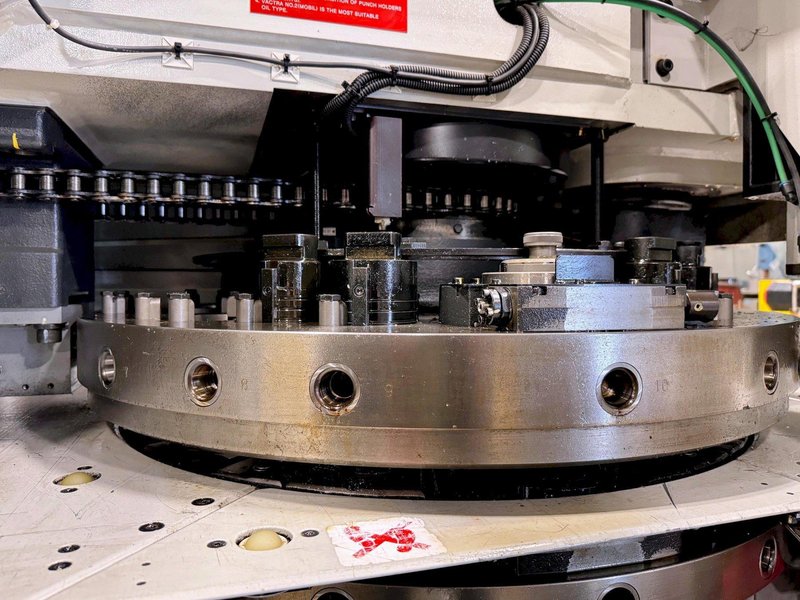

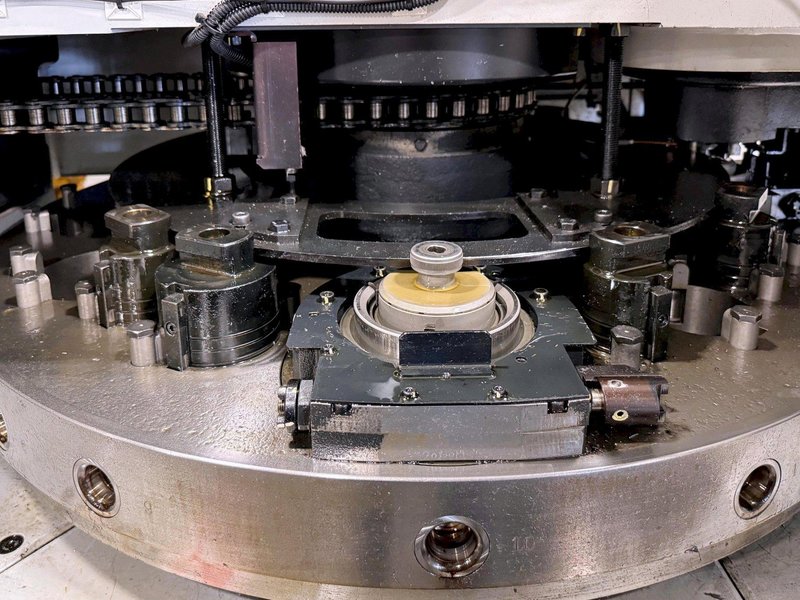

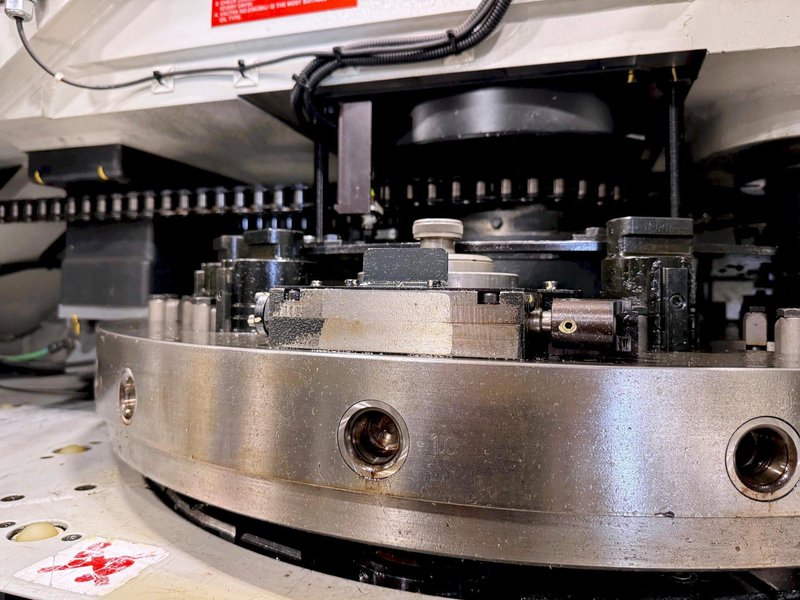

| Standard Turret Capacity | 18 |
| Max. Rotational Speed | 60 RPM |
| Rotational Accuracy | +/- 0.05 Deg. |

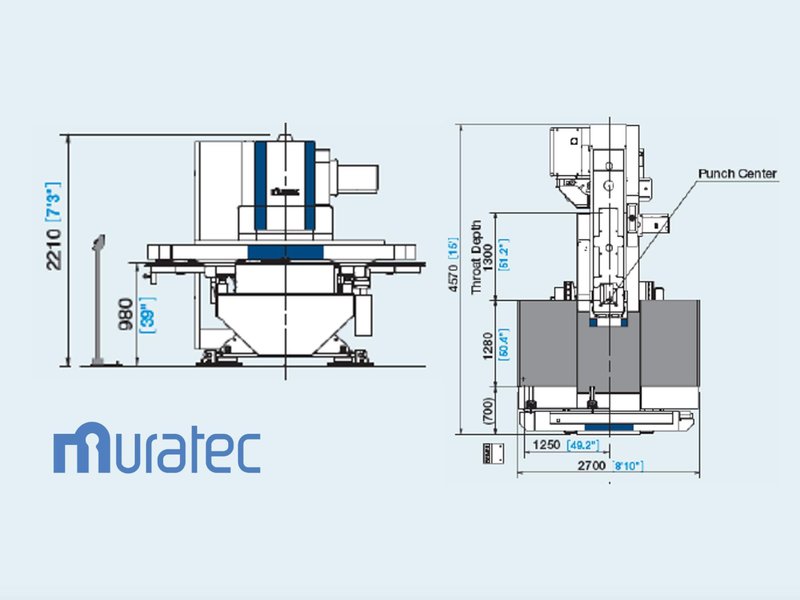

| Approx. Machine Dim. | W 106" / L 180” / H 87" |
| Table Height | 38.6” |
| Electrical Requirements | 14 KVA (Peak) / 17 A. @ 480V, 3 Ph. / 37 A. @ 220V, 3 Ph. |
|

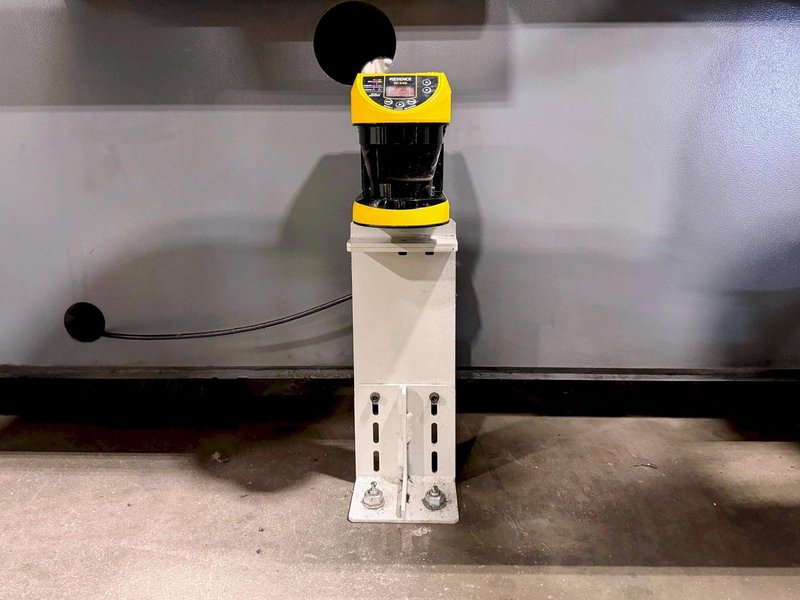

Equipped With: 15” Color LCD Display Servo Electric Punch Drive System Automatic Lubrication 3- Indexing F Stations Transformer 30KVA/480V Laser Scanner Safety Device Side Tables Front Guard Rails Tooling Storage Cabinet Tooling - All standard with a few special shapes
|
|
