20,000 lbs. x 48" CHS Automation Servo Coil Feed Line, New 2004
Brand
Category
Type
Model
DRFS 6-48 & DR200-48
Stock #
2839
Year
2004
Condition
Good
Location
Michigan
| Coil Weight | 20000 pounds |
| Coil Width | 48 inches |
| Coil Thickness | .090 inches |
|
CHS Automation Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .090" x 48" Wide
Stock thickness capacity: .187" x 24" Wide
Expansion range: 20" - 24"
Coil O.D. capacity: 60"
CHS Automation Coil Feed Line Equipment and Features:

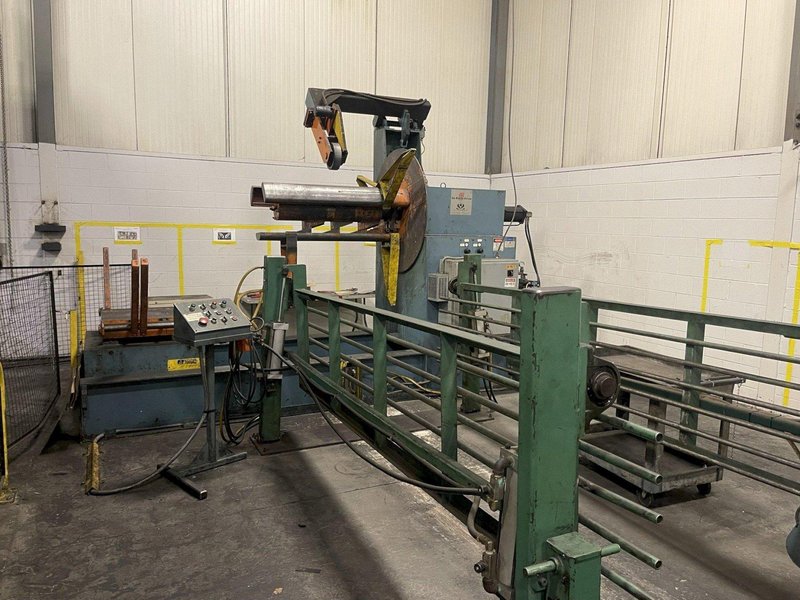

CHS Automation Motorized Coil Reel Uncoiler and Load Car, Model No.: DR200-48, Serial No.: 04-5238
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Adjustable coil reel keeper arms
Air operated coil hold down arm
Motorized coil hold down arm end wheel
Self contained hydraulic pump unit
Traveling coil load car
Powered lift and travel
Adjustable narrow coil supports
Coil car track
Operator's control station
Jog forward and reverse
Auto / Run cycle
Loop control
Dual sided exit threading tables
Bombay door design

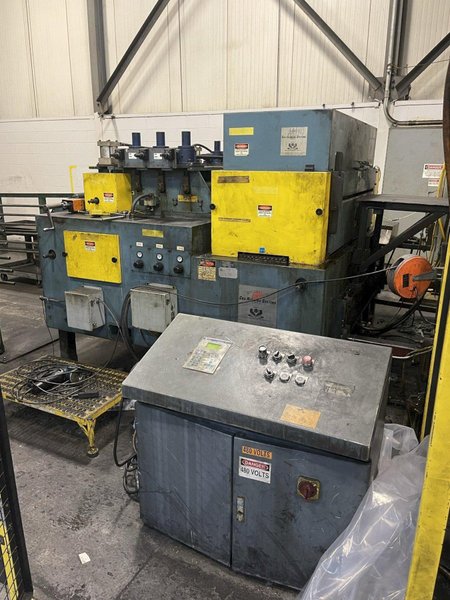

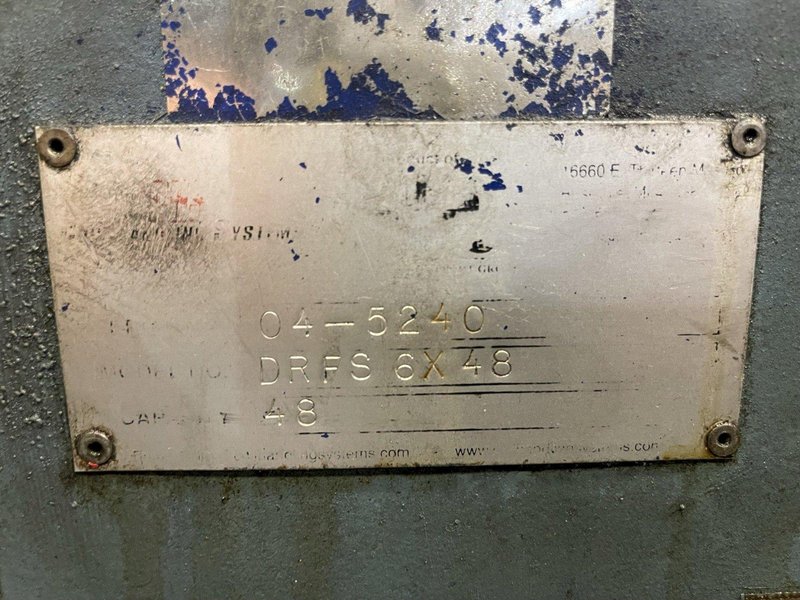

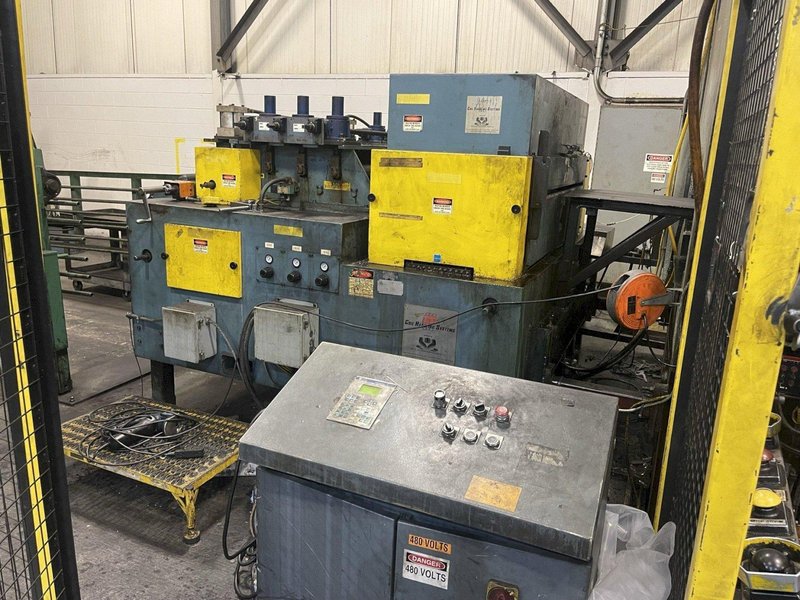

CHS Automation Servo Roll Feed Straightener Combination, Model No.: DRFS-648, Serial No.: 04-5240
Six inch diameter full width upper and lower feed rolls
Matte chrome finish on upper and lower feed rolls
Air operated upper feed roll adjustment / pilot (dual cylinders)
Solenoid controlled pilot release
Centralized lubrication points
Hand crank stock width edge guides
Cabinet base mounted with heavy duty pass line adjustment
Motorized pass line adjustment
Seven straightening rolls x 4 inch diameter
Individual upper straightening roll adjustments via screw jacks
Digital readouts for upper straightening roll position
Motorized pinch roll for stock threading
Air clutch engagement for motorized pinch roll
Air operated upper pinch roll adjustment
Cascade loop support rollers
AC servo drive and controls
Job memory, batch counting, on the fly micro adjustment
Remote pendant control for jog forward and reverse
Fused Disconnect |
|
