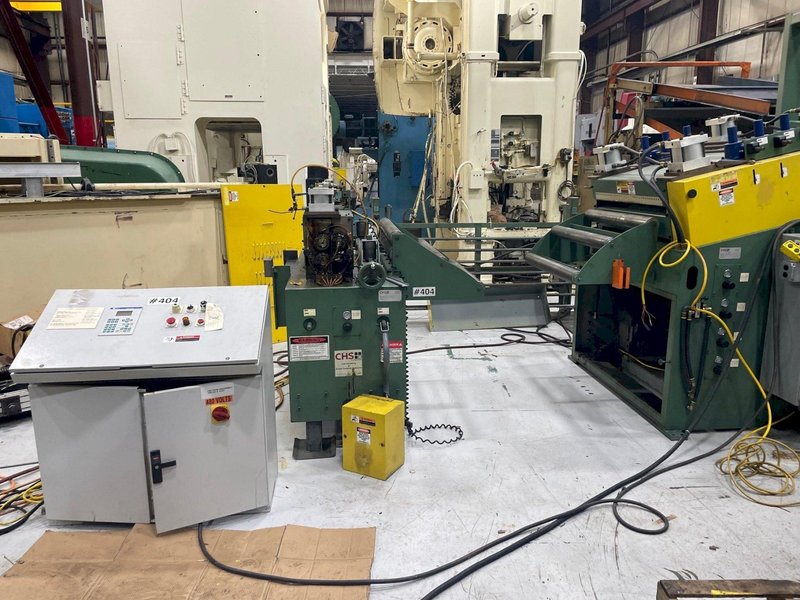

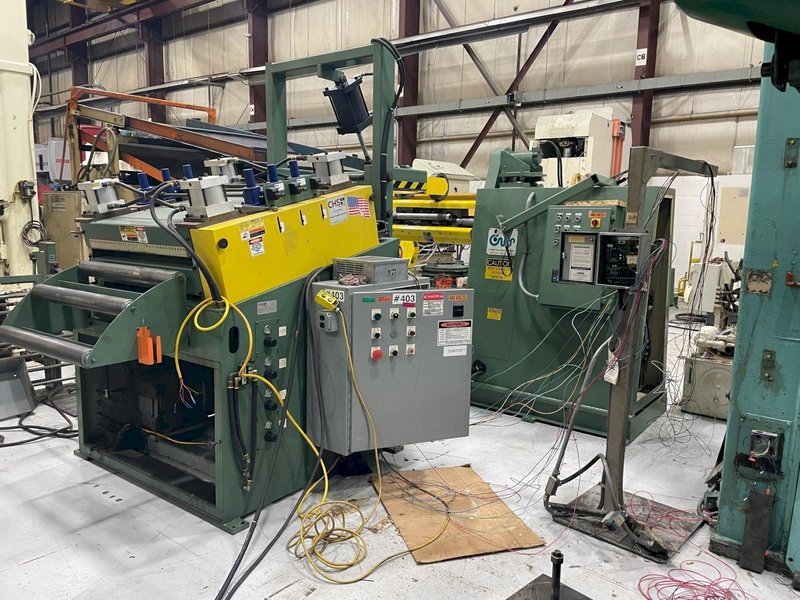

20,000 lbs x 36" CHS/CWP Servo Coil Feed Line

Model
DRF4 / PS3.5x7 / 6R-36
Stock #
2662
Year
2008
Condition
Excellent
Location
Michigan
Coil Weight 20000 pounds
Coil Width 36 inches
Coil Thickness .125 inches
Standard Specifications
20,000 lbs Max Coil Capacity
36" Max Coil Width
36" @ .125" Thickness at Full Width
18" @ .187" Thickness Capacity
12" @ .210" Thickness Capacity
60" Max Coil O.D.
15.5" - 20.5" Coil I.D. Range

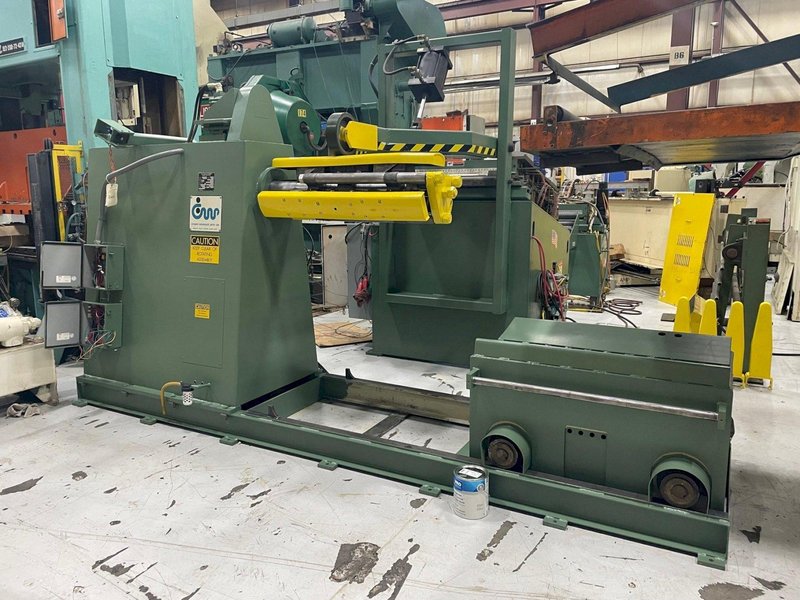

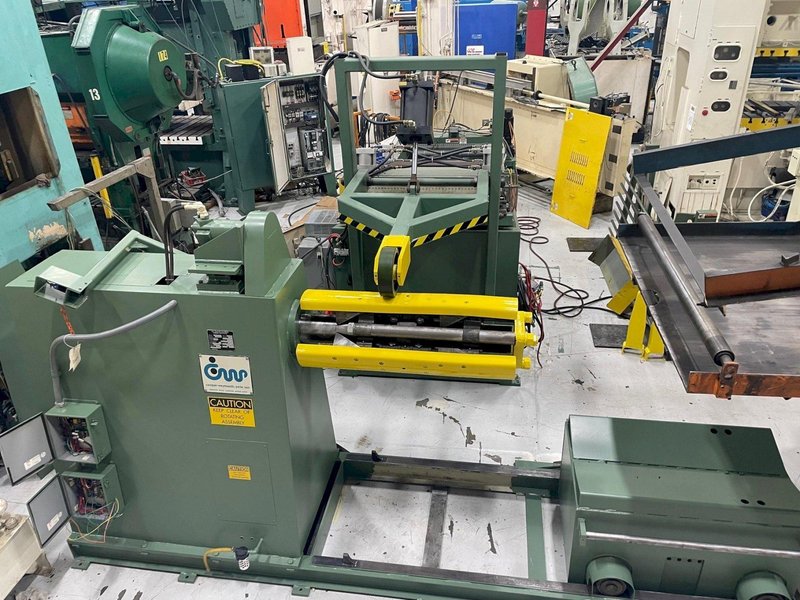

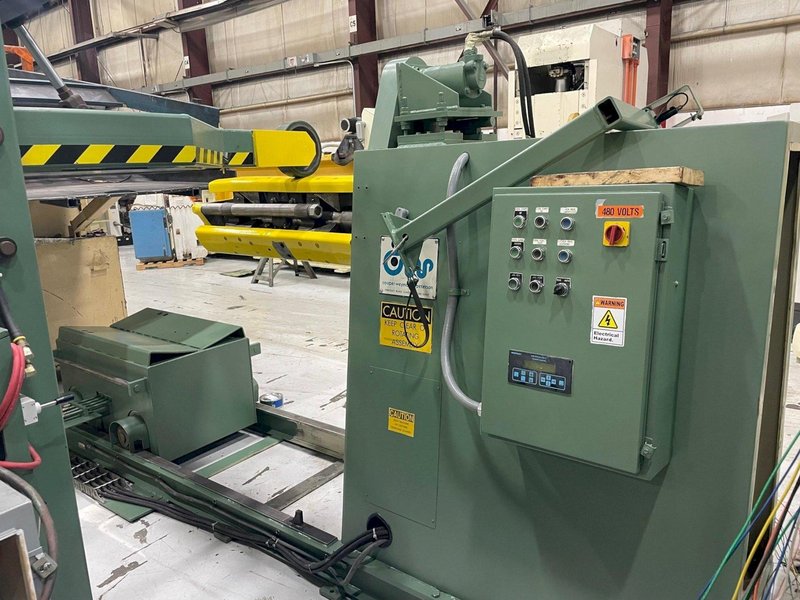

Cooper Weymouth Peterson Pull Off Coil Reel Model # 6R-36
Serial Number C2131-5
Three leaf mandrel coil reel
Coil reel keeper arms
Hydraulic coil reel mandrel expansion
Threading drive for jog forward and reverse
Drag brake mounted on main coil reel spindle
Adjustable tensioning
Traveling coil load car
Powered lift and travel
Narrow coil supports on coil car
Coil car track

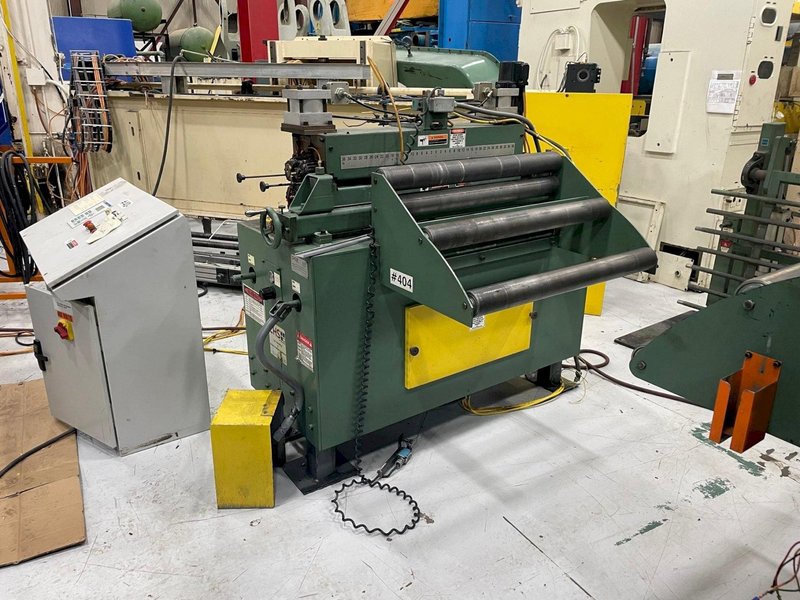

CHS Automation Powered Straightener Model # PS 3.5 x 7
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Seven coil straightening rolls with heavy duty upper roll adjustments
Motorized upper coil straightening roll adjustments
Inclined powered coil straightener head
Hand crank edge guides
Exit cascade loop support rollers
Adjustable stock width edge guides (hand crank)
Automatic lubrication system
Coil hold down arm
Variable speed powered coil straightener payout
Operator's control station
Jog forward and reverse
Auto / Run cycle
Loop Control

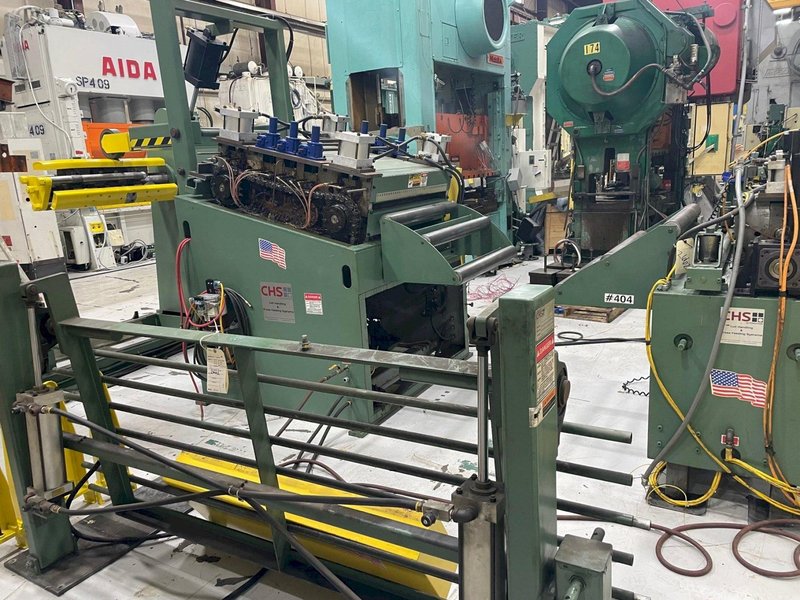

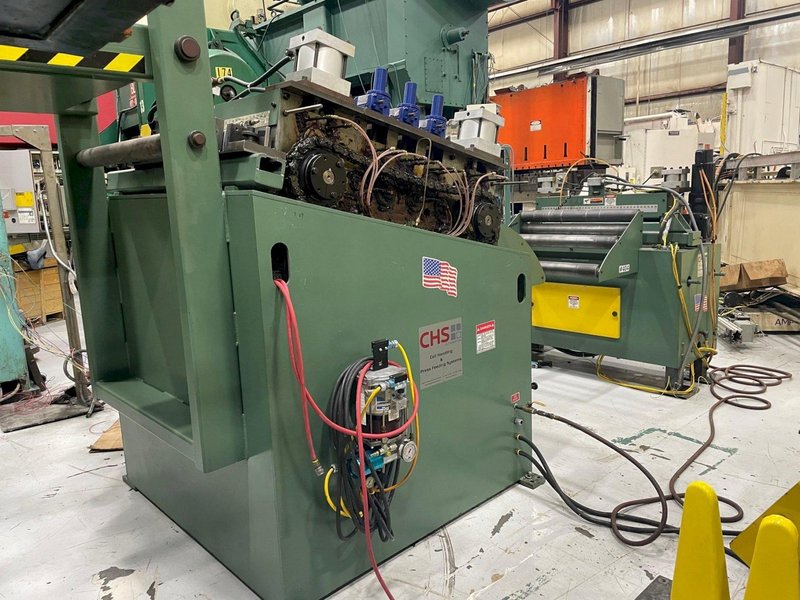

CHS Automation Coil Servo Feed Model # DRF4
Cabinet Mounted Servo Feed
4 inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot (dual cylinder)
Entry side material support section
Centralized lubrication points
Solenoid controlled pilot release
Air pressure/regulators
Press mounted
AC servo roll feed drive and controls (Consult sales for complete details)
Job memory, batch counting, on the fly micro adjustment

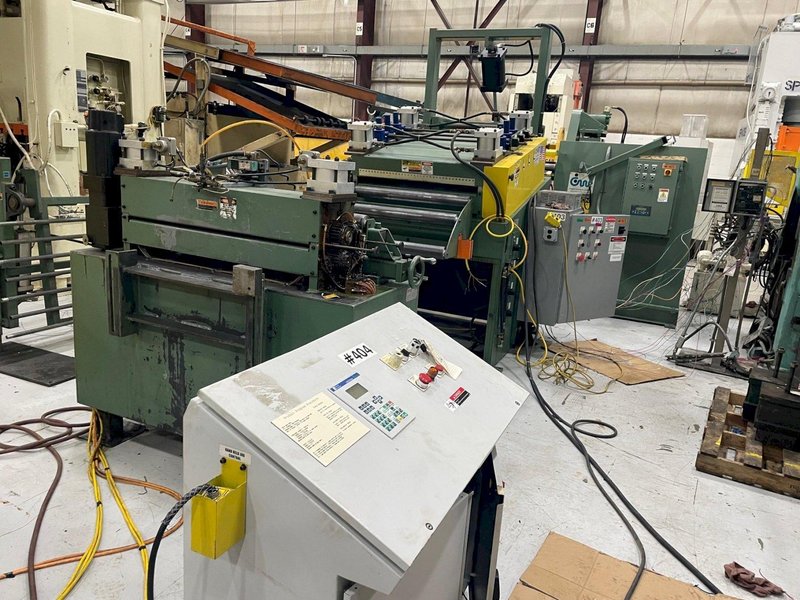

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
Files
Watch https://youtu.be/s9IQaeUyLWk
Watch https://youtu.be/Yo_k7-ctho0
Watch https://youtu.be/D-1Z1EQxjVk
Watch https://youtu.be/8-3Fr8T5tcM
