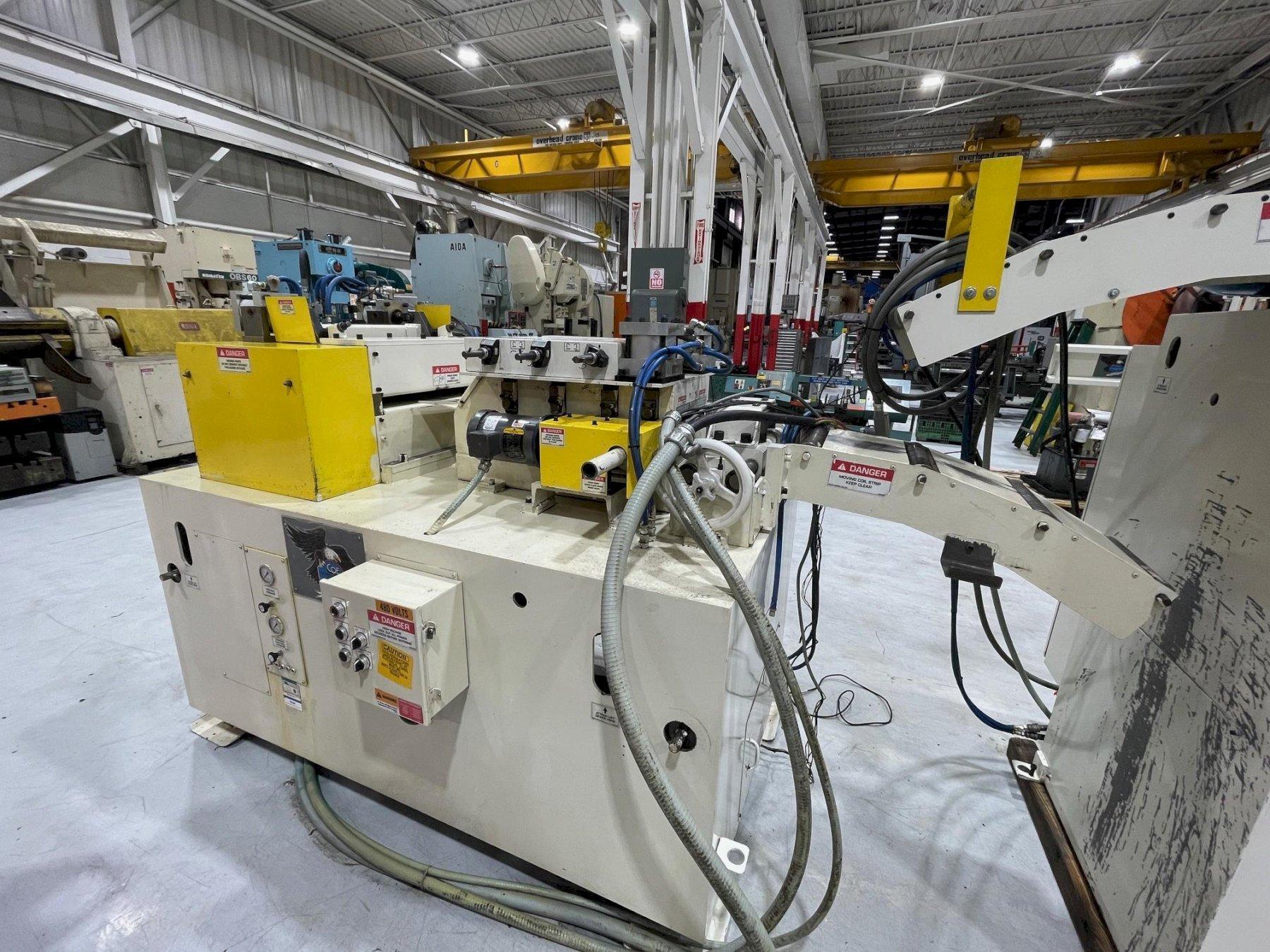

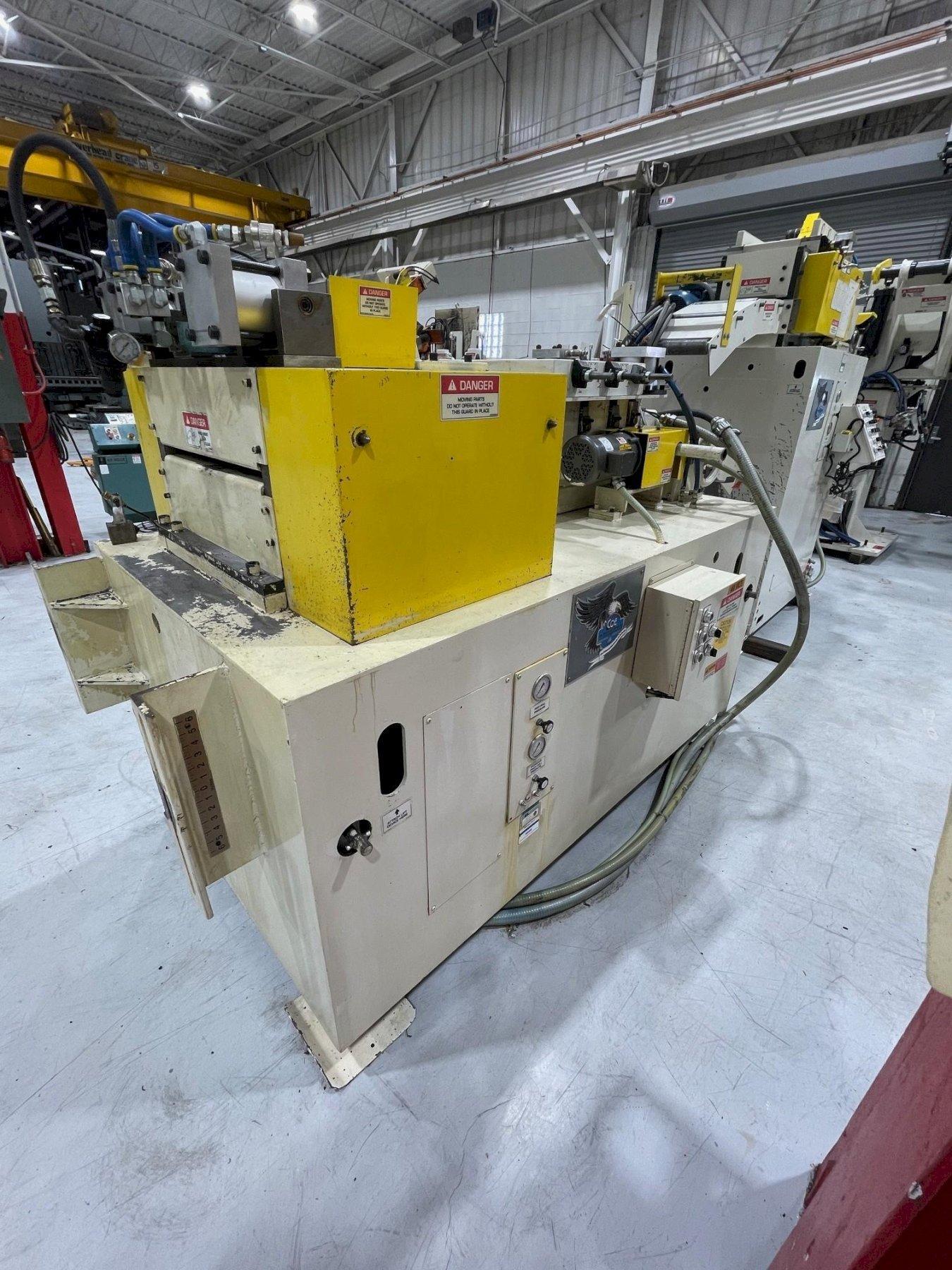

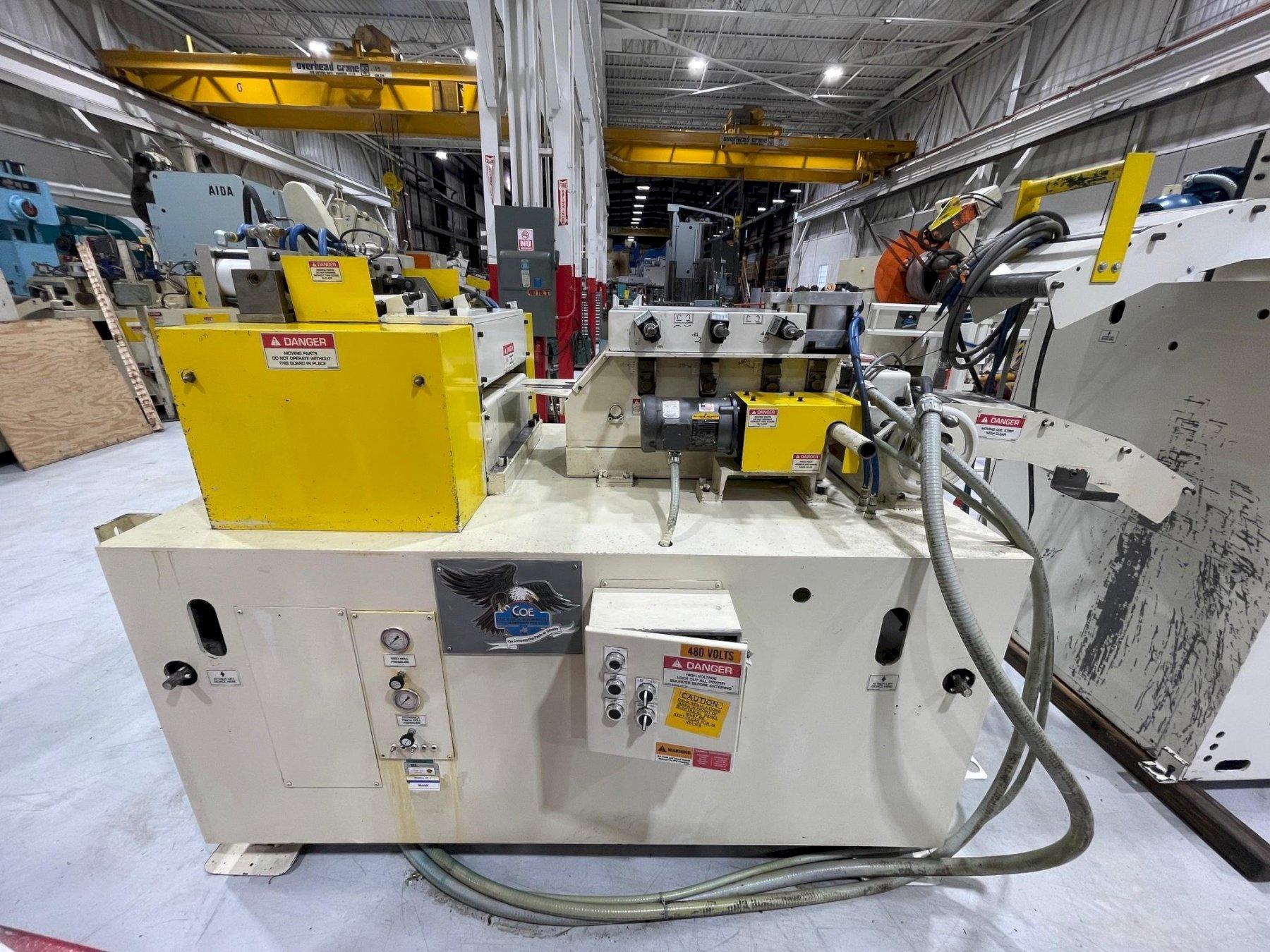

12" Coe Press Equipment High Strength Steel Combination Servo Feed Straightener, Year 2015
Brand
Category
Model
CPRF-518 Feed Straightener
Stock #
2918
Year
2015
Condition
Like New
Location
Michigan
| Coil Width | 12 inches |
| Coil Thickness | .156 inches |
|

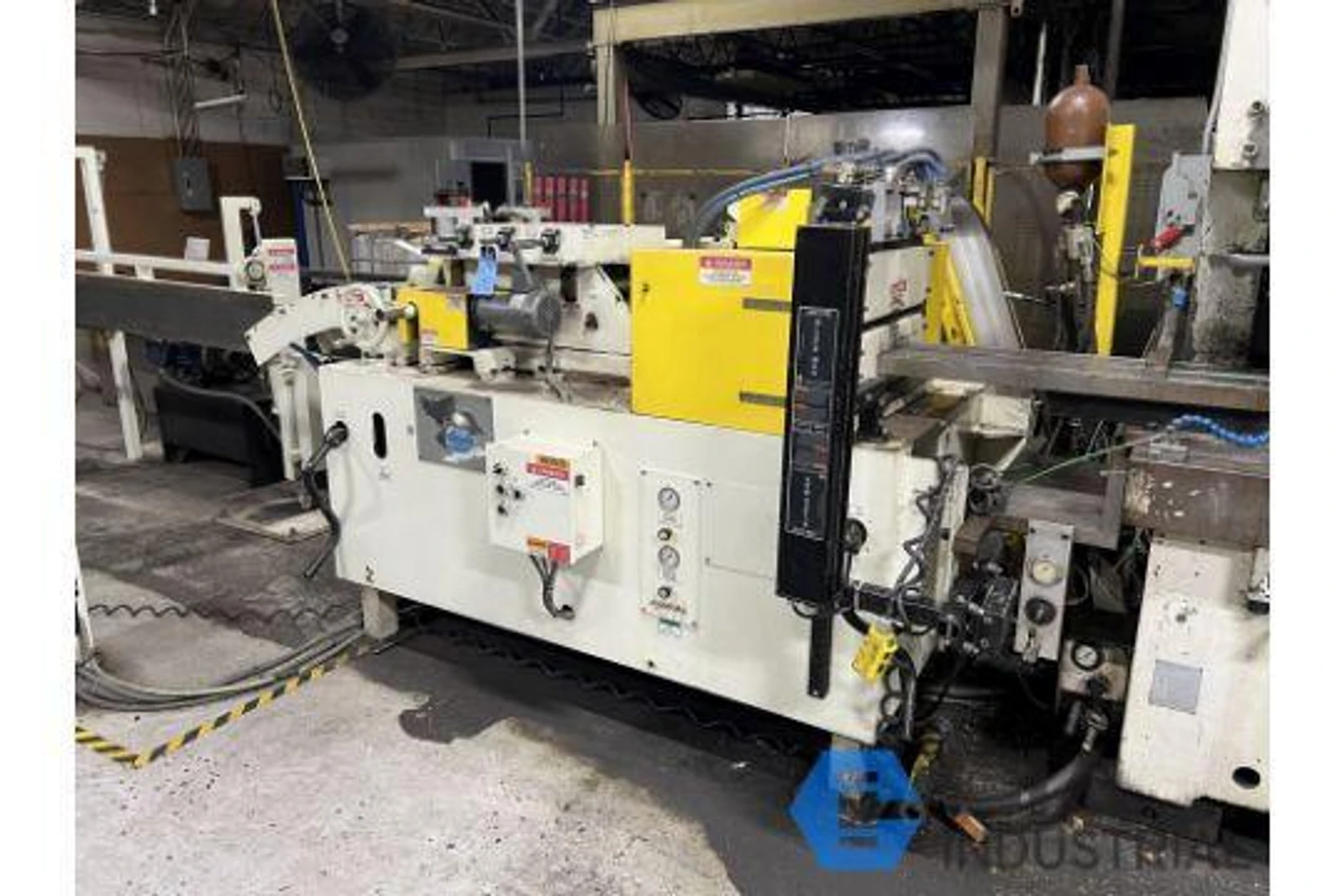

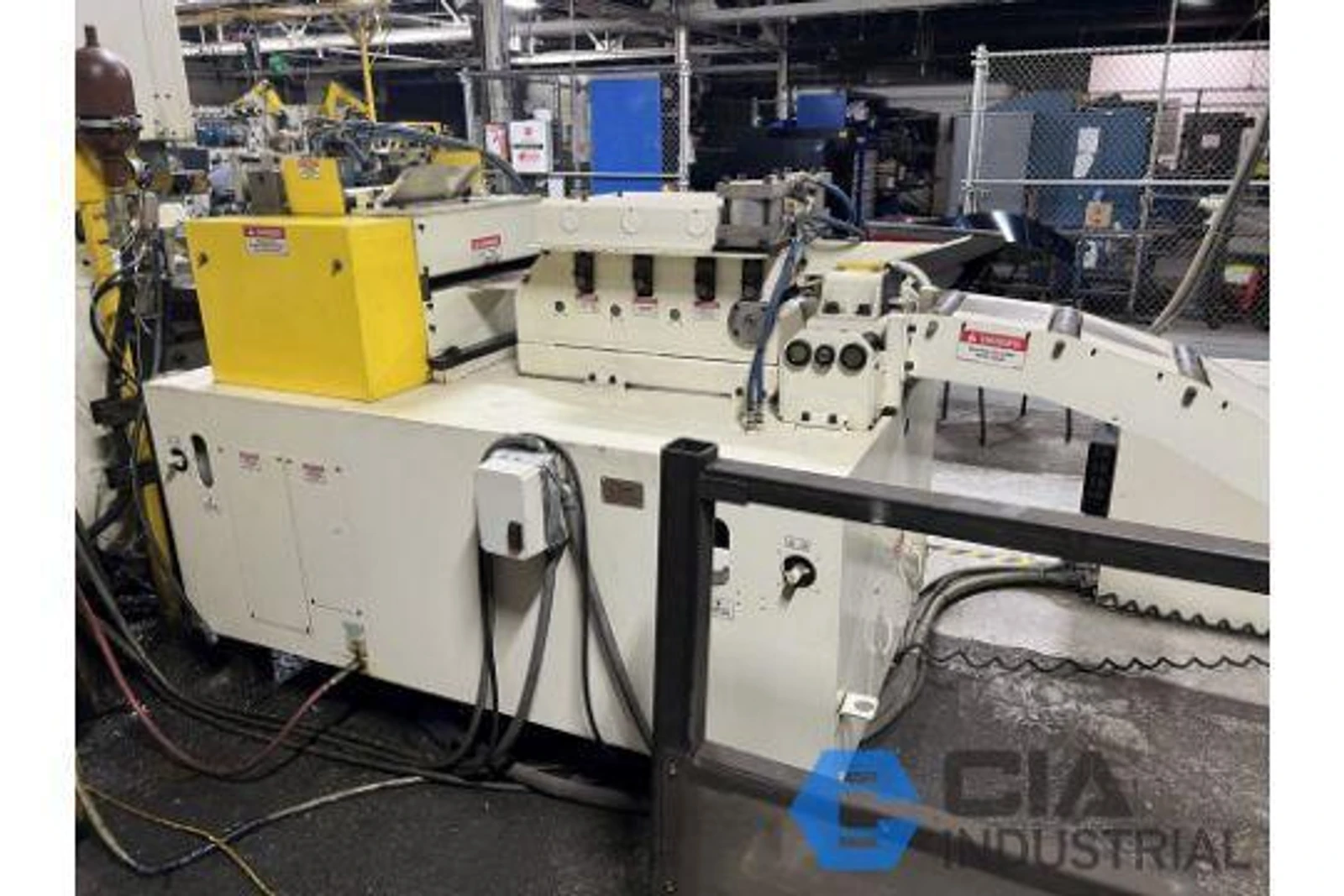

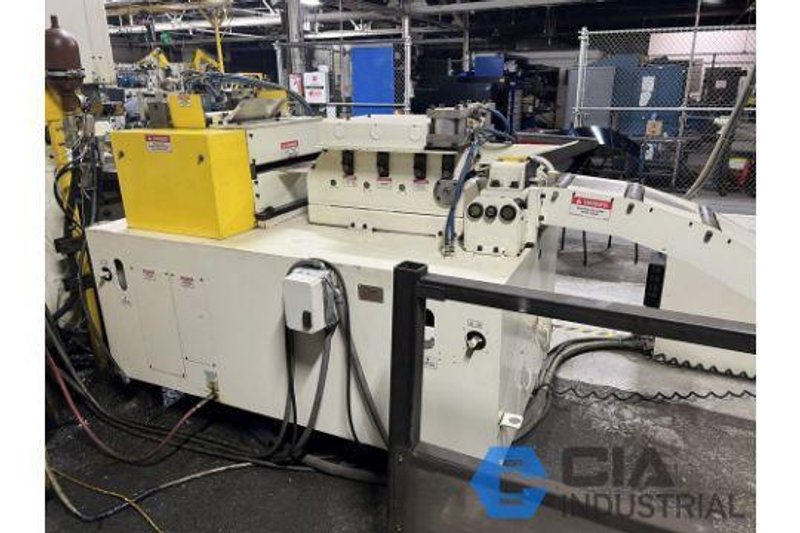

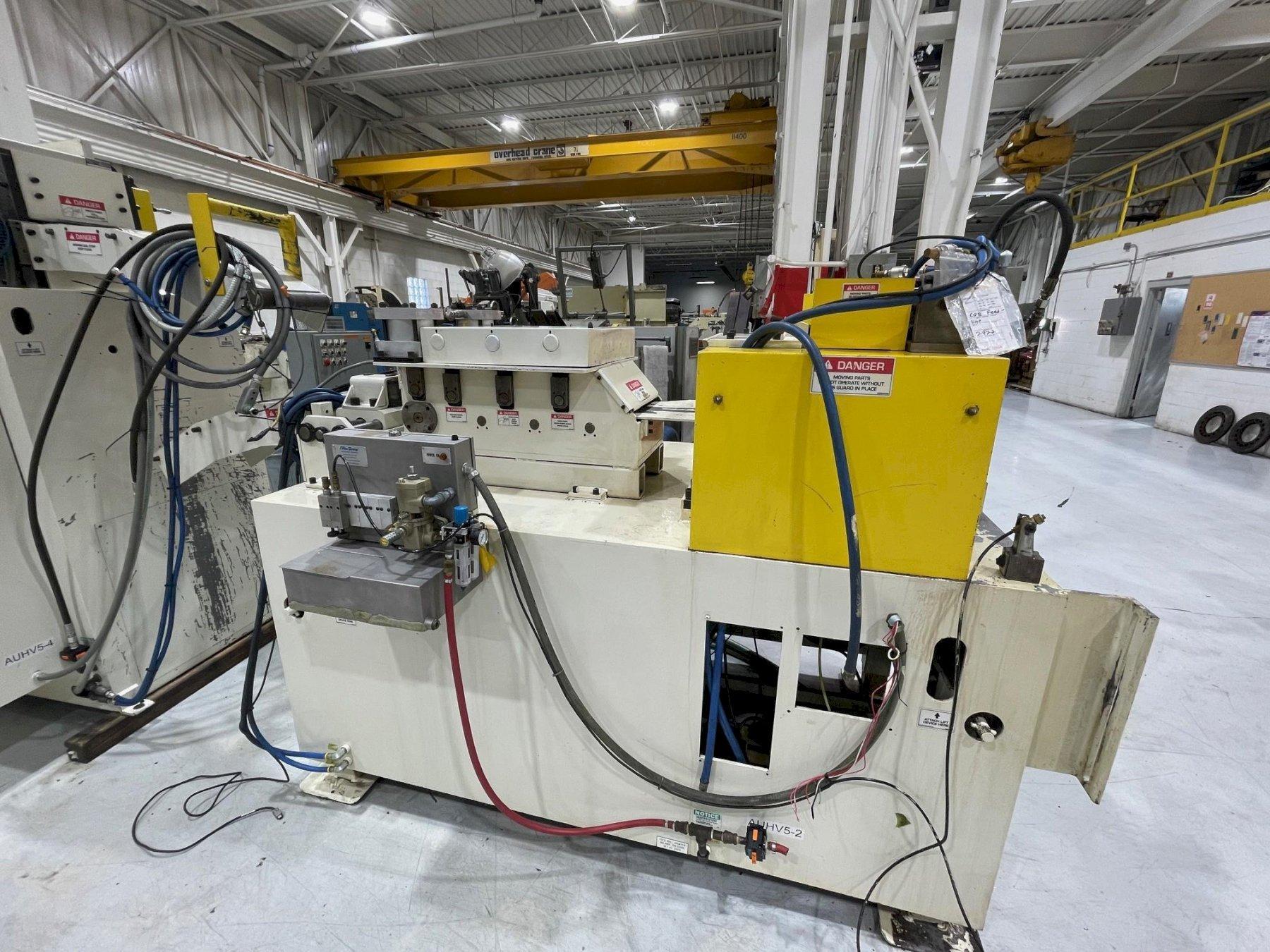

CPRF-518 - Coe 18" Max. Coil Width Servo Roll Feed with CPR - PHS7-12 Pull Thru Straightener
HS Steel - 70,000 PSI Yield - Max: 0.312" thick @ 3.00” wide HS Steel - 70,000 PSI Yield - Min: 0.030" thick @ 12.00" wide
HS Steel - 70,000 PSI Yield - Max: 0.187" thick @ 6.00” wide
Left to Right Feed Direction Number of Feed Rolls: 2
Roll Diameter: 5 Inches
Full Body Width: 18 Inches
Drive Ratio: 4.8:1
Acceleration: 40 Feet/Sec/Sec
Roll Speed: 409 Feet/Minute
Feed Accuracy: +/- 0.003 Inch
Cluster Gear Driven Upper Feed Roll with Mating Shafts and GearsRigid Machined Tie Bar Construction for Precise Assembly
Sealed Precision Roller Bearings
Upper and Lower Feed Rolls With #3 Matte Chrome Finish
Air Pressure Regulator for Exact Feed Roll Pressure
50" Pass Line - Heavy Duty Cabinet with Press Mount Brackets and +/- 6" Adjustment
Dual Roll Edge Guides with Self Centering & Independent Adjustment, 12” wide
High Performance Maintenance Free AC Brushless Servo Motor

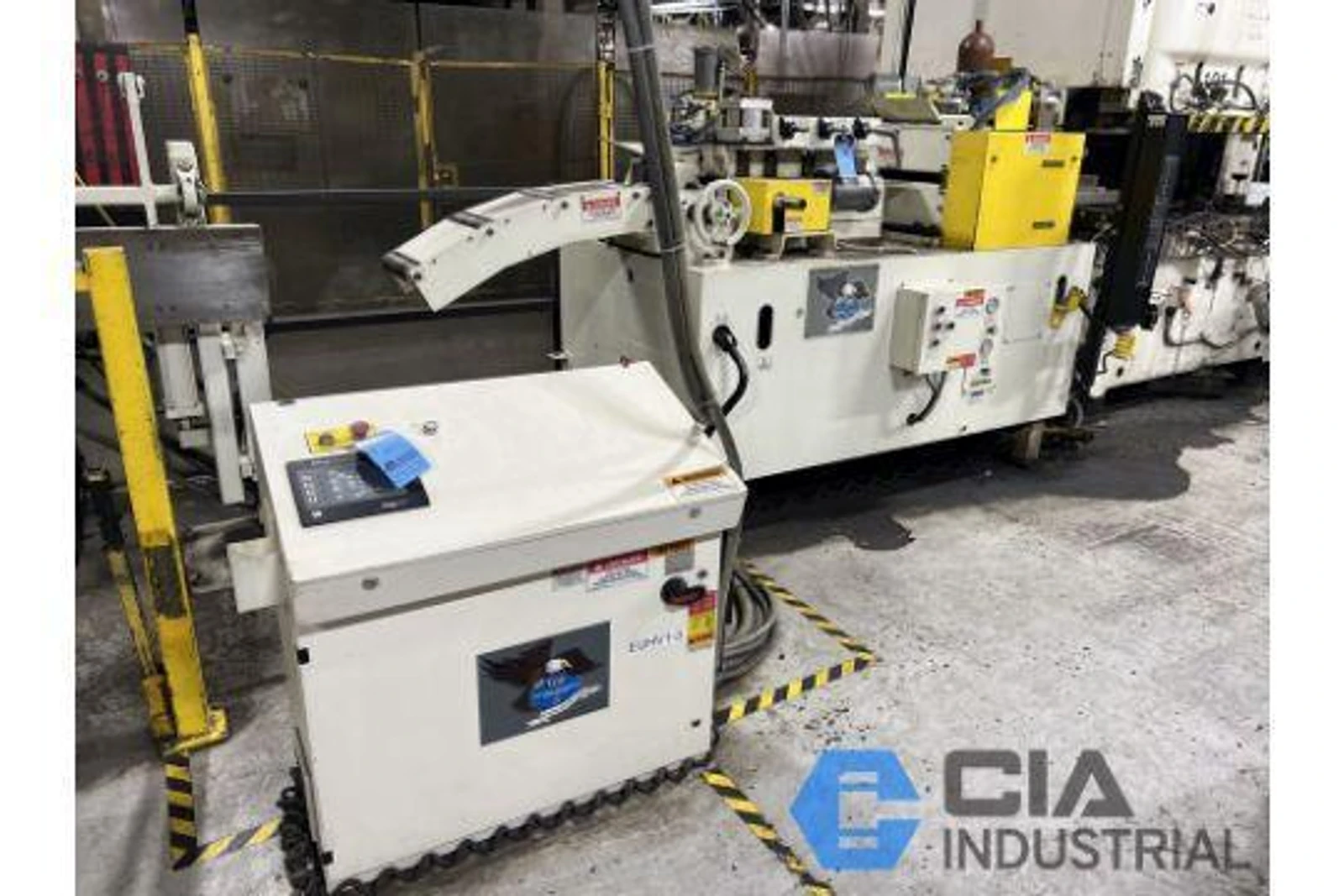

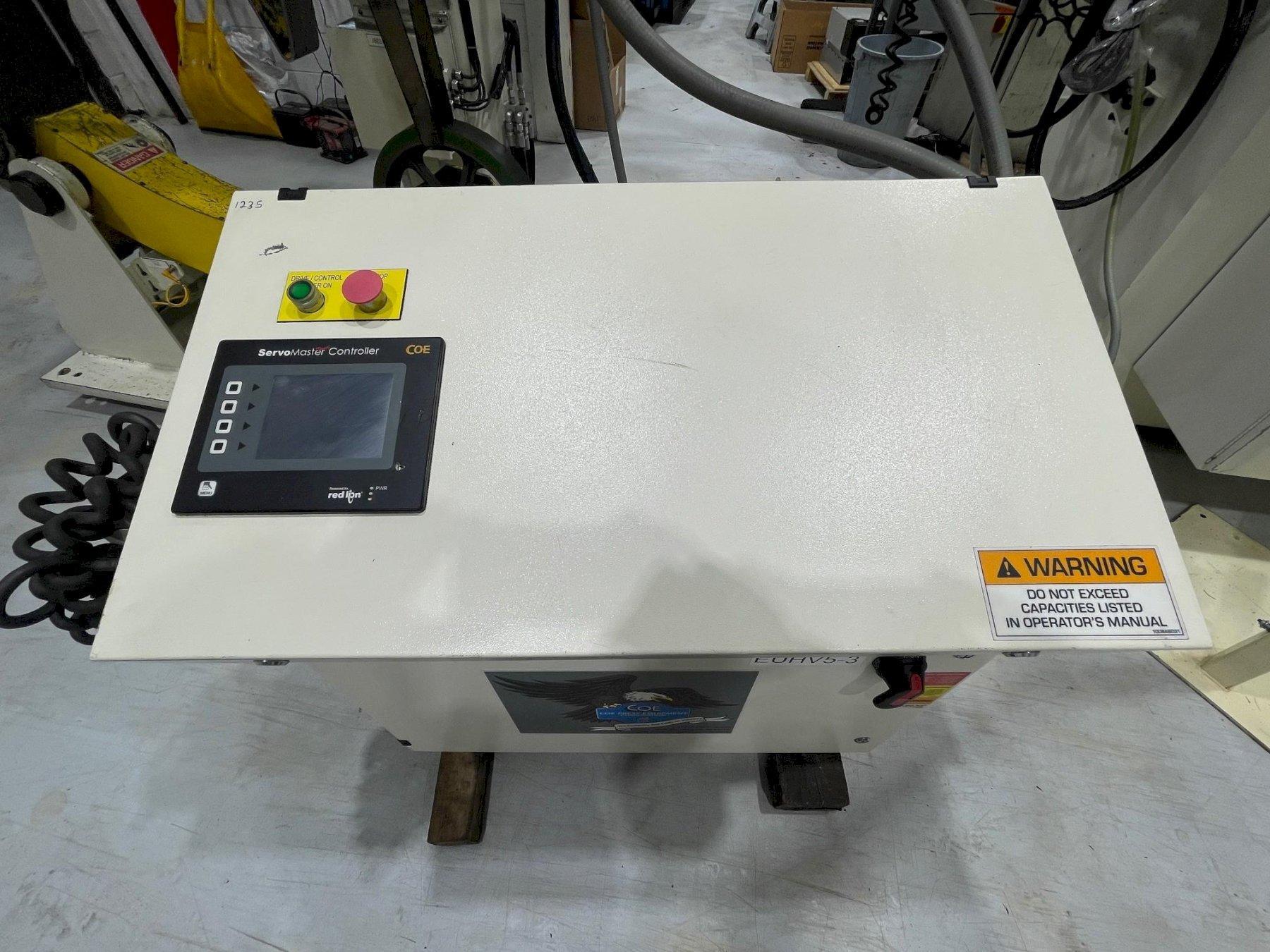

Desk Type Slant Top Control Enclosure
Emergency Stop Push Button
Fused Electrical Safety Disconnect
Remote Jog Pendant
Single Cycle Pushbutton for Set-up at Jog Speed

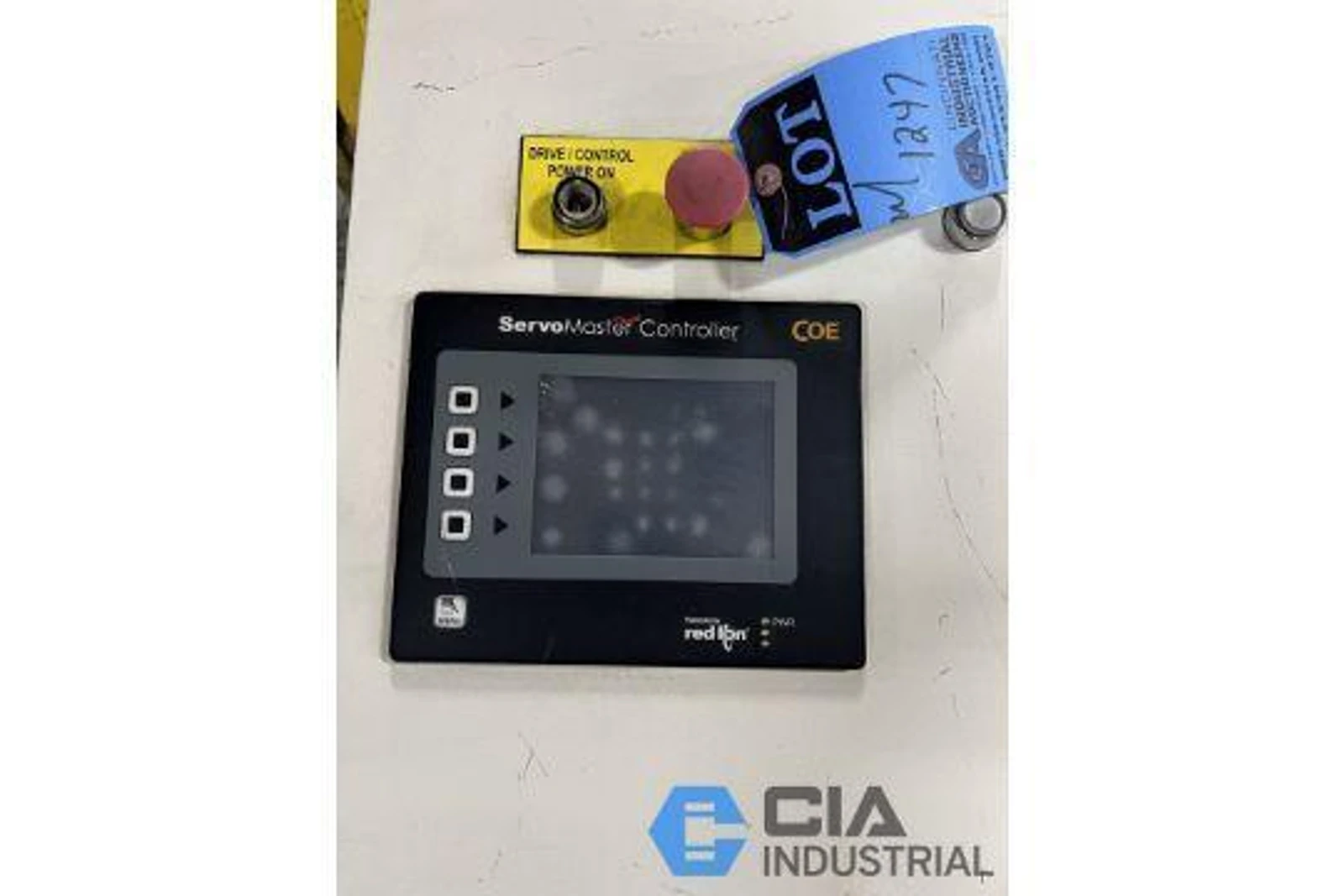

Servo Master Touchscreen Controller
4 Roll Catenary Support Section with Full Side plates and Funnels
Full Width Upper and Lower Feed Rolls
"No Tools" Press Mount
460 Volt AC Three Phase Supply Voltage

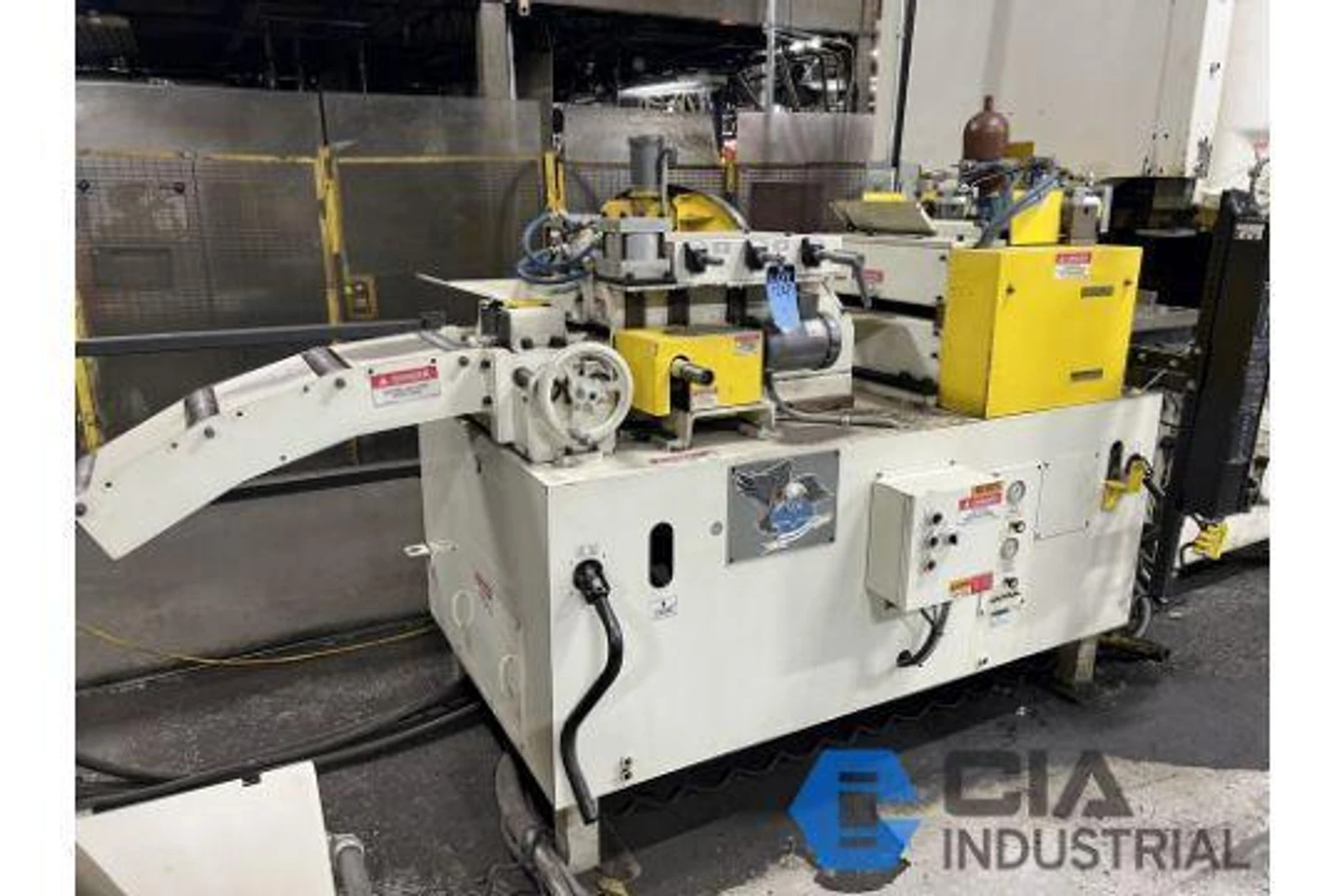

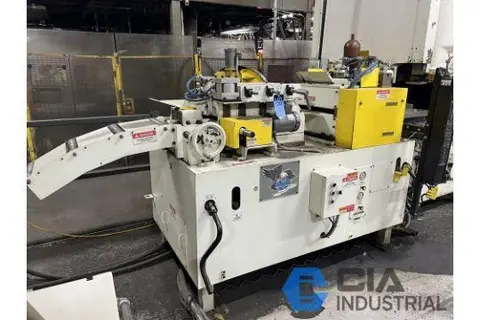

PHS7-12 Pull Thru Straightener
- (7) 3.00” Diameter Rolls
- Powered Pinch Roll with Air Raise/Lower
- Pinch Roll Raise/Lower Solenoid Operated |
|
