Preliminary Specifications

Federal Straight Side Press
Model: S2-250-72-48
Floor Standing

250 Ton Capacity
12" Stroke
18" Die Space
8" Ram Adjustment (mtrzd)
72" LR x 48" Bolster x 6" thick
72" LR x 52" FB Bed Area
35 SPM
Windows 37" wide x 20" high opening

Equipped With:

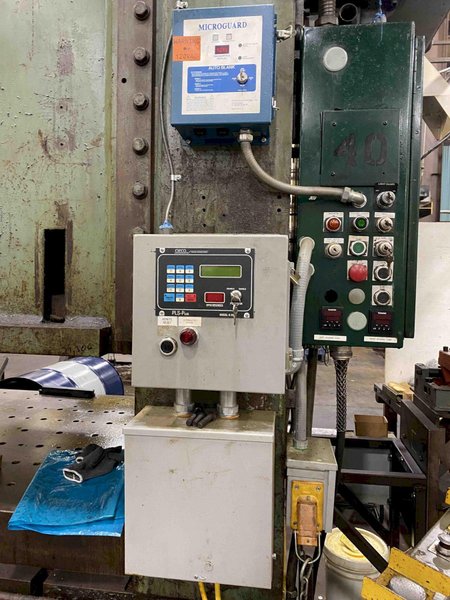

Press Mounted Controls
Cieco PLS-Plus K2000 Die Protection Controls (Updated Controls)
Air Counterbalance
Air Clutch & Brake
Operator T-Stand
Inch/single/continuous selector
37"wide windows x 20" high
6"bolster plate

Motor and electrical :
40 H.P.main motor 230/460/3/60 /1175 RPM

16" overall height from floor. Floor standing
In Plant Under Power, Available for Inspection by Appointment!

Specifications Subject To Verification; Subject To Prior Sale & Price Change
This machine is in good operating condition, has been updated electrically.
