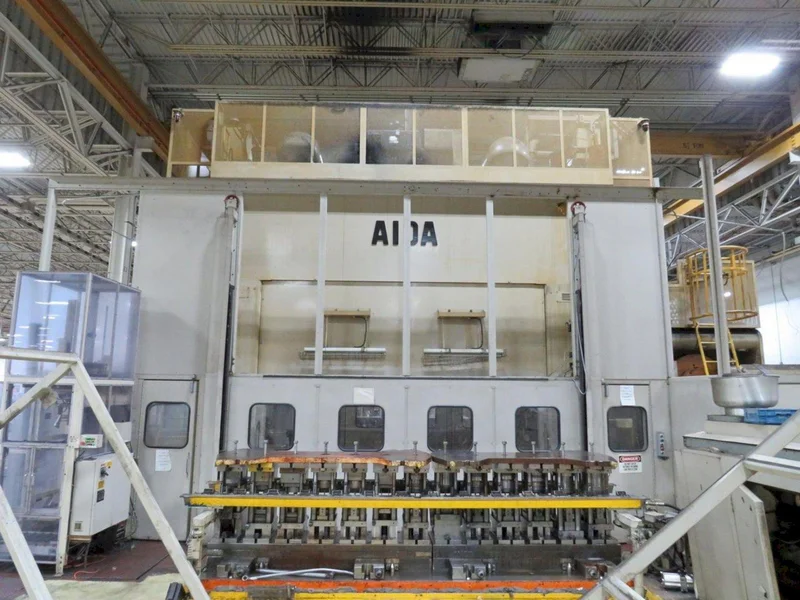

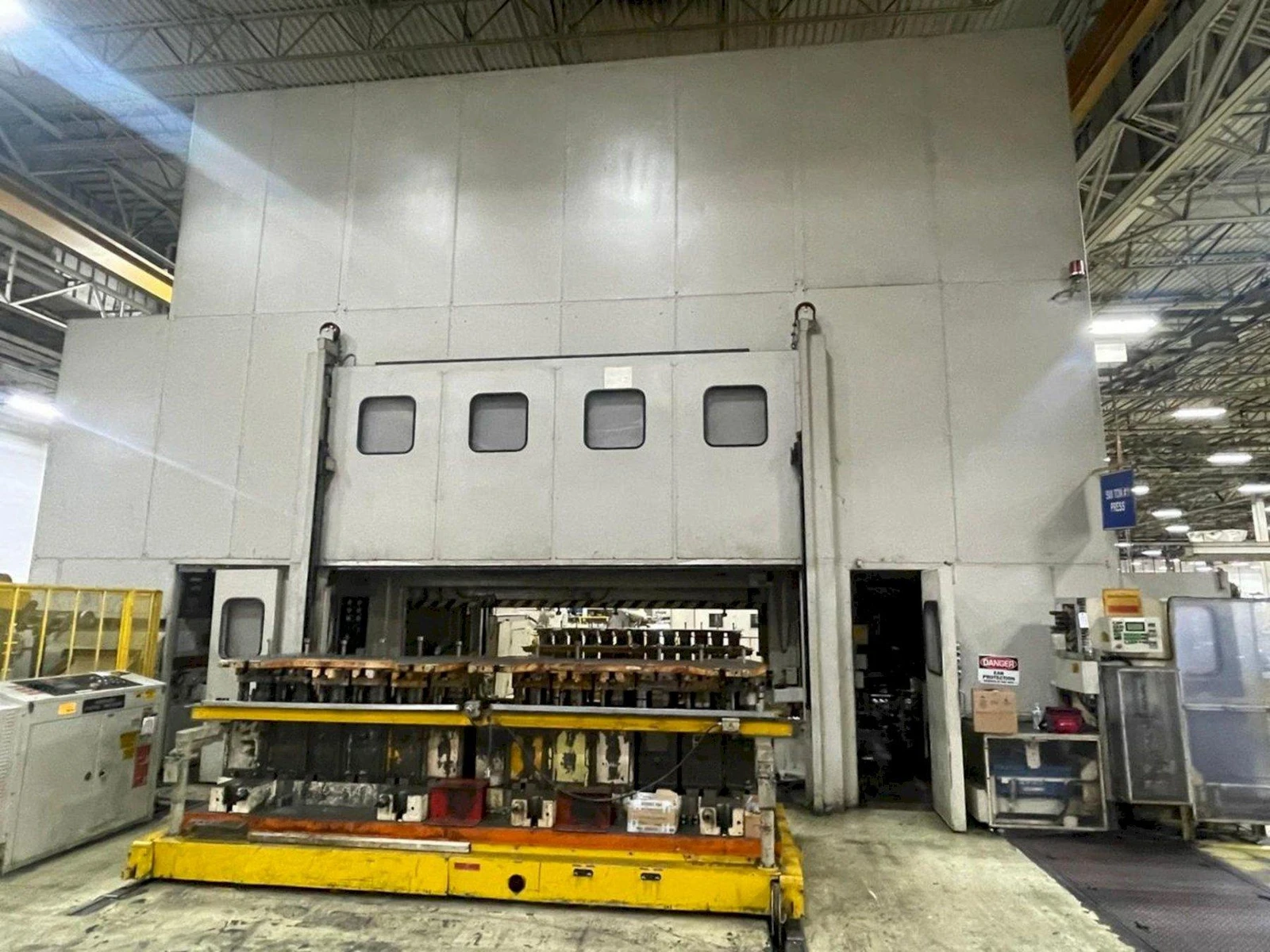

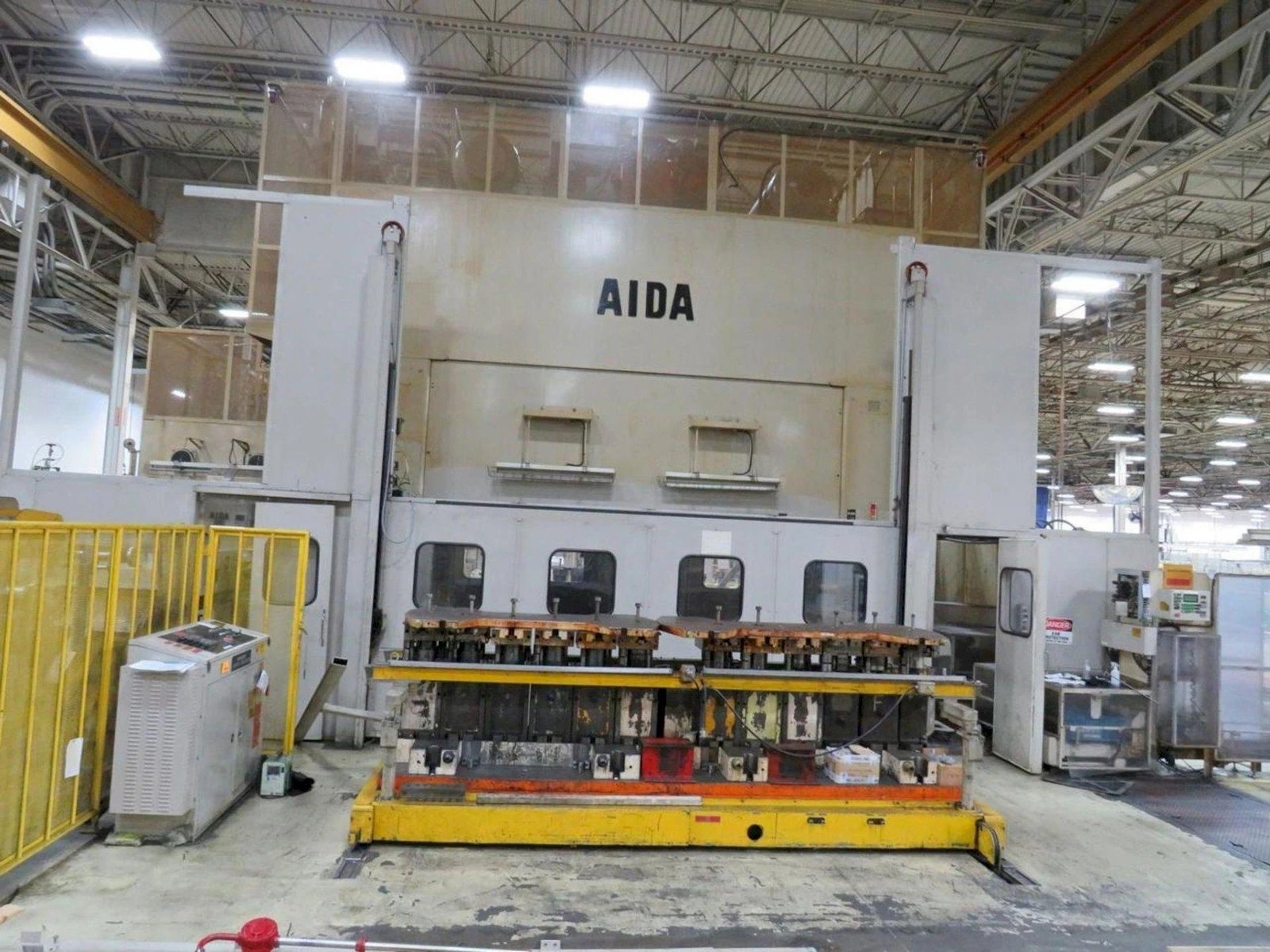

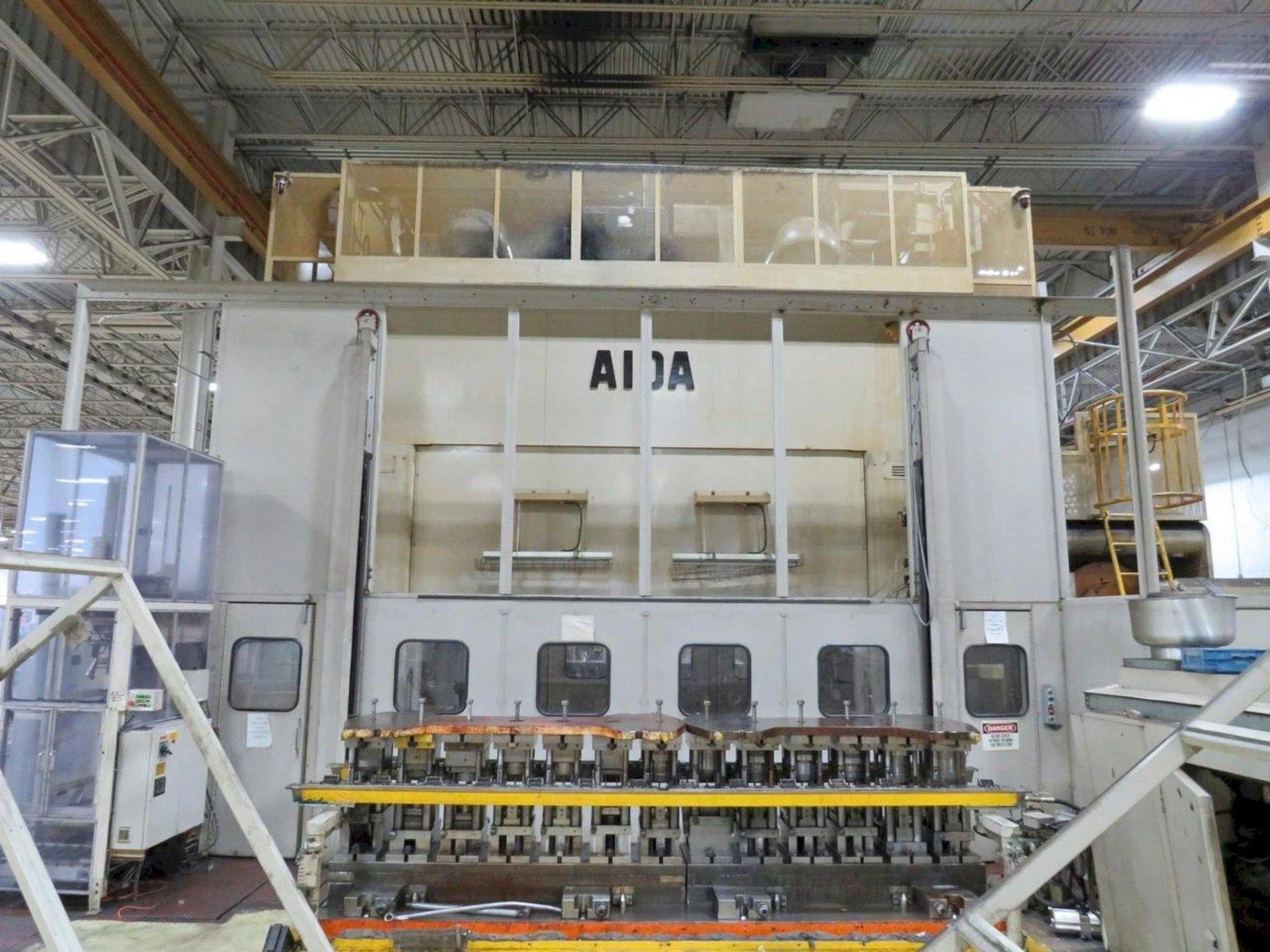

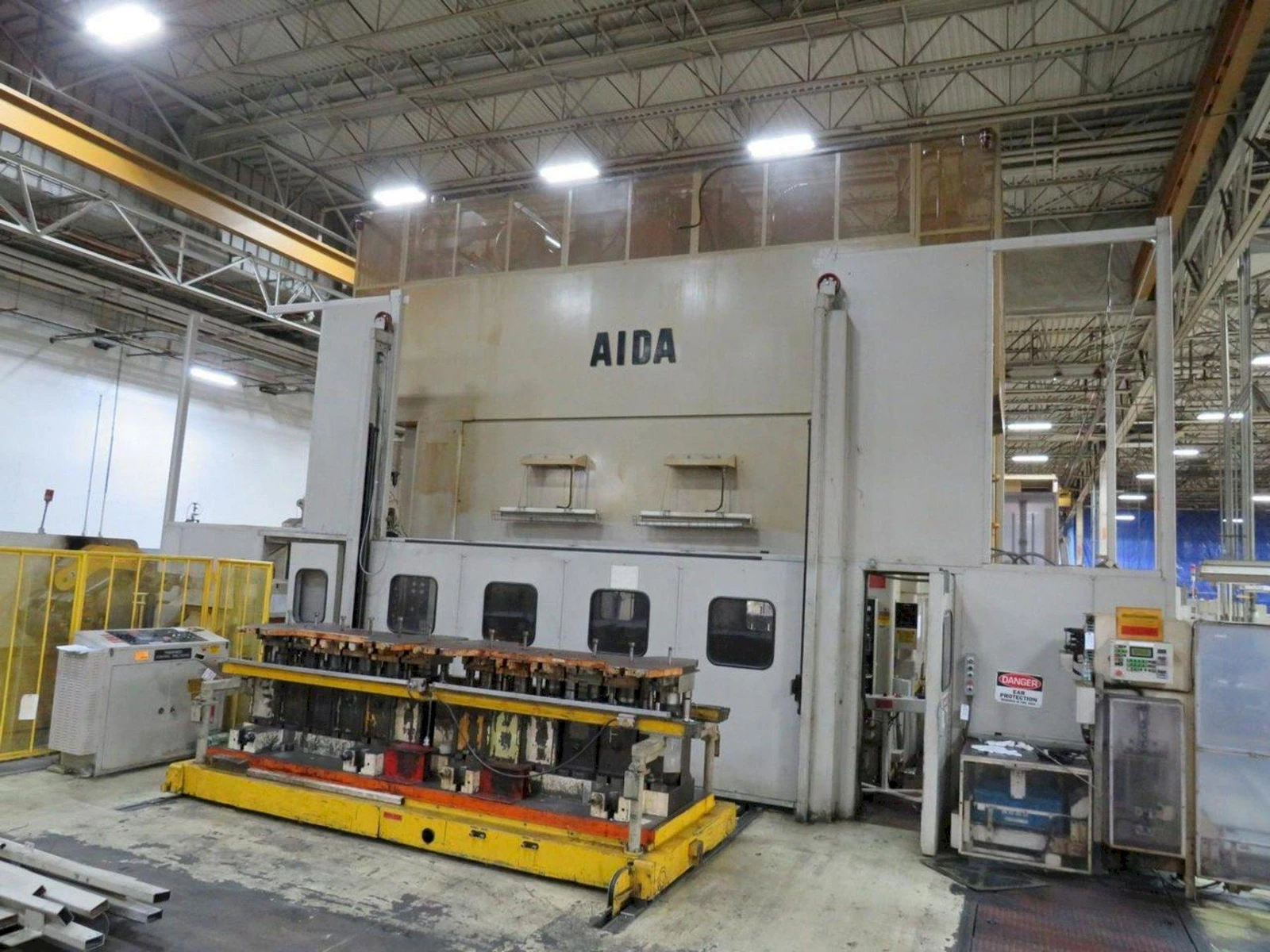

500 metric Ton Aida TMX-S2 Straight Side Double Crank Press, New 1995

Brand

AIDA

Category

Presses (Stamping)

Type

Presses, Straight Side, Double Crank (Single Action)

Model

TMX-S2-500

Stock #

2826

Year

1995

Condition

Very Good

Location

Michigan

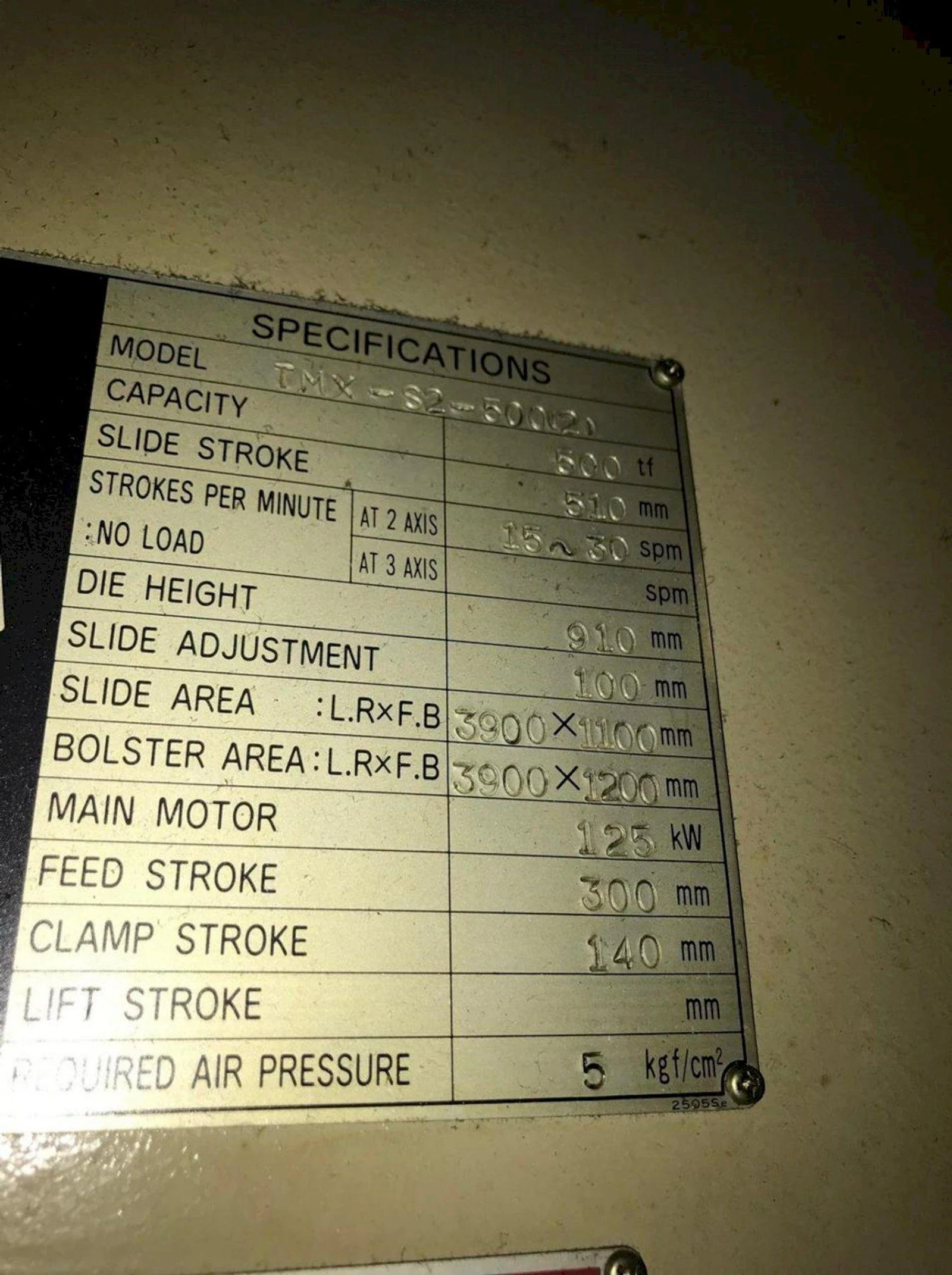

Specifications
Files & Videos

Tonnage	500
Stroke	20 inches
Shut Height	45 inches
Adjustment	3.93 inches
Bed Size	153.5" LR x 47.3" FB Bed Area
Ram Area	153.5" LR x 43.3" FB Slide Area
SPM	15-30 VSPM

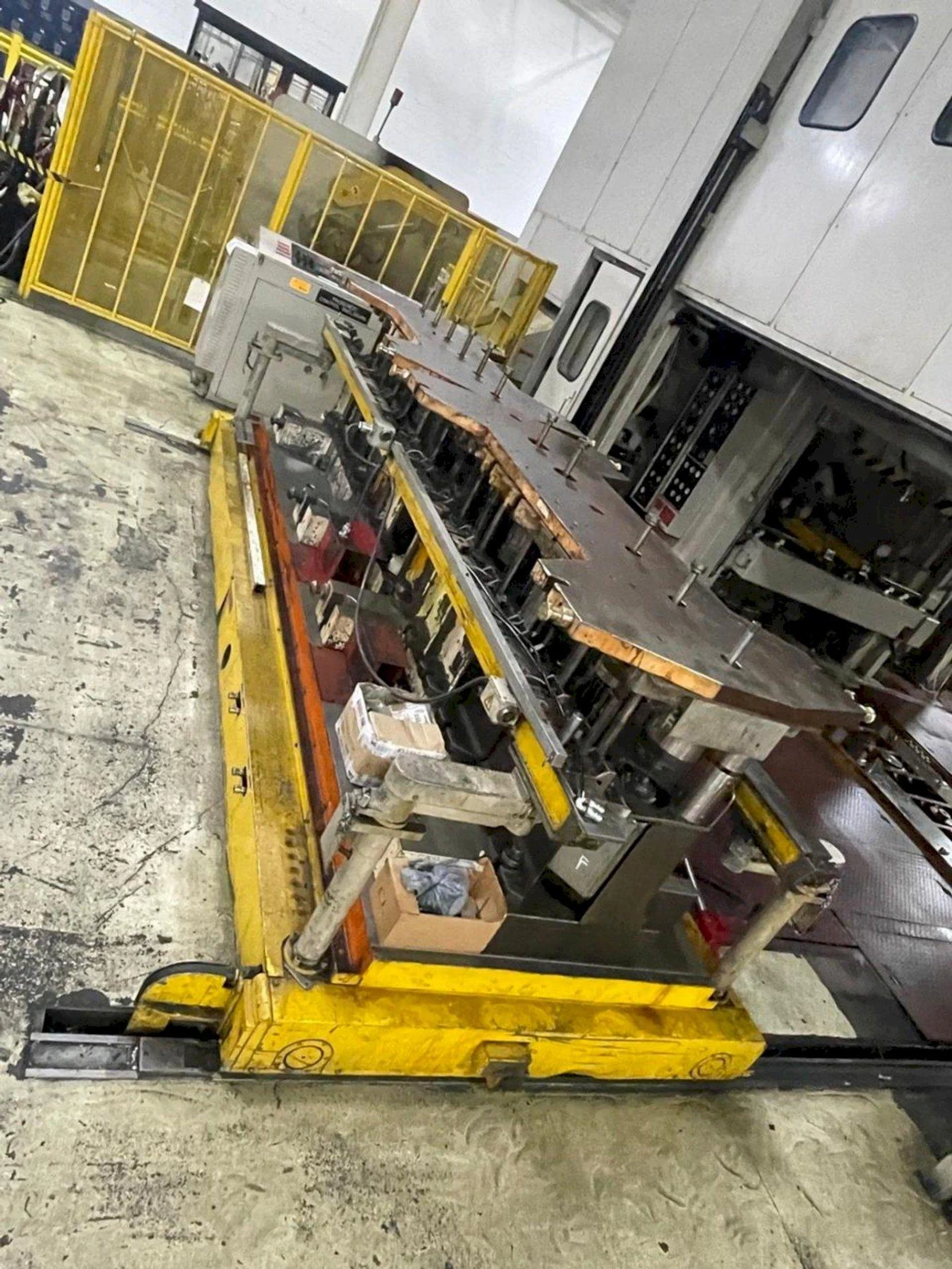

Standard Specifications 500 metric Ton Capacity 20" Stroke 35.82" Die Height on Bolster 46" Shut Height on Bed 3.93" Motorized Adjustment 153.5" LR x 47.3" FB Bed Area 153.5" LR x 43.3" FB Slide Area 15-30 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System Dual Rolling Bolster Die Cushions Free Standing Console Control

Files

Download 500 ton Aida General Arrangement Drawing.pdf

Watch https://youtu.be/P_Rgi_mtCao
