200-TON AIDA PMX-L2-200(1) USED MECHANICAL METAL STAMPING PRESS FOR SALE, YEAR 1990
Brand
Category
Model
PMX-L2-200(1)
Stock #
2885
Year
1992
Condition
Used
Location
Michigan
| Tonnage | 200 |
| Stroke | 7.87 inches |
| Shut Height | 28.6 inches |
| Adjustment | 5.9 inches |
| Bed Size | 61" LR x 37.4" FB |
| Ram Area | 61" LR x 32.6" FB |
| SPM | 40-80 VSPM |
|

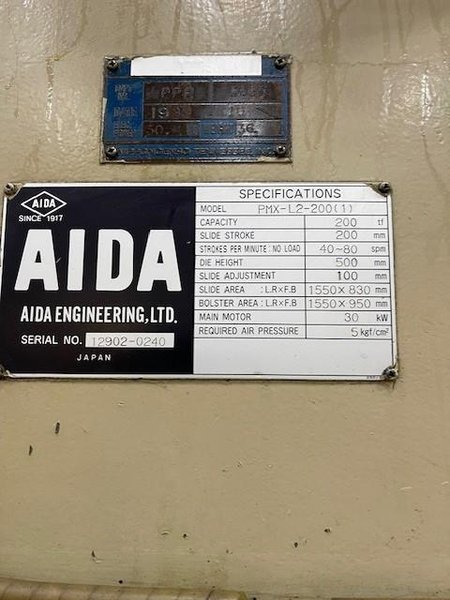

Standard Specifications
Used Aida PMX-L2-200(1)
Serial Number 12902-0240
Progressive Die Link Drive Stamping Press
200 ton Metric Capacity220 ton US Capacity 7.87" Stroke 19.6" Die Height Over Bolster 28.6" Shut Height Over Bed 5.9" Adjustment 61" LR x 37.4" Bed Area 61" LR x 32.6" Slide Area 40-80 VSPM Equipment and Features Air Clutch and Brake
Progressive Link Motion Drive
- Reduces Snap-through
- Increases Time in the Forming Portion of Stroke
Dynamic Slide Balancing
Automatic Recirculating Lube System
Hydraulic Overload Protection
38" Floor To Top of Bolster 8-Point Oil Film Slide Guide System
Micro Inch Capability
40 HP Main Motor, 460V 60HZ
11.8" Thick T-Slotted Bolster
T-Stand Palm Buttons
33.5" Wide Windows
Safety Doors Front and Back
Flush Floor Standing
Weight 79,360 lbs.
Overall Height: 16' 10" Tall
Shipping Dimension: 9' 8.5" Wide

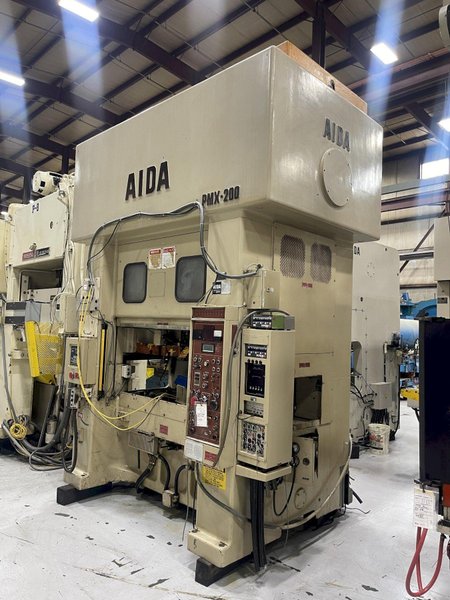

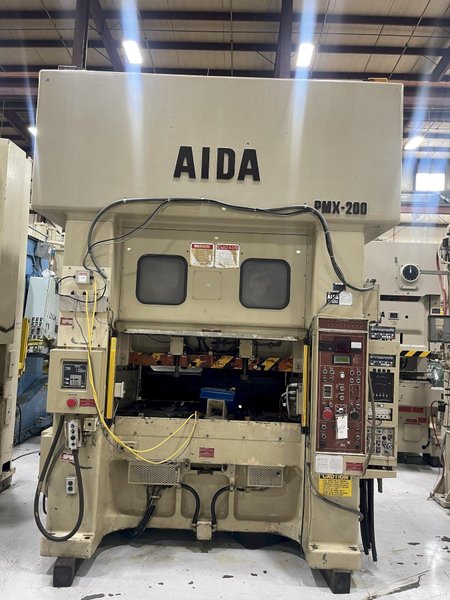

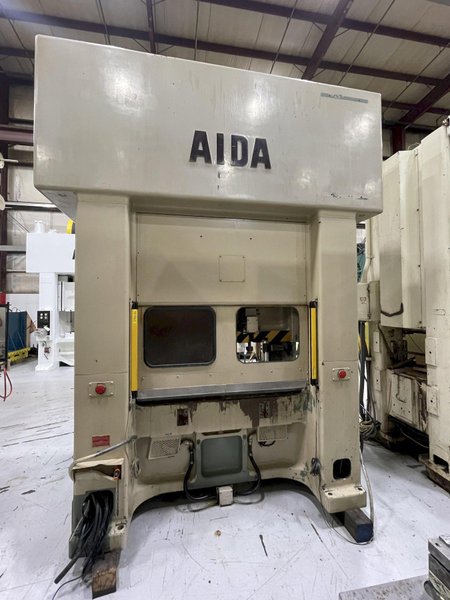

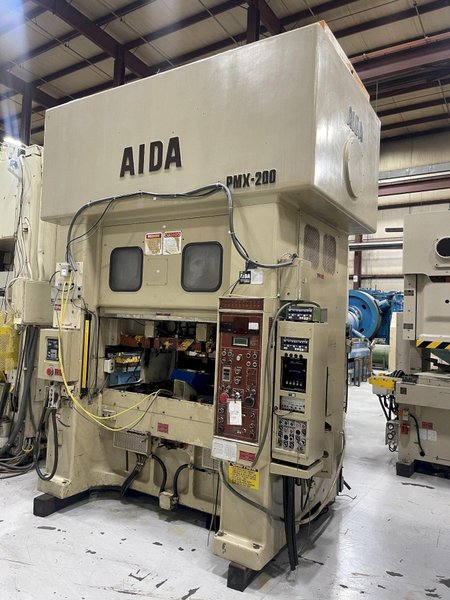

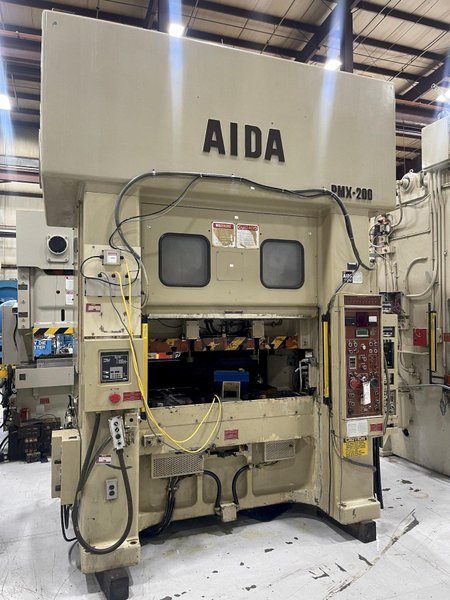

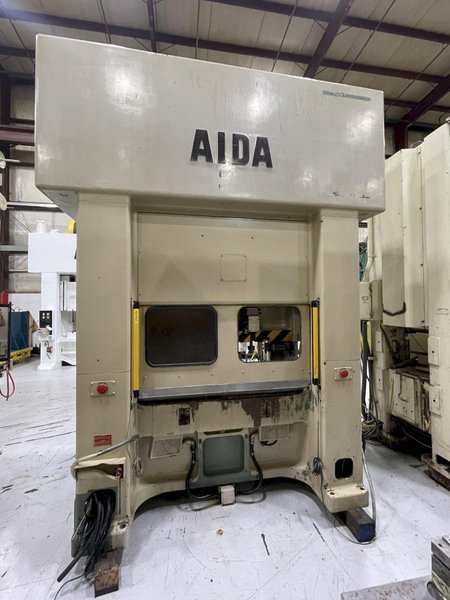

This Used 200-ton Aida PMX Press can be seen underpower in the S&G Press Livonia Michigan Warehouse. The 200-ton Aida PMX Press delivers precise control throughout the stroke and maximizes material flow in the forming zone, ensuring consistent quality in metal stamping. Its durable build reduces downtime and maintenance costs, while high-speed operation enhances productivity, meeting deadlines efficiently. Versatile for progressive stampings, forming, and blanking operations, it's an ideal choice.
Aida Link Drive Mechanical Metal Stamping Press For Sale
|
|
