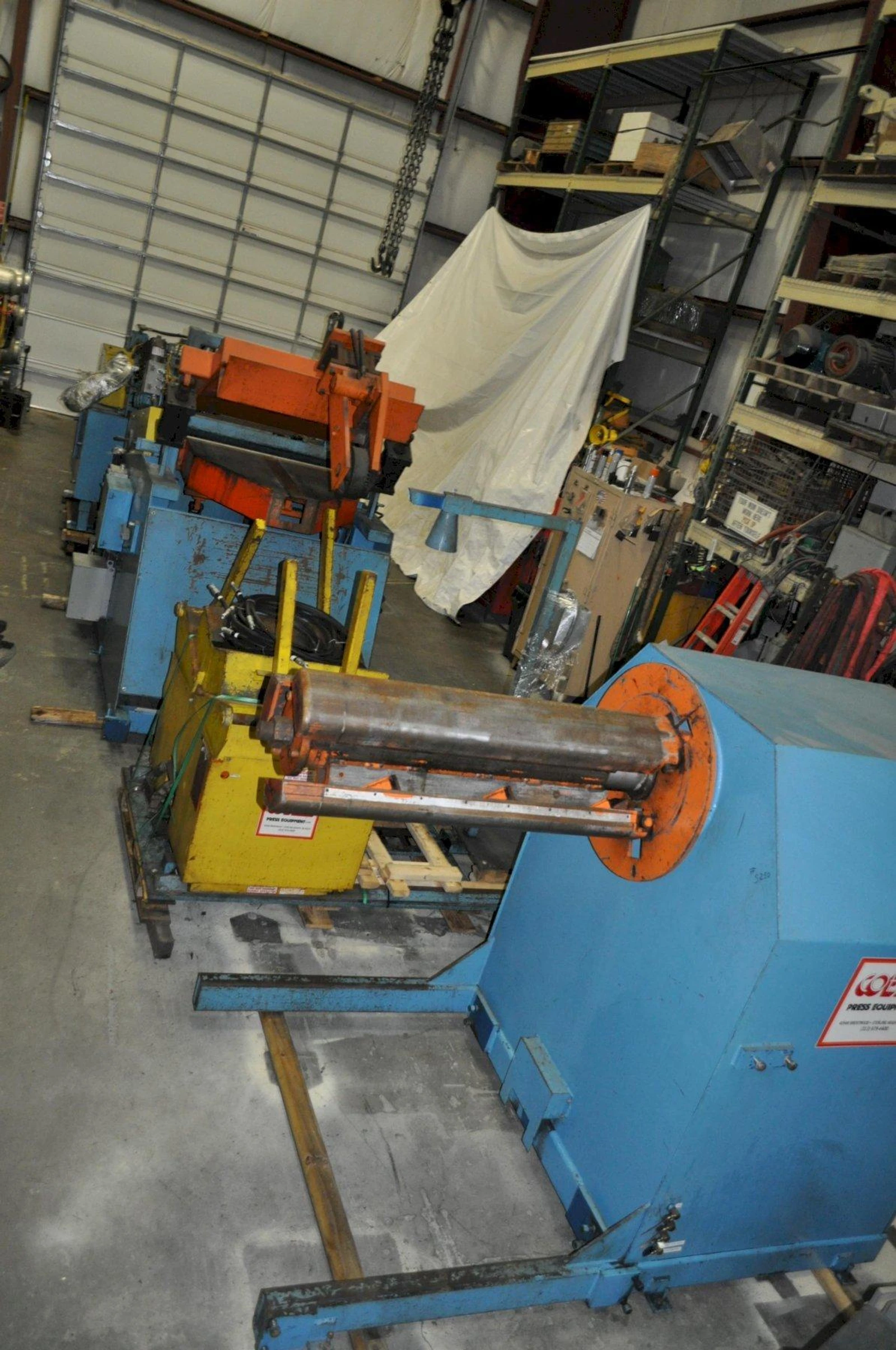

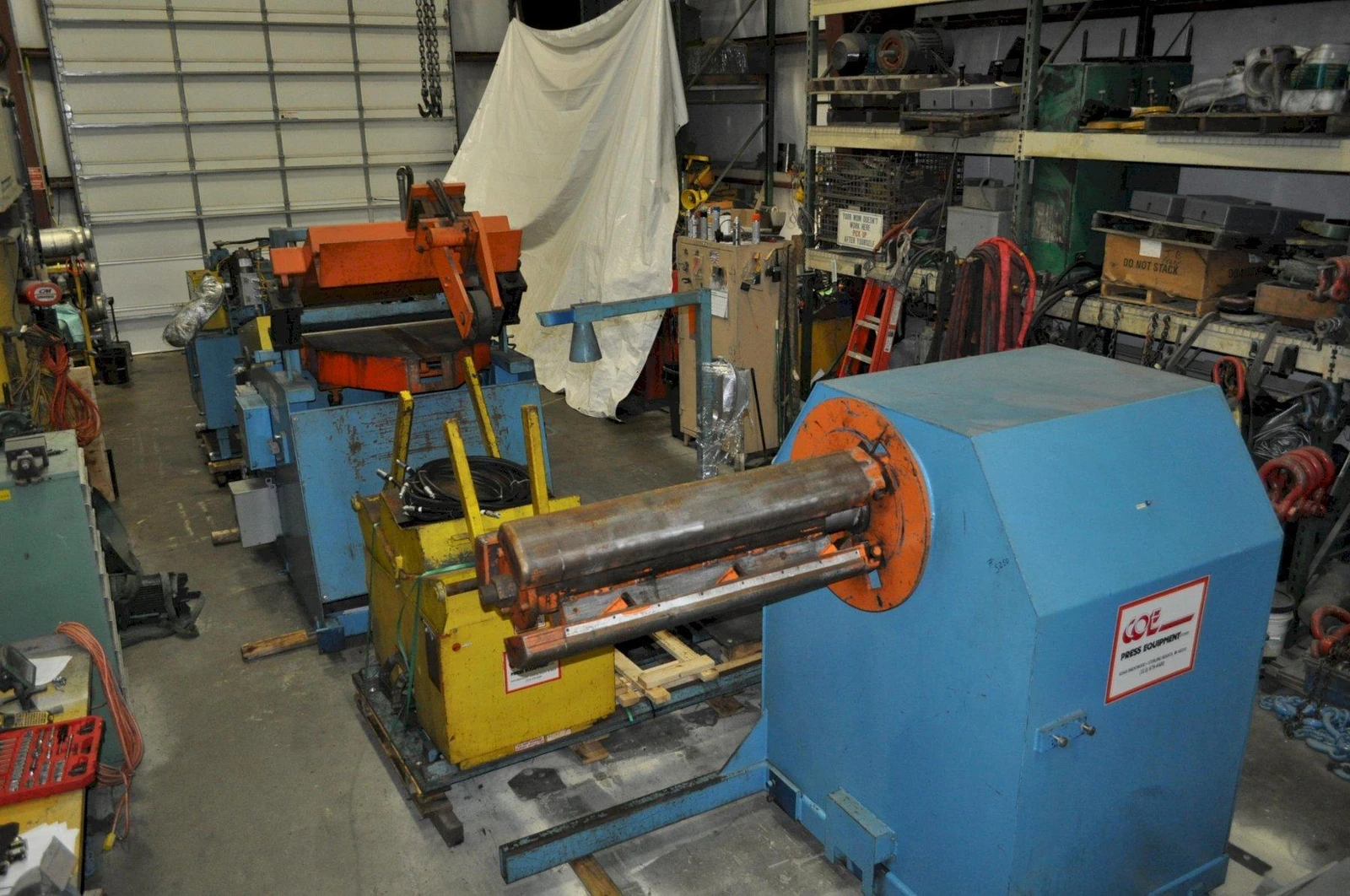

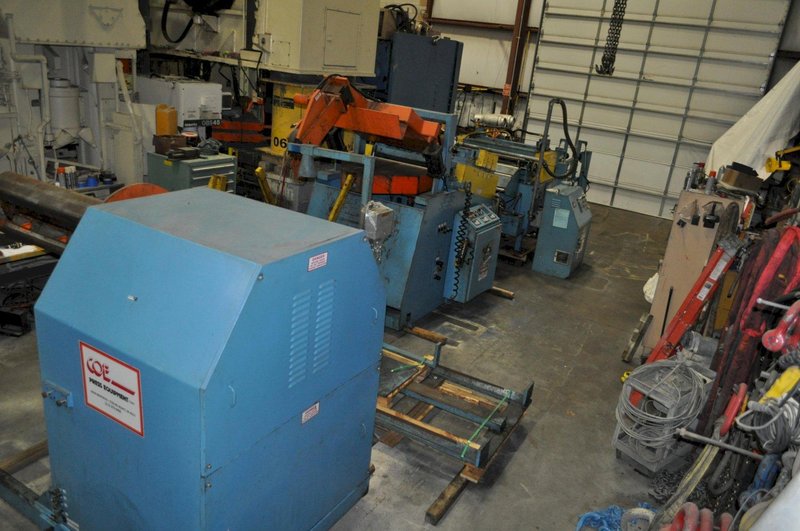

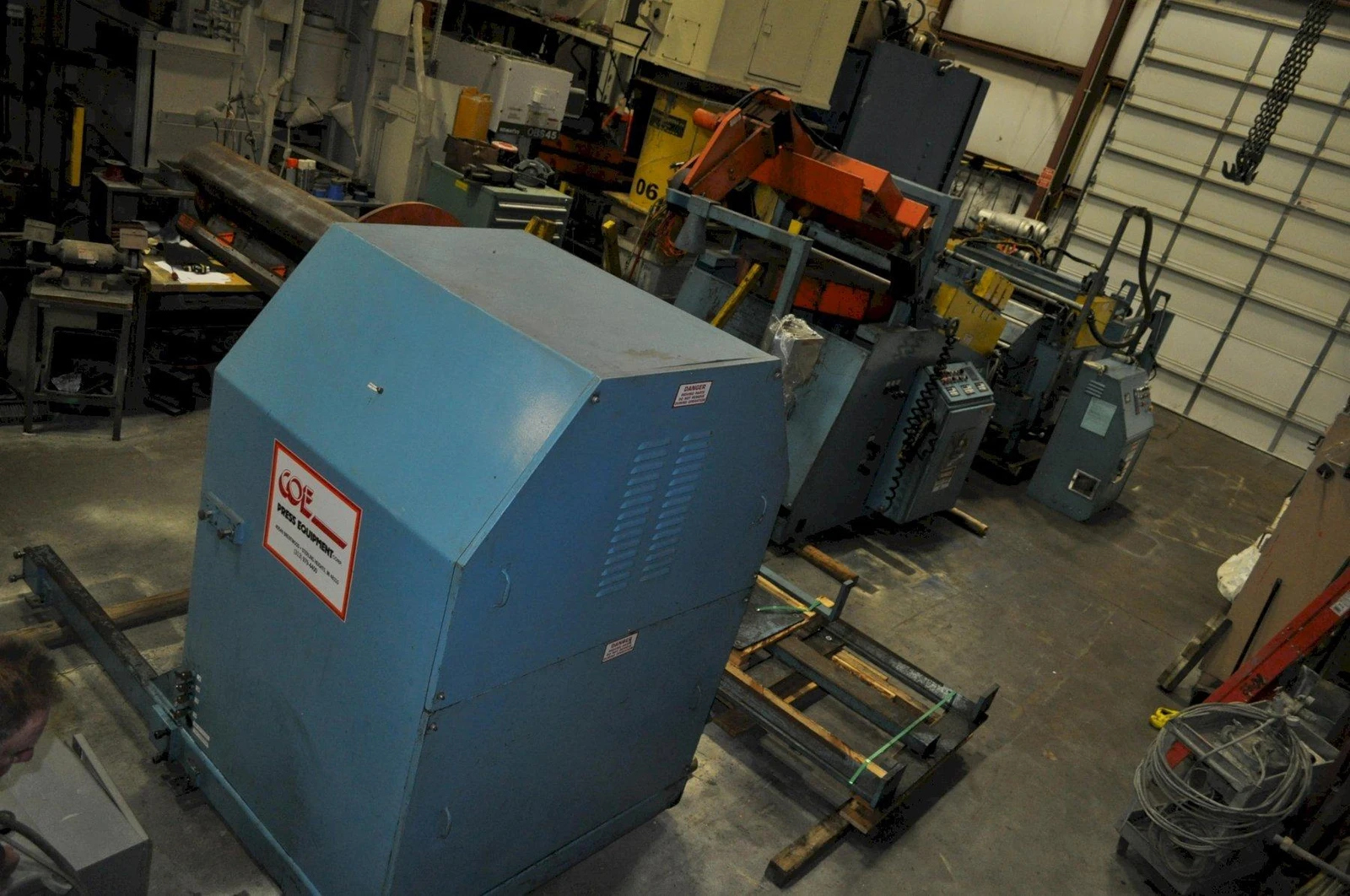

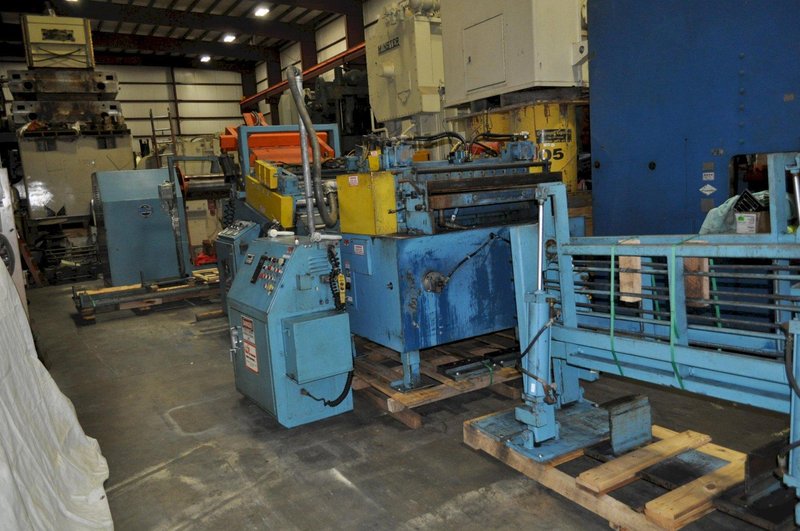

15,000 LB X 42" X .062" COE SERVO FEEDLINE

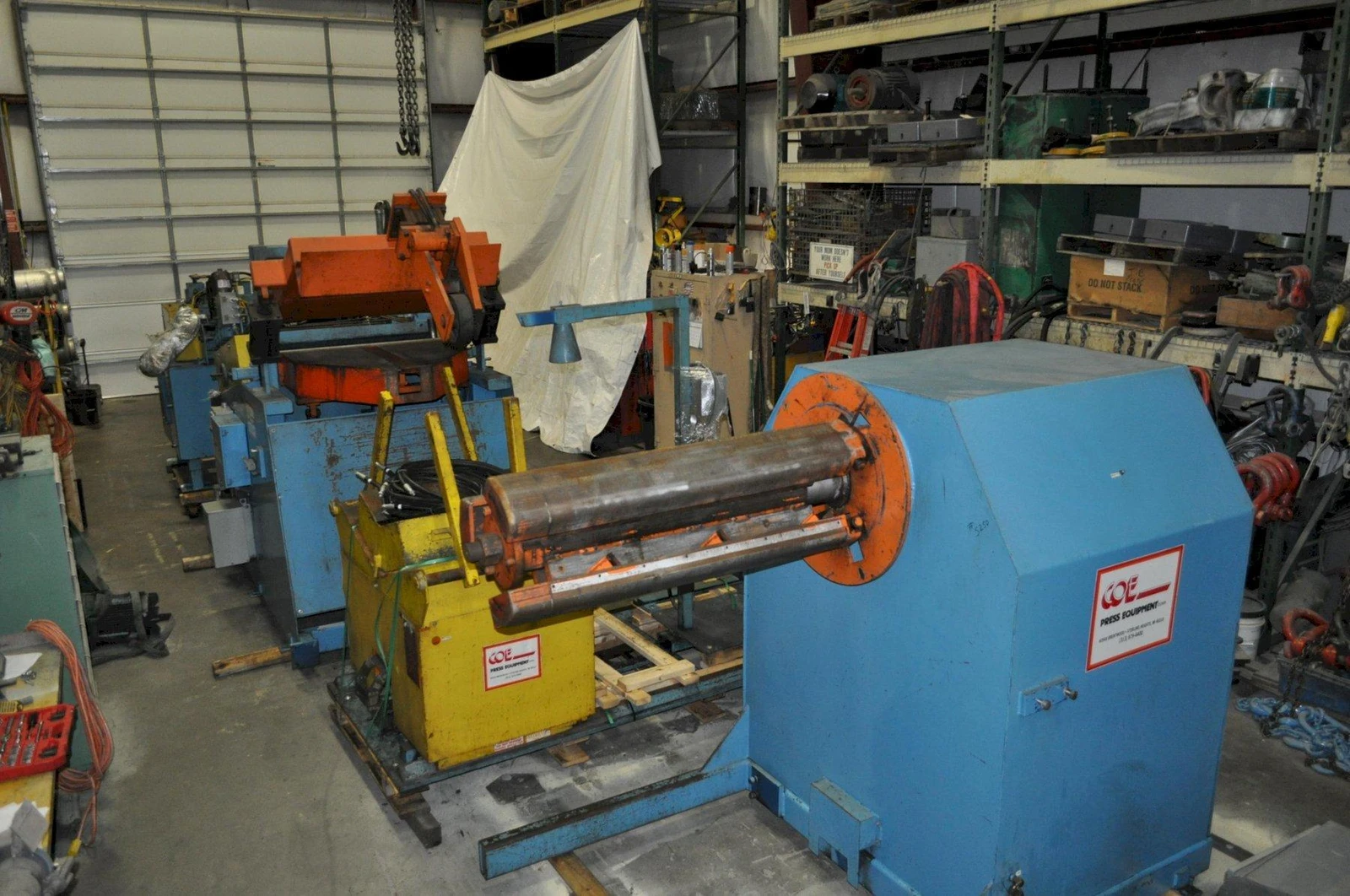

UNCOILER
MODEL CRP-PO-15042
SN 10198-4
15,000 LB CAPACITY
3 LEAF MANDREL
42" MAX COIL WIDTH
60" MAX COIL O.D.
19-24" MANDREL EXPANSION
HYDRAULIC EXPANSION
AIR DRAG BRAKE
HYDRAULIC THREADING DRIVE

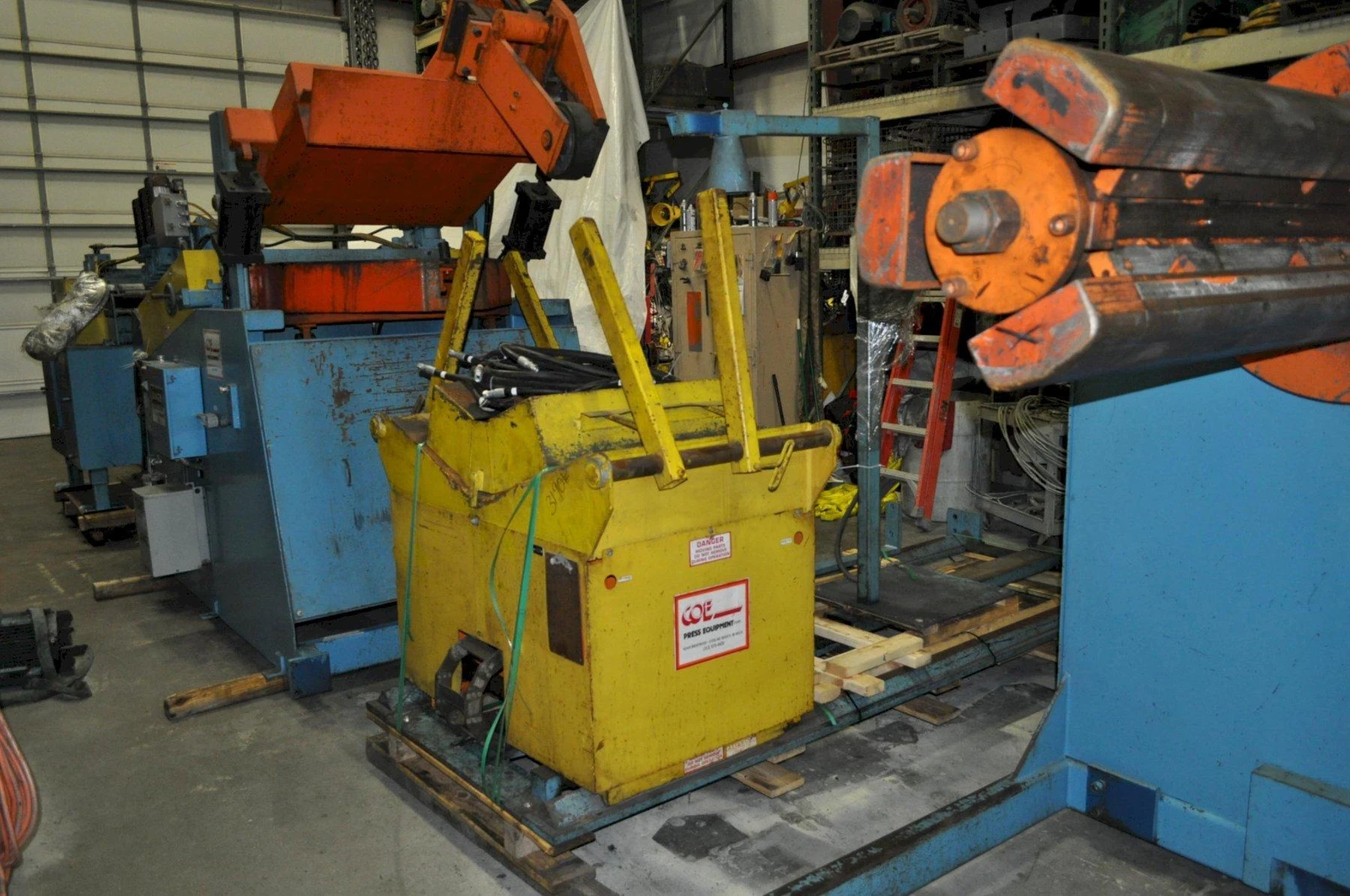

COIL CAR
PENDANT FOR JOGGING
LEFT TO RIGHT FEED DIRECTION
55" PASSLINE

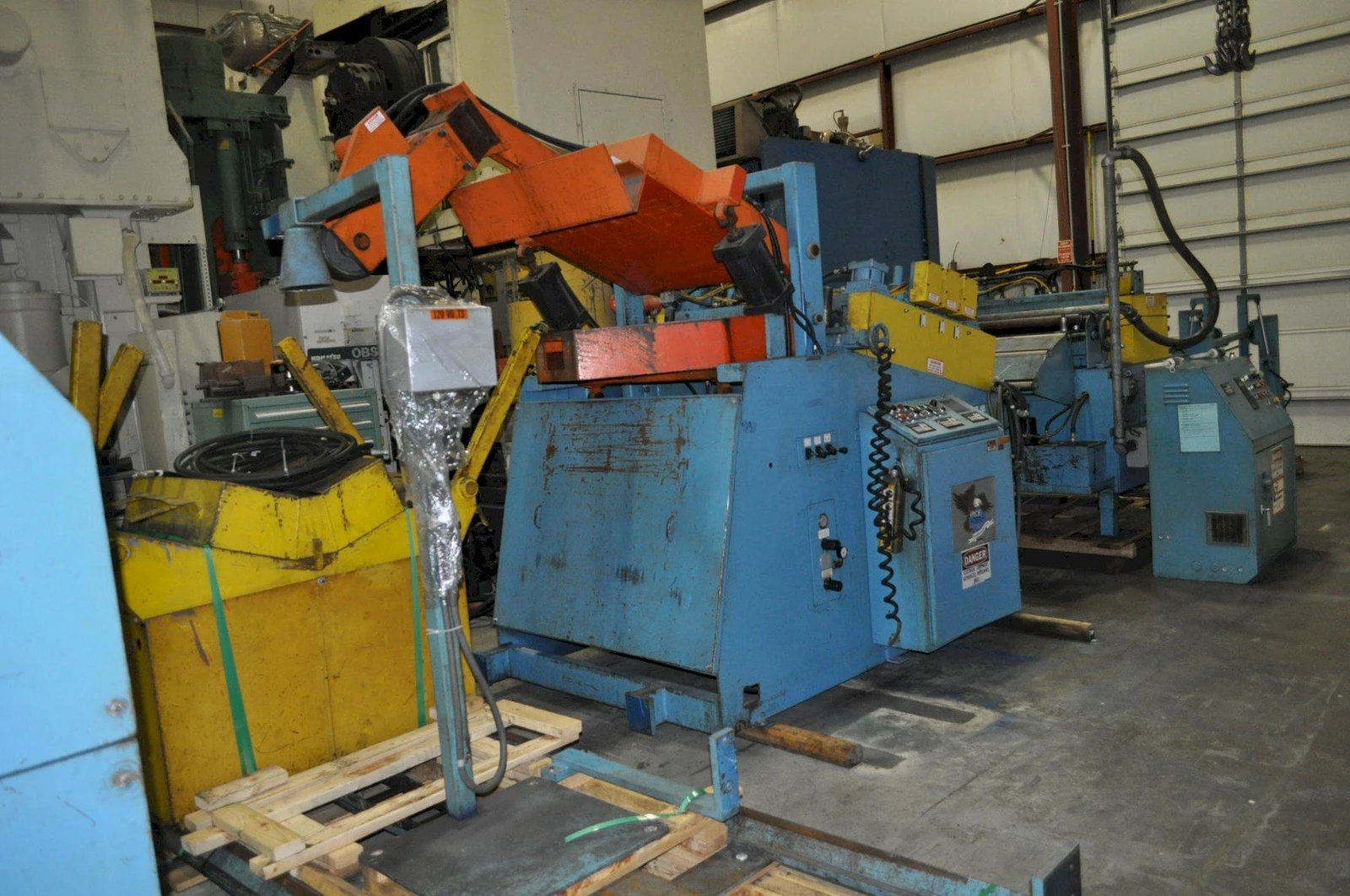

STRAIGHTENER
MODEL CPPS-PO-350-42
SN 10198-3
.063" AT 42" WIDE
.090" AT 36" WIDE
.187" AT 18" WIDE
7 ROLL
3.5" DIAMETER ROLLS
BREAKER ROLLS
HOLD DOWN ARM

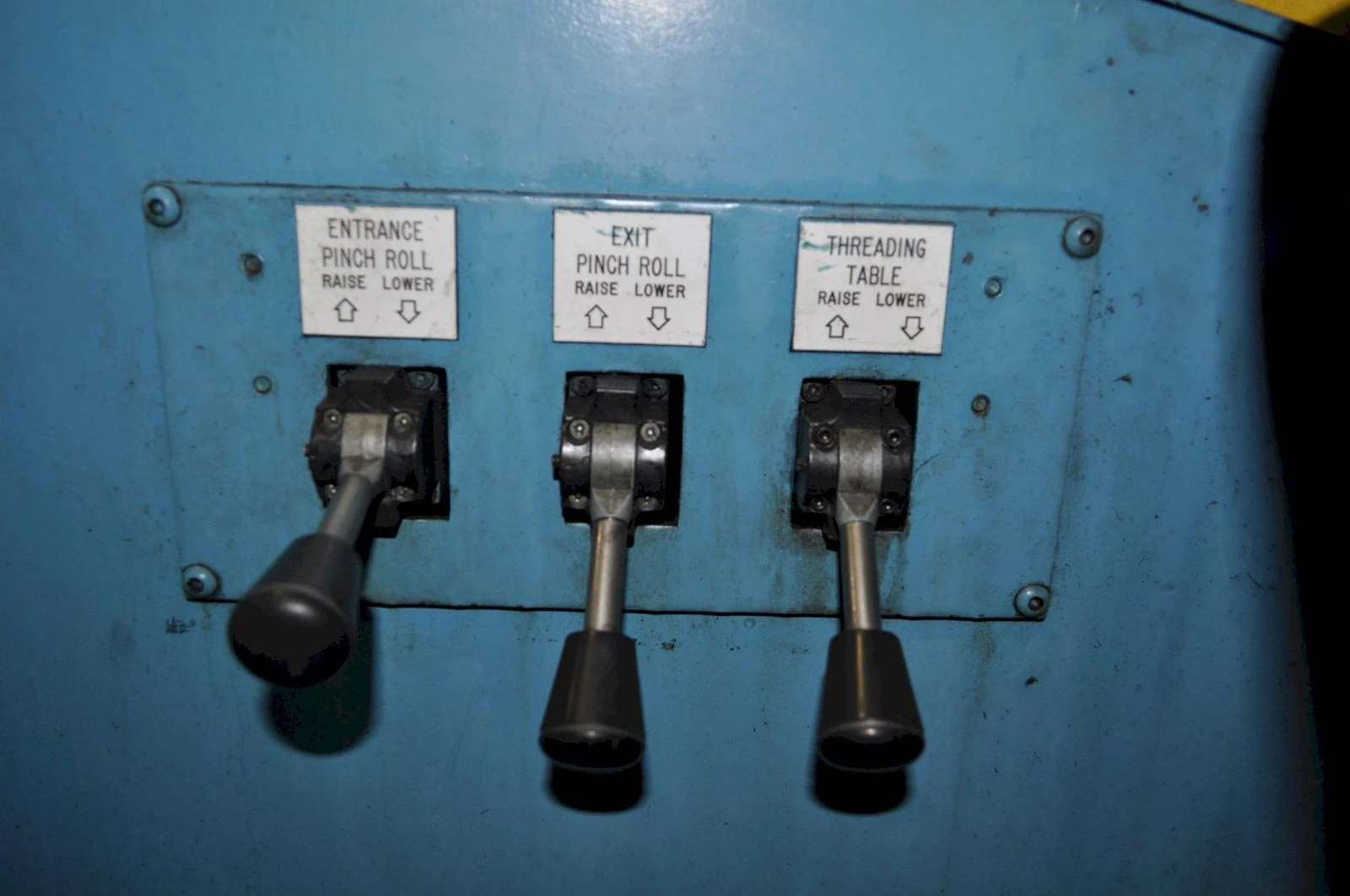

AIR ENTRY AND EXIT PINCH ROLLS
ENTRANCE EDGE GUIDES
PEELER TABLE
JOGGING PENDANT
LEFT TO RIGHT FEED DIRECTION

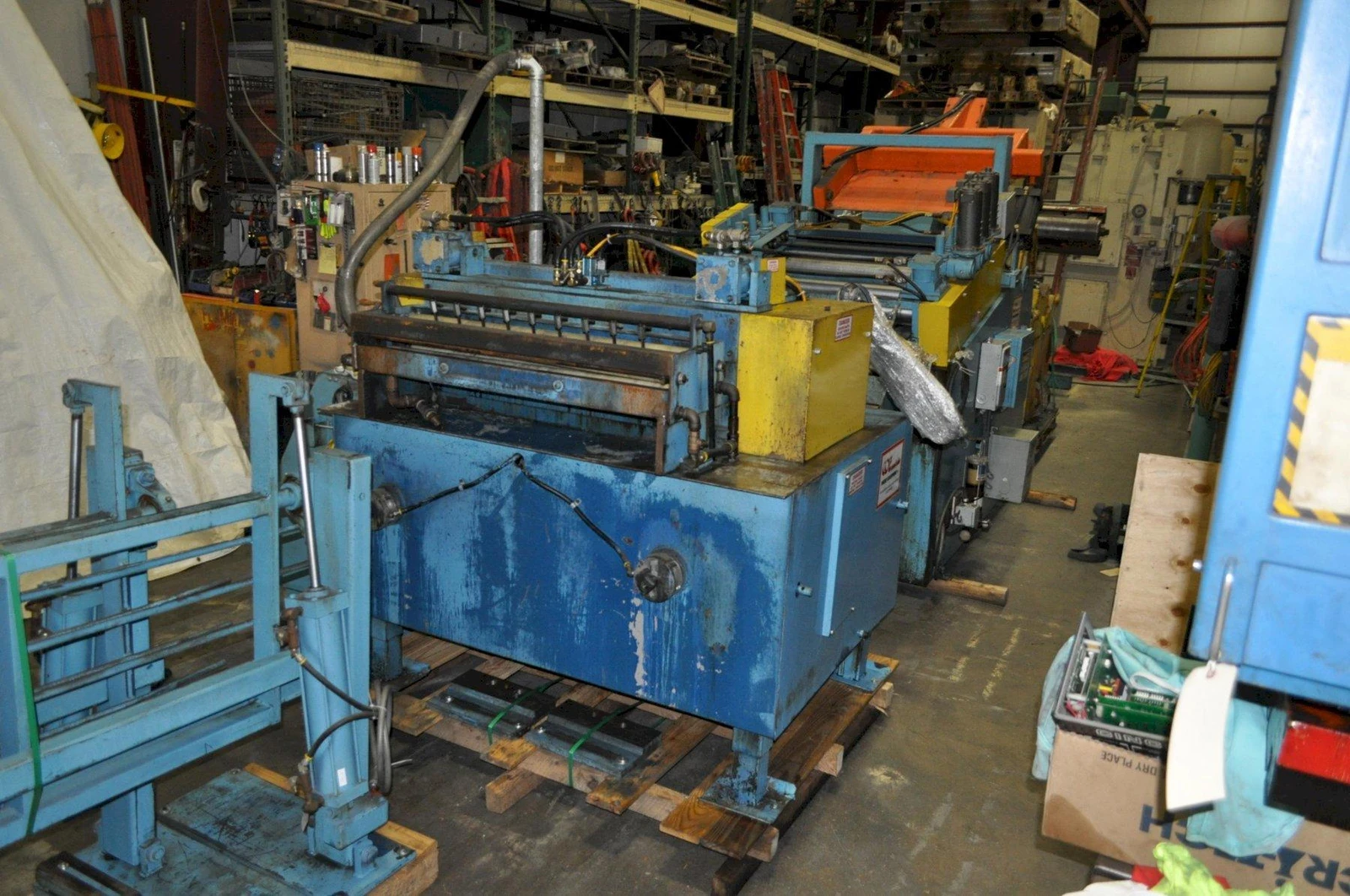

SERVO FEEDER
MODEL CPRF-442
SN 10198-1
42" WIDE
.063" AT 42" WIDE
350 FT PER MIN
4" ROLLS
PILOT RELEASE
SERVO DRIVE
INDRAMAT CLM
0-999.99 FEED LENGHTS
PENDANT FOR JOGGING
6" MOTORIZED ADJUSTMENT OF PASSLINE HEIGHT
55" PASSLINE HEIGHT

DIMENSIONS
UNCOILER 112" X 64" X 86" T 6500 LBS
COIL CAR W RAIL 125" X 64" X 62"T  4500LBS
COIL LOOP PHOTO EYE 60" X 24" X 74"T  500 LBS
STRAIGHTENER 154" X 84" X 107"T 10,000 LBS
SERVO FEEDER 76" X 80" X 96"T 7000 LBS

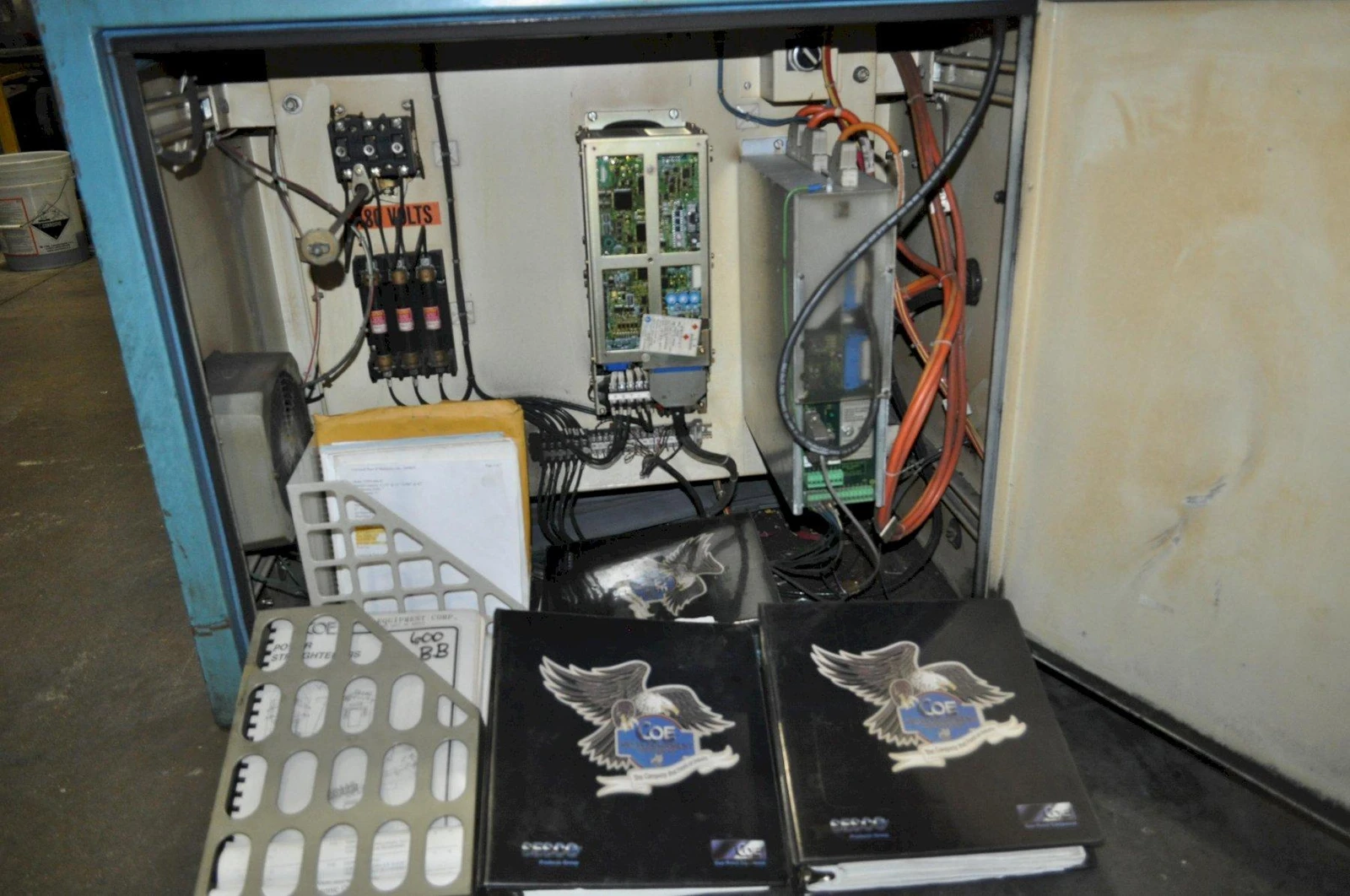

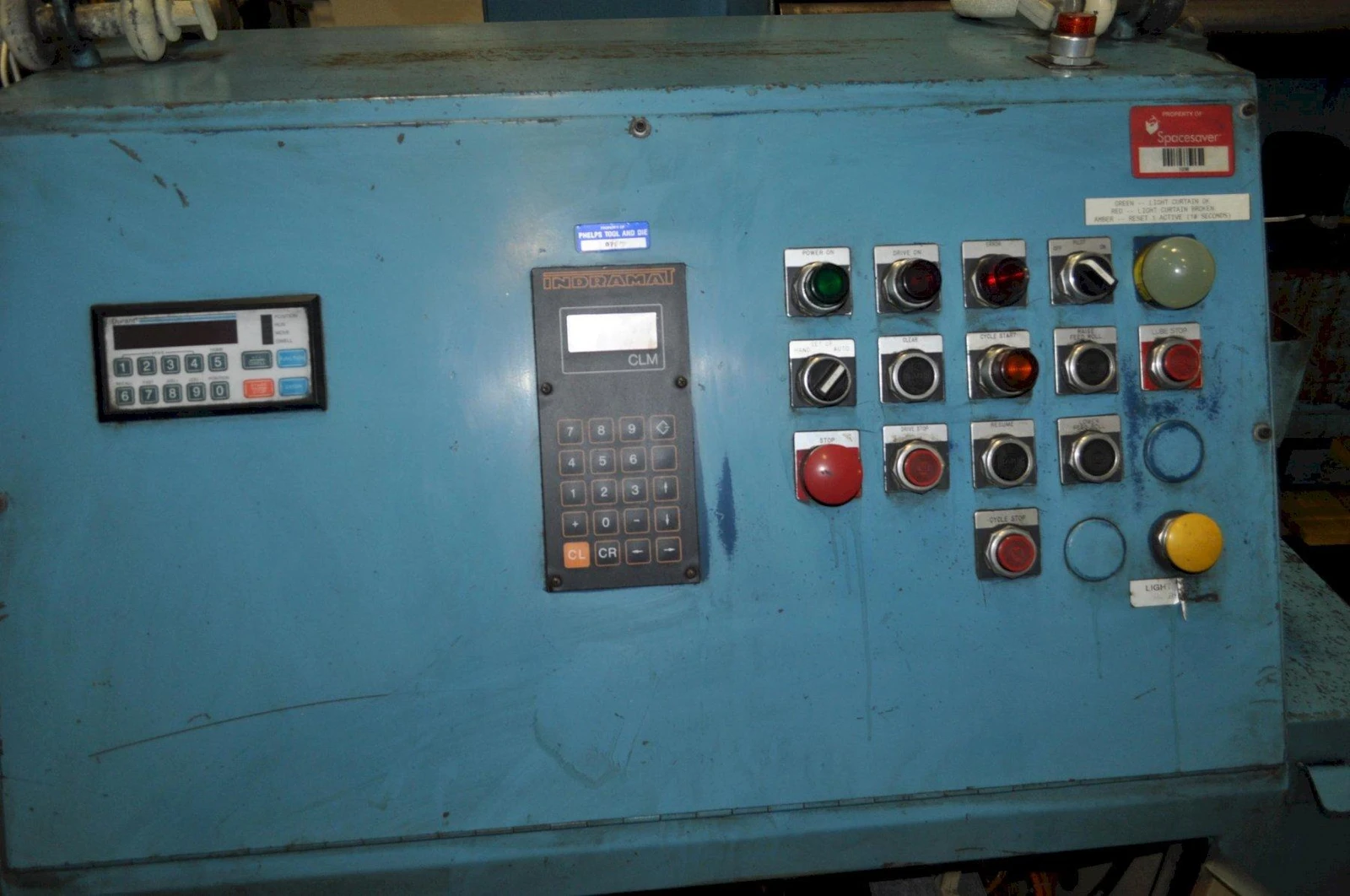

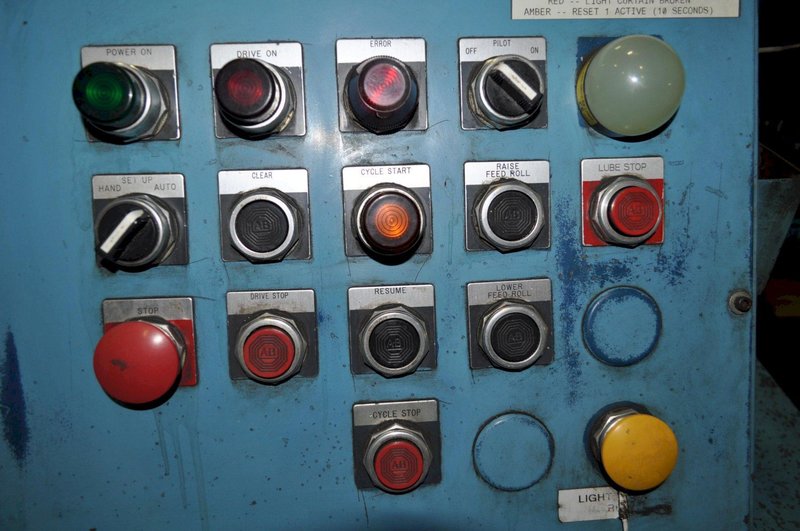

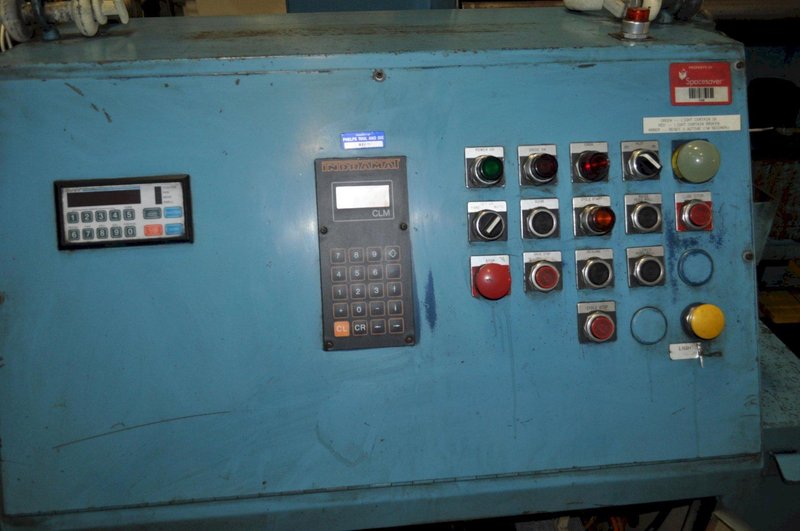

SERVO CONTOL 48" X 26" X 53"T  700 LBS

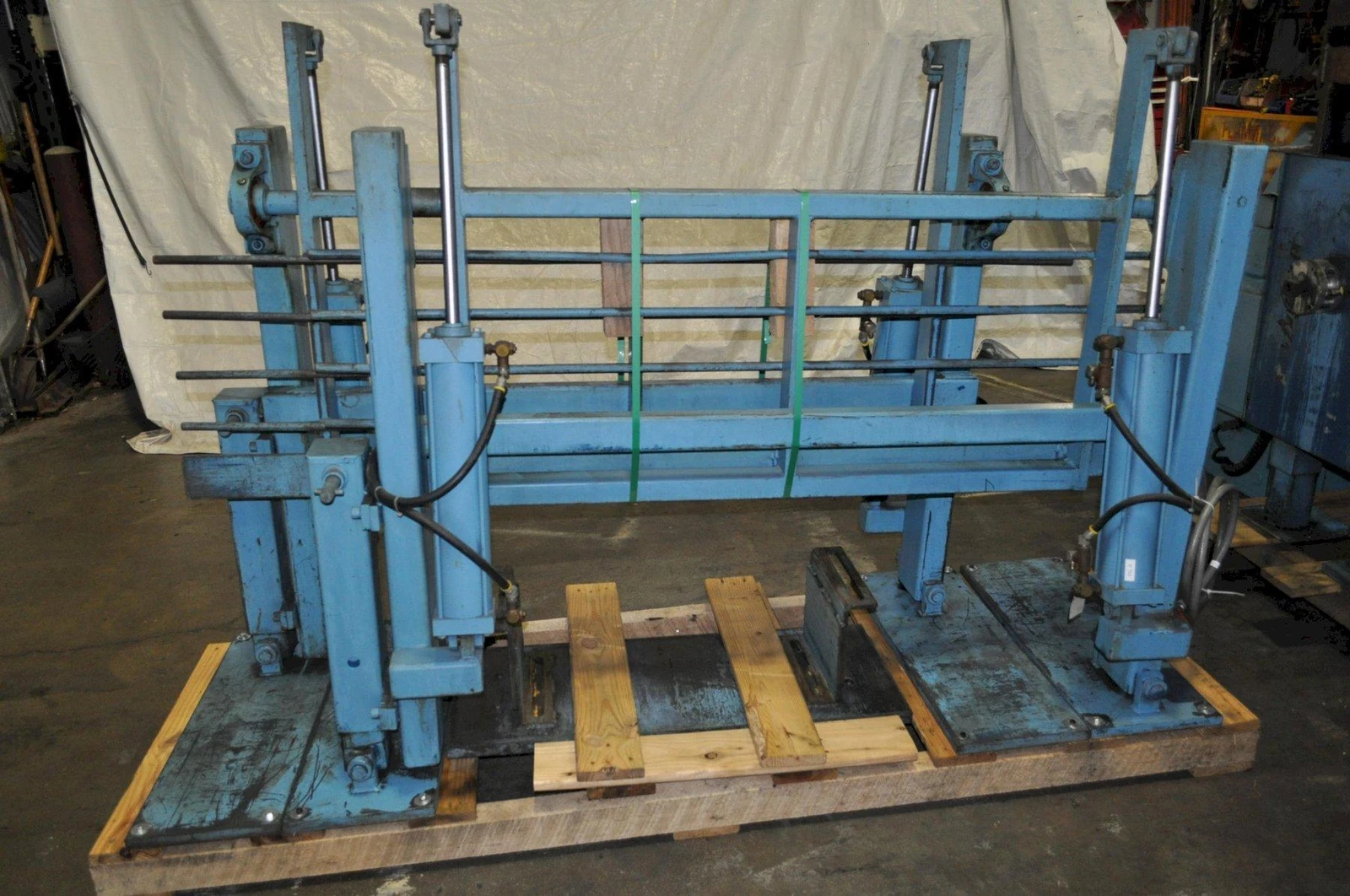

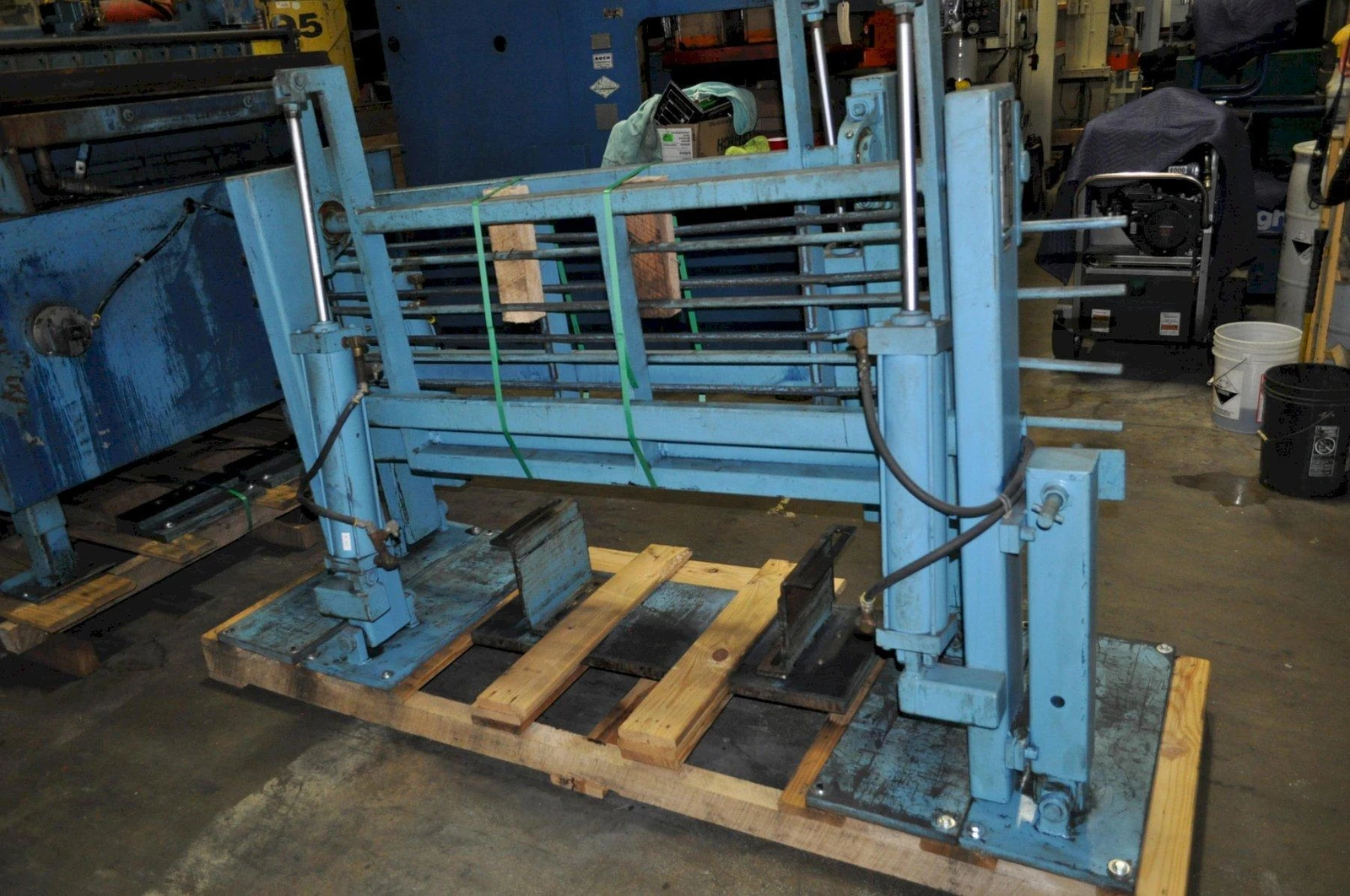

LIFT GATES 8' X 32" X 65"T 1500 LBS
