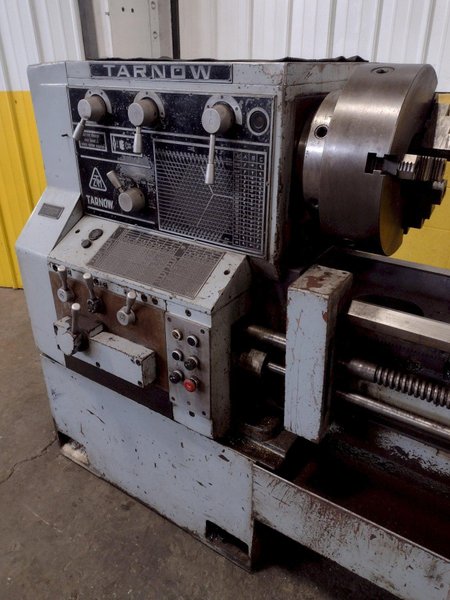

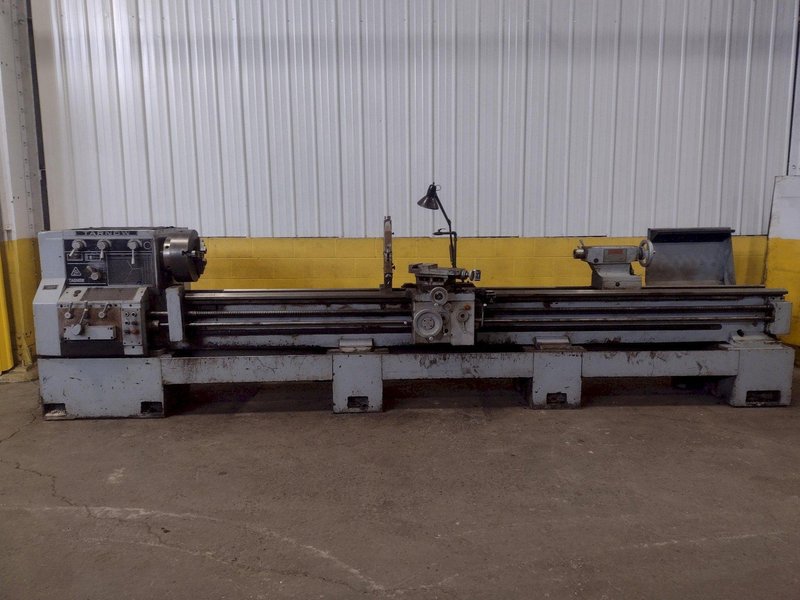

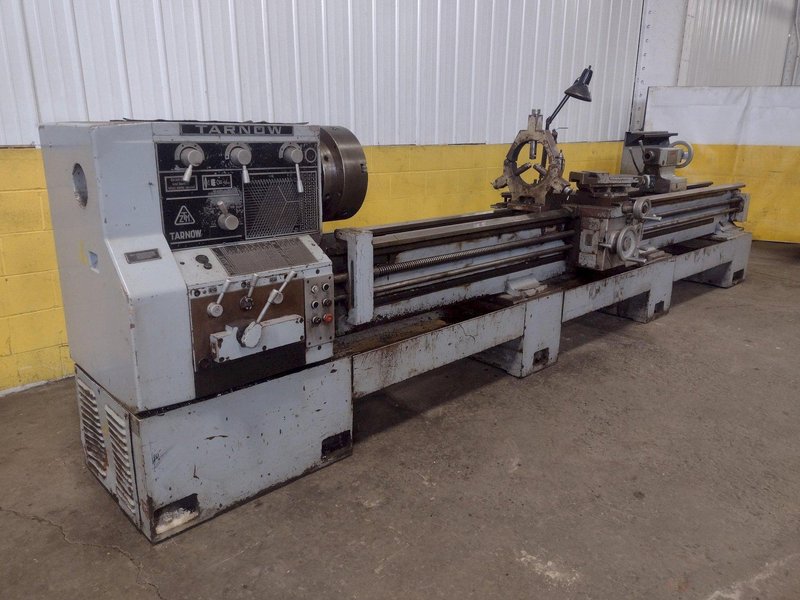

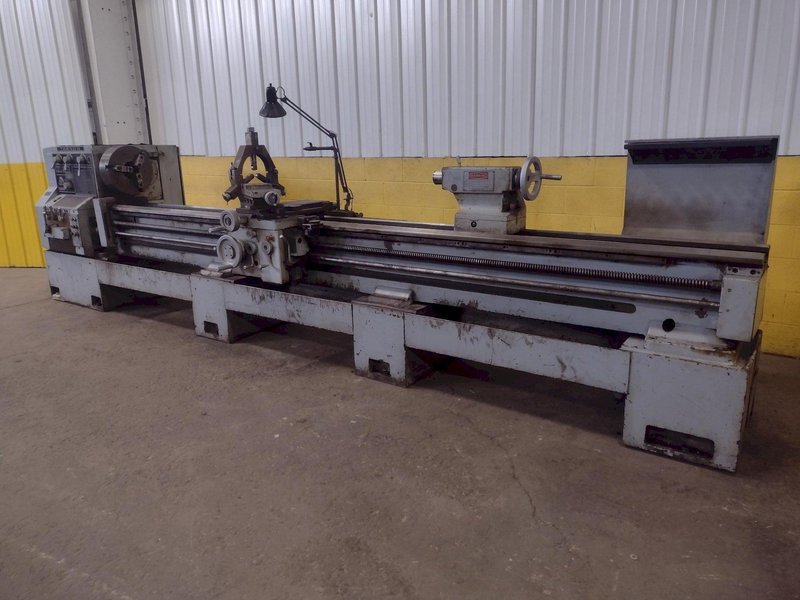

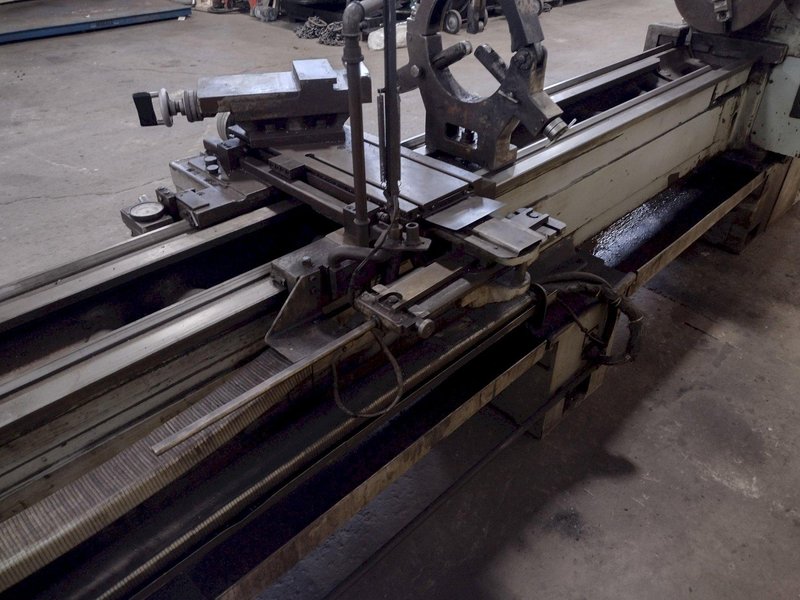

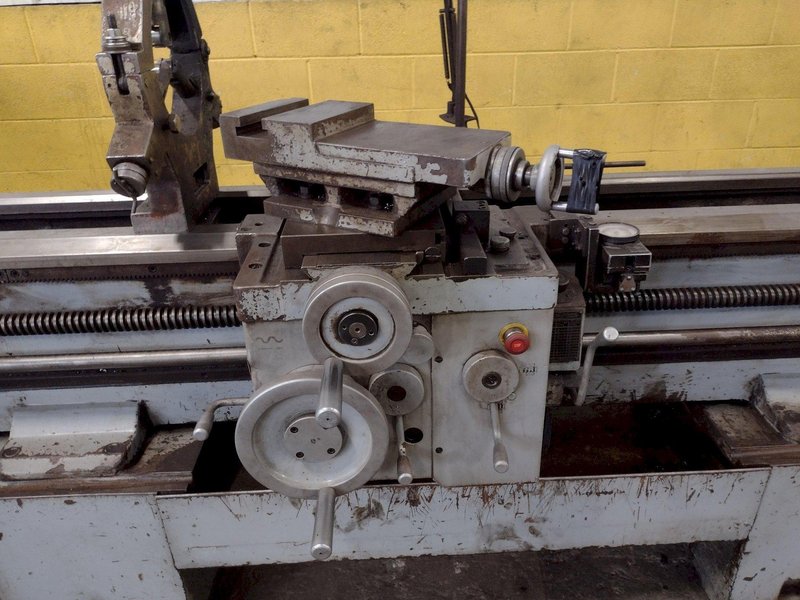

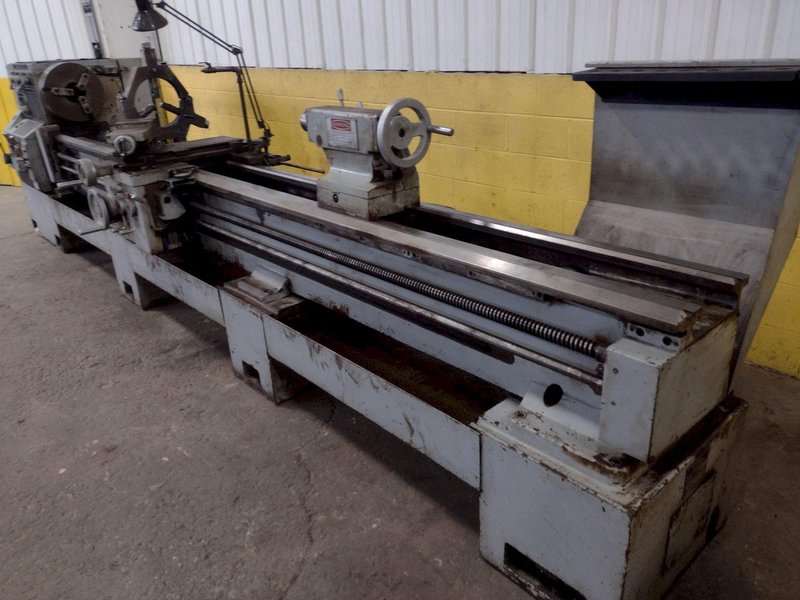

22" X 157" TARNOW MODEL TUJ 50M GAP BED ENGINE LATHE, 3.5" HOLE: STOCK 17547
Brand
Category
Type
Model
TUJ 50
Stock #
17547
Year
Not specified
Condition
Good
Location
Ohio
|

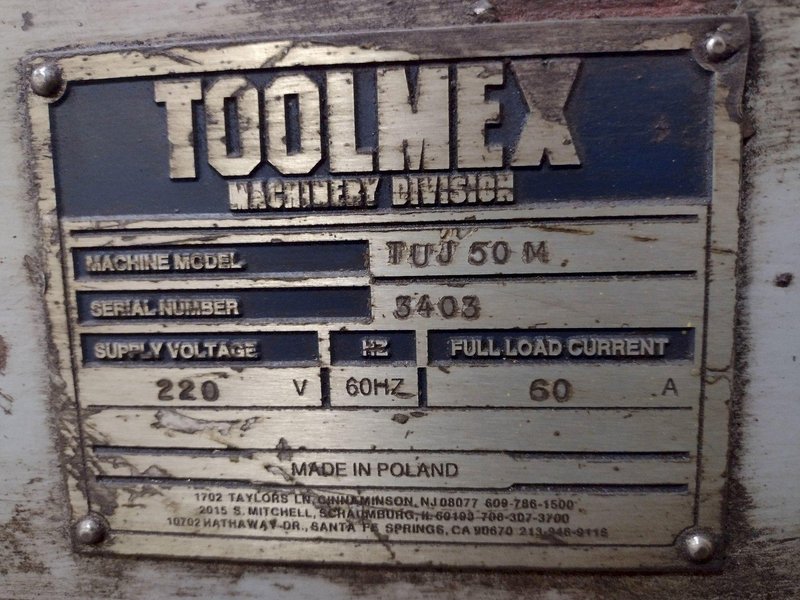

SERIAL .................... 3403
MODEL ..................... TUJ 50M SWING OVER BED ............ 22-3/8" SWING OVER CARRIAGE ....... 14-1/2"
SWING IN GAP .............. 31-1/2"
DISTANCE BETWEEN CENTERS .. 157"
CROSS SLIDE TRAVEL ........ 13"
COMPOUND TRAVEL ........... 8"
SPINDLE BORE .............. 3-3/5"
SPINDLE SPEEDS ............ 20-1600 RPM
SPINDEL NOSE .............. D1-11
LONGITUDINAL FEEDS (98) ... .0007 TO .72 IPR
CROSS FEEDS (98) .......... .0004 TO .36 IPR
INCH THREADS .............. 1 TO 112 TPI
METRIC THREADS ............ 1/4 TO 28MM

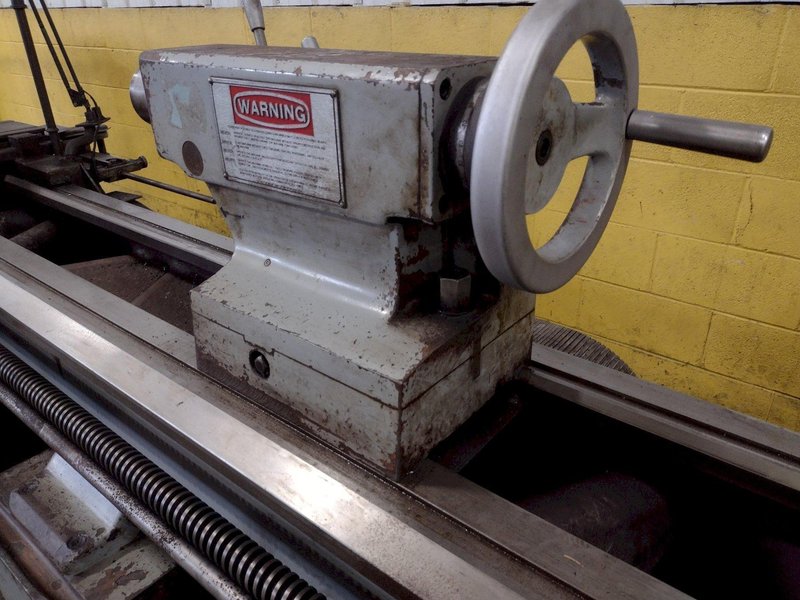

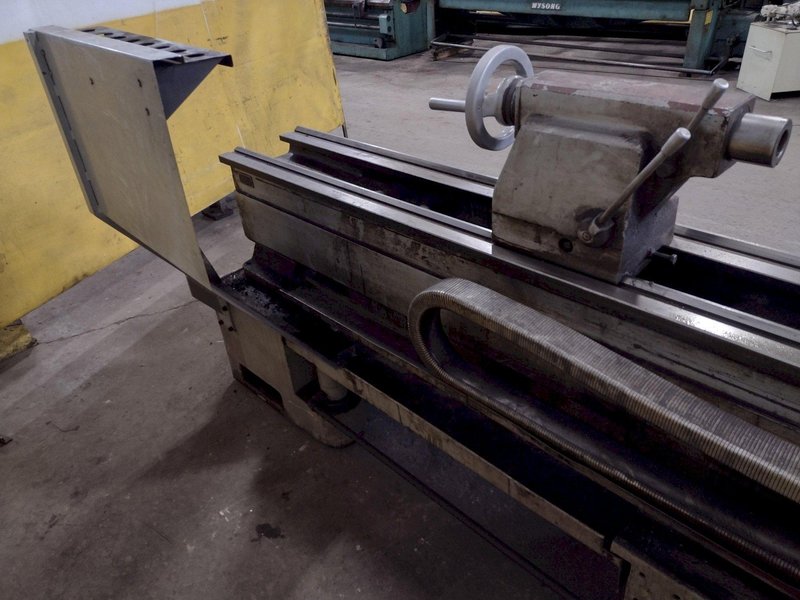

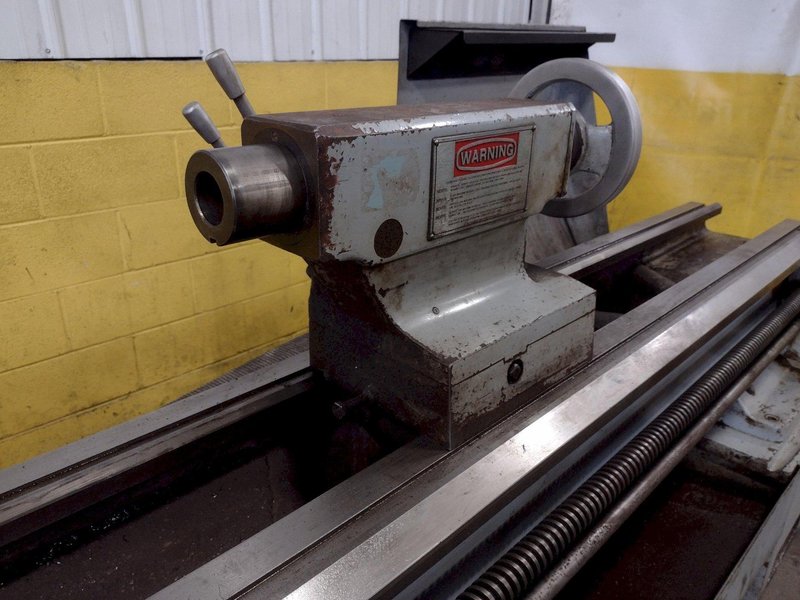

TAILSTOCK QUILL DIAMETER .. 3-1/8"
QUILL TRAVEL .............. 6"
QUILL TAPER ............... #5 MT
SPINDLE MOTOR ............. 15HP/220V/60HZ |
