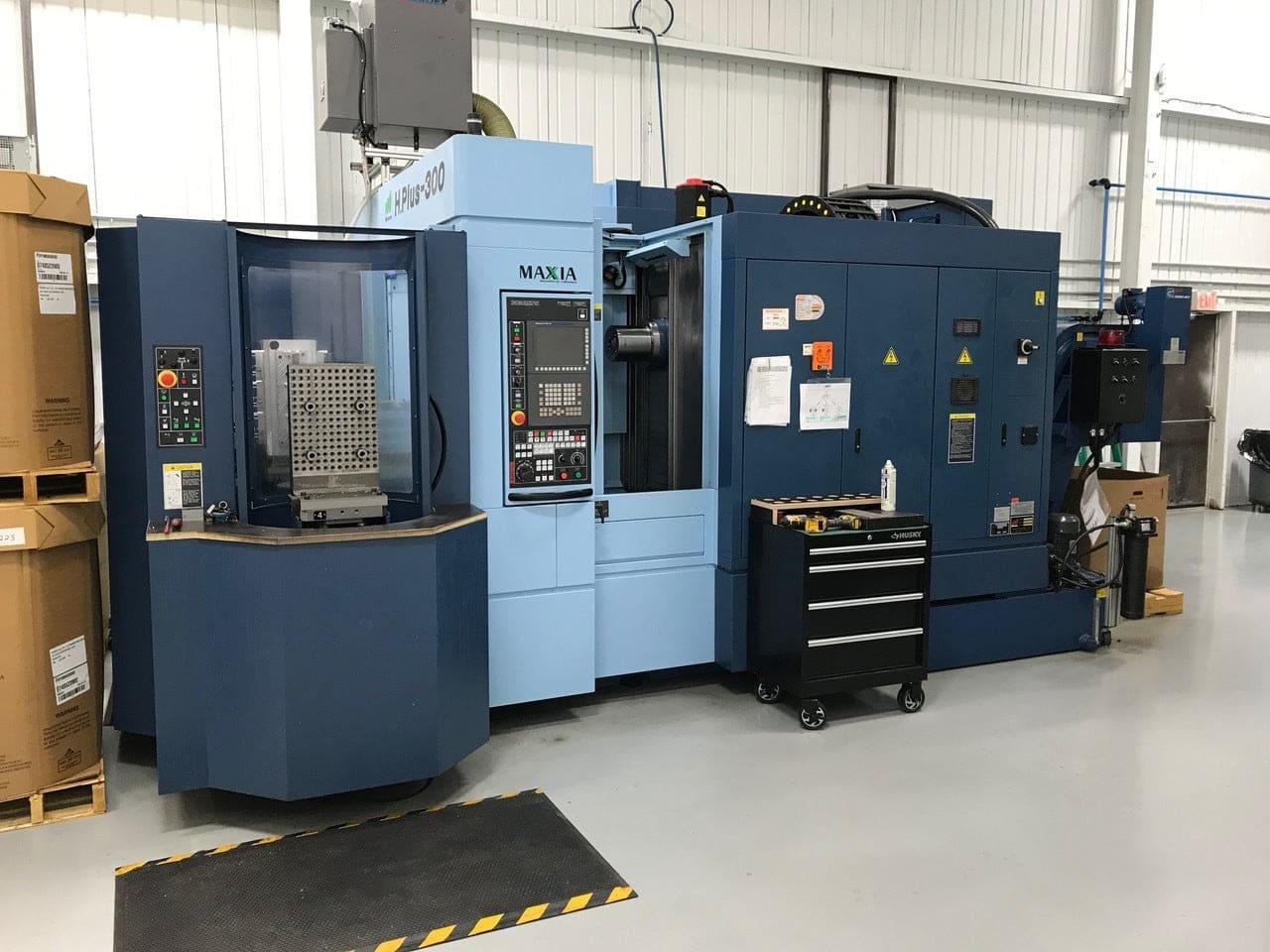

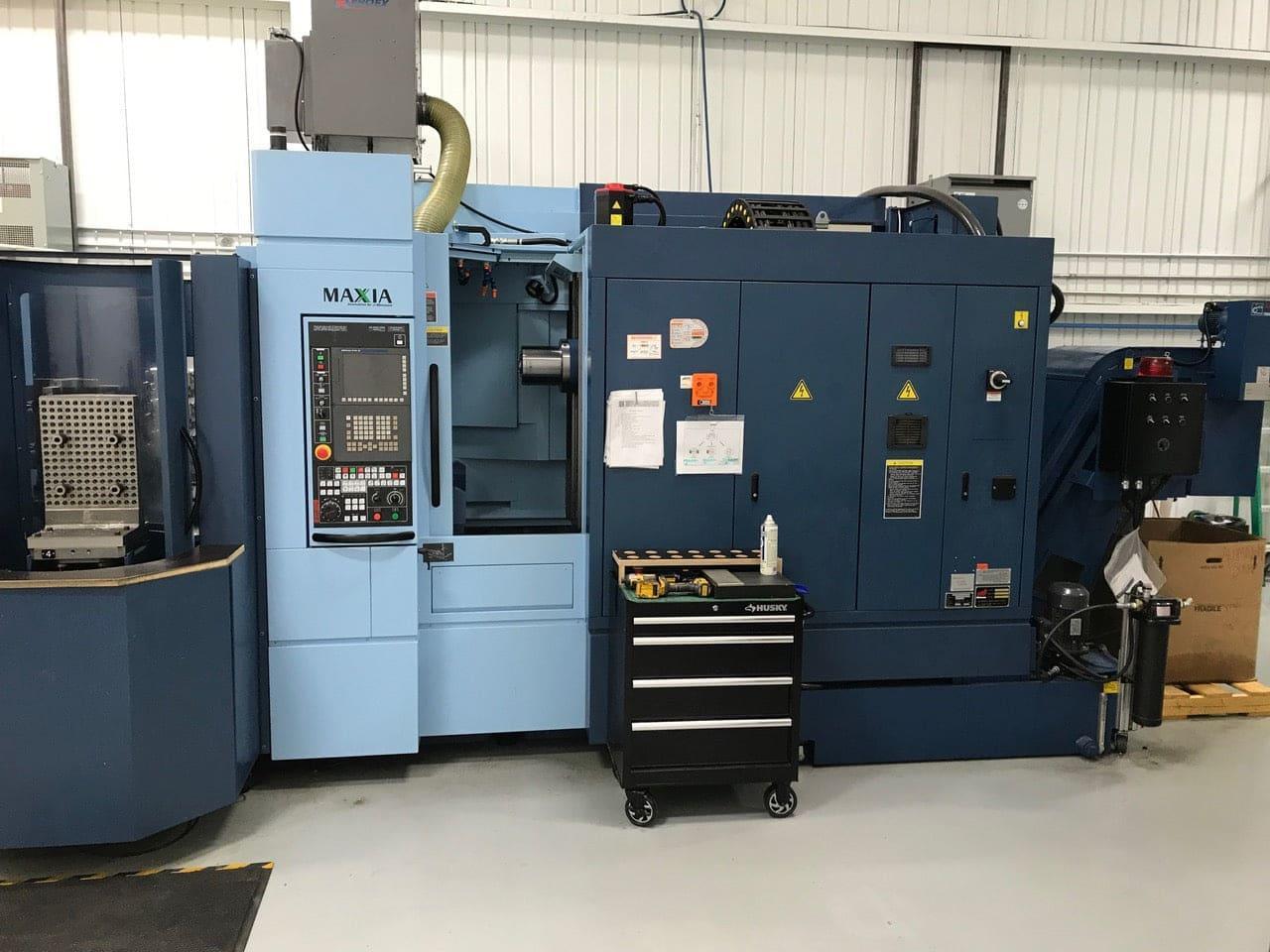

Matsuura H.Plus-300 PC5 300mm HMC, 2018 – 15k RPM, Full 4th, New Spindle, Under Power

Pallet Size 11.81″ X 11.81″ Number of Pallets 5 Table Load Capacity 550 Lbs. X- Axis Travel 19.68″ Y- Axis Travel 19.68″ Z- Axis Travel 19.68″ Pallet Center to Spindle Face 3.15″ – 22.83″ Pallet Surface to Spindle Center 4.72″ – 24.41″ B- Axis Indexing .0001 Contouring Spindle Speeds 15,000 Rpm Spindle Taper Ct 40 Rapid Traverse Rates X,y,z Ipm 1969 Cutting Feed Rate Ipm 1969 Automatic Tool Changer Capacity 120 Machine Weight 22,000 Lbs.

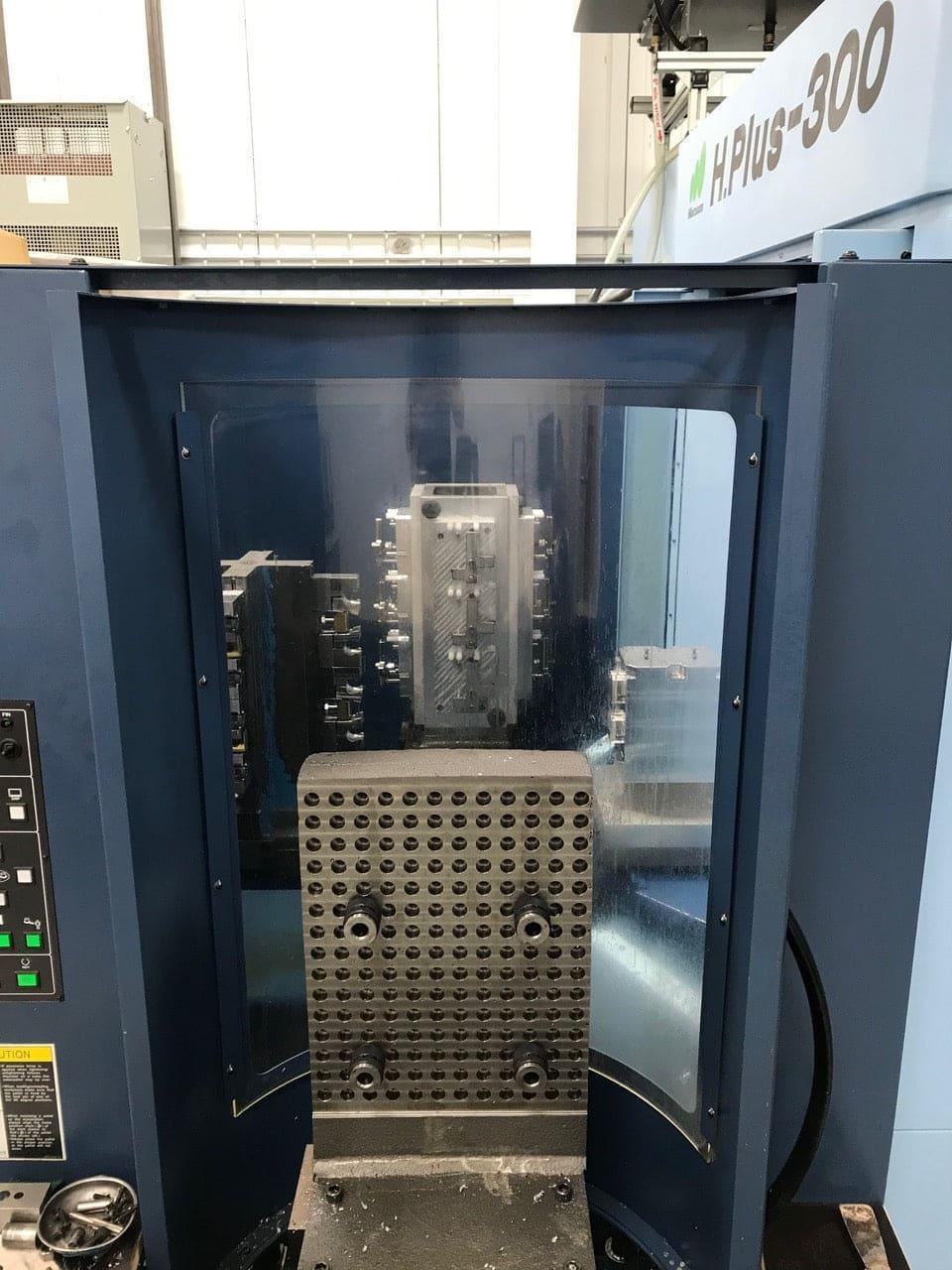

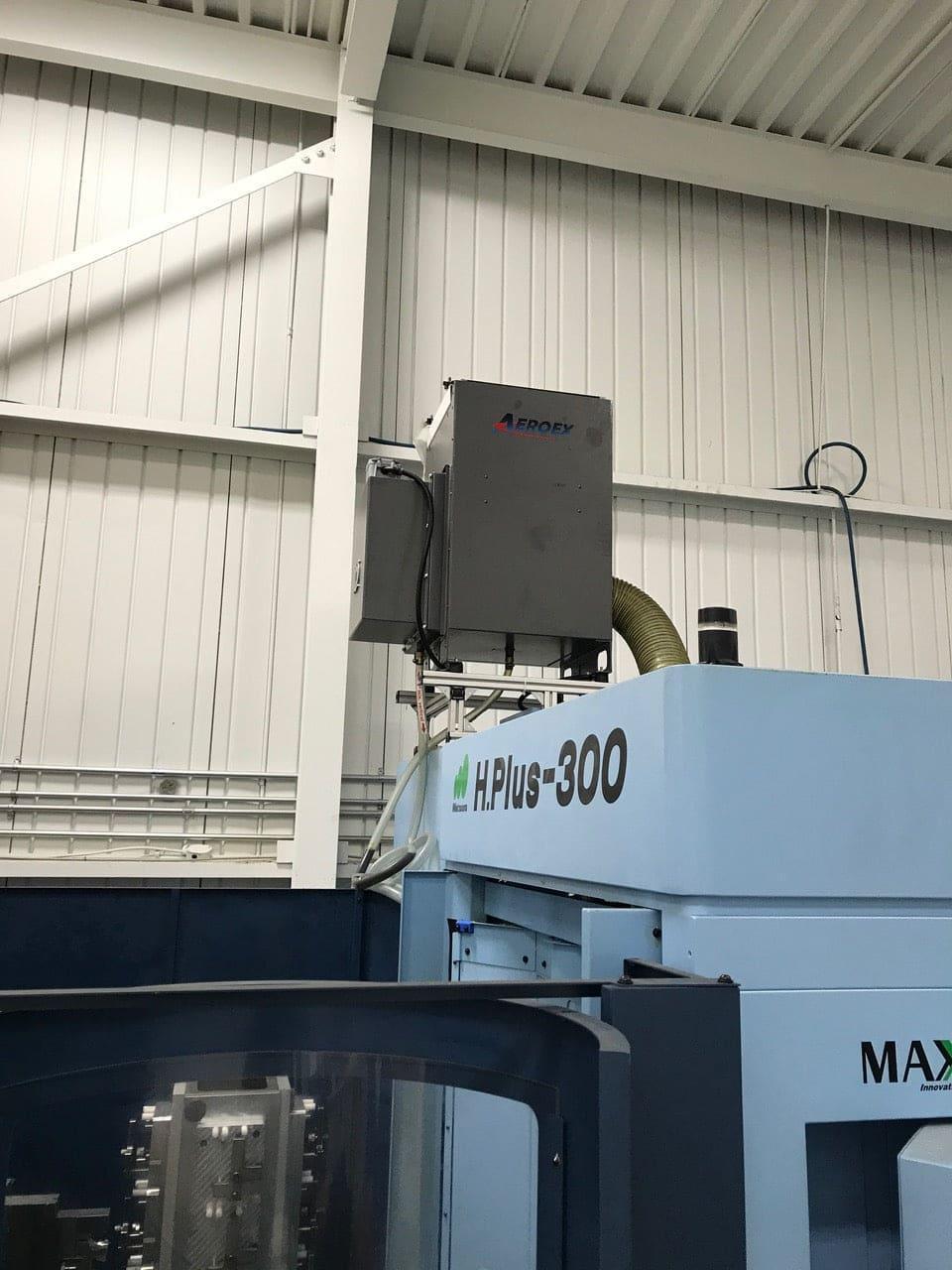

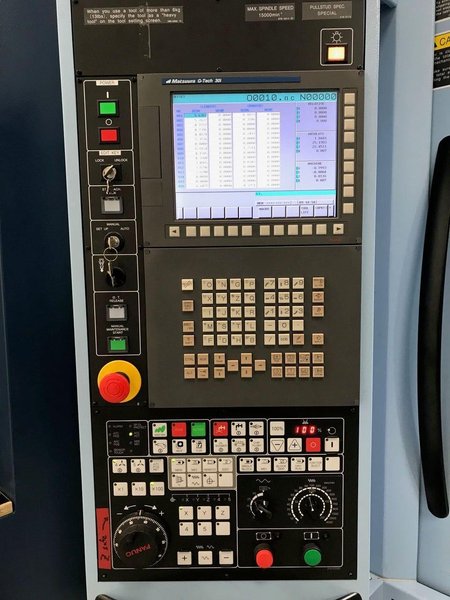

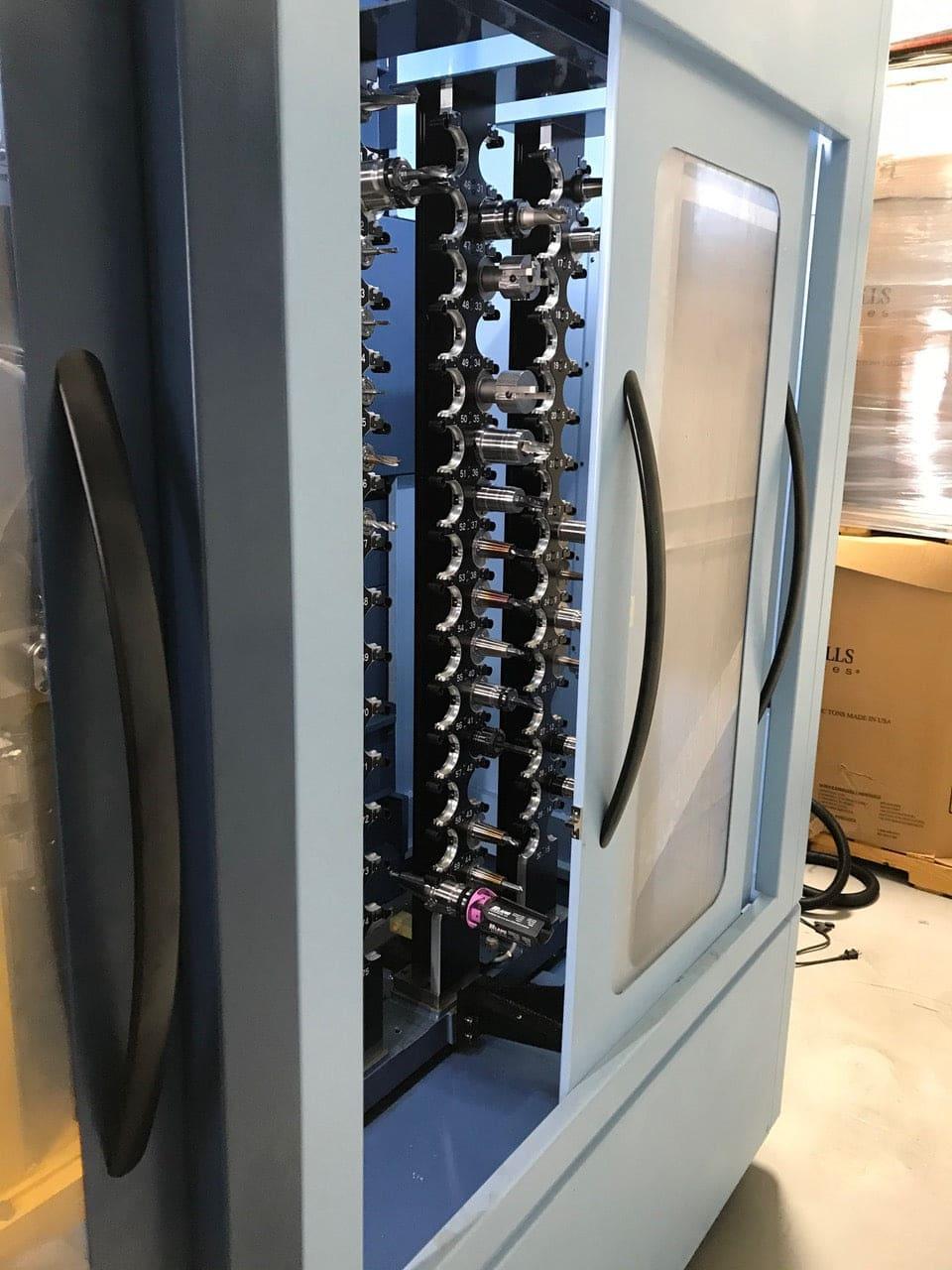

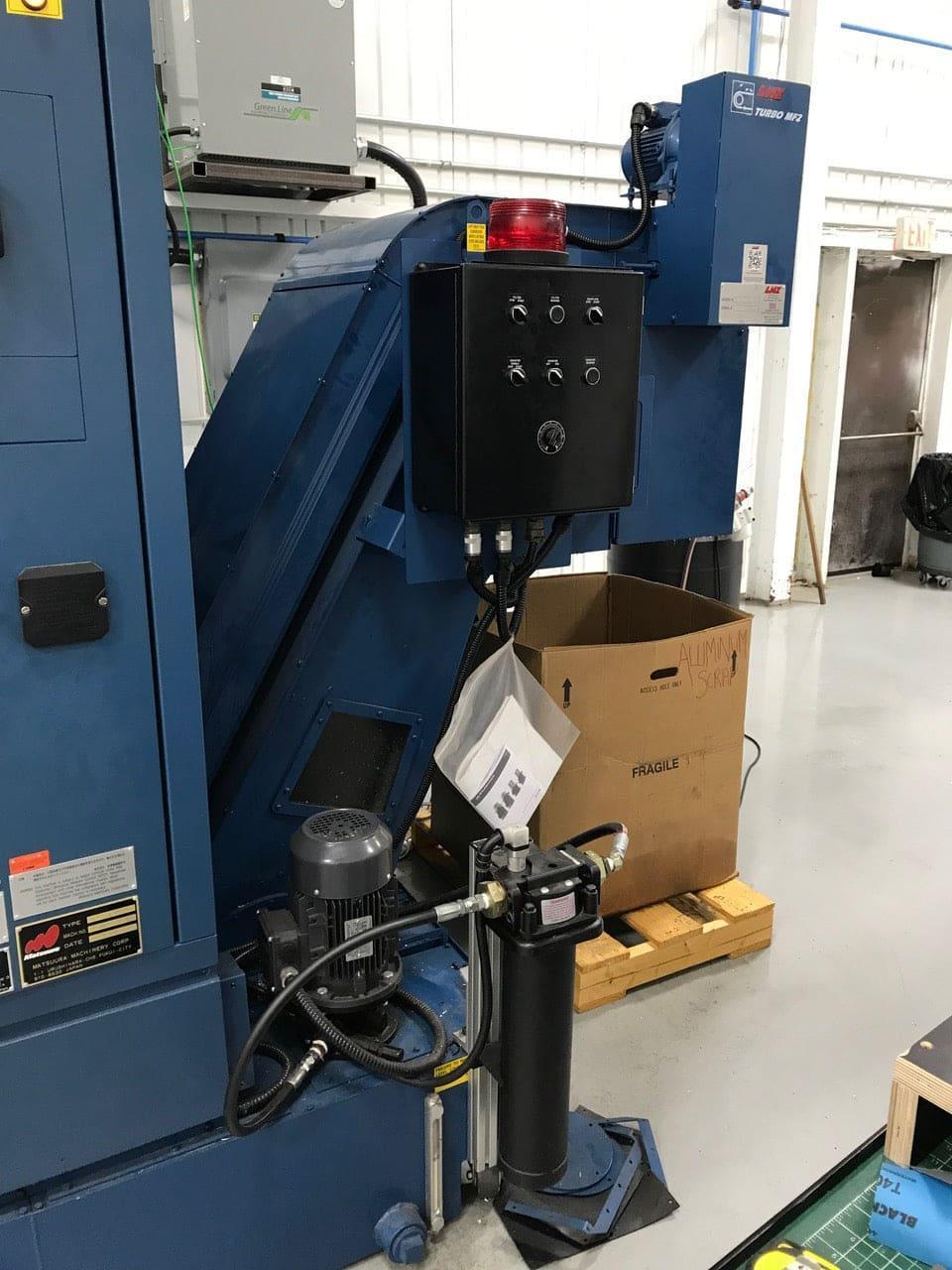

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With (subject to buyer verification): 15,000 RPM Cat 40 Spindle Full Fourth Axis Rotary Table with Scale (0.001 degree indexing) 5 Position Automatic Pallet Changer 120 Position Automatic Tool Changer Rotary Wiper/Air Supply System Turbo Micro-Fine II Chip Conveyor W/ 640 Liter Coolant Tank, Lift up and Scrapper type conveyor Drum/Disk Filtering Unit W/ Back wash System In-Process Measurement, Renishaw OMP-60 Renishaw NC-4 Laser for Tool Measurement Coolant Through Spindle, 300 PSI ($10,000 Option) Overhead Flushing System Upgraded Chip Evacuation System Aeroex ROX-400 Oil/Mist Collector ($6750 Option) Fanuc Options: G54.2-Dynamic Fixture Offset, iZ-2/150NF with 1,000 block look ahead, Nano Smoothing function with jerk control, and Optimal torque accel/decel function ($10,000) Orbital Turning Function ($6,500)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
