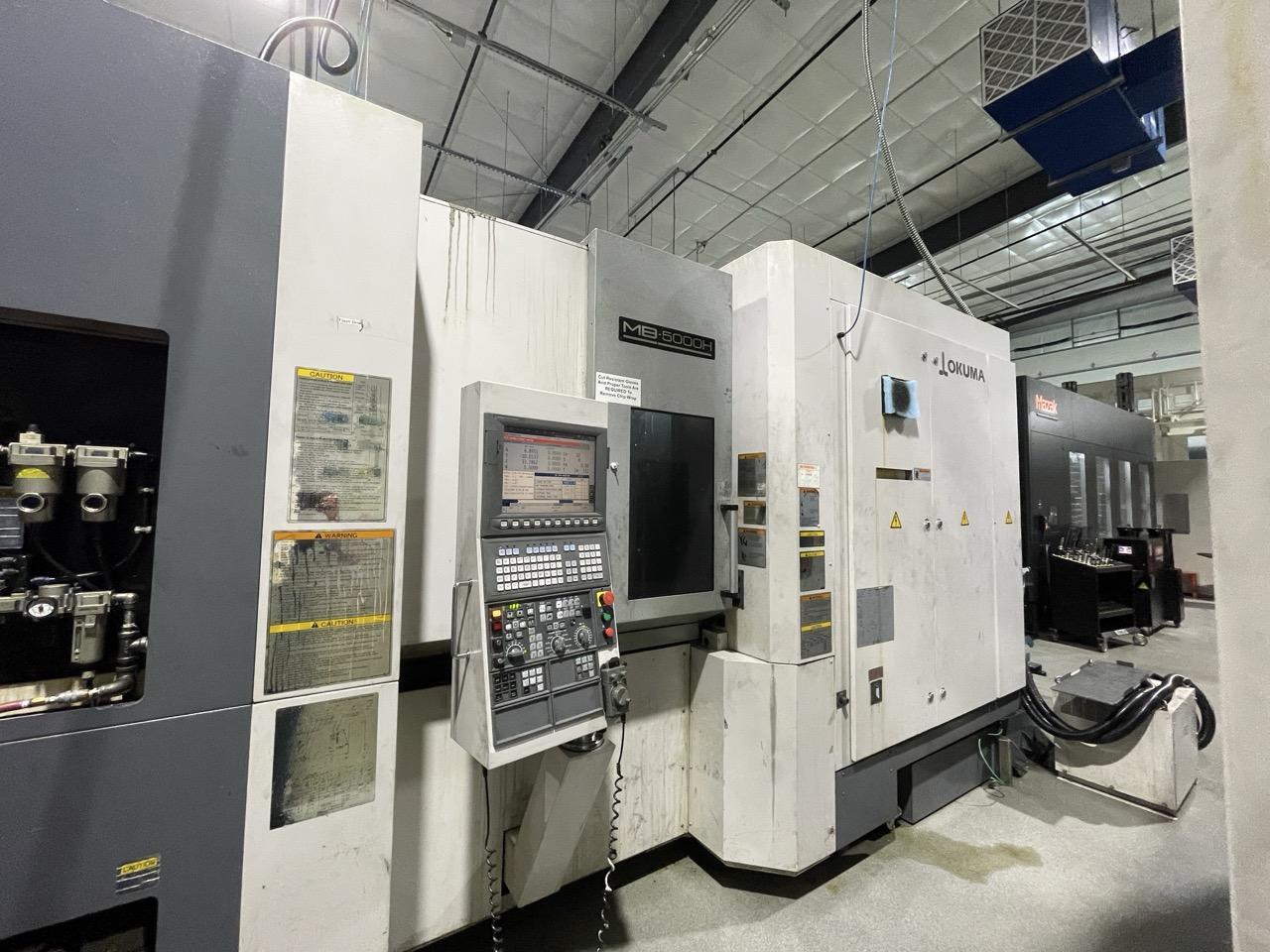

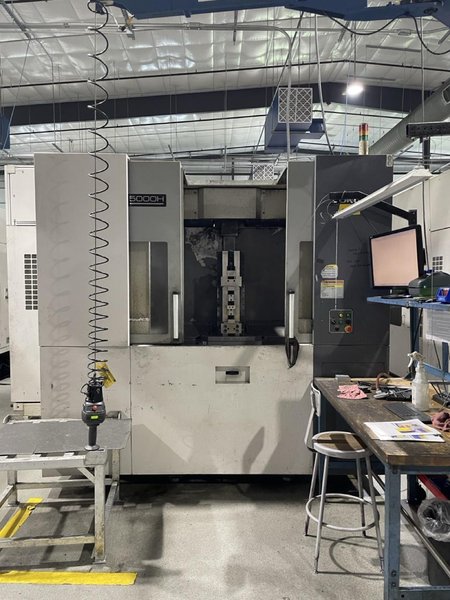

Okuma MB-5000H HMC, 2010 – 110 ATC, TSC, Probing, OSP-P200M

X-axis (column right/left) 29.92″ Y-axis (spindle up/down) 29.92″ Z-axis (table front/back) 29.92″ Spindle center to table surface 1.97″ to 31.89″ Spindle end to table center 5.31″ to 35.24″ Table (pallet) size 19.69″ × 19.69″ Max. load capacity 1100 lb Spindle speed max 15,000 RPM Rapid feedrate (X-/Y-/Zaxis) 2362.20 ipm Jog feedrates (X-/Y-/Z-axis) 0.04 to 2362.20 ipm Tool magazine capacity – 110 position Taper – Cat 40 Max. tool diameter 2.76″ Without adjacent tools 5.91″ Max. tool length 11.81″ Max. tool weight 22 lb No. of pallets 2

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: OSP-P200M High pressure Thru Spindle Coolant Transformer Chip Conveyor Tool Breakage Detection Probing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
