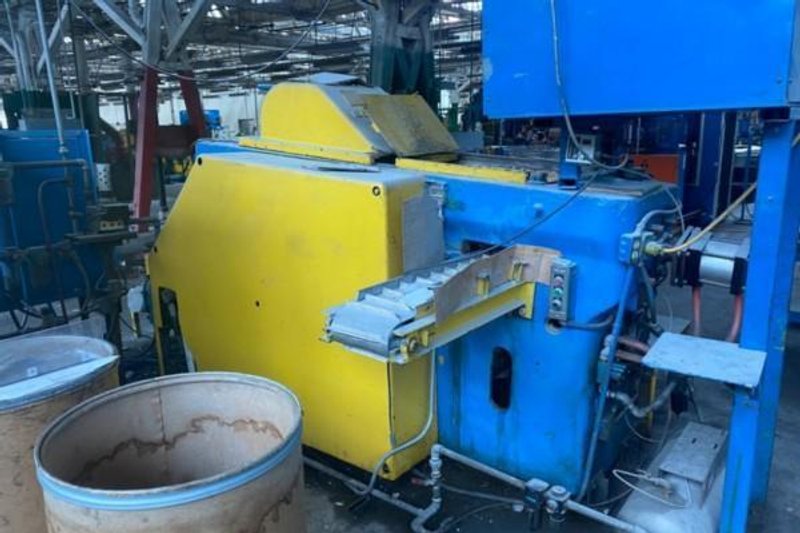

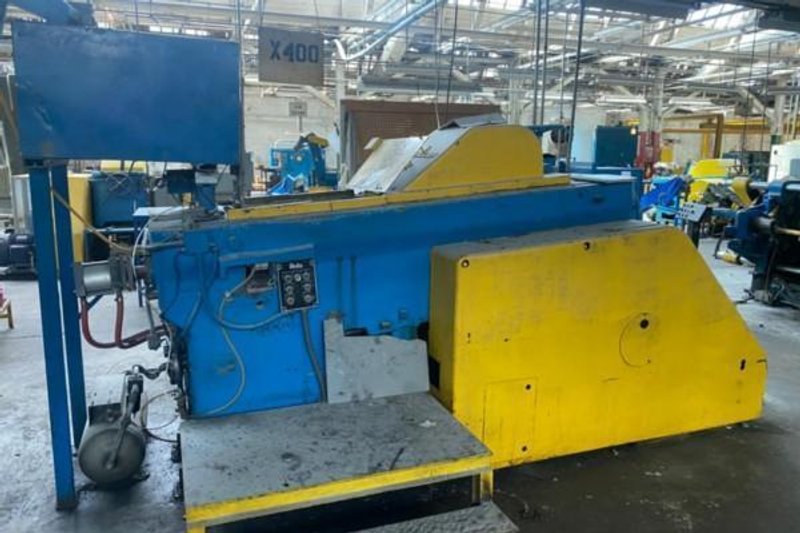

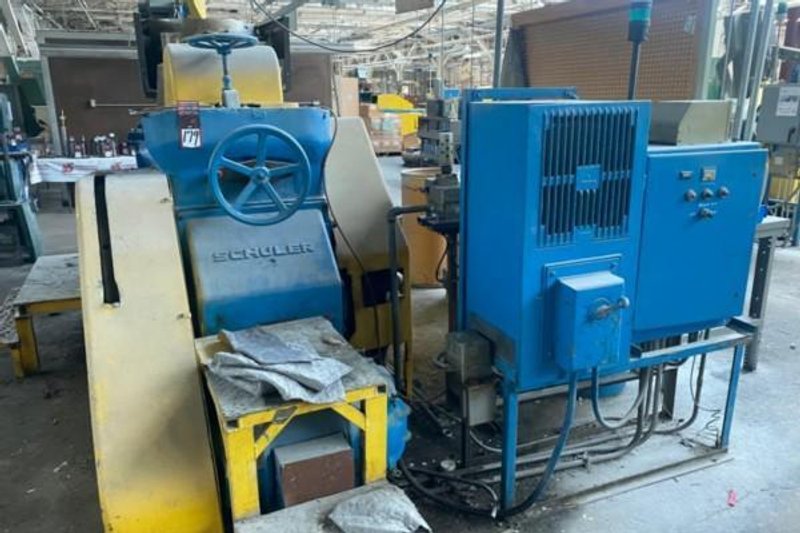

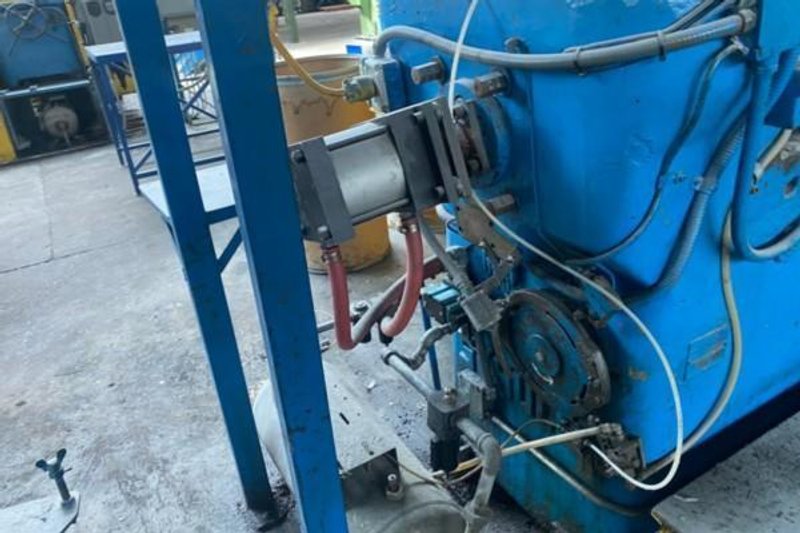

400 Ton SCHULER X400 IMPACT EXTRUSION PRESS
Brand
Category
Type
Model
X400
Stock #
115492
Year
Not specified
Condition
Used
Location
Not specified
|
Pressing Power: 400 Tons
For aluminum tubes with a 0.12 mm wall
thickness up to a dia. of: 60 mm
For aluminum shells (sleeves) with wall
thickness of 0.3mm up to a dia. of: 72 mm
Largest untrimmed tube length (cylindrical part): 260 mm
Largest untrimmed sleeve length: 260mm
Quantity per minute up to: 60 pieces
Motor Rating (according to component): approx 17.5 - 25 kw
Motor RPM: 1000
Weight (without motor and switch panel): approx 10600 kg |
