LINE SPECIFICATINS

Tube Diameter: .500"- 2.00"
Wall Thickness: .035" - .135"
Line Speed: 30-150 FPM
Line Direction: Right to Left
2.25" Diameter Shafts

COMPLETE TUBE PRODUCTION LINE INCLUDING

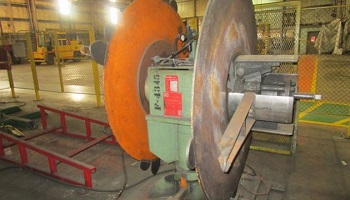

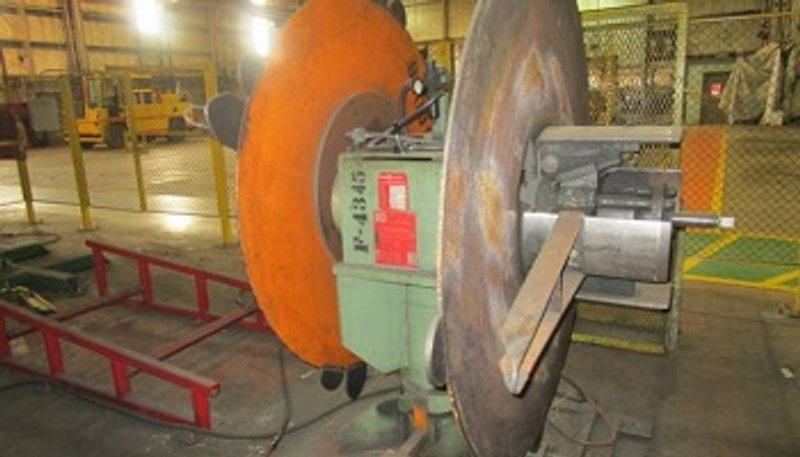

6000# Kent Double End Uncoiler
Model SKD 6000
12" Coil Width
60" Coil O.D.
17" -21" Coil I.D.
60" Coil O.D.
4 Leaf Mandrels
Eaton Flex Air Brakes
Coil Keepers

OTO MILLL SHEAR END WELDER with Power Supply
Year of Mfg 2000
Model GG 254
DC Torch Translation
Water Cooled Copper Welding Pad

TUBE MILL


ENTRY
2 Sets Entry Edge Guides
Model EGU-200-RL

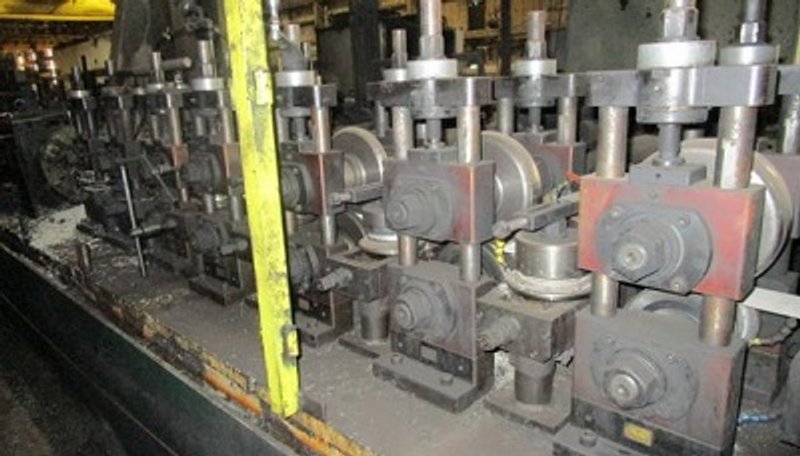

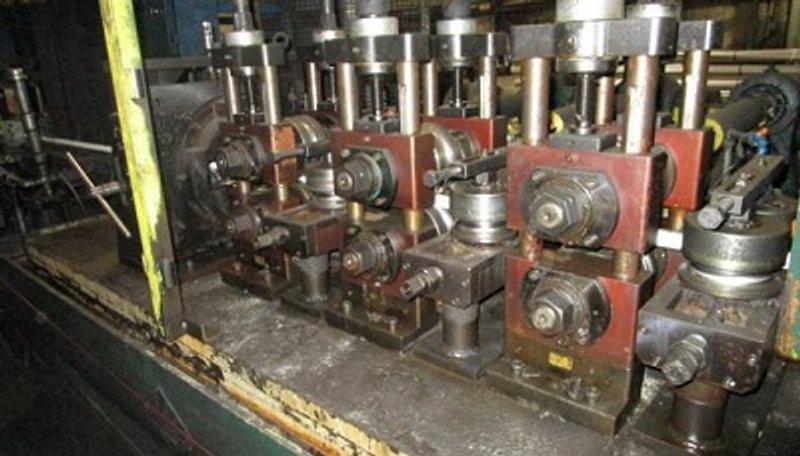

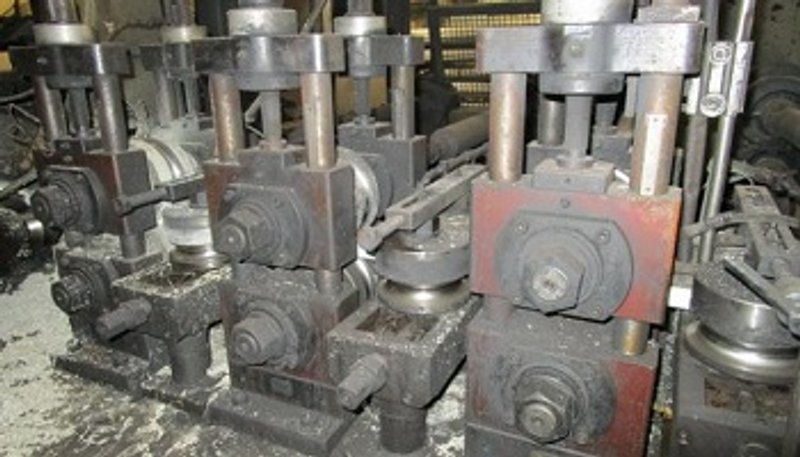

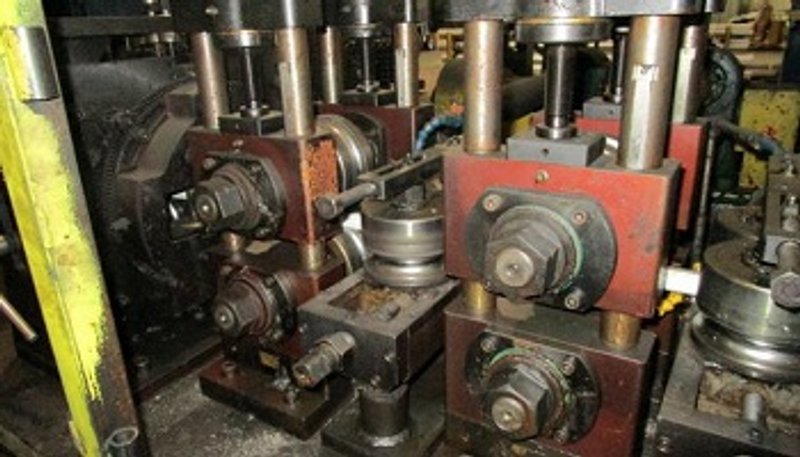

FORMING MILL
4 Forming Stands
4 Side Idler Roll Stands
3 Finn Pass Stands
2 Side Idler Roll Stands
50 HP DC Motor
50 Volt 1750/2100 RPM
Universal Drive Mill

WELDING SECTION
150 KW Elva Solid State Welder
Type: CRU 575 B
Year: 2001
Model: Weldac G2-150
Serial Number: 100333





3 Roll Weld Box
Pull Out Stand
Roto OD Scarf Rotating Scarfing Stand
Model RS-1000-H-SRO
Rotary Adjustment
Bead Chopper

Ironing Pass Stand

12' Cooling Through

SIZING SECTION
3 Sizing Stands
3 Side Idler Roll Stands

1 Double Sided Turks Head
Model TH200-DS
Detwisting Rotation

Universal Mill Drive

50 HP DC Motor
500 Volt/ 1750/2100 RPM

CUTOFF SECTION
2" Thermatool / Alpha Double Cut / Cut-Off
Year 2000
Serial No 114
Digital Controls
Digital Read Outs
2 Double Cut Die Sets
DC Die Accelerator

RUNOUT

40' Run-Out Dump Table
Air Drop

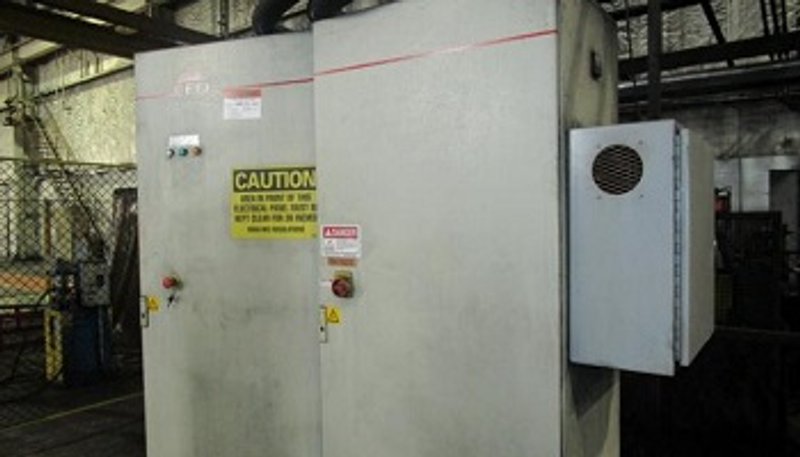

Eurotherm Digital Motor Drives
590+ DC Series Integrator
Allen Bradley PLC Micrologix 1200
Excel Industrial System Drive System

Stelco Chiller

Amcol Water Filtration System
Model: SF2000-30766
Serial Number: 5392
Paper Filter Design

Power Transformer

Operator Push Button Station

Digital Readouts

2 Sets of Tooling for 1.00" Diameter
