MANUFACTURER - NOVA MACHINERY
MATERIAL - HRS, CR, P&O
MAX YIELD STRENGTH @ .250" - 80,000 PSI
MAX YIELD STRENGTH @ .375" - 70,000 PSI
MAX YIELD STRENGTH @ .500" - 60,000 PSI
STRIP THICKNESS - 0.500" - 0.145"
MAX STRIP WIDTH - 74" ENTRY, 73" EXIT
MIN STRIP WIDTH - 12" MIN WIDTH @ 24" ID, 24" MIN WIDTH @ 30" ID
COIL ID - 22"/24"/30" ENTRY, 24" EXIT
COIL OD - 84" MAX, 30" MIN
MAX COIL WEIGHT - 80,000 LBS ENTRY & EXIT
LINE SPEED - 100 FPM LOW, 300 FPM HIGH
NUMBER OF SLITTING HEADS - 2
SLITTING HEAD ARBOR DIAMETER - 14.5"
ARBOR LENGTH - 76"
KNIFE SIZE - 20" DIA. MAX, 18" DIA. MIN
PASSLINE - 105"
LINE DIRECTION - RIGHT TO LEFT
STATUS - INSTALLED IN USA PLANT

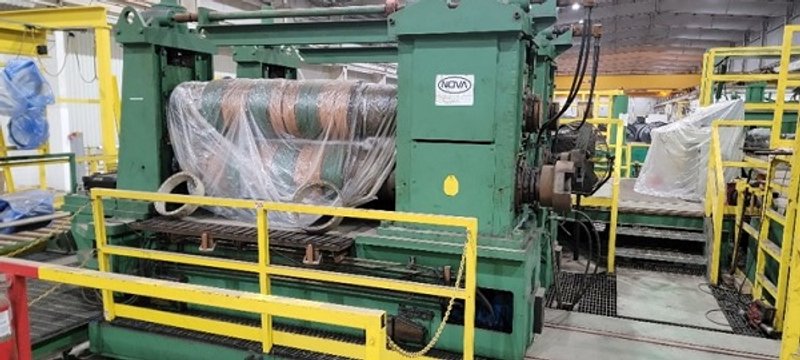

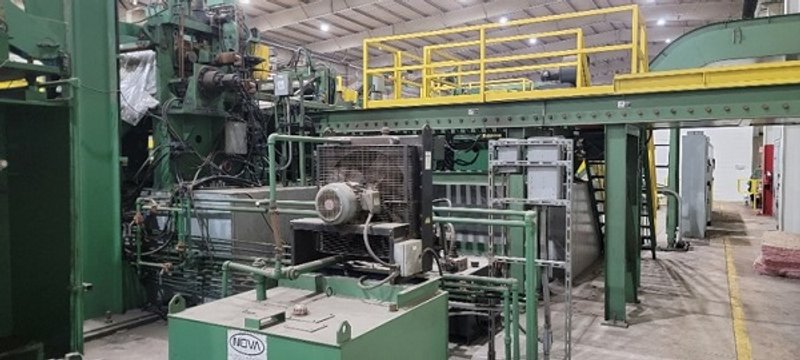

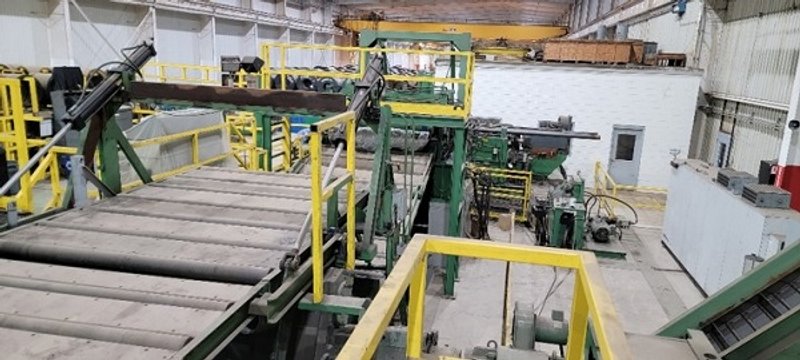

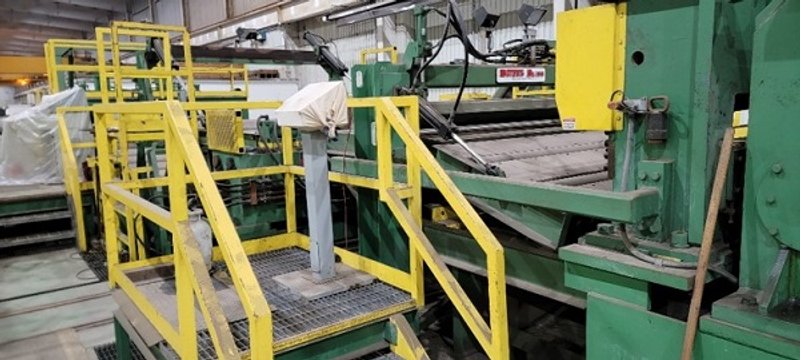

LINE CONFIGURATION:

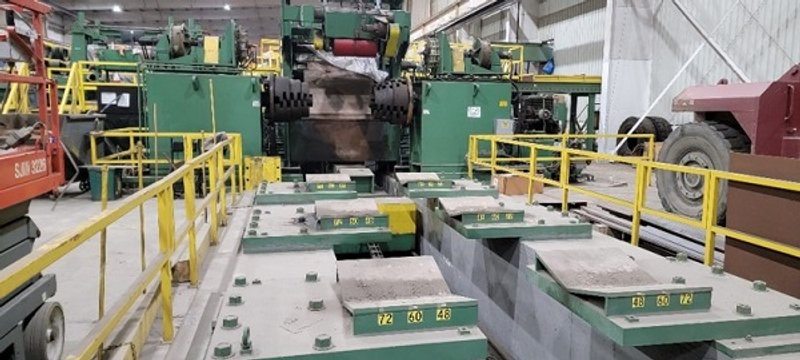

80,000 LBS. INGROUND COIL CAR

3 STAGE COIL STORAGE

STUB MANDRREL UNCOILER WITH OVERARM SUPPORT

HYDRAULIC PEELER TABLE

4 ROLL PINCH ROLL & COIL FLATTENER

EDGE GUIDE

ENTRY SHEAR - 60,000 PSI SHEAR STRENGTH

SIDE GUIDE

THICKNESS GAUGE (SOURCE NOT INCLUDED)

CENTER GUIDE

14.5" ARBOR SLITTING HEAD (2 HEADS)
250 HP AC INVERTOR MOTOR

"CAPACITY BUTECH CHOPPERS

LOOPING PIT OR CARRYOVER TABLE

SEPARATOR

DRAG BOARD TENSION STAND

EXIT SHEAR

EXIT PINCH ROLL

CARRYOVER TABLE

MANDREL RECOILER WITH OVERARM SUPPORT
300 HP AC INVERTOR MOTOR 650/1950 RPM

OUTBOARD COIL SUPPORT

80,000 LBS EXIT L-SHAPED COIL CAR
