Manufacturer - Torrance/SMS
Type – ERW Tube Mill
Material - X42-X80
Tube Diameter -10.75" - 24"
Entry Strip Width - 31" - 76.5"
Wall Thickness - 0.250" - 0.625"
Tube Length - 25' - 80' (based on current configuration)
Entry Feed line - with Guild accumulator
Edge Treatment - Dual Head SMS Edge Milling, 100 kW Per head
Forming - SMS Linear Forming / 3 Stand Fin/ 5 Stand Sizing
Scarfing - ID/OD Scarfing
High Frequency Welder - EFD Induction WeldacG2 1800 kW
Seam Annealing - (4) Inductoheat Seam Annealers
Rotary Cutoff - SMS Traveling Rotary
Offline Cutoff
(2) Bevelers
(2) Hydrostatic Testing - 3000 & 5000 ps
Online & Offline UT - AUT Systems
Annual Tonnage Capacity: 400,000
Total Square Footage: 188,000 (17465 Sq Meter)
Status: Installed in Plant
ID/OD Marking - Reajet ID/OD Marking Units
Material Handling - Pipe Conveyance Throughout Mill
Various Tooling Sizes – Complete List of Tooling Available Upon Request
Line Components include:
(2) Entry Coil Cars
Uncoiler
Peeler
Leveler/Flattener with Side Guides
Guild Shear & Welder (cross-weld)
Catenary Side Guides & Pinch Rolls
Looping Pit
30 Degree Entry Twist Stand
60 Degree Entry Twist Stand
Guild Accumulator
60 Degree Exit Stand
30 Degree Exit Stand
SKELP UT
Dual Head Edge Milling Unit

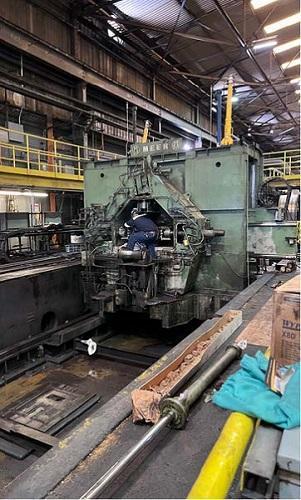

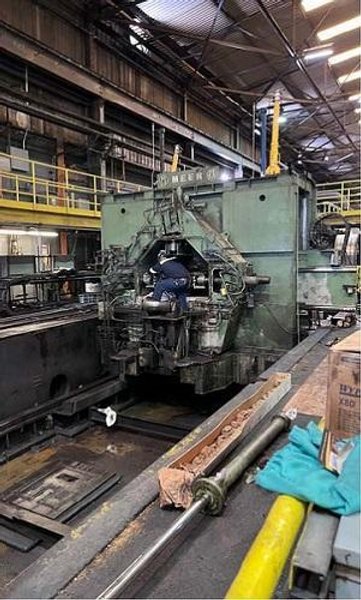

Linear Cage Forming
Fin Pass
EFD Weldac Welder
ID/OD Scarf
(4) Head Inductoheat Seam Annealers
Driven Pull Out Roll
Water Quench

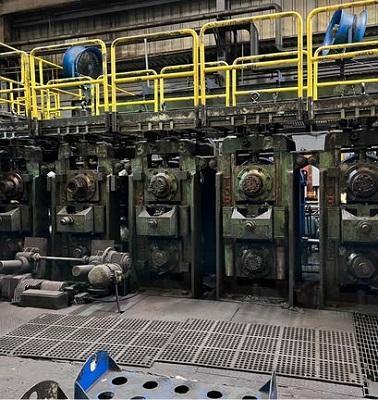

(5) Sizing & Straightening Stands
Mill Ultrasonic Testing
Traveling Cutoff
Tube Stencil Marking Equipment
Offline Prove-Up Assets
Stationary Offline Cutoff
(2) Beveller Machines
3000 PSI & 5000 PSI Hydrostatic testers
North/South Final seam Ultrasonic Testing
Pipe Inspection
Pipe length measurement
Pipe weight scales
Automated pipe stenciling unit
Multi-Flow Pipe Conveyance Throughout ERW mill
Electrics, controls, hydraulic units and operators controls Throughout ERW mill
Additional Information Available Upon Request
|
