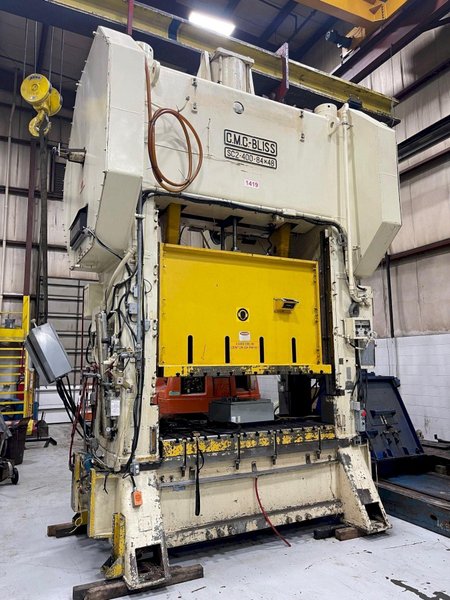

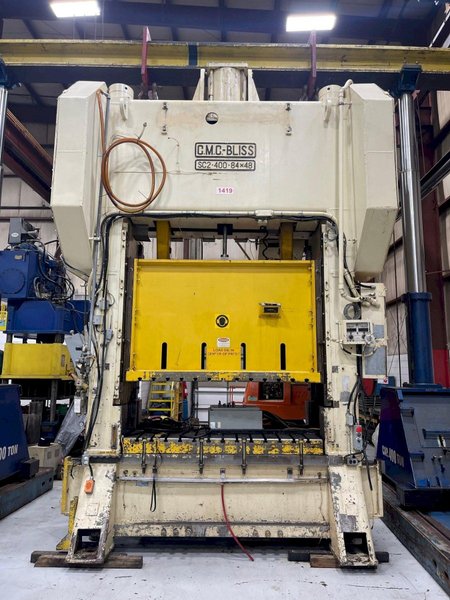

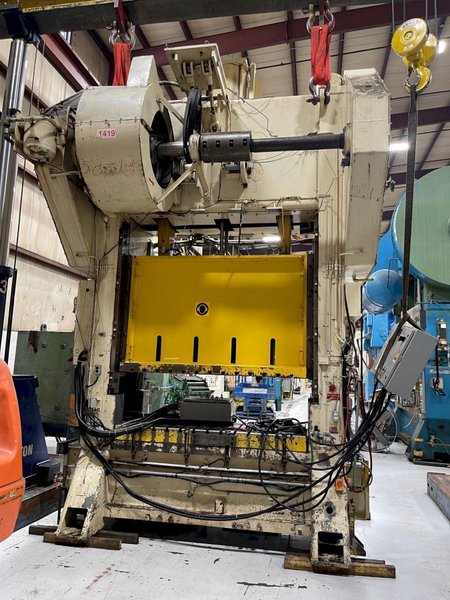

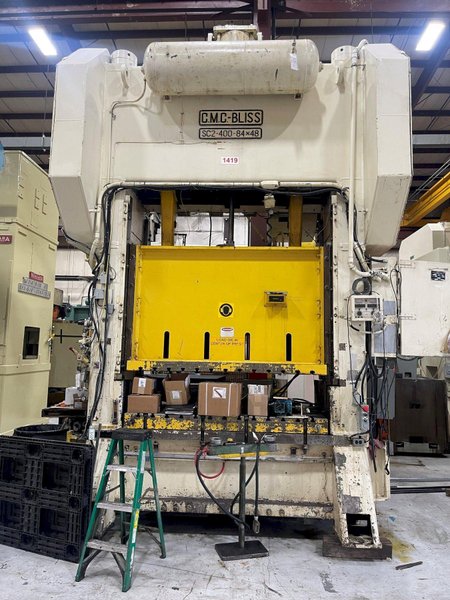

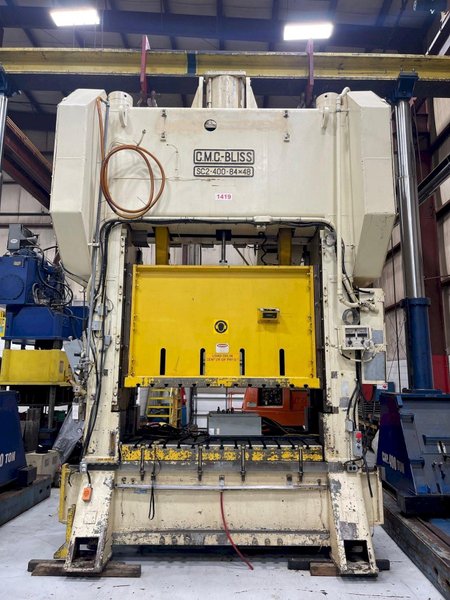

400 ton Bliss SC2-400-84-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 1980, Good Running Press!
Brand
Category
Model
SC2-400-84-48
Stock #
2761
Year
1980
Condition
Used
Location
Michigan
Price
$189,500.00
| Tonnage | 400 |
| Stroke | 12 inches |
| Shut Height | 30.5 inches |
| Adjustment | 10 inches |
| Bed Size | 84" LR x 48" FB |
| Ram Area | 84" LR x 48" FB |
| SPM | 30 SPM |
|
Standard Specifications
Used Bliss Press Model# SC2-400-84-48 Straight Side Mechanical Metal Stamping Press 400 ton Capacity 12" Stroke 30.5" Shut Height 84" LR x 48" FB Bed Area 84" LR x 48" FB Slide Area 30 SPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster 6.5" Bolster Plate Thickness 40 HP, 1125 RPM Main Drive Motor Air Cushions in Bed Motors and Controls Imco Tonnage Monitor 25" Wide Windows Vibro Dynamic Floor Pads Light Curtains Floor Standing Overall Weight 118,000 lbs. 230" Overall Height 116.75" Wide x 80" Depth Footprint 42.5" Floor to Top of Bolster This Used 400-ton Bliss Press can be seen under power in the S&G Press Livonia Michigan Warehouse! Click for More Used 400-ton Mechanical Metal Stamping Straight Side Press For Sale Bliss Mechanical Metal Stamping Press For Sale, Used Presses For Sale, Straight Side Mechanical Presses, Rebuilt and Remanufactured Presses |
|
