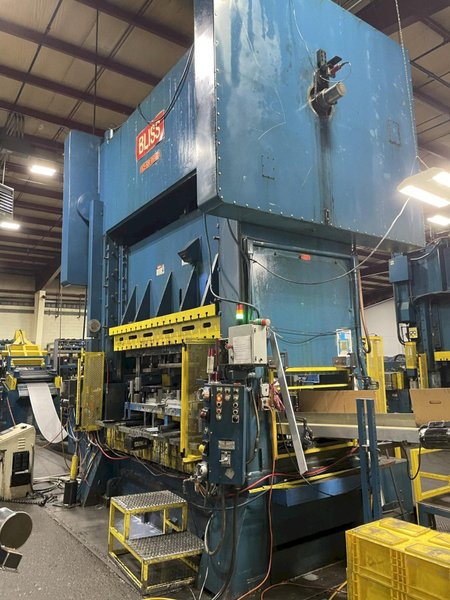

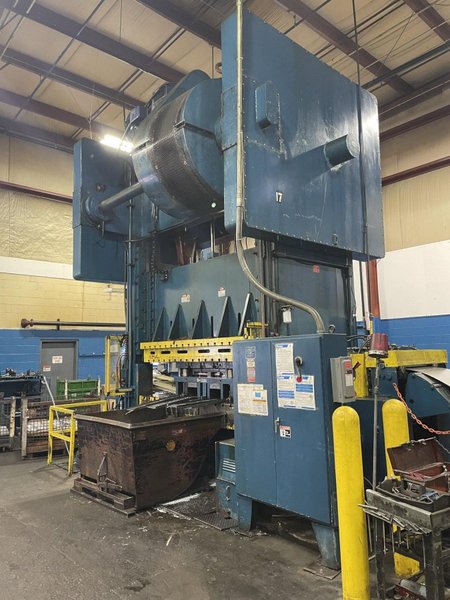

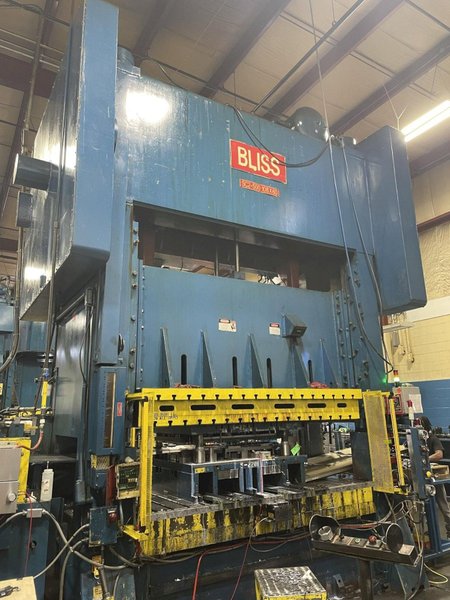

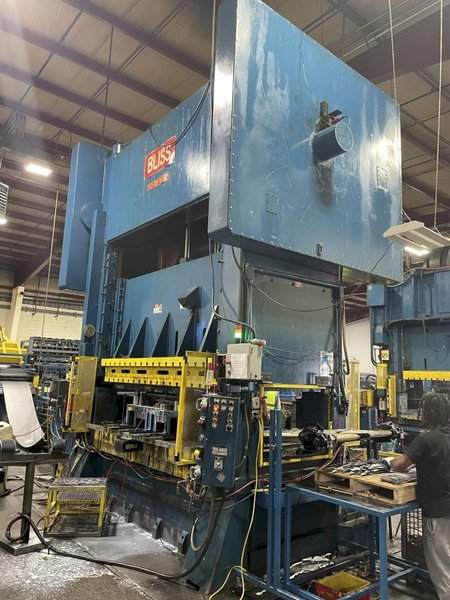

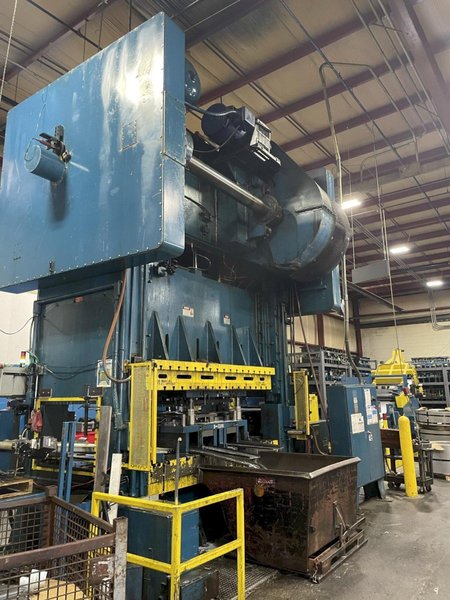

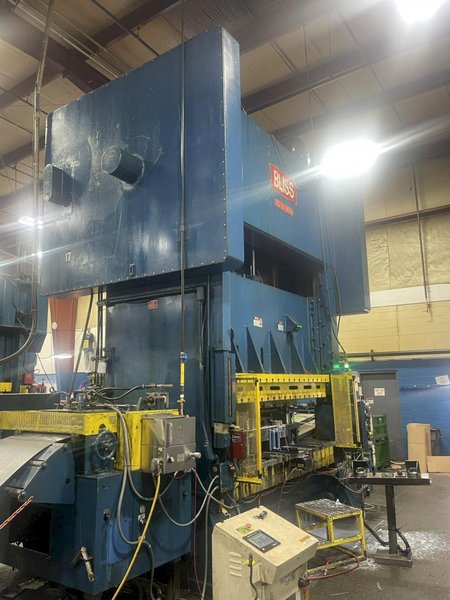

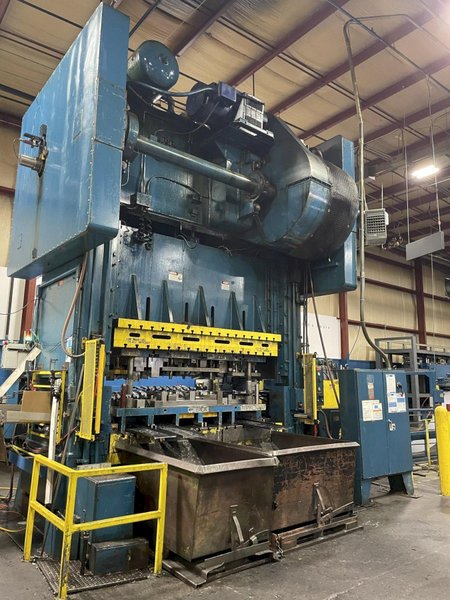

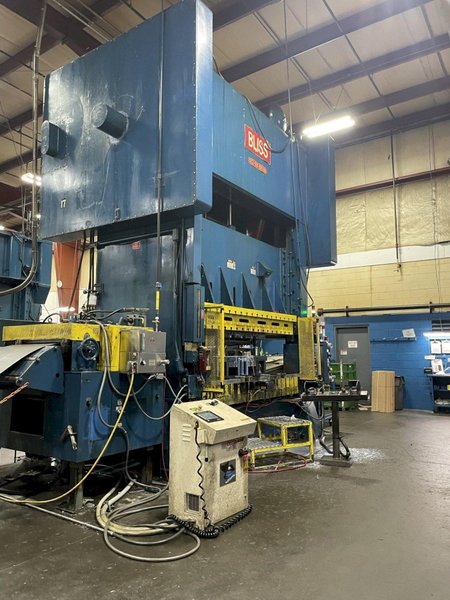

500-ton Bliss SC2-500-108-60 Straight Side Mechanical Metal Stamping Press, Year 1989 Full Rebuild In Process!
Brand
Category
Model
SC2-500-108-60
Stock #
2855
Year
1990
Condition
Used
Location
Michigan
| Tonnage | 500 |
| Stroke | 14 inches |
| Shut Height | 44 inches |
| Adjustment | 12 inches |
| Bed Size | 108" LR x 60" FB |
| Ram Area | 108" LR x 60" FB |
| SPM | 20-50 VSPM |
|
Standard Specifications
500-ton Bliss Straight Side Mechanical Press Metal Stamping Press Model# SC2-500-108-60 Full Remanufacture in Process - Complete 2025 14" Stroke 44" Shut Height (SDAU) on Bed 36" Die Height on Bolster 12" Motorized Adjustment 108" LR x 60" FB Bed Area 108" LR x 60" FB Slide Area 20-50 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube Syste 8" T-Slotted Bolster T-Slotted Ram with Knockouts (2) Plug in Pedestal Palm Button Stations 75 HP Dynamatic Eddy Current Drive Hydraulic Tie Rod Nuts Light Curtains Front and Back 37" Wide Windows Floor Standing Footprint: 148" x 102" 245" Max. Overall Height Click for more 500-ton Press Options This 500-ton Bliss Rebuilt Metal Stamping Press can be seen under power upon Completion at S&G Press Warehouse. Do not hesitate to call or email S&G Press for further details and pricing. Now in the final stages of a complete rebuild, this 500-ton Bliss Model SC2-500-108-60 straight side mechanical press will soon be ready to boost your production. Our meticulous remanufacturing process ensures this press performs like new, offering a 14" stroke, 44" shut height, and a massive 108" x 60" bed area ideal for large stamping applications. Equipped with new light curtains, hydraulic tie rod nuts, and a powerful 75 HP drive, this press delivers both power and precision. The complete remanufacture process ensures enhanced reliability, improved safety, and maximized performance. This high-quality, reconditioned Bliss press is available for sale now, with completion slated for late 2025. Contact S&G Press for detailed specifications and to reserve this exceptional machine for your facility. Bliss Mechanical Metal Stamping Press For Sale, Used Presses For Sale, Straight Side Mechanical Presses, Rebuilt and Remanufactured Presses |
|
