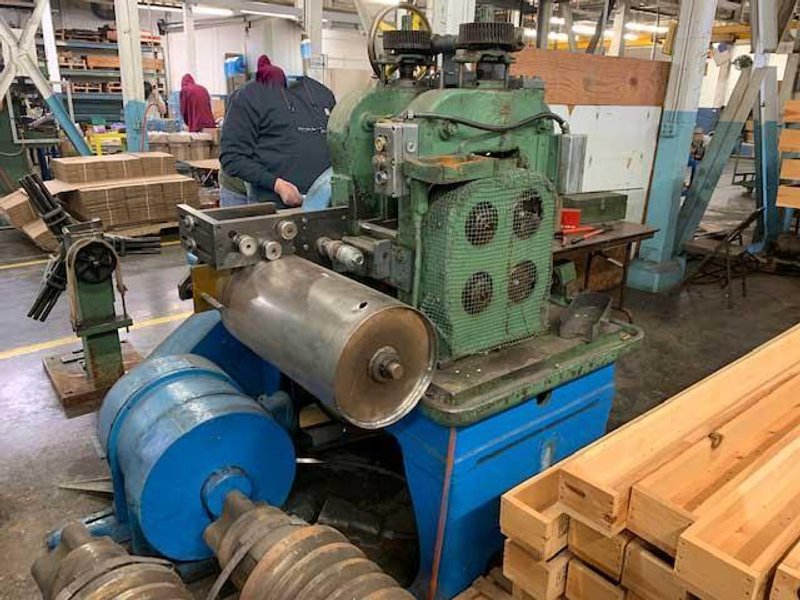

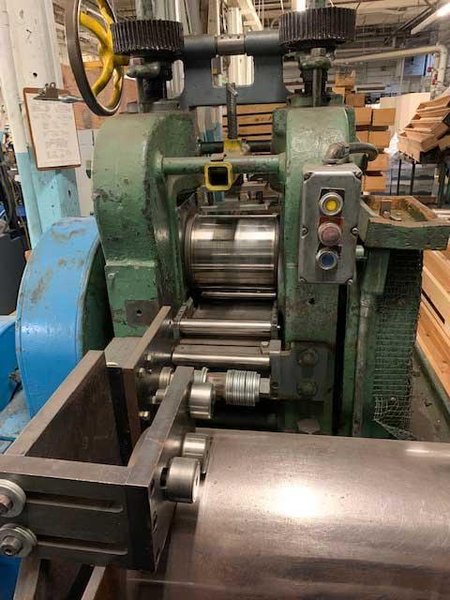

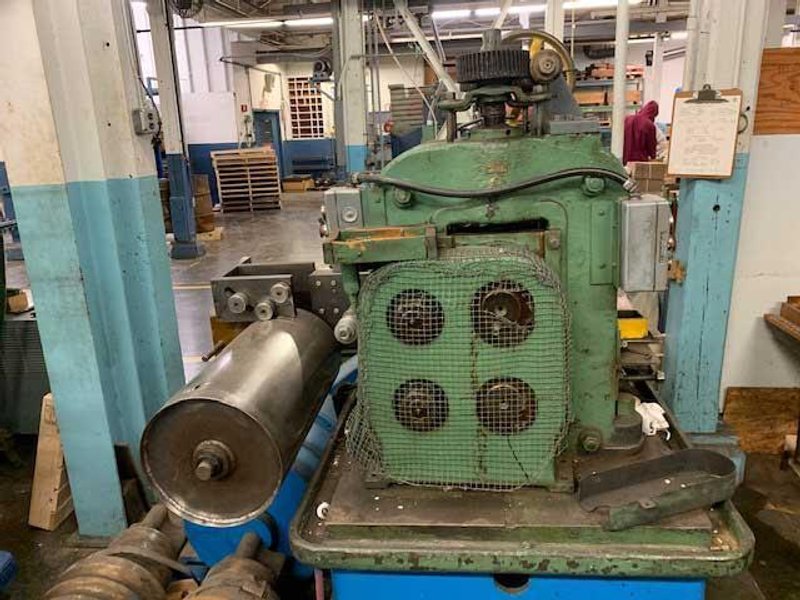

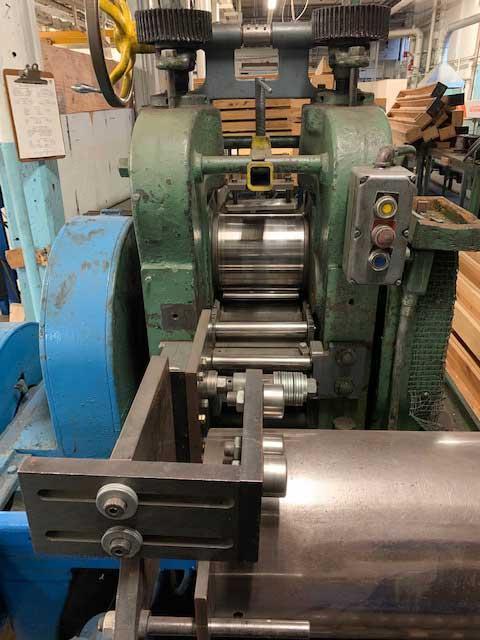

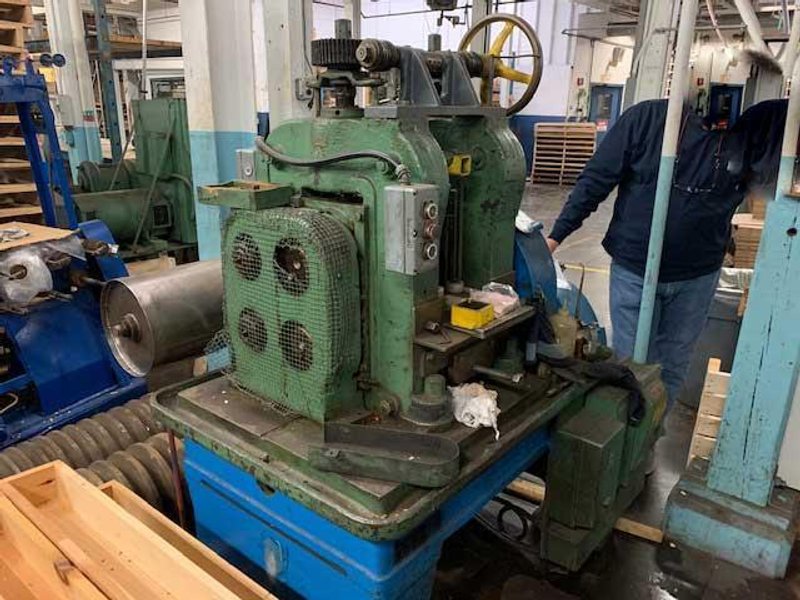

8" x 8" STANDARD 2 HI NON REVERSING ROLLING MILL

 MACHINE #14021

 MANUFACTURER......................STANDARD MACHINE CORP. (USA)
 TYPE..............................2 HIGH COLD ROLLING MILL
 ROLL DIAMETER.....................8" (203MM)
 ROLL WIDTH........................8" (203MM)
 ROLL BEARING TYPE.................ROLLER BEARINGS
 TYPE OF SCREWDOWN.................SINGLE HAND WHEEL
 NON-REVERSING
 DIRECTION OF TRAVEL...............RIGHT TO LEFT
 DRIVE MOTOR.......................10 HP, 208 VOLTS, 3PH, 60 HZ.

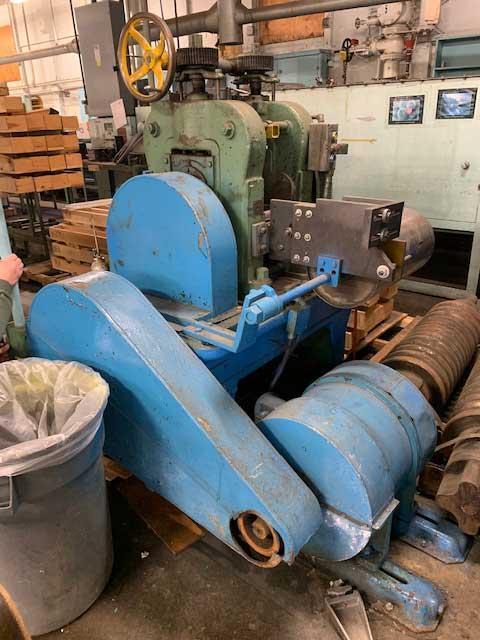

 DRIVE TRAIN.......................BELT DRIVE INTO HERRINGBONE GEAR
 WINDOW WIDTH......................10" (254MM)
 MILL STAND CROSS SECTION..........4" (101MM) x 7" (178MM)
 BOTTOM ROLL IS DRIVEN FROM THE MOTOR AND GEARBOX
 TOP ROLL IS DRIVEN FROM GEARS CONNECTED TO BOTTOM ROLL
 CAN BE USED FOR FLAT STRIP OR FLAT WIRE

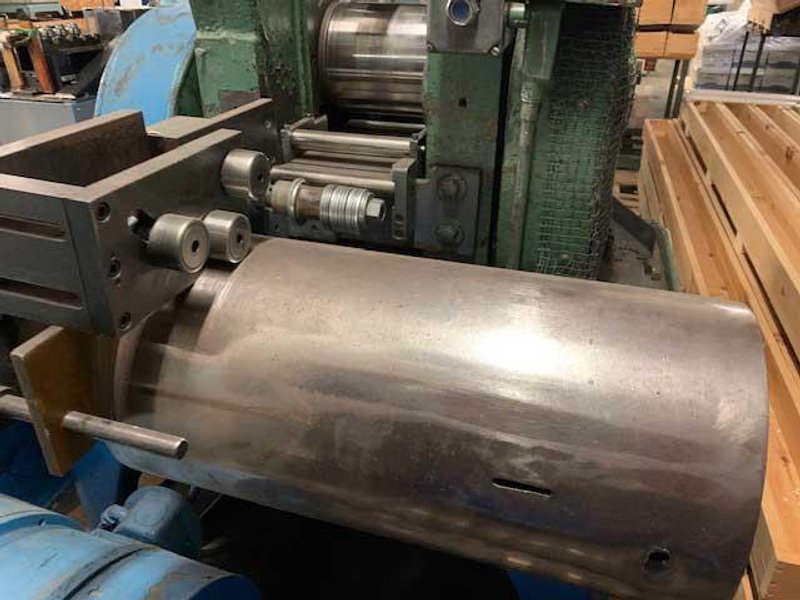

 FOR FLAT WIRE MILL IS EQUIPPED WITH A 3 ROLL BENDER CASCADING THE WIRE AROUND
 A NON-DRIVEN 12" (305MM) DIA. X 24" (610MM) WIDE DRUM.
 TAKE-UP CAN BE REMOVED FOR FLAT STRIP ROLLING.

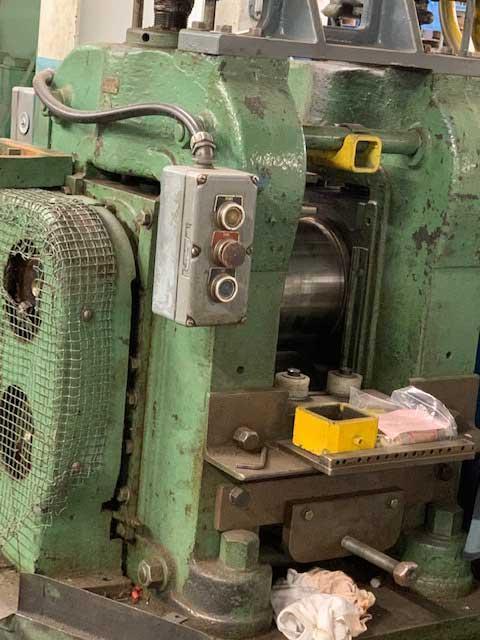

 STOP-START OPERATOR BUTTONS ON BOTH ENTRY AND EXIT SIDES OF THE MILL.

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED**

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
