25" WATERBURY-FARREL, 2-HI SKIN PASS MILL
Brand
Category
Type
Model
Not specified
Stock #
117063
Year
Not specified
Condition
Used
Location
Not specified
|

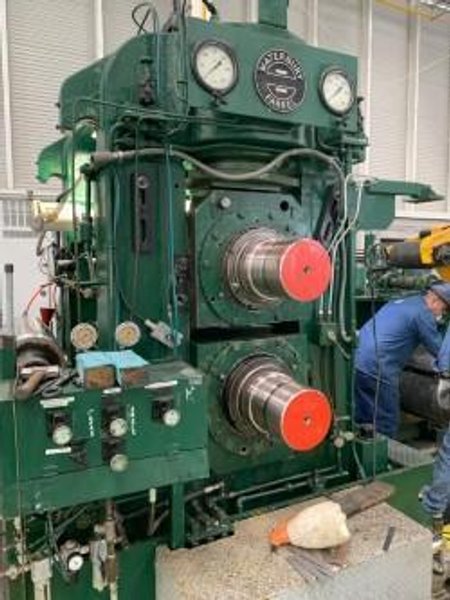

25" WATERBURY FARREL 2 HI SKIN PASS MILL
SPECIFICATIONS
MILL SECTION: 2 HI
MILL TYPE: NON REVERSING
MATERIAL: STAINLESS STEEL, CARBON STEEL
STRIP WIDTH DATA
MAXIMUM: 25.000IN/635.001MM
MINIMUM: IN/0.000MM
ENTRY GAUGE MAXIMUM: 0.030IN/0.762MM
EXIT GAUGE MINIMUM: 0.003IN/0.076MM
MAXIMUM COIL SIZE (WINDER) O.D.: 44.000IN/1117.602MM
COIL SIZE (WINDER) I.D.: 16.000IN/406.401MM
MAXIMUM COIL WEIGHT: 0.000
ABSOLUTE COIL WEIGHT: 9,375 LBS/ 4,252 KG
MILL DATA/
MILL SPEED (MAX): 500FPM/152MPM
MILL SPEED (MIN): 250FPM/76MPM
MILL POWER, MAIN MOTOR: 150HP/112KW
1800 RPM, WATER COOLED, EDDY CURRENT CLUTCH
44O VOLT, 3PH, 60 CYC
PINION STAND RATIO34.62 & 17.39 2 SPEED

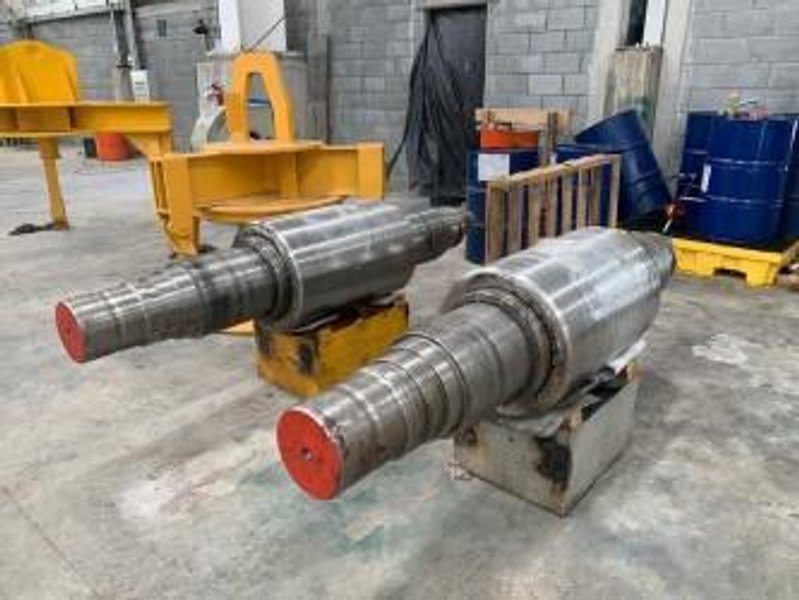

MILL ROLLS
WORK ROLL NOMINAL DIAMETER: 20.000IN/508.001MM
BACK UP ROLL DIAMETER30.000IN/762.002MM
MILL BEARINGS , ROLLER TYPE/

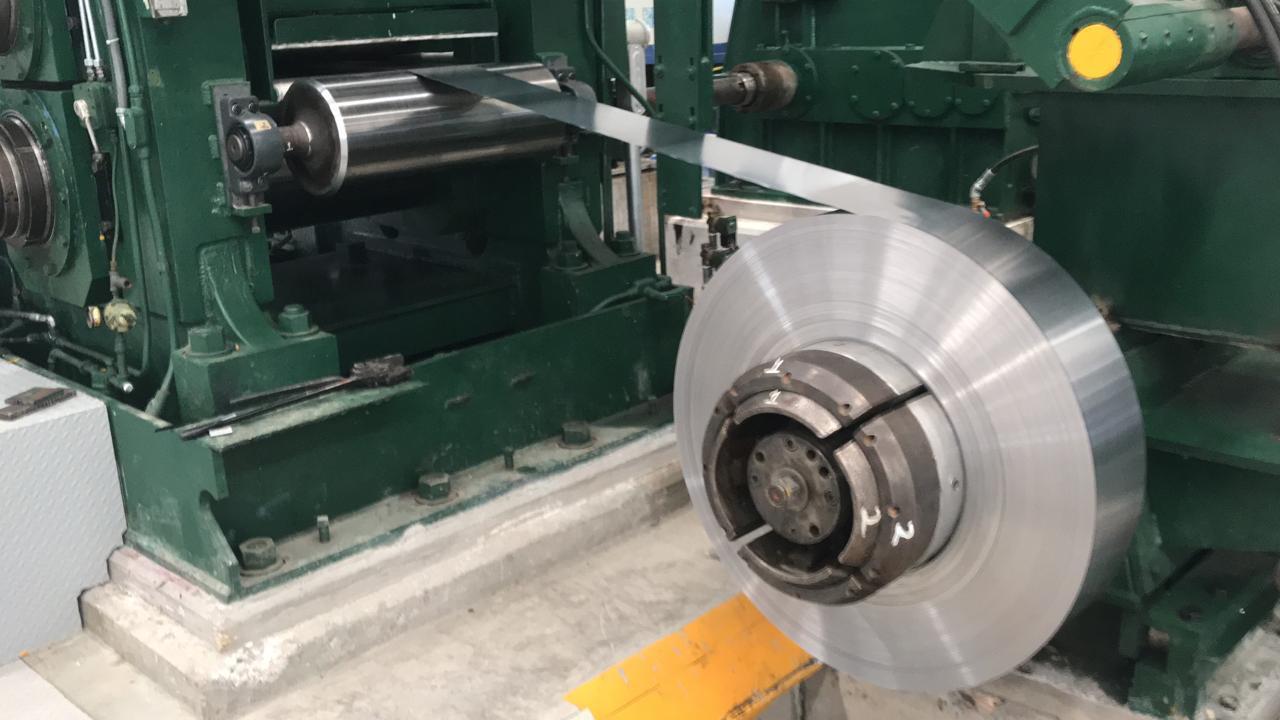

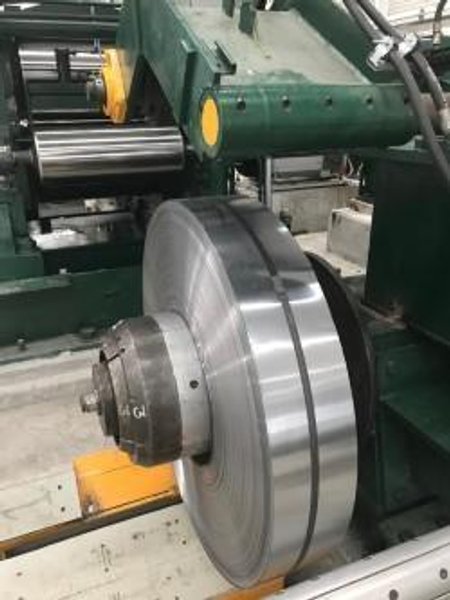

WINDERS
WINDER POWER: 300HP/224KW
WATER COOLED, EDDY CURRENT CLUTCH
440 VOLT, 3 PH, 60 CYC
WINDER MANDREL:
DIAMETER: 16.000IN/406.401MM
FACE: 28.000IN/711.201MM
MANDREL TYPE: EXPANDABLE, 15.646" CLOSED
WINDER TENSION:
MAXIMUM: 7,200 LBS/ 3,266 KG
INTERMEDIATE TO 650 FPM: LBS/ - KG
MINIMUM: LBS/ - KG
GEAR REDUCER RATIO13.8 : 1
PAYOFF
POWER: HP, AC/0KW
TENSION: 4000LBS/ 1,814 KG
SPEED:
MANDREL DIAMETER: 14.5 TO 17.5IN/MM
NOMINAL: 16.000IN/406.401MM
(WITH FILLERS): IN/0.000MM
WATER COOLED BRAKE, MANUAL EDGE CONTROL
COOLANT -FILTER SYSTEM:
MILL DIRECTION: RIGHT TO LEFT
LINE CONFIGURATION
COIL CAR: FIXED
PAYOFF REEL:
DEFLECTOR ROLL:
MAIN MILL FRAME: (2) 15" HYDRAULIC CYLINDER LOAD/ADJUSTMENT
ROLL POLISHING TOP AND BOTTOM
DEFLECTOR ROLLPIVOTING FOR LOAD CELL
WINDER (LEFT):
"L" SHAPED COIL CAR
MOTOR DRIVE CONTROLS:
OPERATOR CONTROL CONSOLE
OVERALL FLOOR DIMENSIONS, (L-R / F-B): 20'-6" X 17'-3"
|
