SCHMITZ 2HI BREAKDOWN ROLLING MILL

SCHMITZ 2Hi Breakdown Rolling Mill #1

Type: Breakdown Rolling Mill - Reversible 2Hi

Description:

· Max rolling force: 600 tons

· 1 Uncoiler + (2) Reversible Winder + (1) Exit Winder

· Coil handling Equipment by COSMEC

Technical Specifications:

· Area: 300 m²

· Main Mill Electrical Power: 550 kW

· Lubrication: Emulsion

· Roll Positioning: Mechanical & Hydraulic gap adjustment

· Max Strip Width: 360 mm

· Thickness Range: Entry max 20 mm / Exit min 2.3 mm

· Speed: 100 m/min

CONFIGURATION

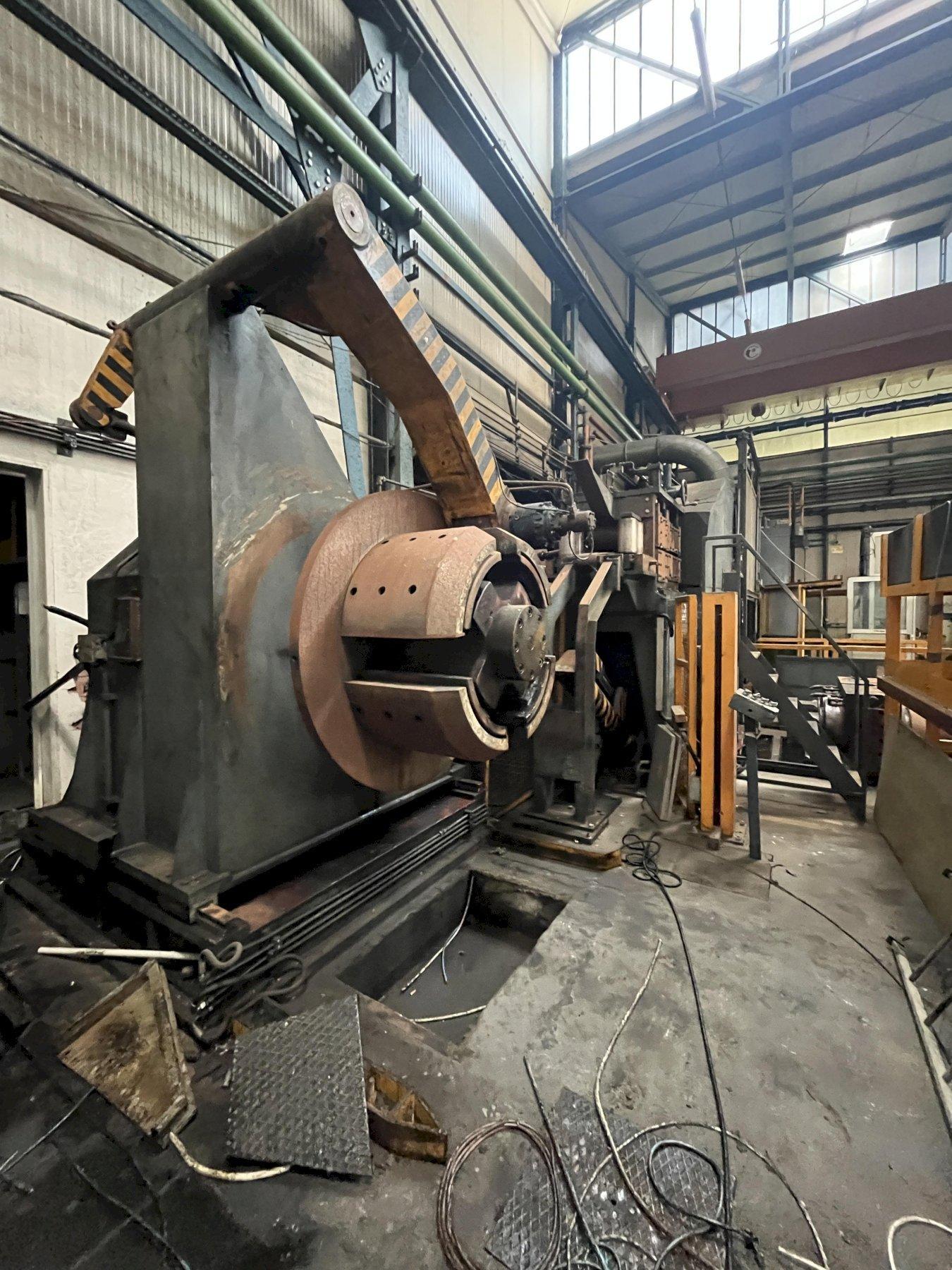

COSMEC Uncoiler

Leaf Expansion of mandrel OD……….610mm – 850mm (LEAFS)

Hydraulic Expansion

Overhead Snub Roll, with hydraulic motor

Peeler/coil opener, side guides into pinch roll stand

RIGHT WINDER, 800mm Diameter mandrel

Max Coil Diameter…………….2500mm

Motor………………………..66 Kw,

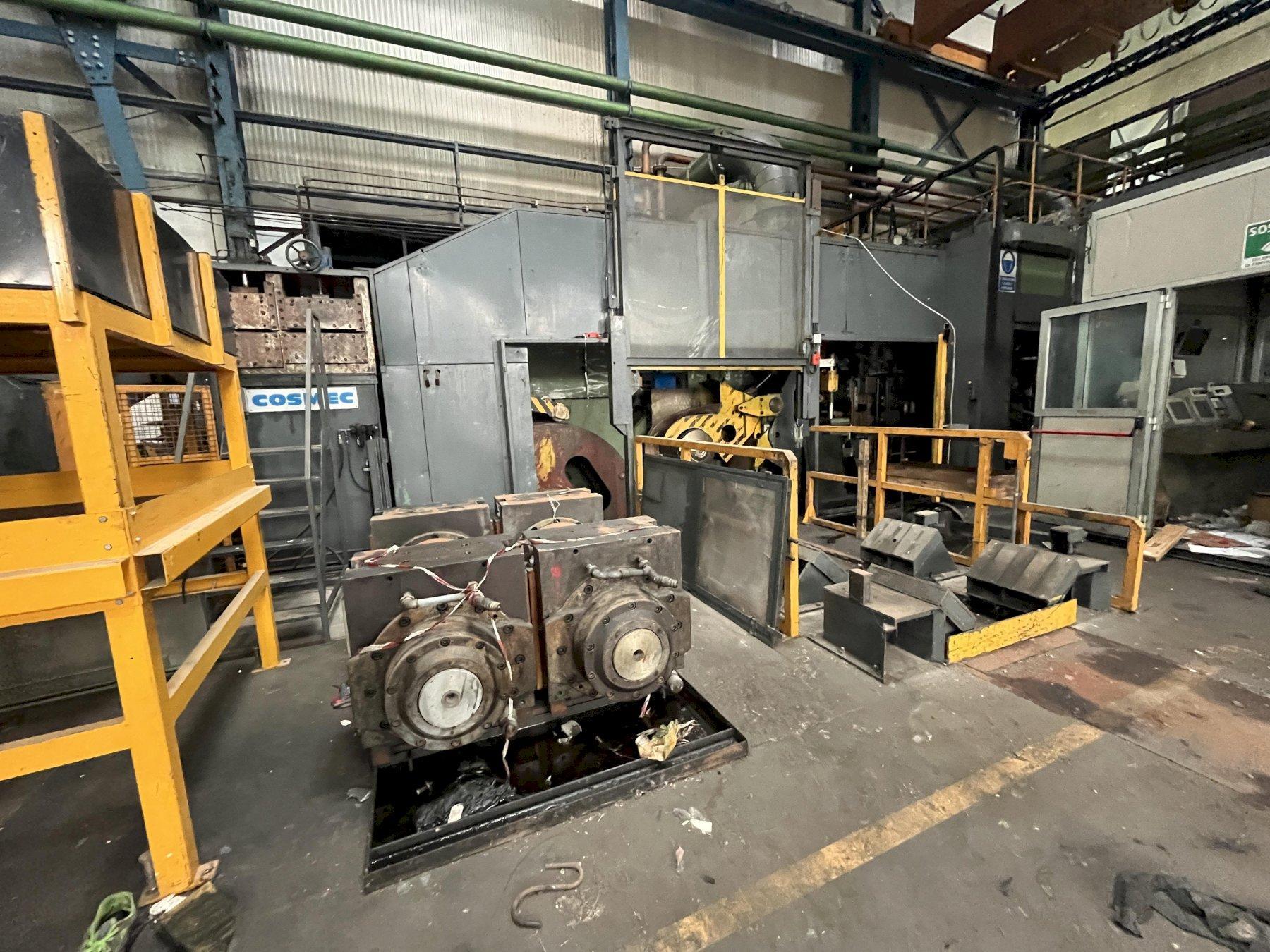

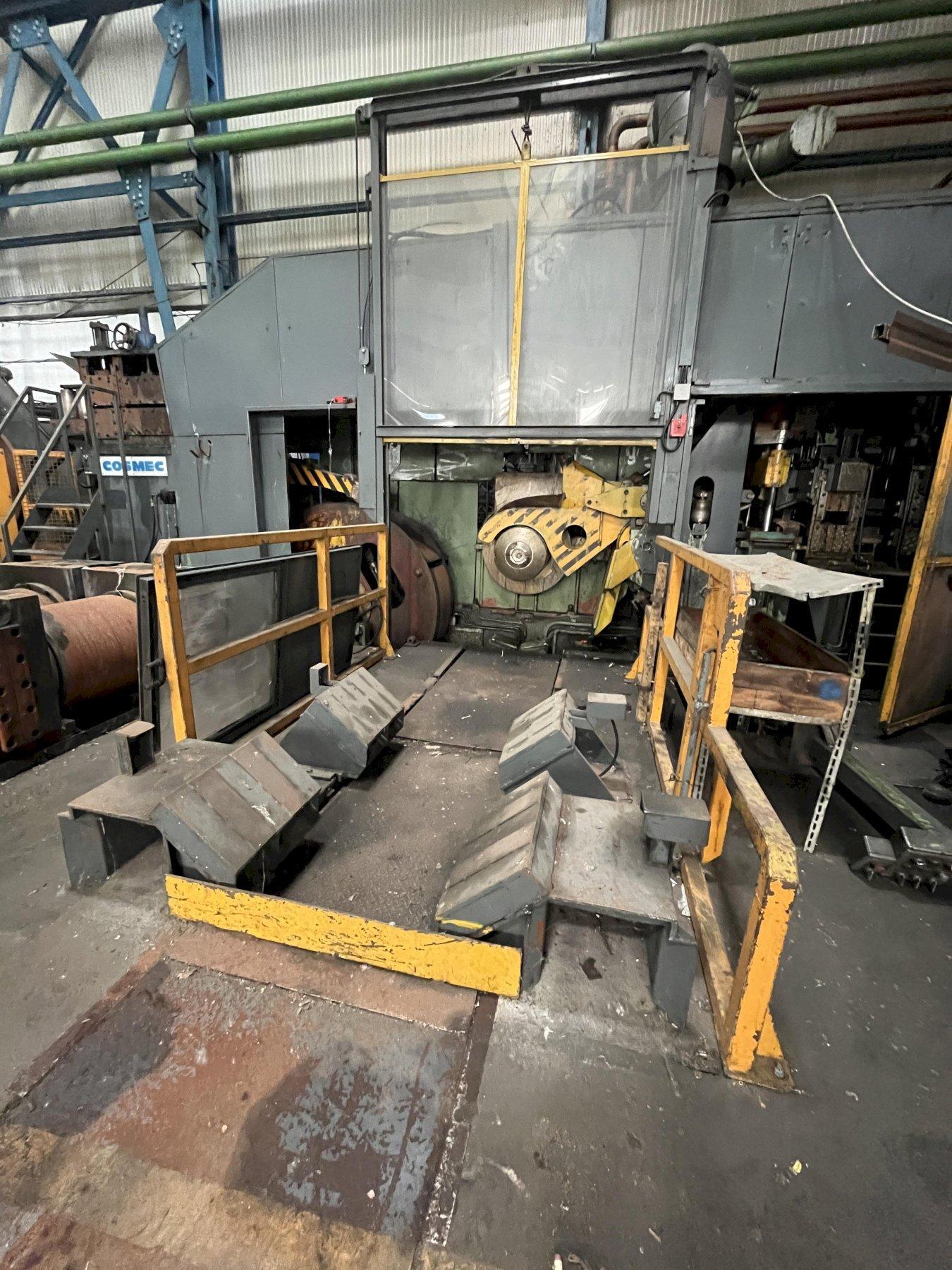

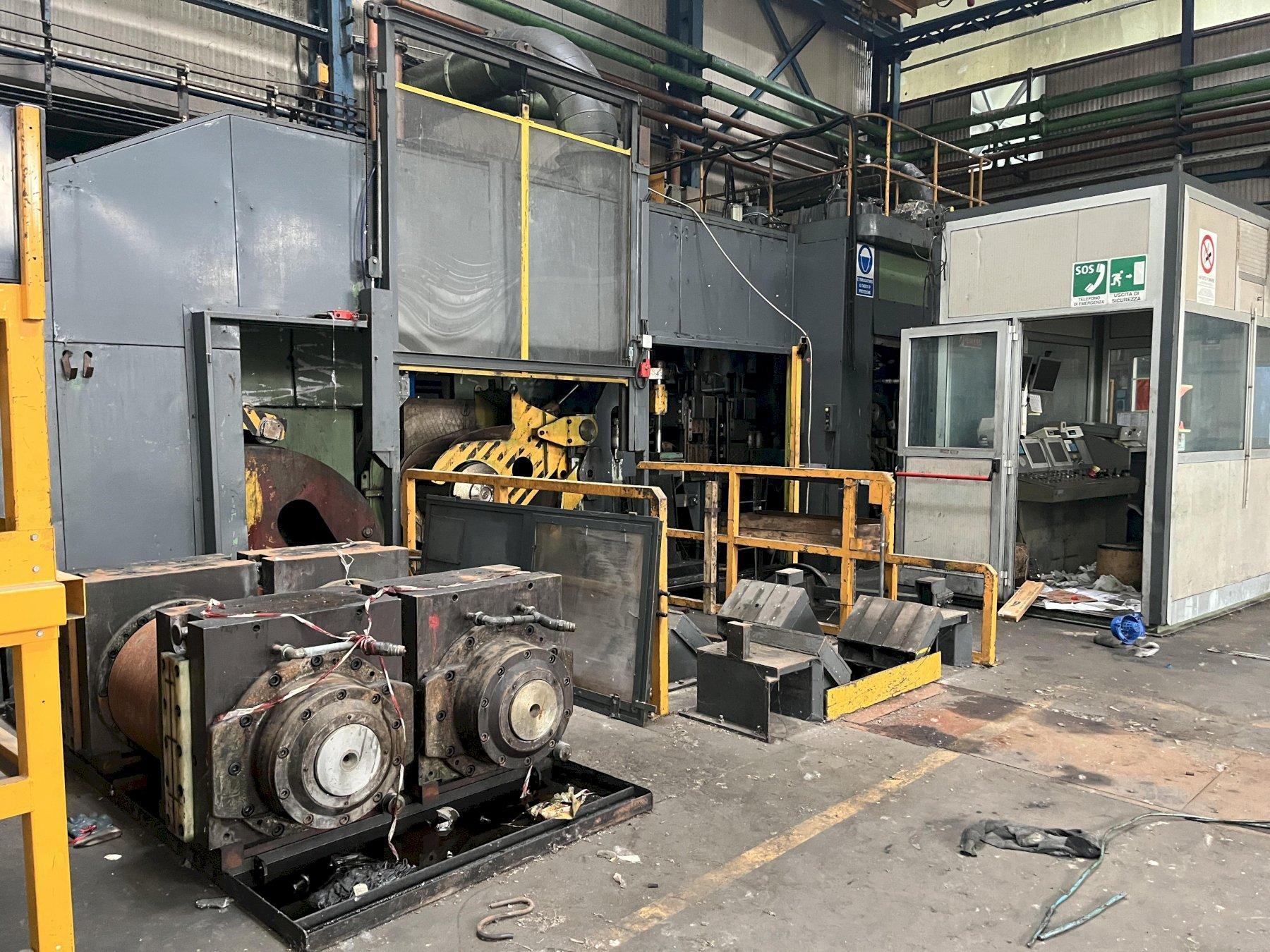

SCHMITZ MILL STAND

Screw & Hydraulic Cylinder Adjustment

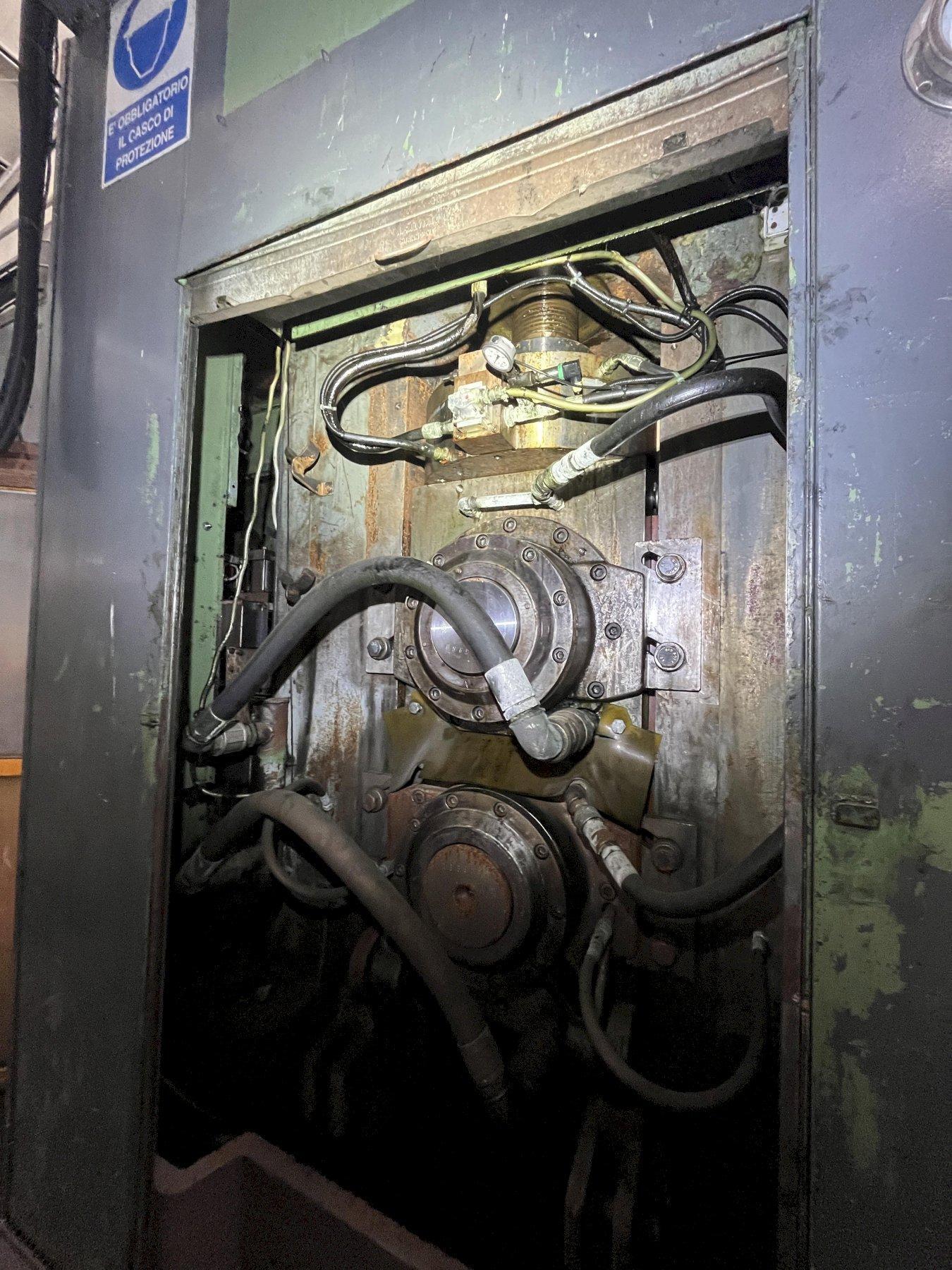

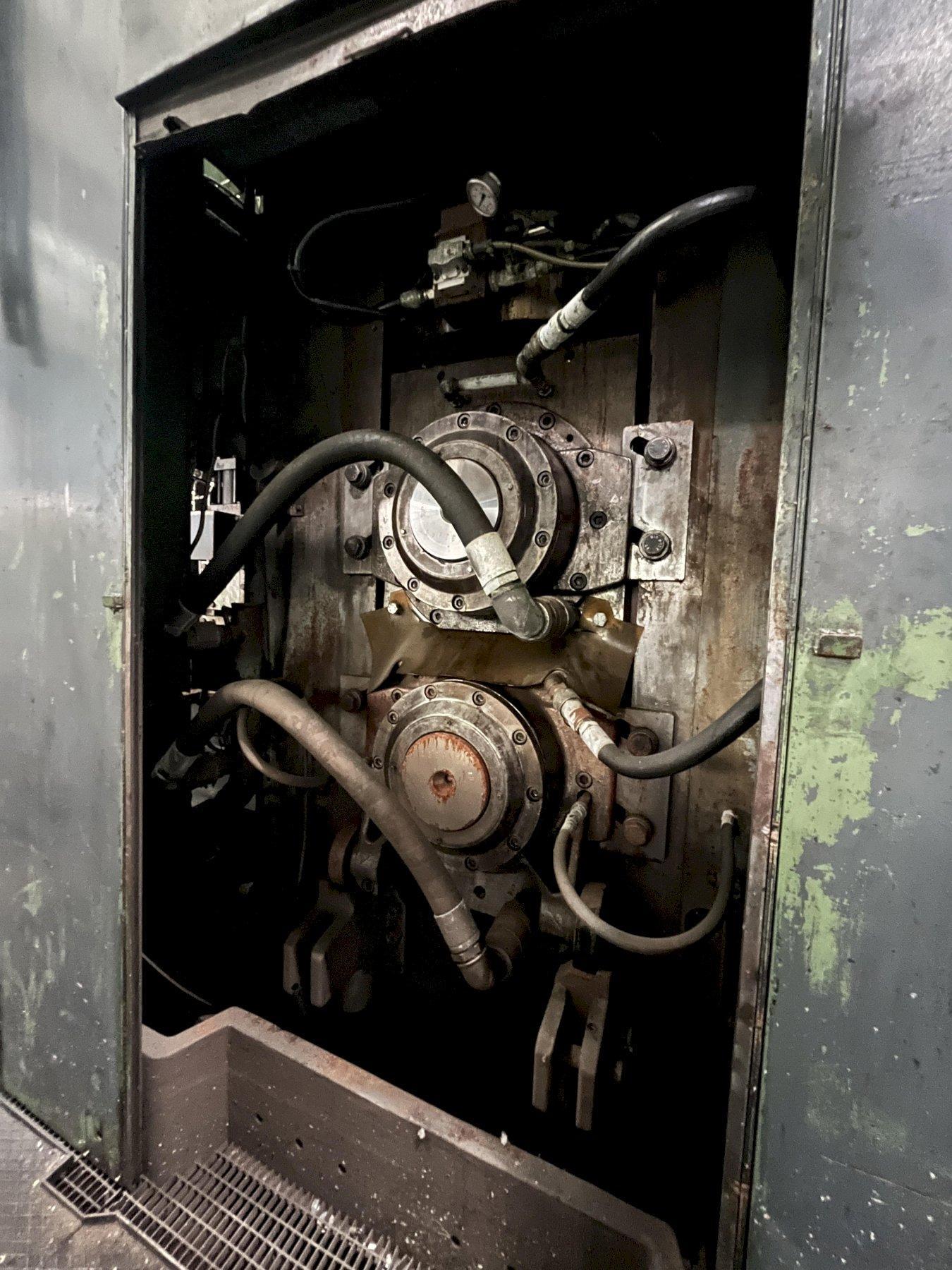

2 sets chocks and bearings (1) in mill, (1) spare

12 rolls, (2) in mill, (10) spare rolls

Roll Dimensions…………………500mm Dia X 575mm Width

Main Motor Drive………….. 550Kw, 550 Volt

ROLL CHANGE SLED

LEFT WINDER, 800mm Diameter mandrel

Winder Motor Drive…………66Kw, 550 Volt

EXIT (LEFT) WINDER

Winder Diameter…………..508mm

Material Wrapper

EXIT COIL STAND, 2 COILS
