Tonnage | 1600 tons |
Stroke | 32 inches |
Billet | 8 inches |
Weight | 120 tons |

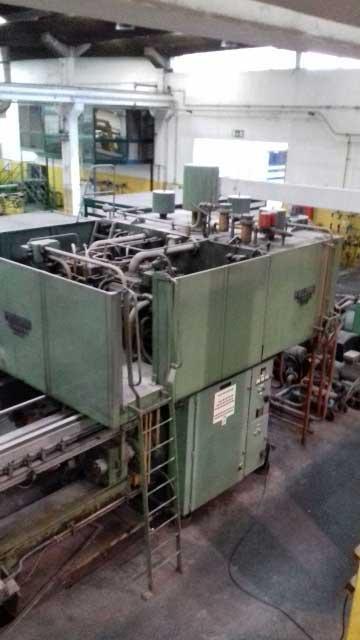

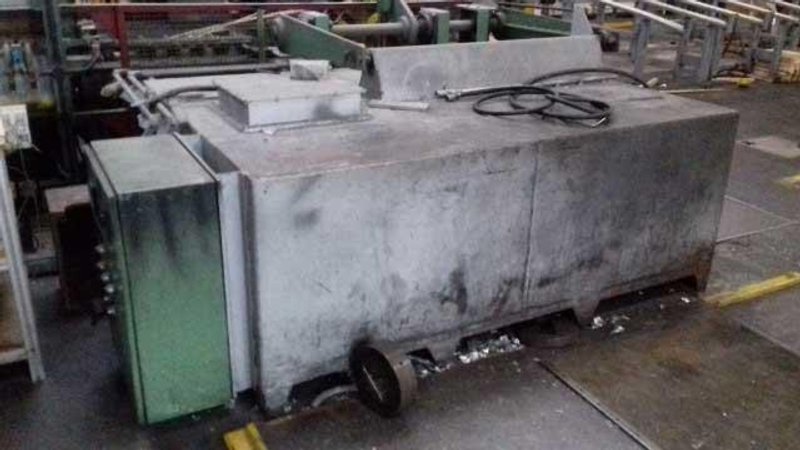

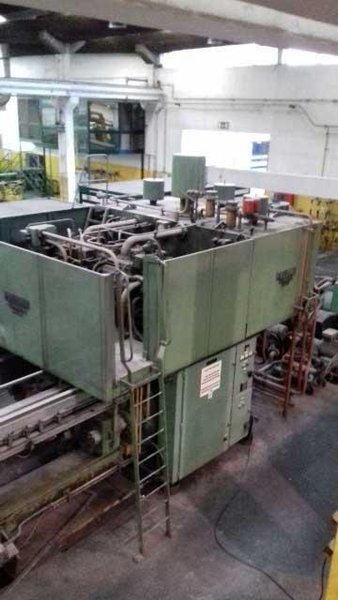

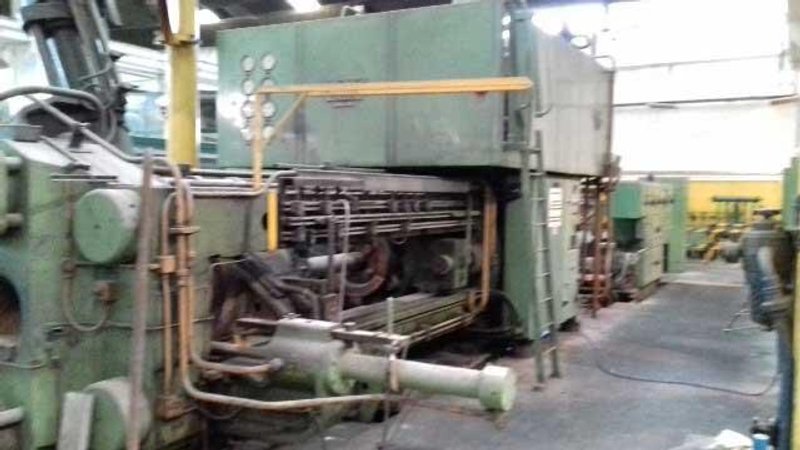

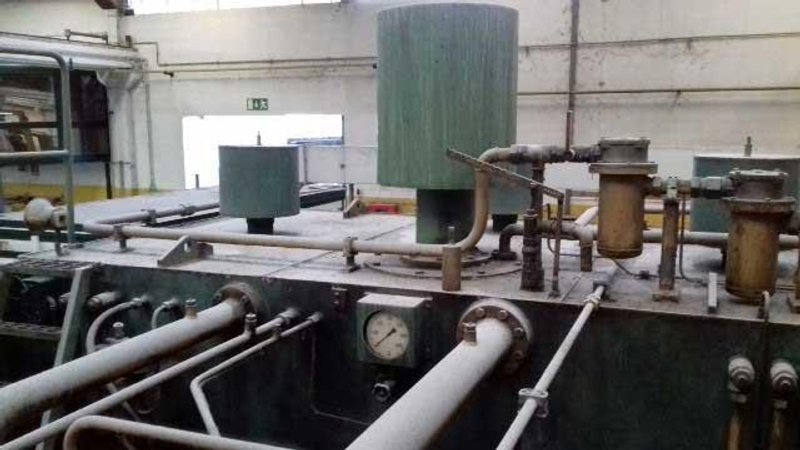

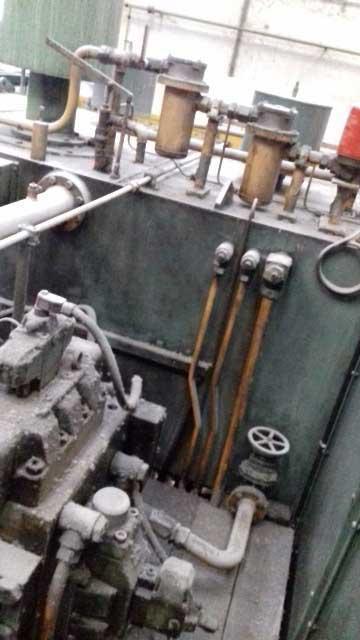

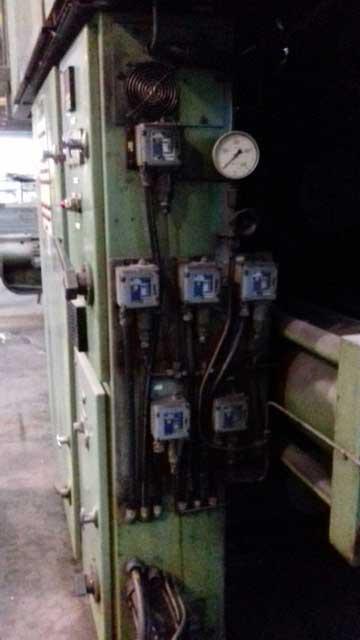

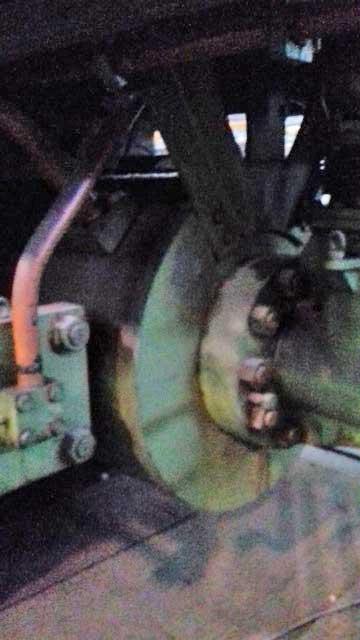

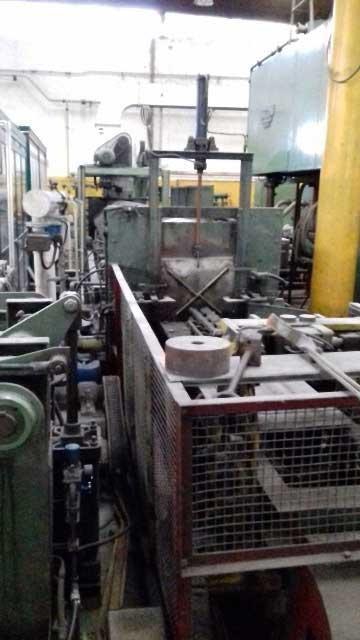

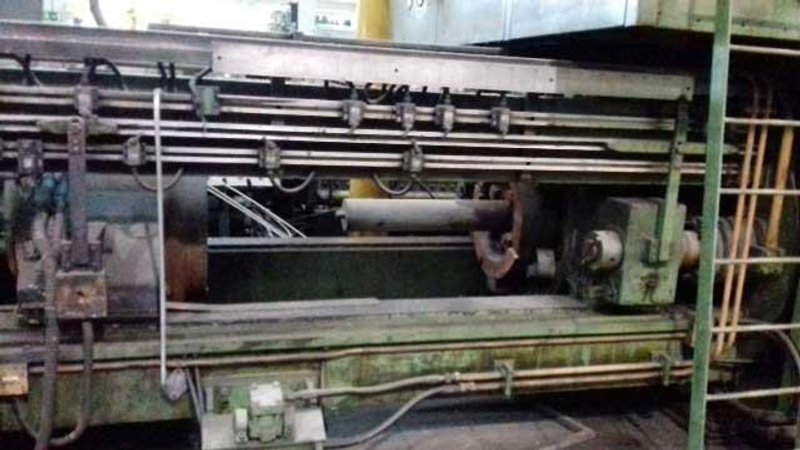

(Used) 1600 Ton Fielding Direct Extrusion Press
MACHINE #14011
Manufacturer:..........Fielding UK
Year of Manufacture:...1977
Type Press:............Direct
Extrusion press:
Manufacturer:.......... Fielding
Type:.................. Oil Hydraulic Direct
Extrusion force:....... 16 MN
Billet Diameter:....... 150 & 200mm (6" - 7.87")
Billet length:......... 800mm (32")

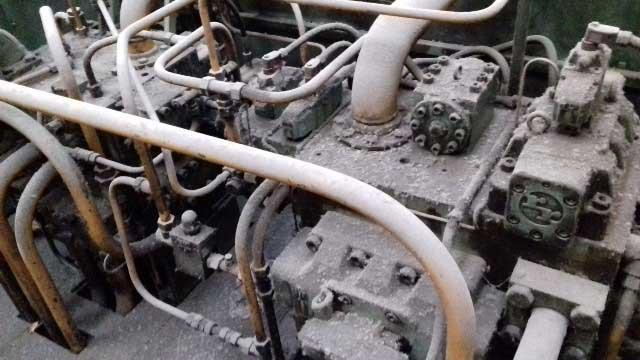

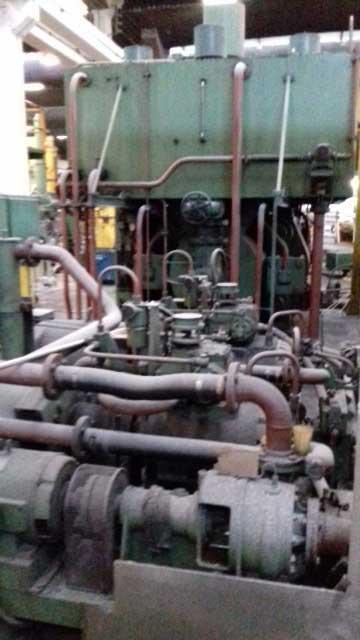

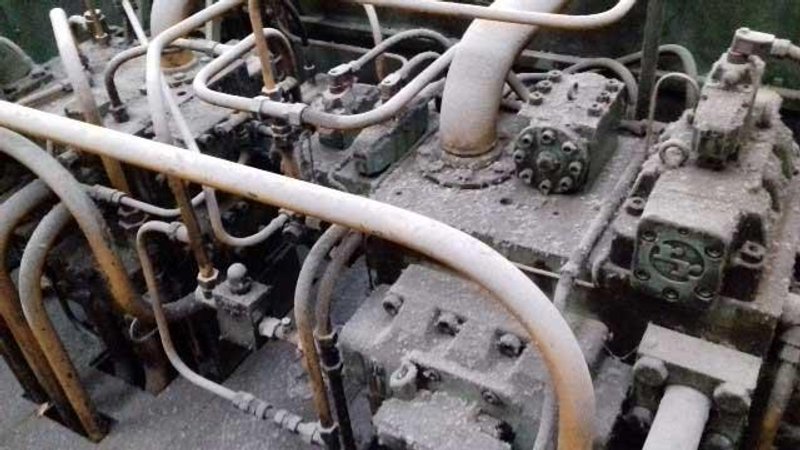

Main pumps:............ 2 x Brueninghaus
Main motors:........... 2 x 185 kw

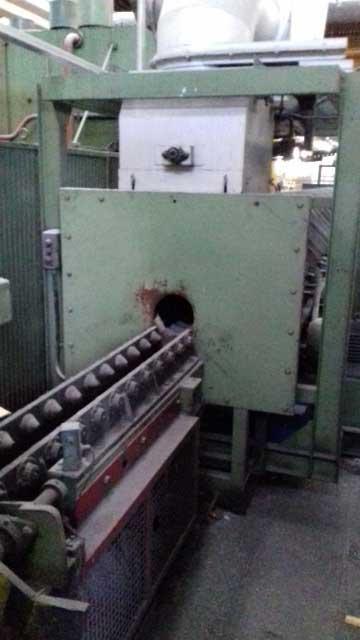

Billet Heater:......... Gas
Extrusion press:
Electrical Supply:..... 380 V, 3 x 50 Hz
Main ram advance:...... 295 mm/sec.
Extrusion speed:....... 1903 mm/sec.
Main ram return:....... 295 mm/sec
Shear Down:............ 350 mm/sec.
Shear up:.............. 457 mm/sec
Container seal:........ 131 mm/sec.
Container 'unseal:..... 61 mm/sec.
Billet leader up:...... 152 mm/sec.
Billet leader down:.... 184 mm/sec.
Dea Cycle time:........ 15.5 sec

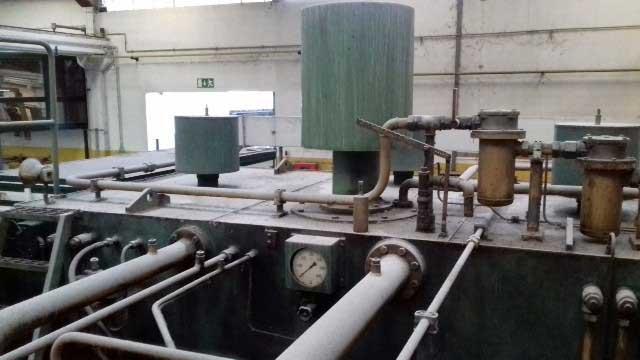

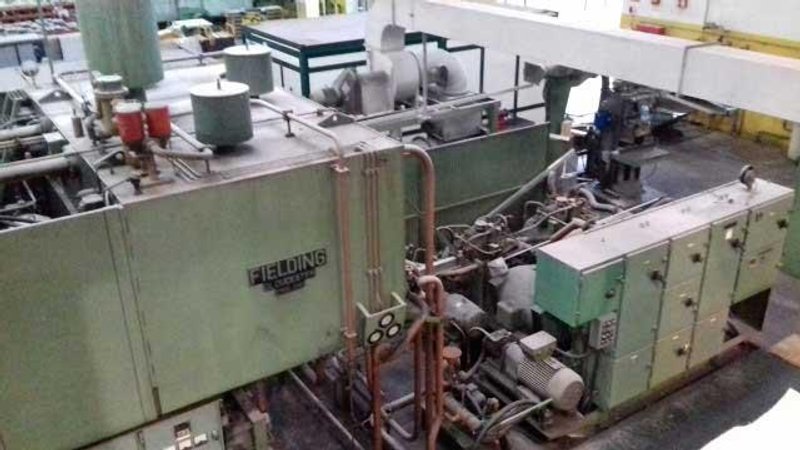

Press and Tank:-
Overall length:........ 8450 mm.
Overall width:......... 3370 mm.
Overall height:........ 3680 mm o
Approximate weight:.... 110 tons
**Press was shut down in 2013 and is still on foundation
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
See this item on our web site: http://inv.mcmillanconroy.com/q/webinv/005249=x,14011
|
