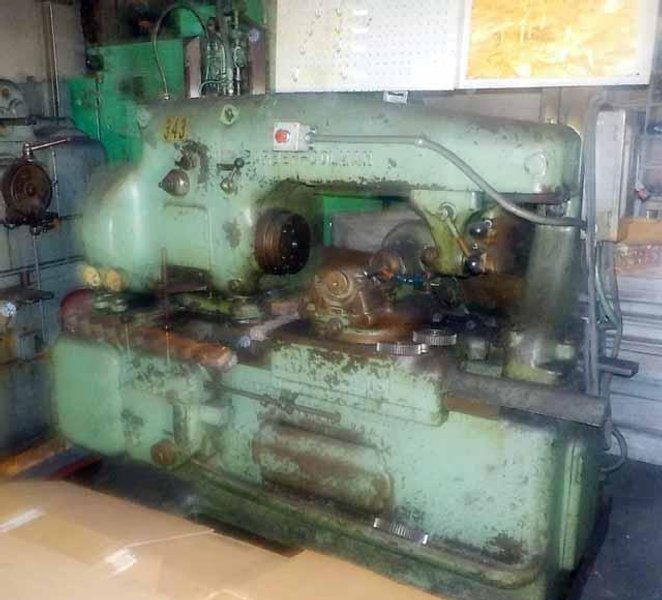

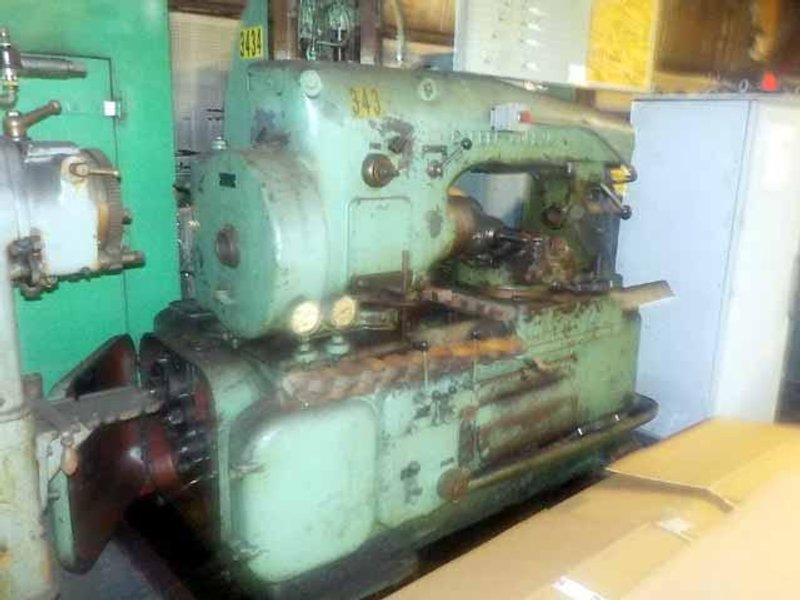

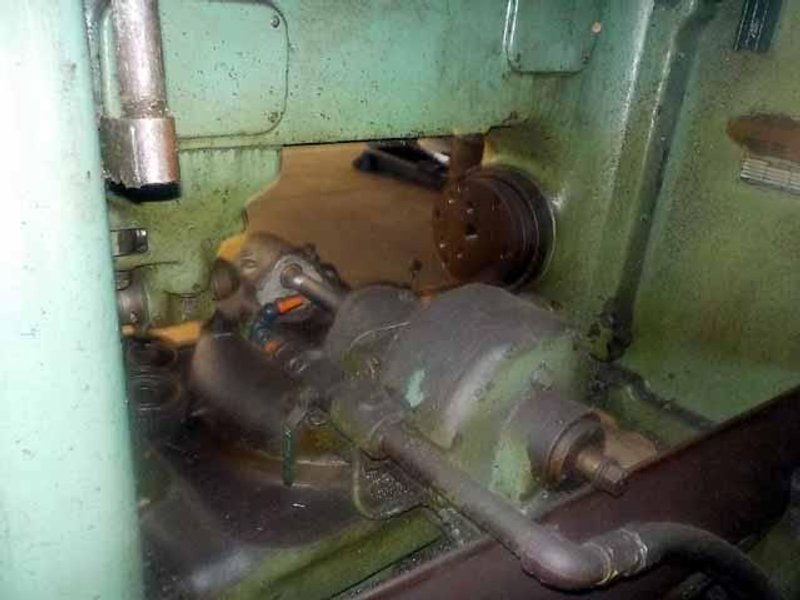

Barber-Colman Type D Gear Hobbing Machine
Brand
Category
Type
Model
D
Stock #
ghdx2
Year
Not specified
Condition
Used
Location
Wisconsin
| Diameter, maximum | 14" |
| Face, maximum | 14" |
| Diametral pitch, steel | 3 |
| Max. travel of hob slide | 15" |
| Max. dist. C/L work spindle to C/L hob spindle | 9-3/4" |
| Distance C/L work spindle to surface of overarm | 7-1/4" |
| Hob diameter, maximum | 5-1/2" |
| Hob length, maximum, taper spindle | 4" |
| Hob length, maximum, straight spindle | 5" |
| Hob spindle slide axial adjustment | 3" |
| Hob spindle speeds (8) | 62-240 RPM |
| Work spindle, taper in nose | No. 18 B &S |
| Diameter of hole thru spindle | 3-1/8" |
| Feed, max. inches per minute | 2" |
| Motor | 10 HP, 1800 RPM |
| Floor space, occupied by base | 70-11/16" x 38-3/4" |
| Length overall, doors closed | 80" |
| Width overall, doors closed | 43" |
| Width overall, doors open | 59" |
| Weight, approximate | 10,000 lbs |
|
Single Thread Index. Universal Hob Slide. Lever Operated Tailstock.
This machine is being offered "As Taken From Service". It can be inspected at your convenience. |
|
