2000 TON WATSON STILLMAN Mdl# 3186-D COPPER & BRASS ROD EXTRUSION PRESS LINE
Brand
Category
Type
Model
Mdl# 3186-D
Stock #
113285
Year
Not specified
Condition
Used
Location
Not specified
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,113285 |
|

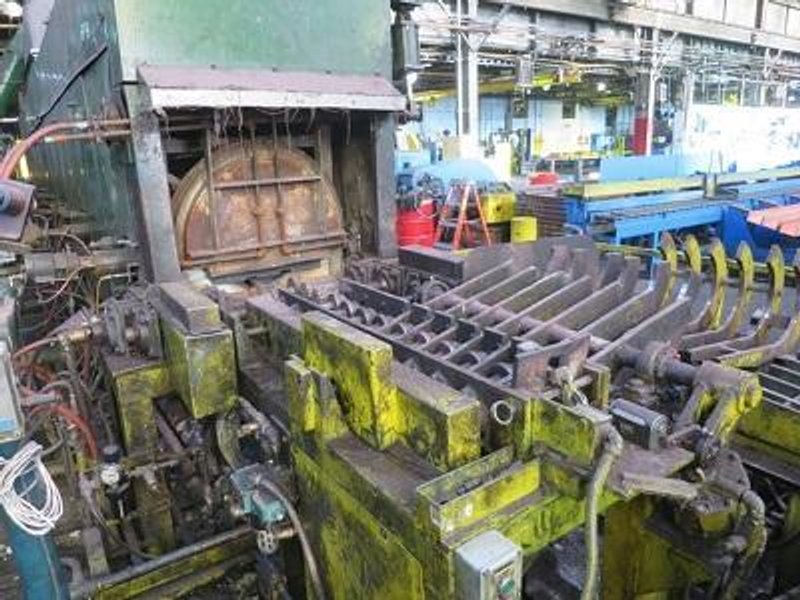

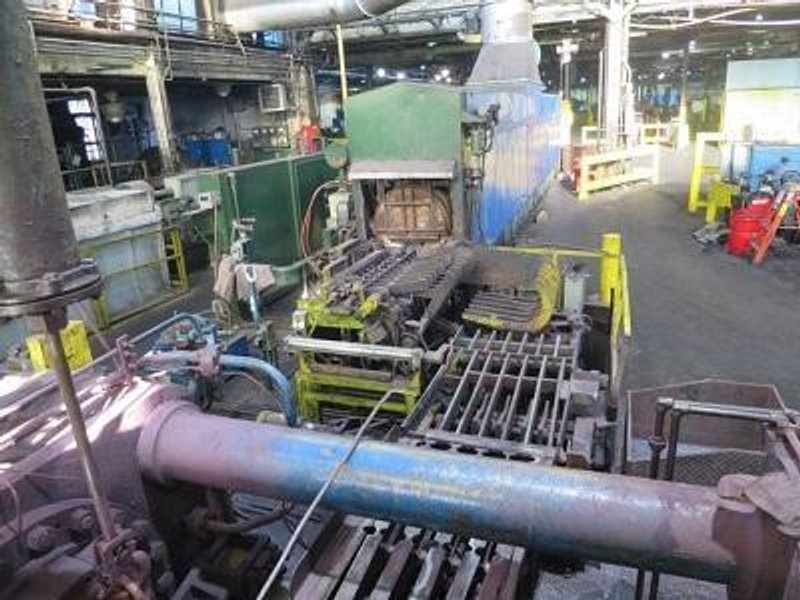

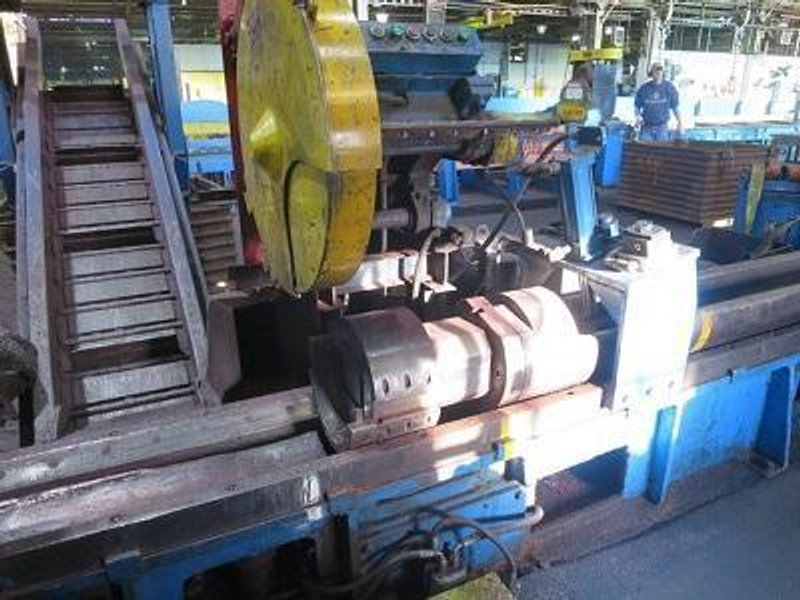

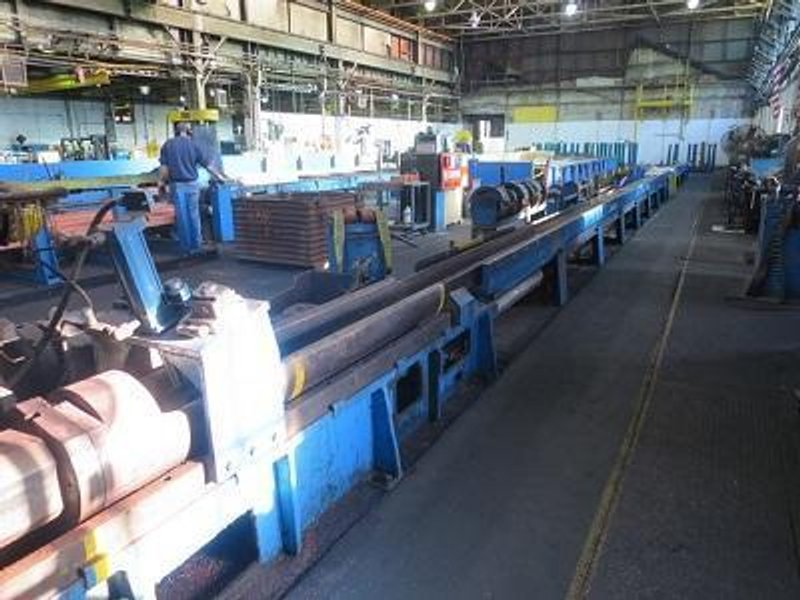

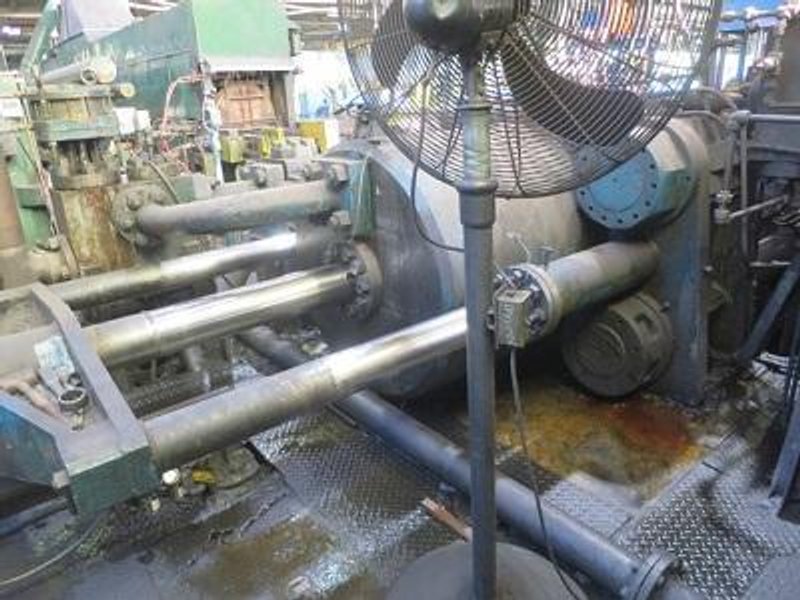

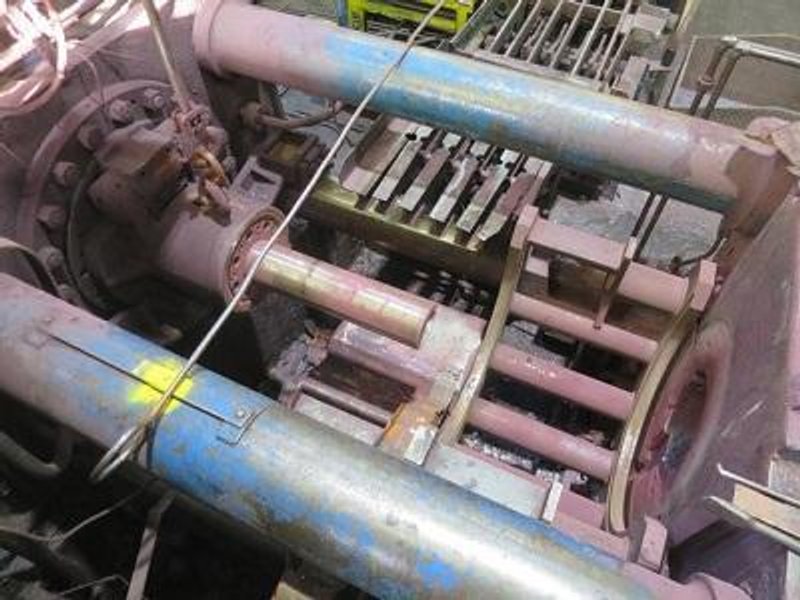

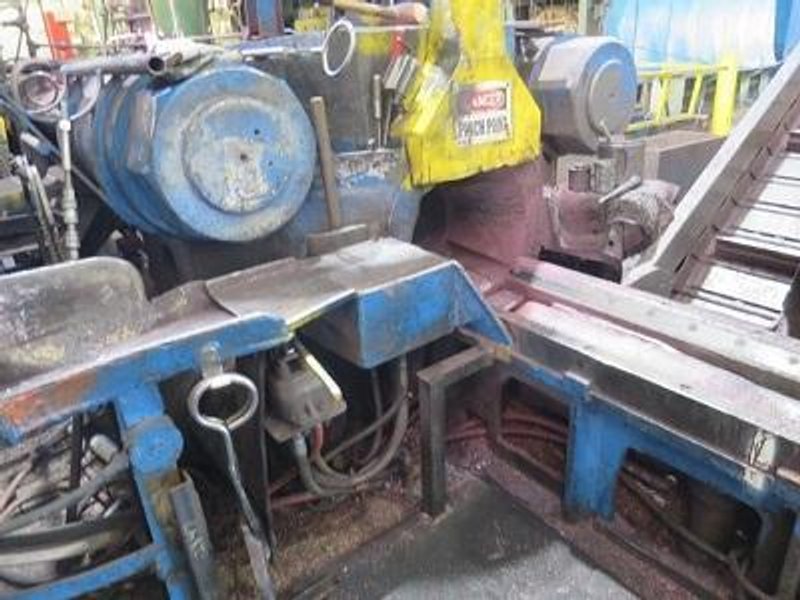

2000 TON WATSON STILLMAN MODEL 3186-D ROD EXTRUSION PRESS LINE

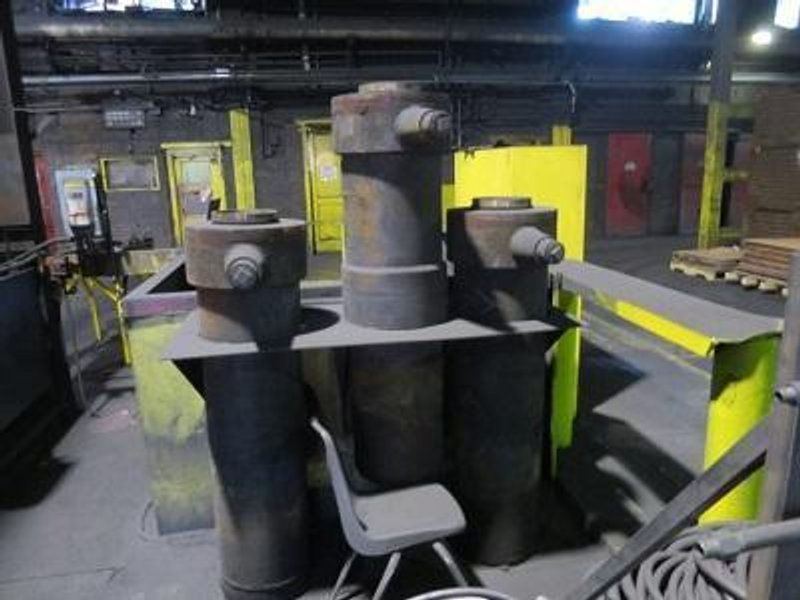

MANUFACTURER - WATSON STILLMAN PRESS TYPE - 4 ROD DESIGN CAPACITY - 2000 TON (5000 LBS/SQ IN) RAM STROKE - 36" RAM DIA. - 33" MATERIAL - COPPER & BRASS AND RELATED ALLOYS PROFILES PROCESSED - VARIOUS SIZES & SHAPES (DIES NOT INCLUDED) CURRENT BILLET DIAMETER - 8" BRASS COPPER 7" X 10" 6-7/8" X 25" OR 26" 7" X 15"-20" 7" X 10" OR 20" 7" X 19" 7" X 26" (STANDARD PURCH. BILLET) 7" X 26" (ACTUAL 6-15/16") 7-1/2" X 25" OR 26" 8" X 26" (ACTUAL 7-15-16") 8" X 26" (STANDARD PURCH. BILLET) EXTRUSION SPEED - PROPORTIONAL (VARIES PER SIZE OF DIE & SHAPE & LENGTH OF BILLET) CONTAINER SIZE - FOR 8" DIAMETER BILLETS NUMBER OF CONTAINERS - 5 TOTAL HYDRAULIC SYSTEM - HIGH PRESSURE WATER ACCUMULATION CONSISTING OF: GRANCO CLARK 7-ZONE BILLET HEATING SYSTEM MANUFACTURER - GRANCO EQUIPMENT INC. YEAR - 1971 TYPE - DIRECT FLAME IMPINGEMENT MODEL - 69-40-7-BC CAPACITY PER HOUR - 19,000LBS/HR OF 9" DIA. BILLETS FROM ROOM TEMP TO 1600 DEGREES F (OTHER ALLOYS & BILLET SIZES IN PROPORTION BILLET DIAMETER - 7" - 9" BILLET LENGTH - 19" -26" MAX TEMPERATURE - 1700 DEGREES FARHENHEIT NUMBER OF CONTROLLED ZONES - 7 TOTAL, SINGLE ACTION PROPORTIONAL COMBUSTION - 16,000,000 BTU TOTAL INPUT ON DEMAND ELECTRICAL SERVICE - 440/3/60 WITH 110 VOLTAGE FOR CIRCUITS FUEL - 1000 BTU NATURAL GAS, RECOMMENDED AT LEAST 3 PSI SUPPLY PRESSURE (16,000 CFM MAX TOTAL DEMAND PLANT AIR - EQUIPMENT DESIGN FOR 80 PSI SUPPLY PRESSURE WATER PLANT - 40 GPM TOTAL CONTROLS PER ZONE - HONEYWELL BILLET LOADING TABLE & CHARGE TABLE BILLET DISCHARGE TABLE HYRDROWATT 126 GPM PUMP STATTION - 500 HP RADIAL PISTON PUMP STATION MANUFACTURER - HASTEC ENGINEERING, INC. MODEL - R180/180S YEAR - 1999 OPERATING PRESSURE - 5800 PSI PUMP SPEED - 1800 RPM MOTORS - (1) SIEMENS 500 HP, PUMP MOTOR, 480 VAC, 562 AMPS, 1785 RPM (1) BENSHAW 500 HP BENSHAW SOFT START MOTOR, NEW 2002 CONTROLS - BENSHAW (2002) ELECTRICS - 460 VOLT, 60 CYLCLE, 3 PHASE PRECHARGE PUMP MANUFACTURER - GOULD PUMPS, INC. MODEL - 3196 STD. NO. - A50 MOTOR - 30 HP LINCOLN, 480 VAC, 3600 RPM, MOD. 150 GPM HIGH PRESSURE HORIZONTAL PUMP MANUFACTURER - HIGH PRESSURE PUMP COMPANY MODEL - TYPE 3.5 3.187 15 SER. NO. - 503299 MOTORS - (1) WESTINGHOUSE 500 HP 590 RPM WESTINGHOUSE MOTOR MODEL HSDP, FRAME 6808-L, 3 PHASE, 480VAC, 623 AMP (1) BENSHAW 500 HP Solid STATE SOFT STARTER, 480 VAC, 590 AMPS CONTROLS - BENSHAW DURCO MARK III LOW PRESSURE (BOOSTER) PUMP MANUFACTURER - THE DURIRON CO. INC. YEAR - 1994 SIZE - 2X3X1.5X13/117RV, 3600 RPM MOTOR - RELIANCE ELECTRIC, 100 HP, 480 VAC, NEMA 12 ENCLOSURE (1999) HYDRO-PNUEMATIC ACCUMULATOR (VERTICAL TANK) MANUFACTURER - HIGH PRESSURE PUMP CO. SIZE - 4'-8" ID X 18'-6" H X 5/8" WALL DESPATCH CONTAINER PREHEATING OVEN (GAS FIRED) MANUFACTURER - DESPATCH OVEN CO. MAX. TEMP. - 2000 DEG. BLOWER - 7 1/2 H.P., 1800 RPM SIZE (CHAMBER) - 4' X 8' X 5' CAPACITY - 2 CONTAINERS LOAD - 7500 LBS *PREHEATS CONTAINERS TO 600 DEG. FOR 6 HRS DIE PREHEATING FURNACE MANUFACTURER - TRENT, INC. SER. NO. 864-180 TEMP. - 2300 DEG. F DIE LOADING TABLE CIRCULAR BUTT CUTOFF SAW W/ MAYFRAN SCRAP CONVEYOR CIRCULAR SWING CUTOFF SAW 100' ROLLER CONVEYOR RUNOUT LAYDOWN RACK PRESS OPERATOR CONTROLS |
|
