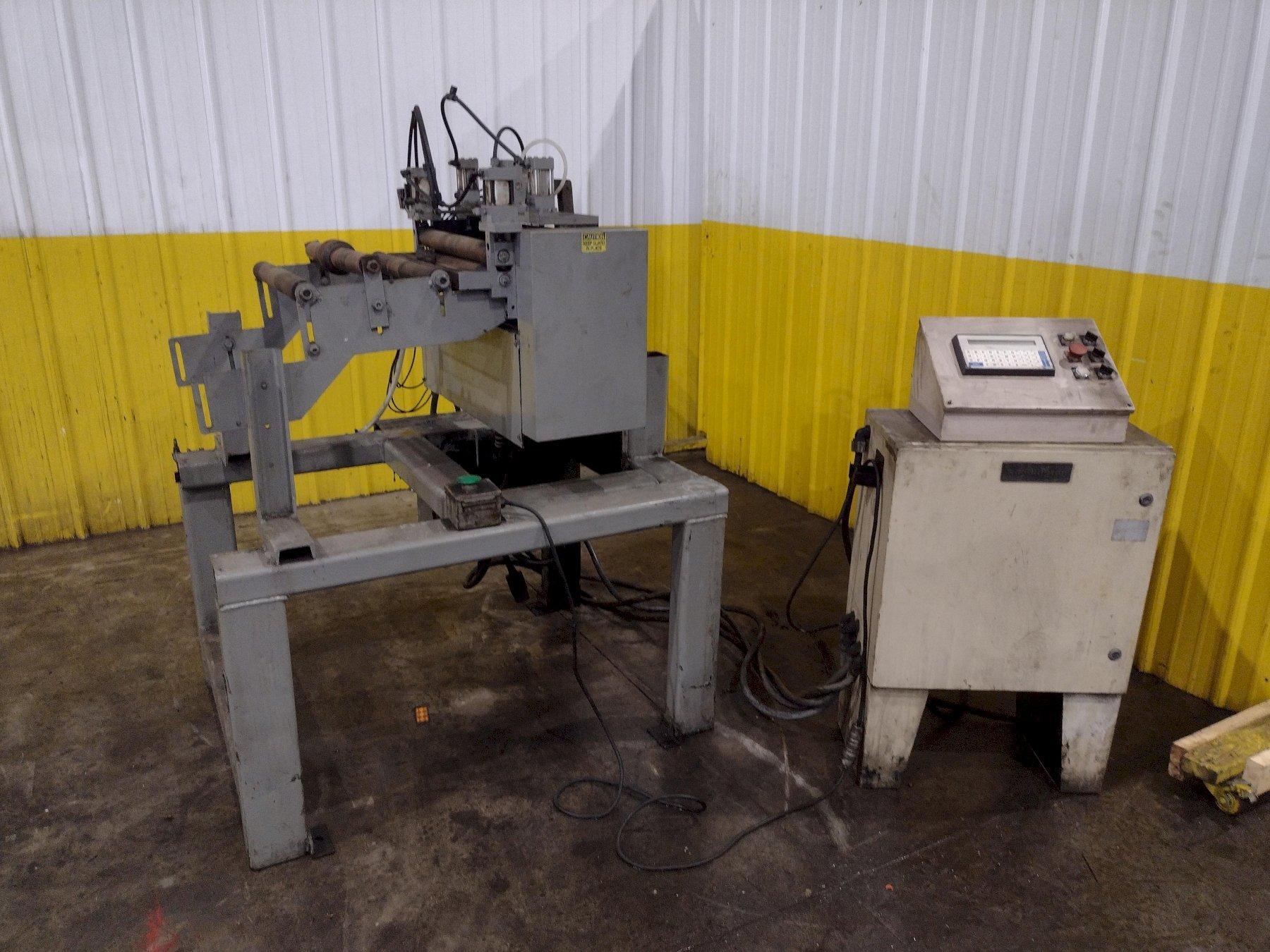

CHS Servo Roll Feed Press Feed 24" Wide (NEW IN STOCK)

CHS Servo Roll Feed Press Feed Specifications:
Stock width capacity: 24"
Stock thickness capacity: .125" x 24" Wide
Stock thickness capacity: .156" x 12" Wide
Stock thickness capacity: .187" x 06" Wide
SPM: Consult sales

CHS Servo Roll Feed Press Feed Equipment and Features:
3 inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot (single cylinder, centrally mounted)
Entry side cascade material support section
Slide and clamp stock width edge guides
Centralized lubrication points
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
AC servo roll feed drive and controls (Consult sales for complete details)
Job memory, batch counting, on the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt

Number of stock units available in stock: (2)
