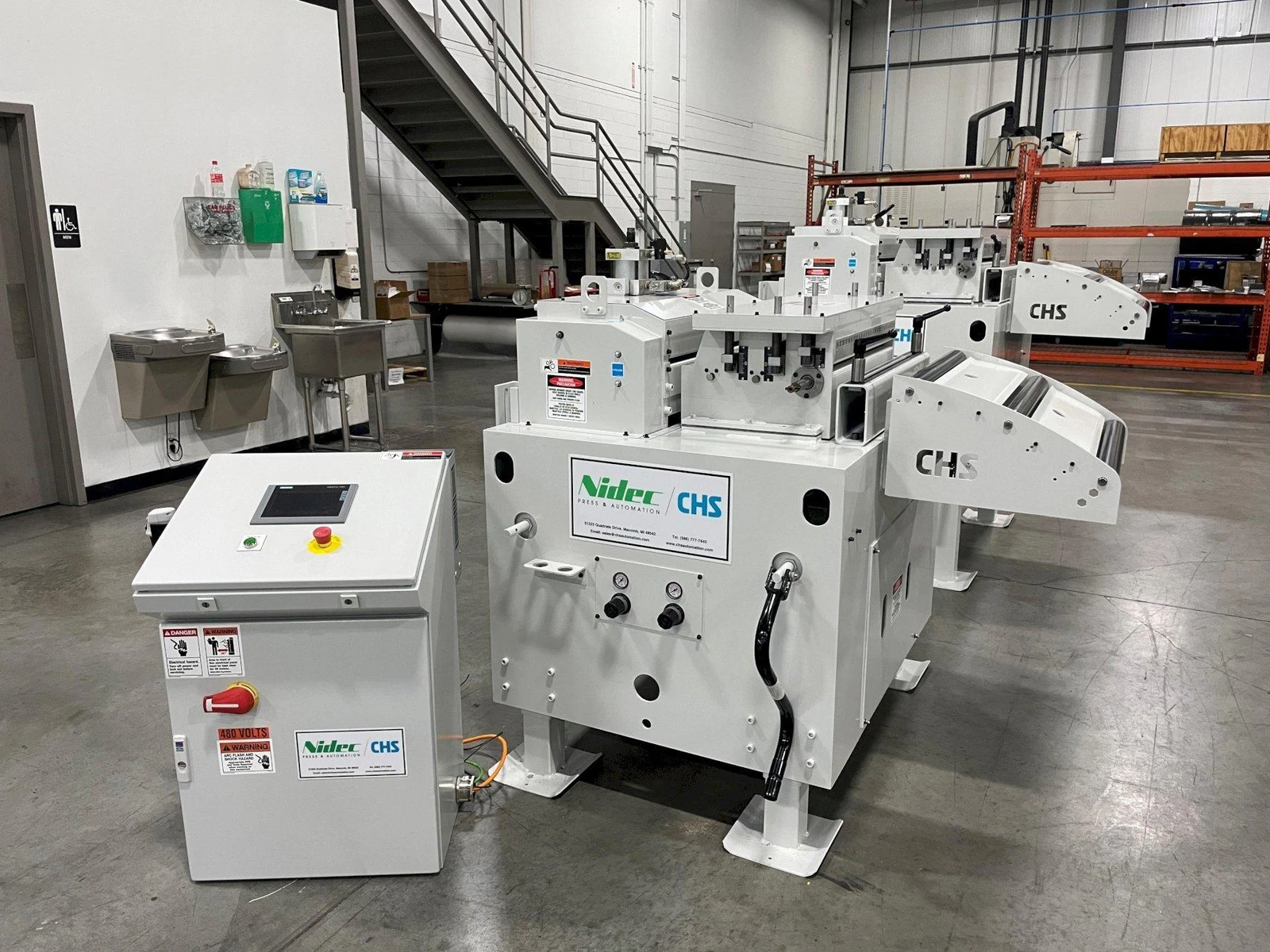

(NEW) CHS Servo Roll Feed Straightener Combination Press Feed 24" Wide (IN STOCK READY FOR SHIPMENT)

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 24"
Stock thickness capacity: .093" x 24" Wide
Stock thickness capacity: .140" x 06" Wide

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
Three inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Straightener model no PL-225-5-24
Five servo feed straightening rolls x 2.25" diameter
Upper servo feed straightening roll adjustments
Servo feed pinch roll for stock threading via crank handle (manual)
Cascade loop support rollers
AC servo roll feed drive and controls (Consult sales for complete details)
Job memory storage
Batch counting
On the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
