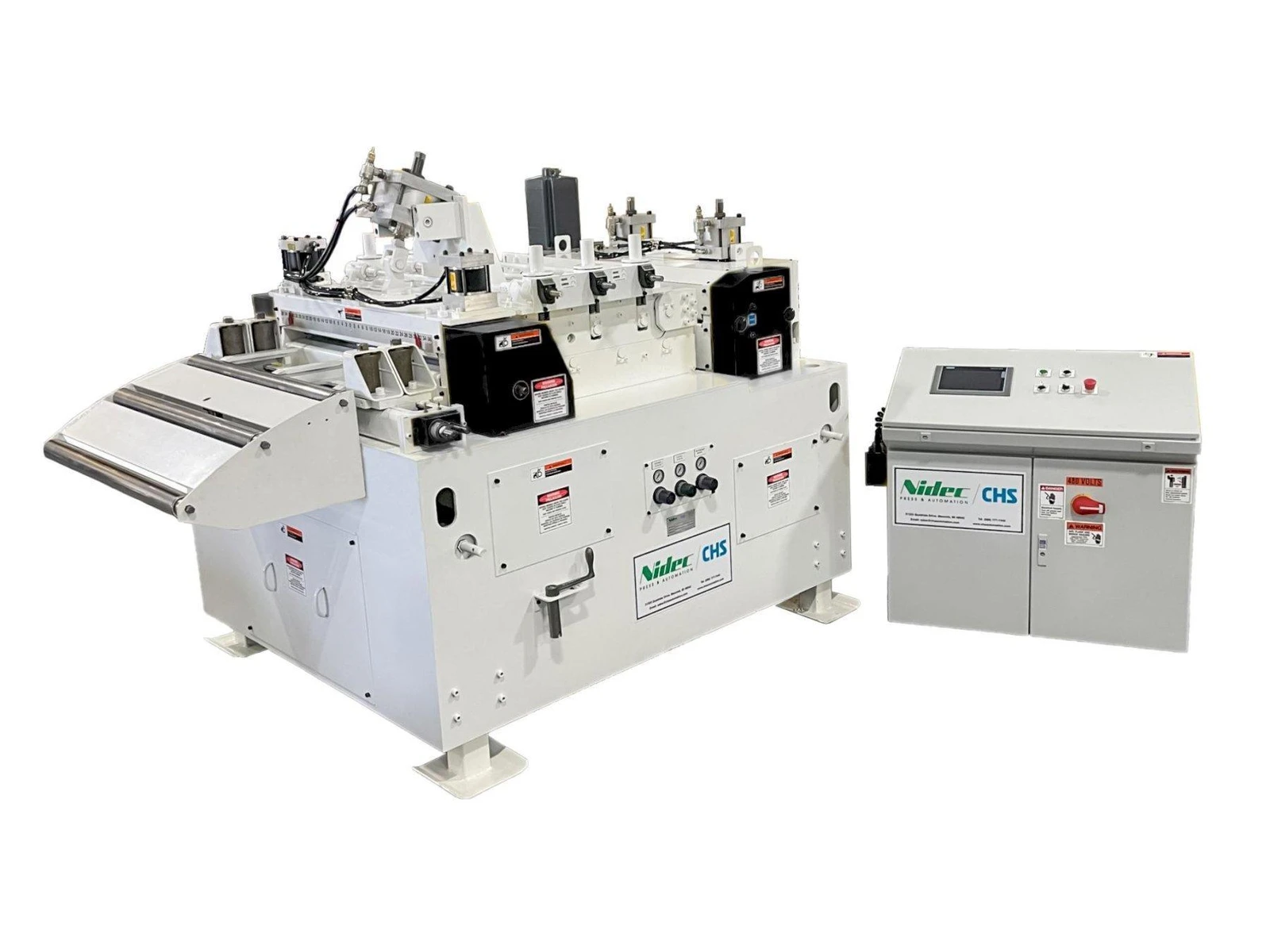

(NEW) CHS Servo Roll Feed Straightener Combination Press Feed 36" Wide (Quick Ship Lead Time Available)

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 36"
Stock thickness capacity: .090" x 36" Wide
Stock thickness capacity: .165" x 18" Wide

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
4.5 Inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Air pressure / regulators flush mounted in cabinet base
Straightener Model No.:  PTS-350
Seven servo feed straightening rolls x 3.50 diameter
Screw jack upper servo feed straightening roll adjustments
Servo feed pinch roll for stock threading (Motorized)
Air operated upper pinch roll adjustment
Cascade loop support rollers
Individual / Simultaneous hand crank stock width edge guides
AC servo roll feed drive and controls (Consult sales for complete details)
Job memory storage
Batch counting
On the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
End of stock sensor
Fused disconnect
480 Volt

Consult sales for full detailed OEM quotation
