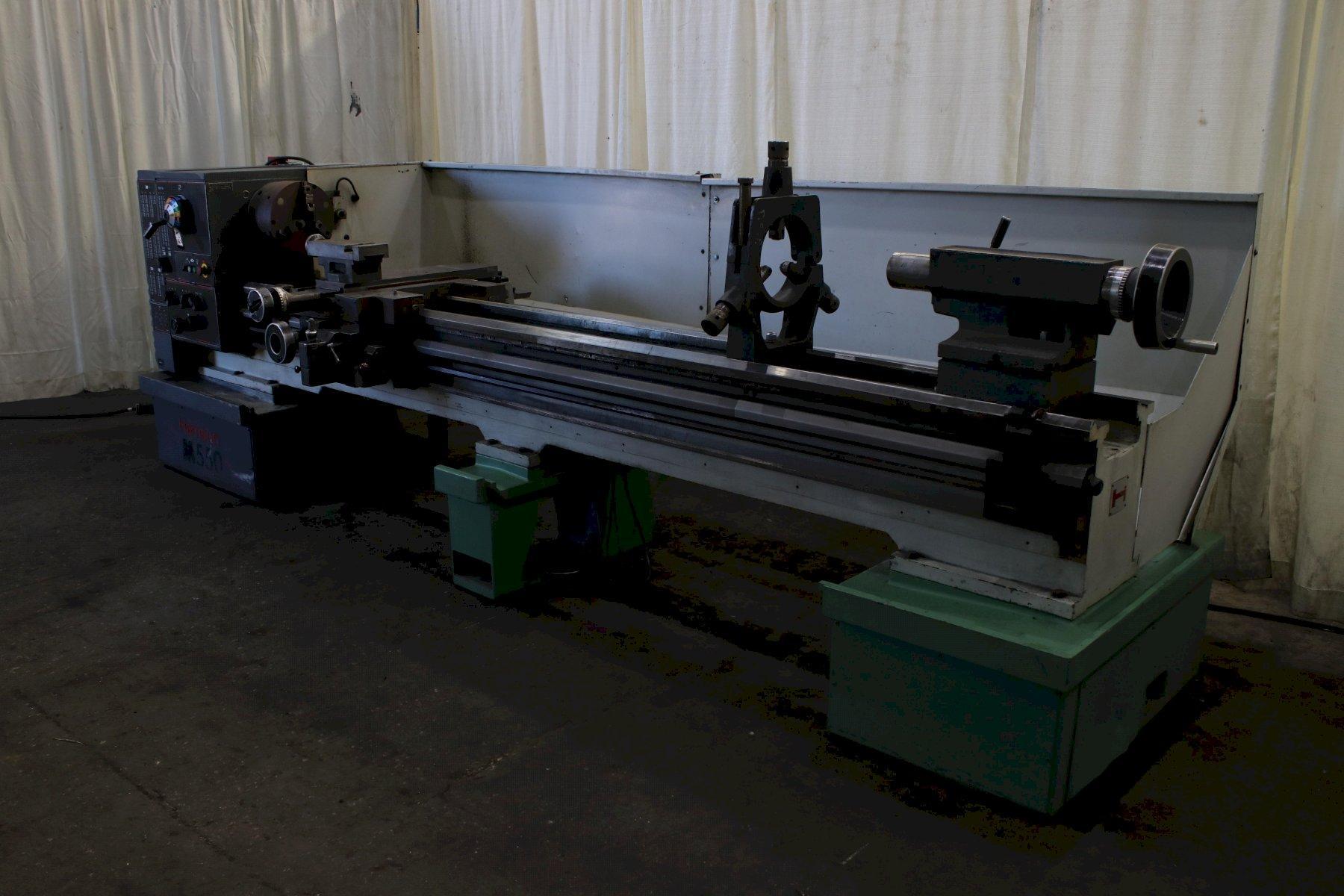

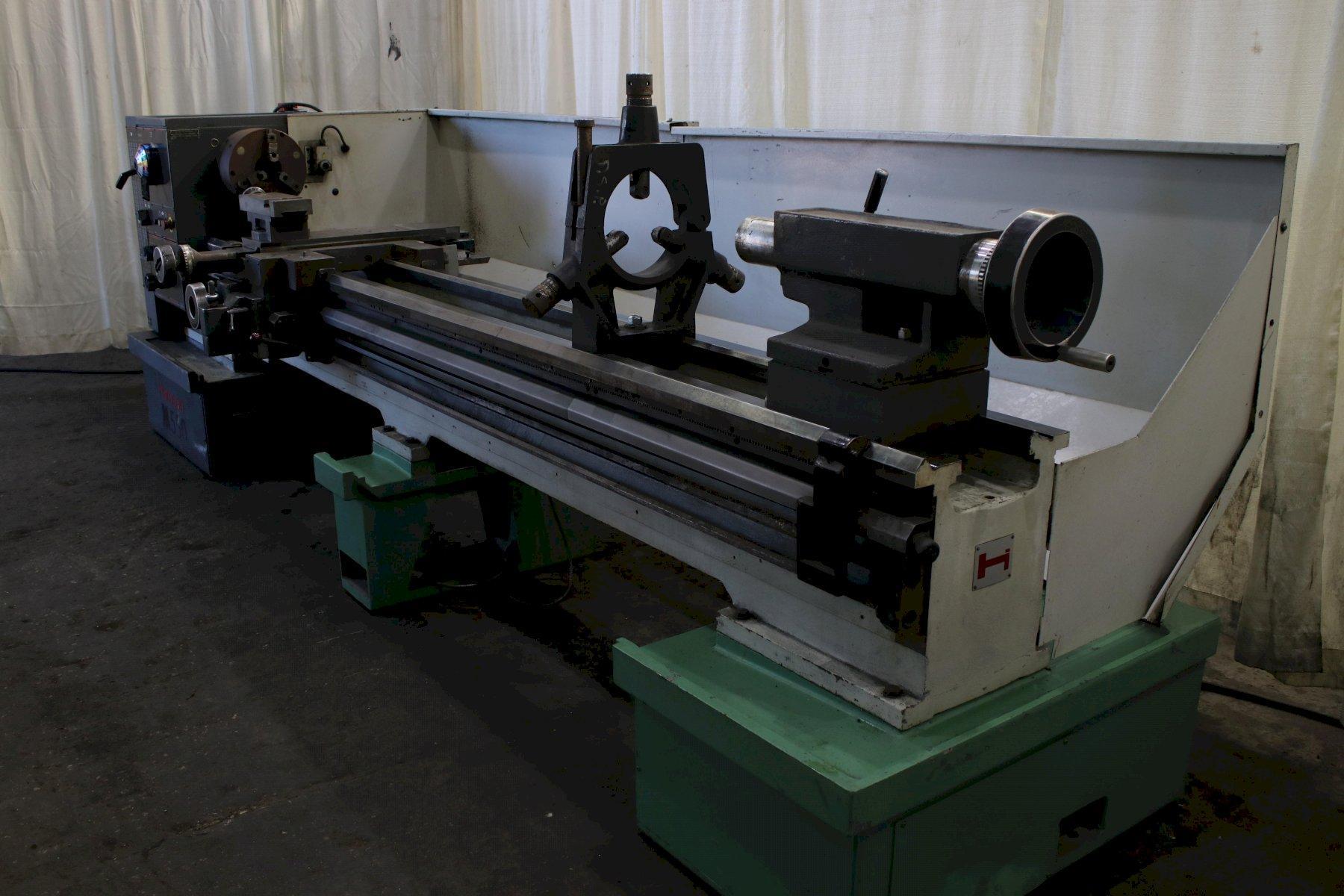

22"X 120" HARRISON GAP BED ENGINE LATHE: STOCK #74473
Brand
Category
Type
Model
M550
Stock #
74473
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL .......................... SM001-004 MODEL ........................... M550 SWING OVER BED WAYS ............. 18" SWING OVER CROSS SLIDE .......... 15" SWING IN GAP .................... 33" DISTANCE BETWEEN CENTERS ........ 120" SPINDLE SPEEDS .................. 18 TO 1400 RPM LONGITUDINAL FEEDS .............. 0016 TO .11 IPR THREADS (INCH) .................. 2 TO 84 TPI METRIC THREADS .................. .2 TO 14 MM PITCH DIAMETER OF SPINDLE HOLE ........ 3-1/2" CHUCK ........................... 12" 3-JAW RAPID TRAVERSE .................. 4 WAY THREAD DIAL ..................... YES HARD WAYS ....................... YES COOLANT WITH CHIP PAN ........... YES STEADY REST ROLLER TYPE ......... 9-1/2" MOTOR ........................... 15 HORSEPOWER |
