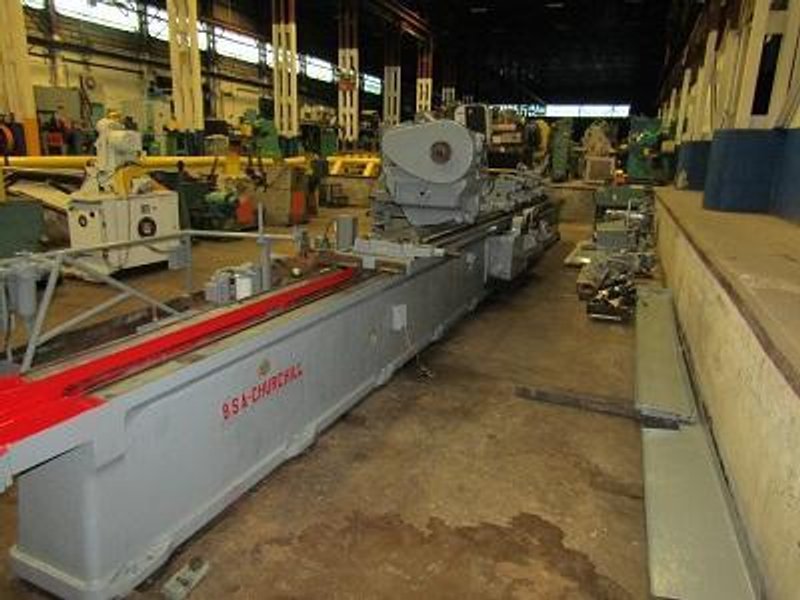

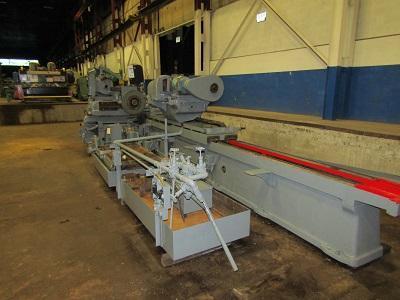

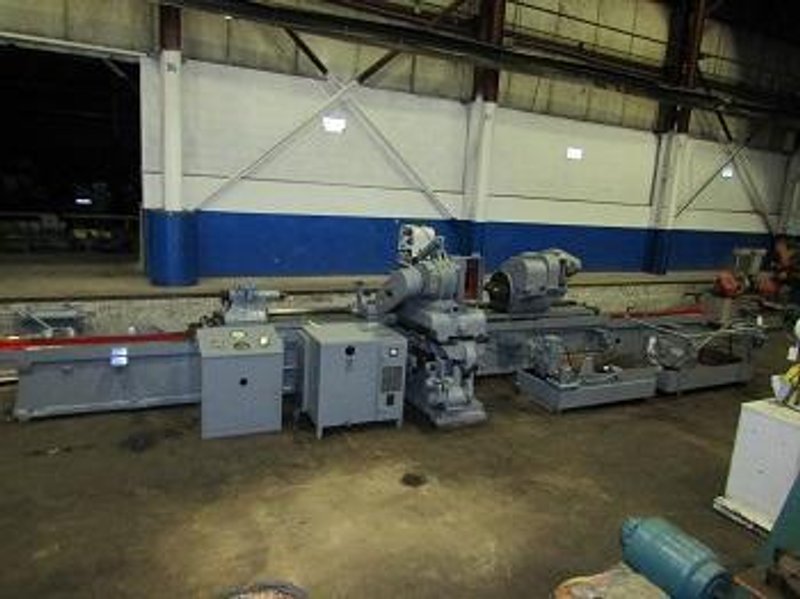

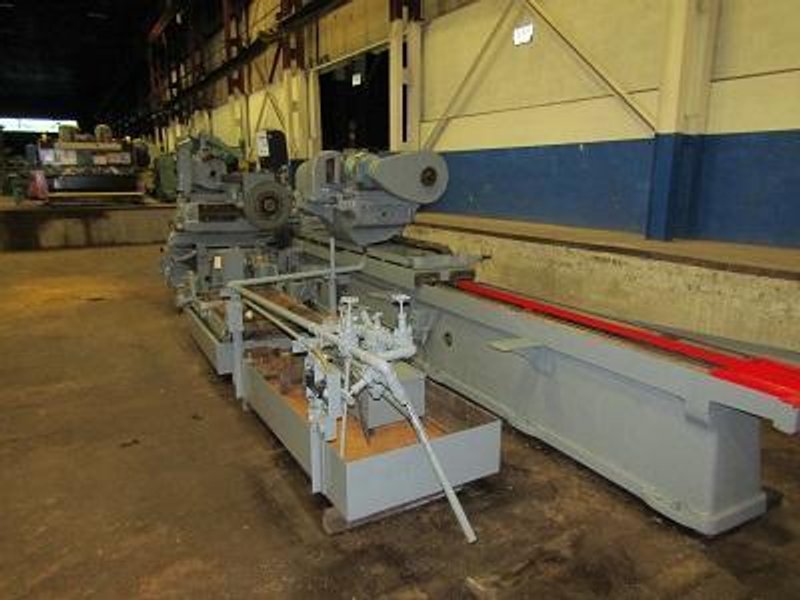

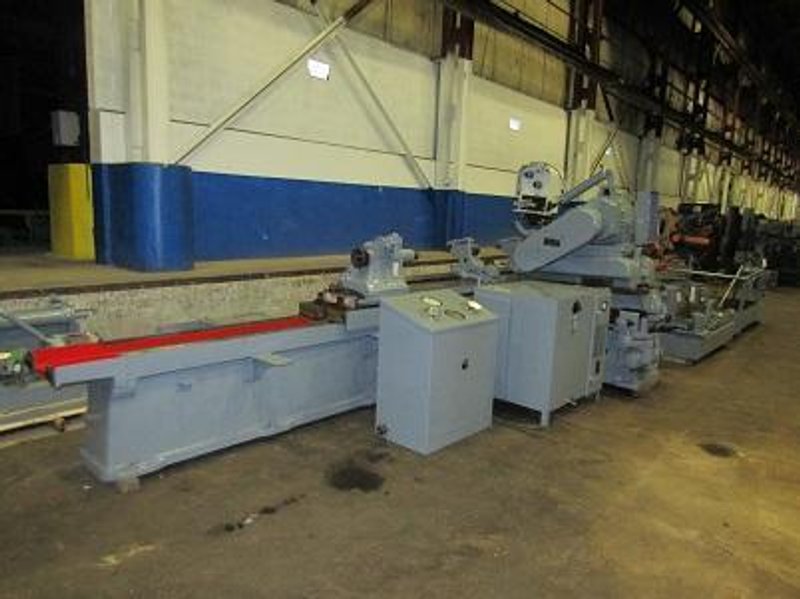

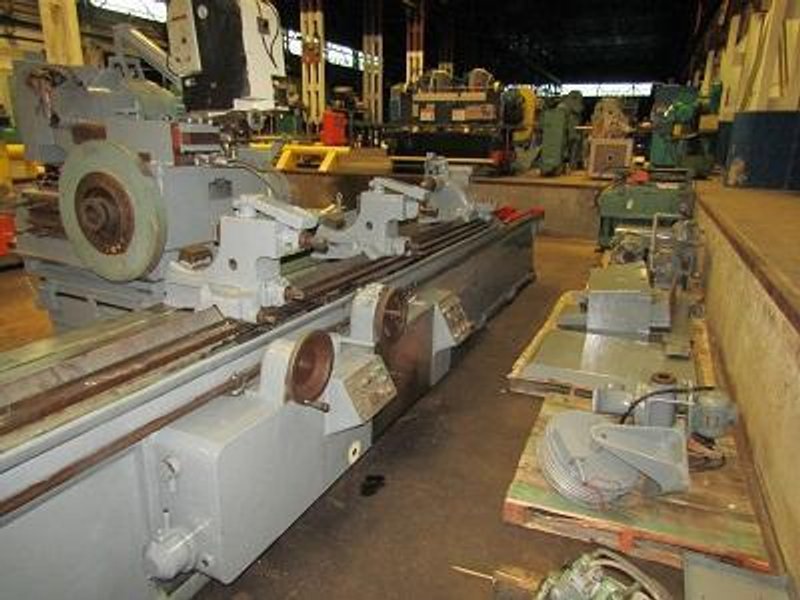

20" X 168" CHURCHILL M# D ROLL GRINDER
Brand
Category
Type
Model
M# D
Stock #
107484
Year
Not specified
Condition
Used
Location
Ohio
| Link To Our Website Listing | http://uen.hsix.com/q/webinv/005700=x,107484 |
|
TRAVERSING TABLE TYPE ..................... ROLL GRINDER
MAXIMUM SWING OVER WORK BED ............... 24"
MAXIMUM ROLL DIAMETER ..................... 20"
LENGTH BETWEEN CENTERS .................... 168" (14')
GRINDING WHEEL ... (DIA. x FACE x HOLE) ... 26" x 2" x 12"
GRINDING WHEEL SPEED ...................... 750 RPM
WORK SPEED IN RPM ......................... 90/54, 55/33, 20/33, 20/12
SINE BAR CROWNING ATTACHMENT
EQUIPPED WITH: TWO STEADY RESTS

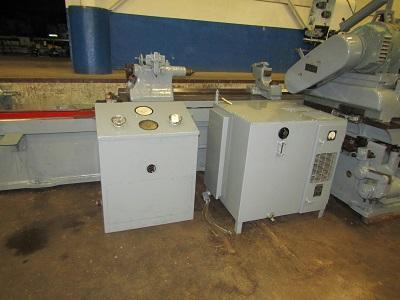

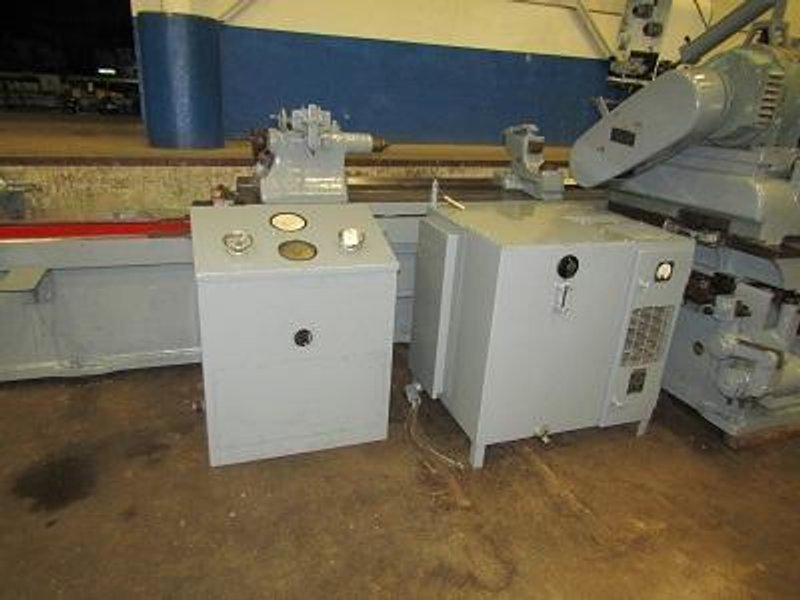

CONTROL CONSOLE FOR CONTROLLING WHEELHEAD AND
WORKHEAD SPEED w/GRINDING WHEEL RPM INDICATOR
AND AMMETER
FILTER
BOX OF WHEELS
RECTIFIER
MOTOR DATA:
GRINDING WHEEL: 20 HP, 440 VDC, 1000/1500 RPM
WORK DRIVE: 5 HP, 440 VDC, 1440/2400 RPM
TABLE DRIVE: 5 HP, 3/60/230/460, 1735 RPM
WITH GERMAIUM RECTIFIER: INPUT 3/60/440/440
OUTPUT 440/440 VDC, 17.2 KW
DIMENSIONS: 37'8" L X 7'10" W X 7'9" H |
|
