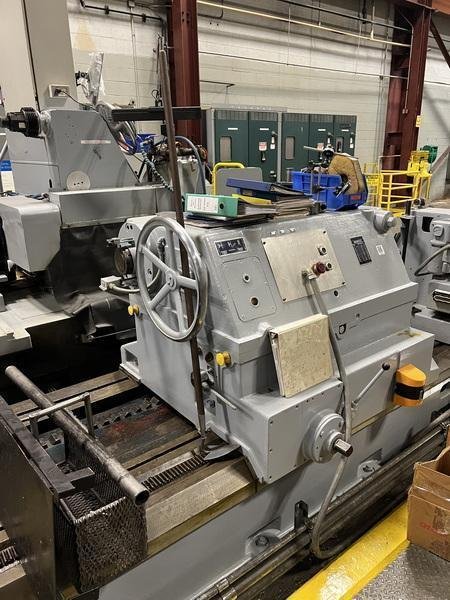

1260mm (50") x 5000mm (16') Waldrich Siegen Roll Grinder (14656)

1260mm (50") x 5000mm (16') Waldrich Siegen Roll Grinder

Type: Grinders, Roll

Stock Number:  14656
Waldrich Siegen Roll Grinder
Model:  V/S II b 35 x 5000
Serial No.  12 443/0

Crowning and Cambering Capabilities
Stationary Rotating Roll with Travelling Grinding Carriage
2 Steadies
Servo Drives:  Headstock & Grinding Wheel,
Max Roll Diameter:  1260mm (50")
Min Roll Diameter:  140mm (5.5")
Distance Between Centers:  5000mm (16')

Max Grinding Wheel Diameter:  800mm
Max Roll Weight:  35 Tons (70,000 Lbs)
Face Plate RPM:  7 - 70 RPM
Grinding Carriage Feed:  60 - 4000 mm/min
Cross Slide Traverse Infeed:  560mm
Rapid Traverse Cross Slide:  400mm/min
Fine In-Feed Hand Wheel:  .0125mm/1 Umdr
Coarse In-Feed Hand Wheel:   .25mm/1 Umdr
End Feed by Motor:  .01 - .1 mm/Hub

Grinding Wheel:
Max Diameter:  800mm  (31.5")
Width:  80mm  (3.15")
Hole:  305mm  (12")
Headstock:  60 HP  :  240/960/2400 RPM
Grinding Wheel:  40 HP : 720/1800 RPM
Carriage Drive:  5 HP :  24/1600 RPM

Rapid Traverse Cross Slide
Grinding Spindle Lubrication
Bedway Lubrication
Quill Rapid Traverse - Tailstock

2008 Electrical Upgrade
Computer Controlled
Allen Bradley Powerflex Digital Drives
Allen Bradley 1606-XL Power Supply
N-Tron 508 XT Ethernet Card
Allen Bradley Panel view Plus 1250 Digital Readouts
Allen Bradley PLC CompactLogix L32E

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
