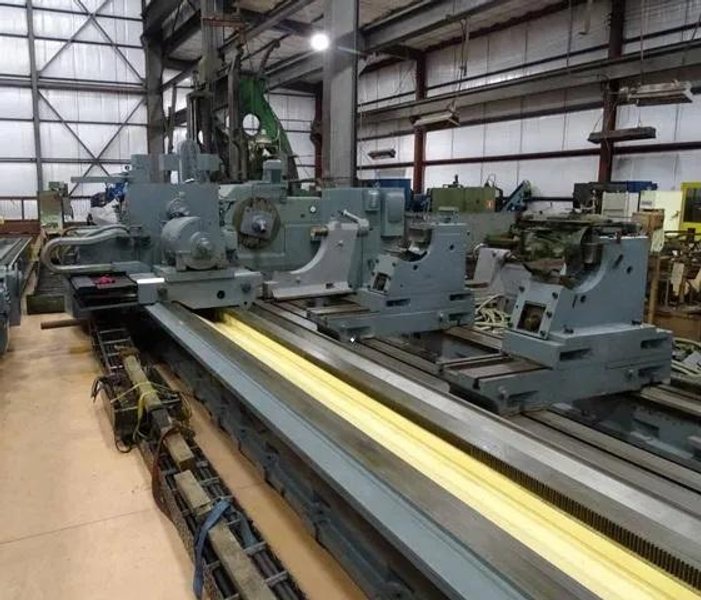

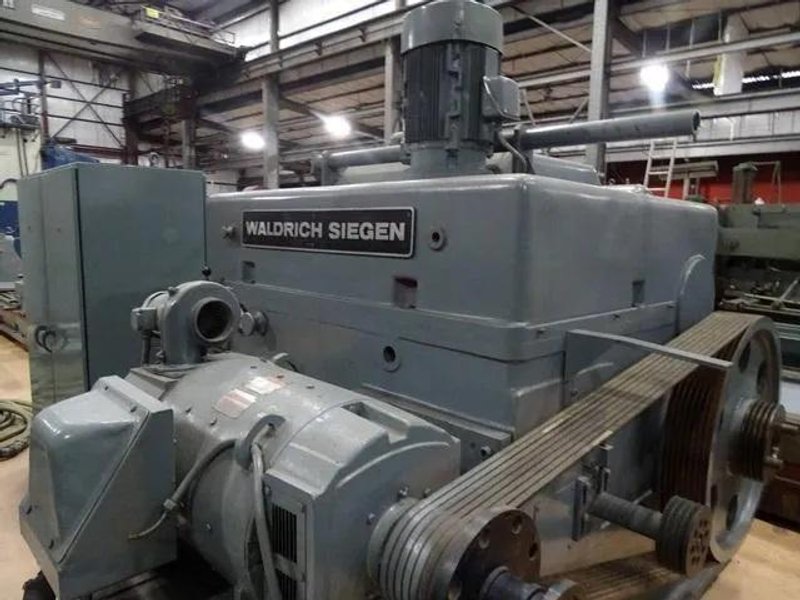

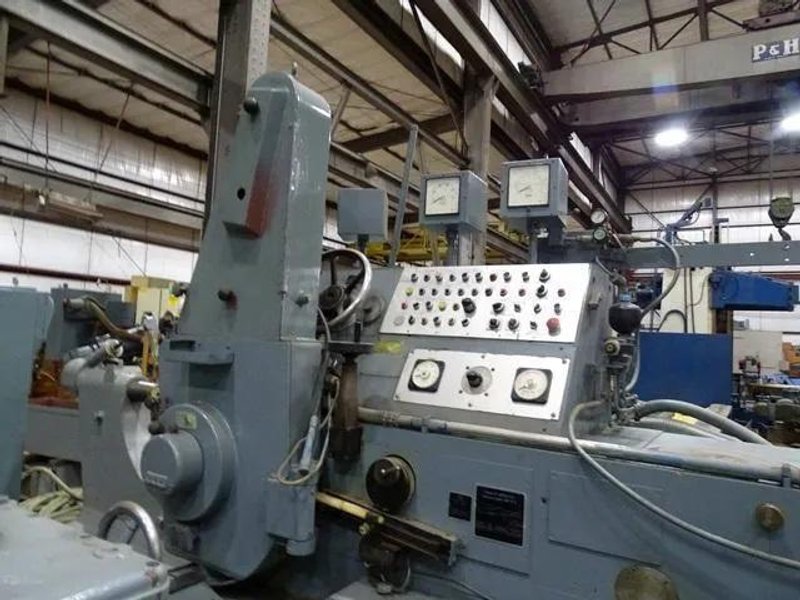

WALDRICH SEIGEN WST IV H80 X 12000 ROLL GRINDER (14709)

WALDRICH SEIGEN WST IV H80 X 12000 ROLL GRINDER
Stock # 14709

YEAR: 1981 / INSTALLED 1982
MAXIMUM GRINDING DIAMETER:
78” ( 1981.2 mm) WITH 32” (812.8 mm) DIAMETER WHEEL
*MAX DIAMETER CAPABILITY: 2500mm
DISTANCE BETWEEN CENTERS: 472.40” (12000mm)
MAXIMUM WORKPIECE WEIGHT: 176000 lbs. (80t)
WHEEL OD MAXIMUM: 32.00”
WHEEL WIDTH MAXIMUM: 4.00”
WHEEL ID: 12.00”
WHEEL SPINDLE POWER: 27 - 59/59 HP
WHEEL DRESSER:
BED MOUNTED ROLL
WHEELHEAD TRAVEL: 25.60”
TABLE TRAVEL:
(WHEEL HEAD TRAVEL) 488.40”( 12405 mm)
TABLE SPEED:
(WHEELHEAD SPEED) 157.5 in/min (4000 mm/min)
WHEEL SPINDLE SPEED: 450 - 1800 RPM
Infinitely Variable
WORKHEAD POWER: 1.9 - 59/59 HP
WORKHEAD SPEED: .5 - 300 RPM
WAYS:
CAST IRON FULL HYDROSTATIC
SLUDGE CONVEYOR: NONE
COOLANT: YES
FILTRATION SYSTEM: COMBINATION 2 CARTRIDGE AND FABRIC FILTER
WAY COVERS: METAL TELESCOPIC
POWER 3PHASE / 50-60 Hz / 200 - 500 Volts: existing

SPECIAL FEATURES OR ADDITIONAL ITEMS:

WALDRICH SIEGEN 4 in (100 mm) WIDTH ROLL BELT GRINDING ATTACHMENT,
ROLL CAMBERING / CROWNING, RANGE OF TABLE SETTING FOR
CAMBER / CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING FOR
CAMBER / CONVEX / AND CONCAVE .0004 - .1024 mm, RANGE OF
TABLE SETTING FOR CAMBER BASED ON RADIUS: .0039 - .1496,
2 - 2 JAW STEADY RESTS: DIAMETER RANGE 7.88 - 20 in (200 - 510 mm),
CROSS ADJUSTMENT OF STEADY RESTS: 23.6 in (600 mm),
MACHINE DIMENSIONS
Length: 732.00”
Width: 219.00”
Height:91.00”
WEIGHT: 134,000lbs.
CONDITION: EXCELLENT

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
