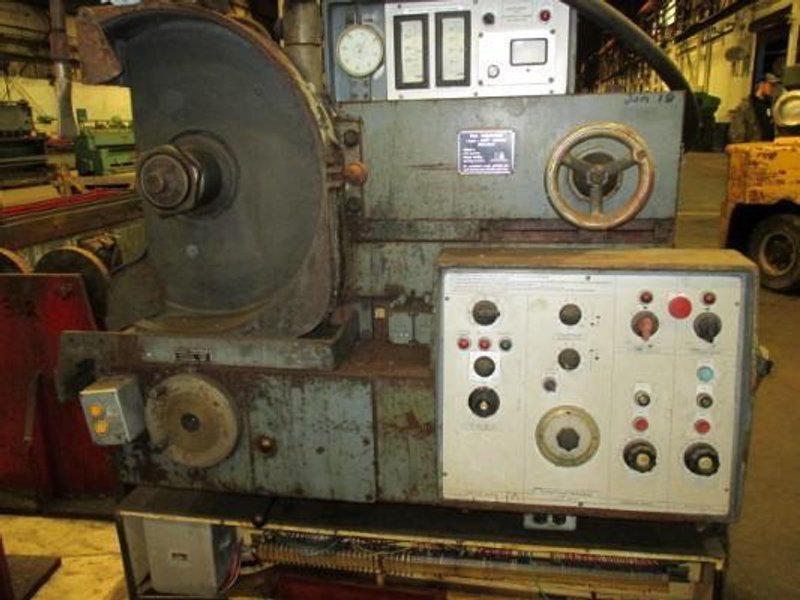

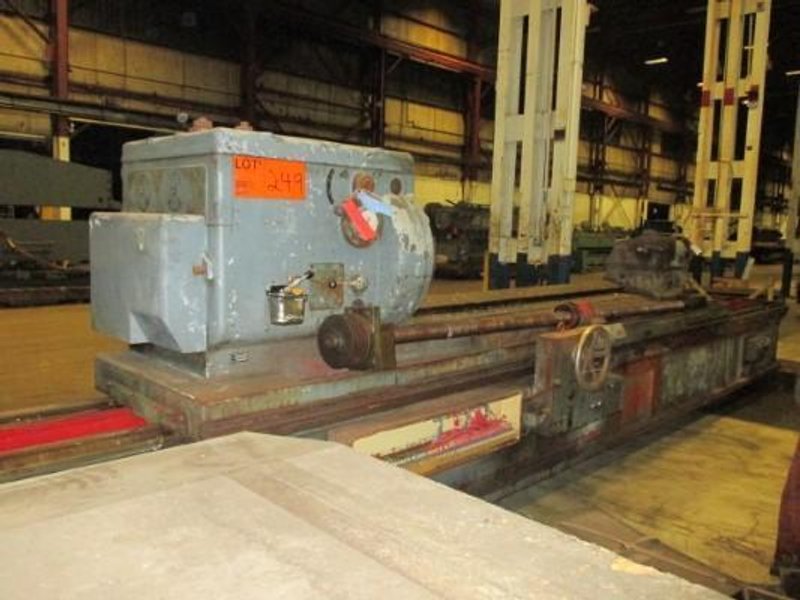

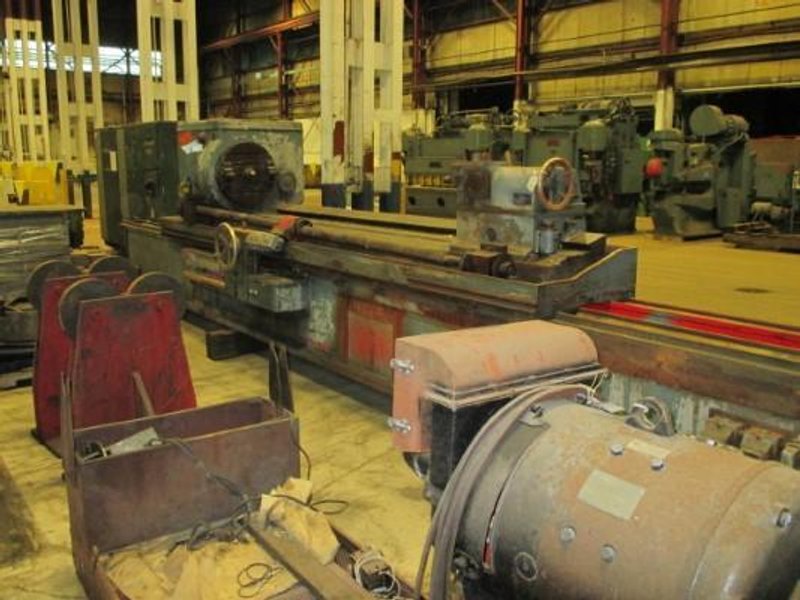

24" X 98.5" HERKULES MODEL #WS-300 ROLL GRINDER
Brand
Category
Type
Model
#WS-300
Stock #
110919
Year
1968
Condition
Used
Location
Ohio
| Link to our website listing | http://uen.hsix.com/q/webinv/005700=x,110919 |
|
SWING:
MAXIMUM DIAMETER TO BE
GROUND... 24" DIAMETER (NEW WHEEL)
MINIMUM D8AMETER........... 1-1/2"
GRINDING WHEEL SIZE ........... 24" X 2"
DISTANCE BET. CENTERS ......... 98-1/2"
MAXIMUM WEIGHT OF ROLL ........ 6,612 LBS.
0.A. DIM. .....(LXWXH)......... 26'7" X 8' X 6'
WEIGHT ........................ 14,400 KG (31,737.6 LBS.)
EQUIPPED WITH: TRAVELING TABLE
LONGITUDINAL DRIVE 3 HP
WARD LEONARD GENERATOR

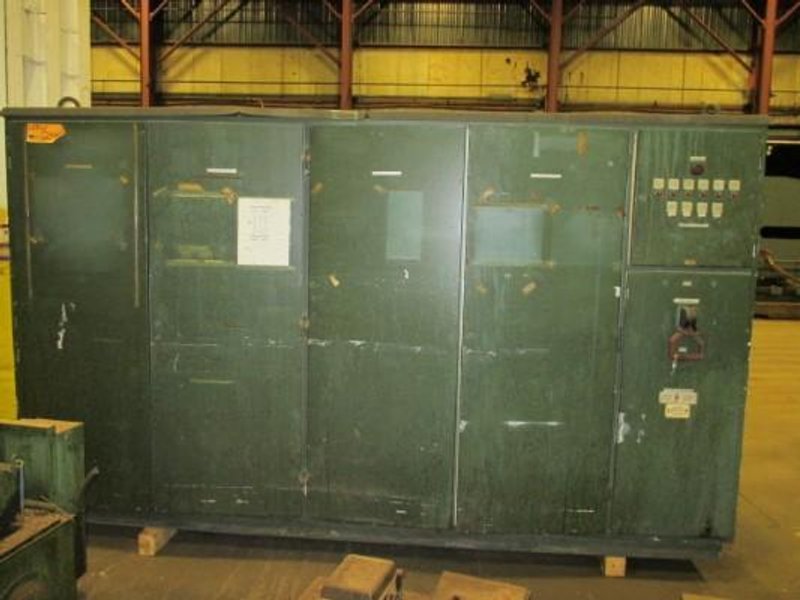

SIEMENS 550 VOLT 3 PHASE 60 HZ SWITCH-GEAR & SCR. UNIT
WHEEL DRESSER
CROWNING ATTACHMENT
ONE (1) PAIR OF STEADY RESTS
ONE (1) GRINDING WHEEL BALANCING STAND
ONE (1) GRINDING WHEEL TRUEING STAND
COOLANT FILTER/SEPARATOR
MOTORS:
12 KW (16 HP) 728-1800 RPM DC GRINDING WHEEL DRIVE
2.15 KW (3 HP) 20-2300 RPM DC HEAD STOCK (CARRIAGE
DRIVE) |
|
