Title: 50" x 8" CUSTOM SLITTING LINE (13941
Type: Slitters & Slitting Lines
Brand: No brand specified
Model: 50
Year: Not listed
Message
Information

50" x 8" CUSTOM SLITTING LINE (13941

Brand
Not specified
Model
50
Stock #
13941
Year
Not specified
Condition
Not specified
Location
Connecticut
Max Width of Workpiece 50
Max Thickness of Workpiece (in.) 0.125
 (Used) 50" x 8" Custom Slitting Line (13941)

 MACHINE 13941

 Max. Coil Weight:  15,000# Entry and Exit
 Gauge:  0.028" - 0.125"
 Coil Width:  24" - 50"
 Coil I.D.:  16" - 20" Entry
             20" - 24" Exit
 Coil O.D.:  66" Max.
 Capacity:  9 Cuts - 0.028"
            3 Cuts - 0.125"
 Speed:  140 to 560 FPM

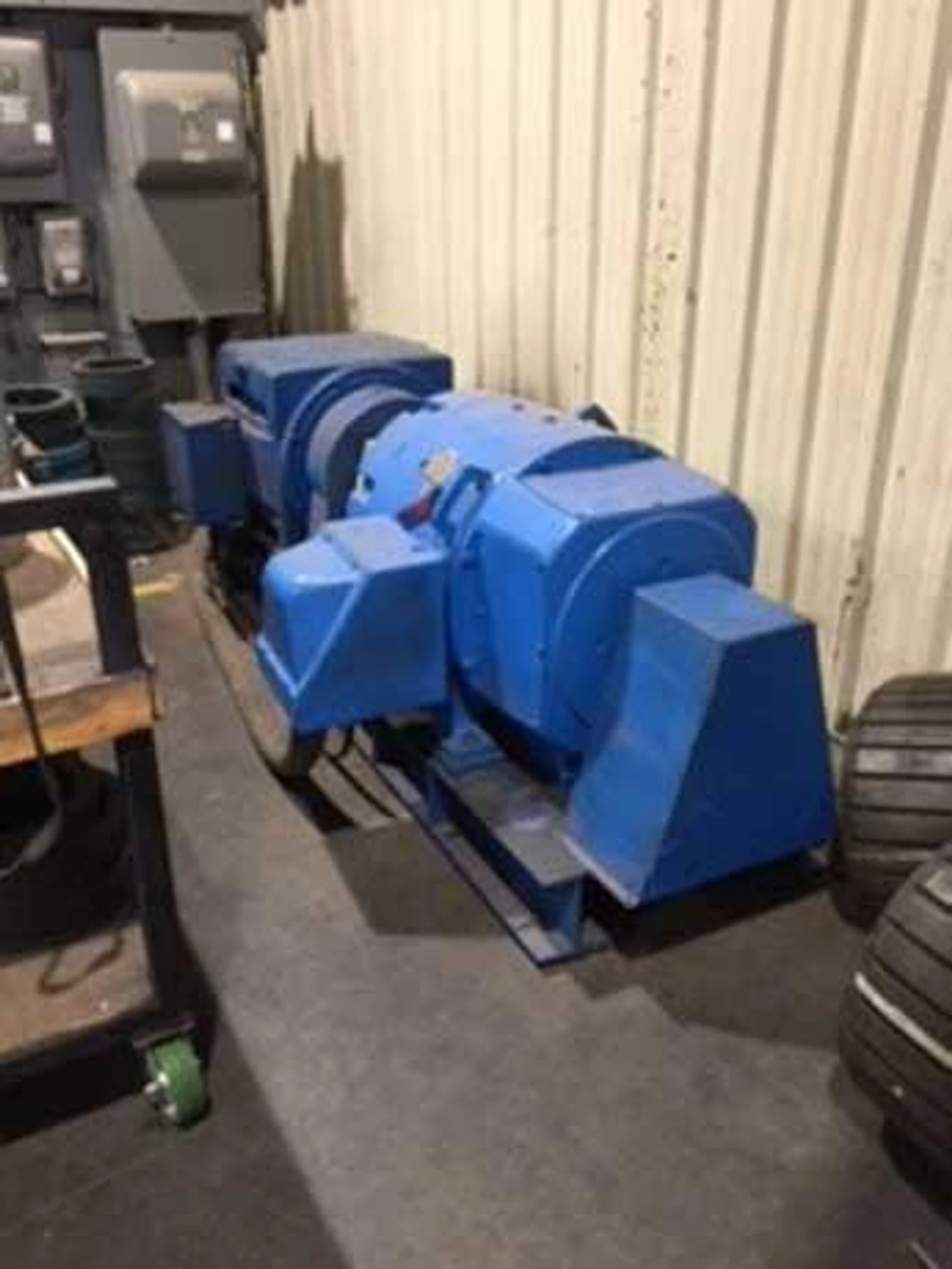

 MG Set:  250 HP, 440 VAC, 3 PH, 1770 RPM
          125 KW, 250 VDC, 500A, 1750 RPM

 Consisting of the following:

 -Uncoiler:
   50" Wide
   16" - 20" Mandrel
   Hydraulic Expansion

 -Pinch Rolls:
   50" Wide

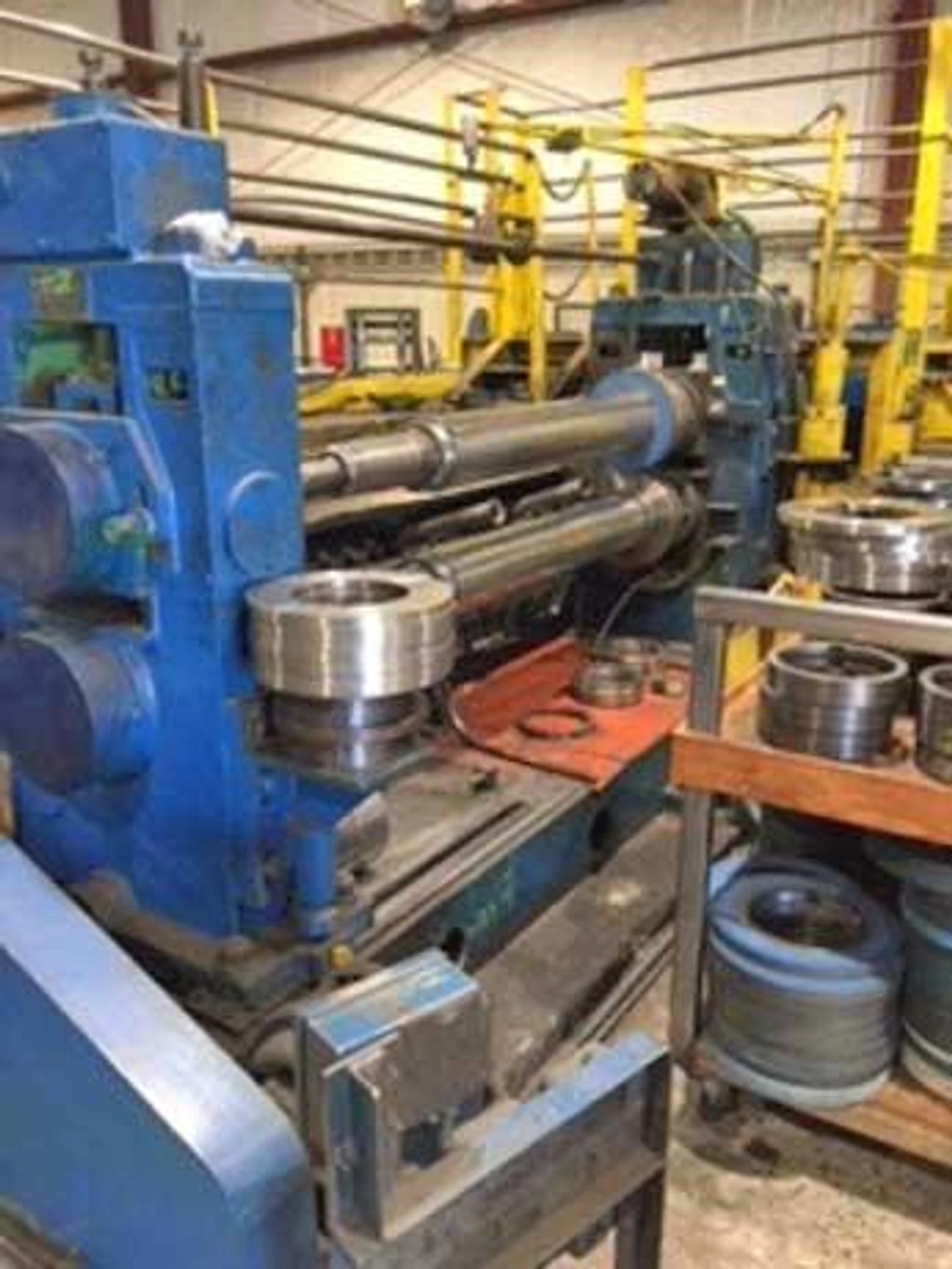

 -Slitter:
   48" x 8" Shafts
   Powered Vertical Adjustment
   Powered Outboard
   Double Entry Rolls

 -Scrap Chopper:
   In Floor Drag Line

 -Crop Shear:
   48" Wide

 -(2) Scrap Winders:
   Hydraulic with Power Units

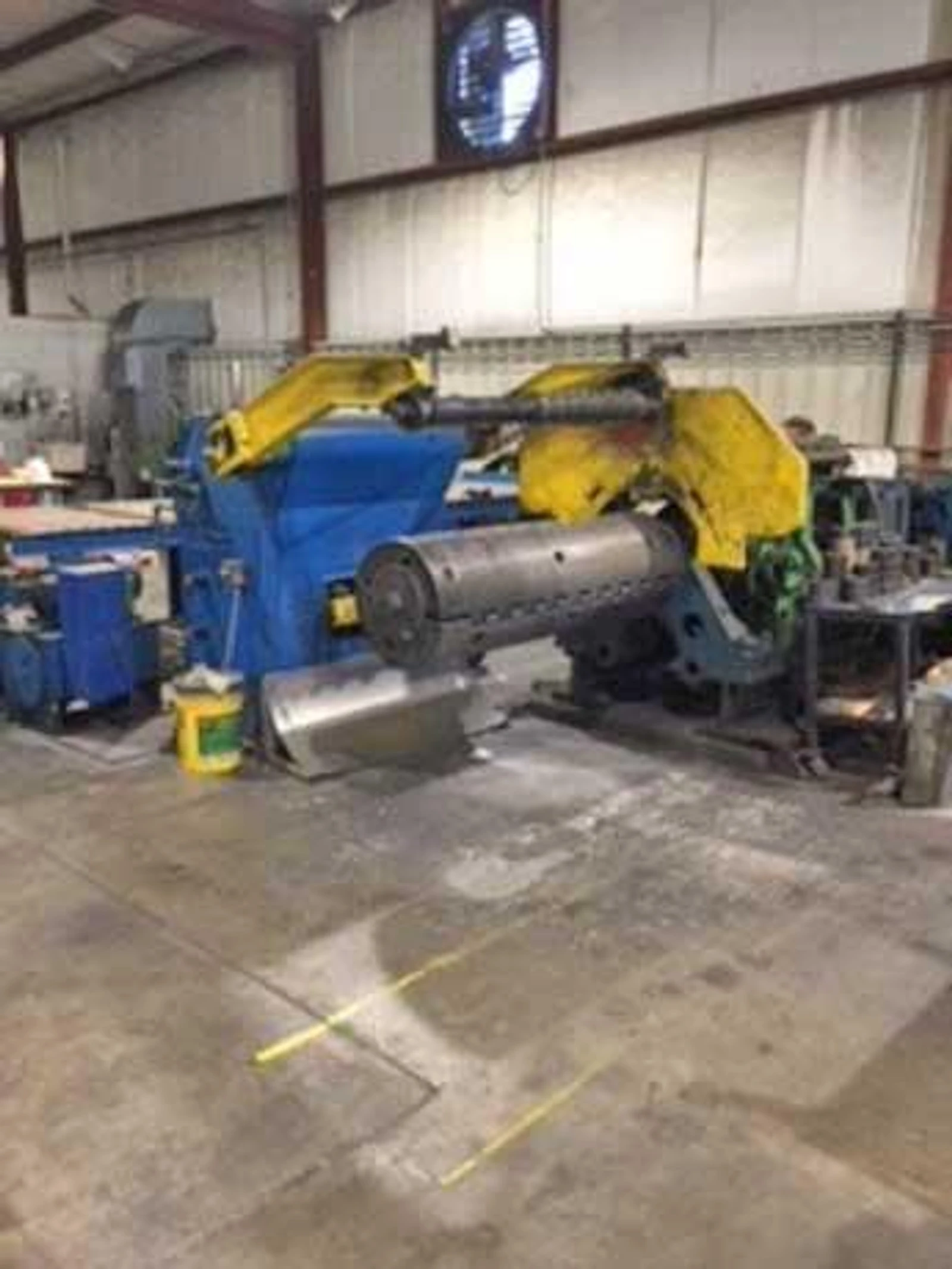

 -Recoiler:
   48" Wide x 20"-24" Mandrel
   Hydraulic Expansion and Grip
   Pusher Plate

 -Overarm Separator:  48" Wide

 -Turnstile:
   with Pusher Plate

 -Downlayer

 -Operator Consoles and all Electrical Equipment

 **Temporary Specifications Subject to Revisions**

 **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**

 See this item on our web site: http://inv.mcmillanconroy.com/q/webinv/005249=x,13941
