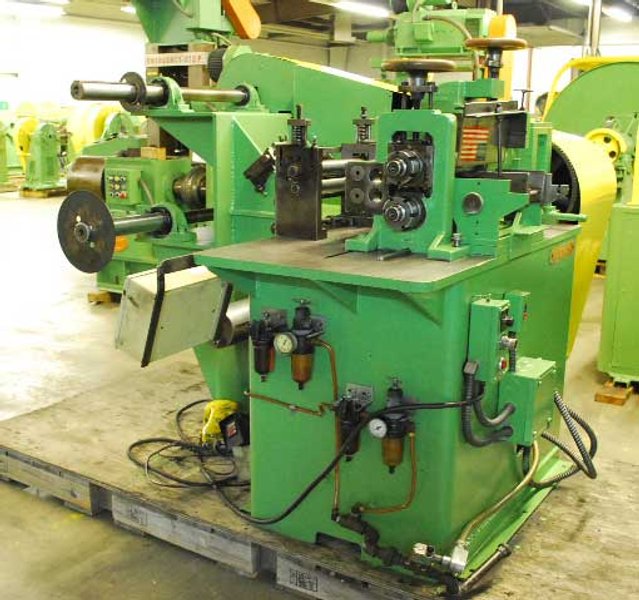

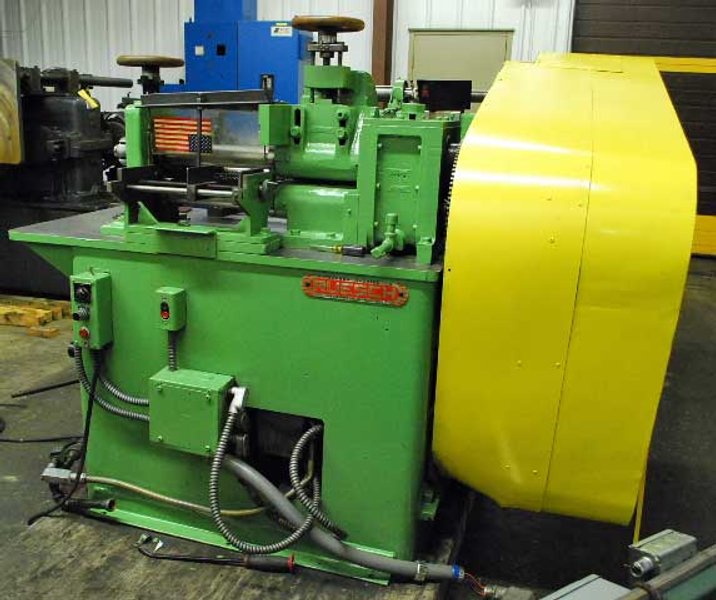

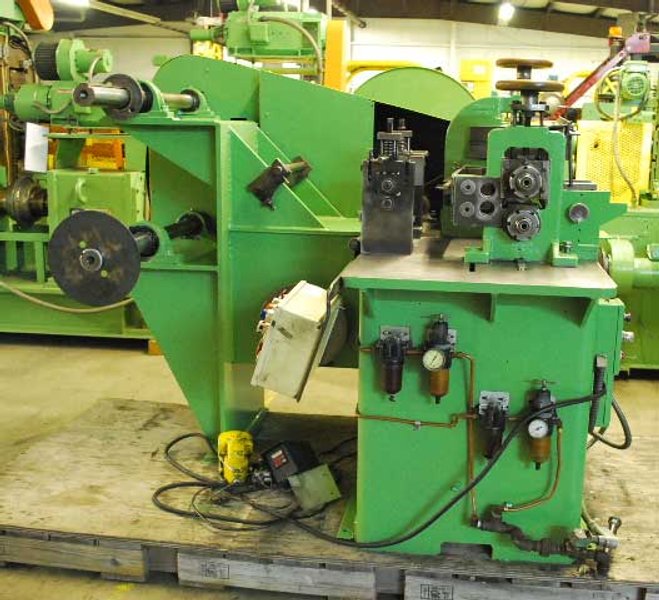

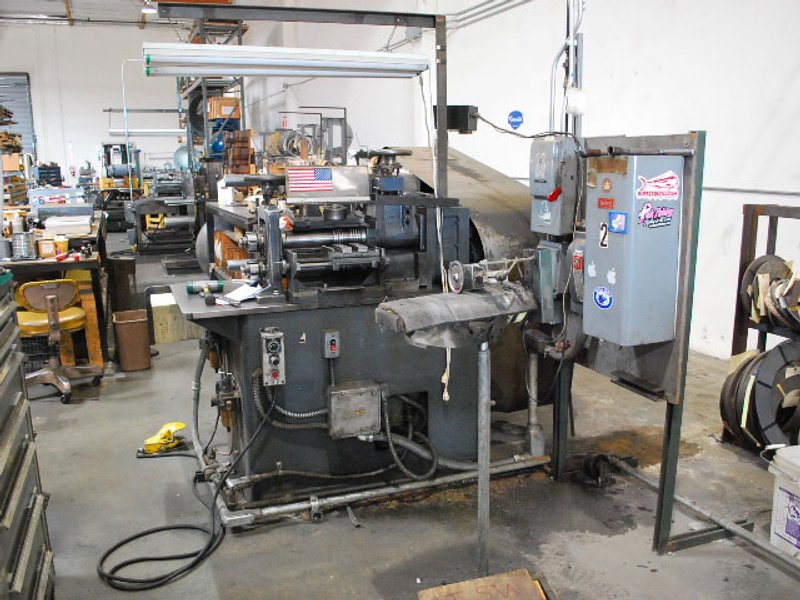

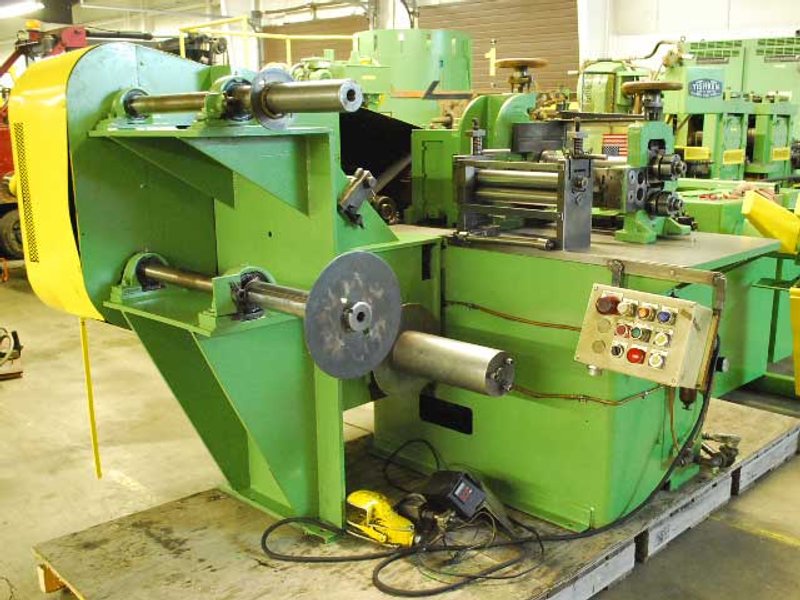

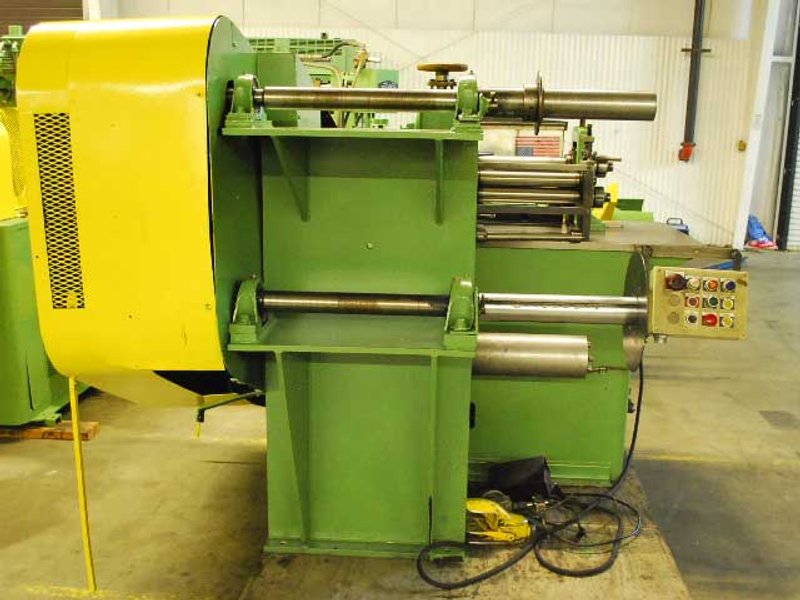

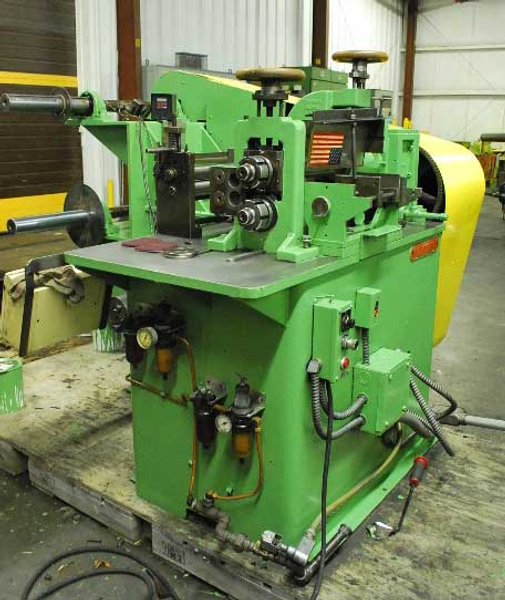

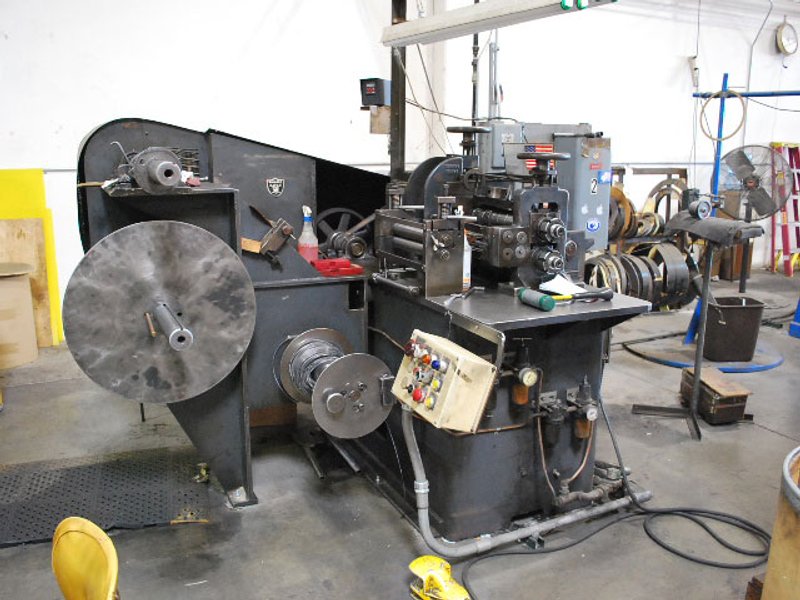

(Used) 14" (355mm) x 2 1/2" (63.5mm) RUESCH SLITTING LINE
MACHINE# 12673

SLITTING LINE:
 MANUFACTURER: RUESCH MACHINE CO
 MODEL NUMBER: 76
 SERIAL NUMBER: N1966 5309
 TYPE SLITTER: PULL THROUGH FINGER SET UP
 ARBOR SIZE: 14" (355mm) x 2 1/2" (63.5mm) DIAMETER
 DIRECTION: RIGHT TO LEFT

MATERIAL:
 TYPE: BERYLLIUM COPPER, HIGH CARBON AND STAINLESS STEEL
 WIDTH: 2" TO 12" (50mm - 305mm)
 THICKNESS:
 - PER ORIGINAL SPECS: .001" TO .020" (.025mm - 0.508mm)
 - AS USED: .003" TO .025" (.076mm - 0.635mm)

COIL SIZE:
 MINIMUM I.D.: 6" (152mm)
 MAXIMUM O.D.: 16" (406mm) APPROX.
 MAXIMUM COIL WEIGHT:
 - PER ORIGINAL SPECS: 600 LBS. (270 KG)
 - AS USED: 1000 LBS. (450 KG)


PAYOFF TO BE SUPPLIED BY THE PURCHASER.

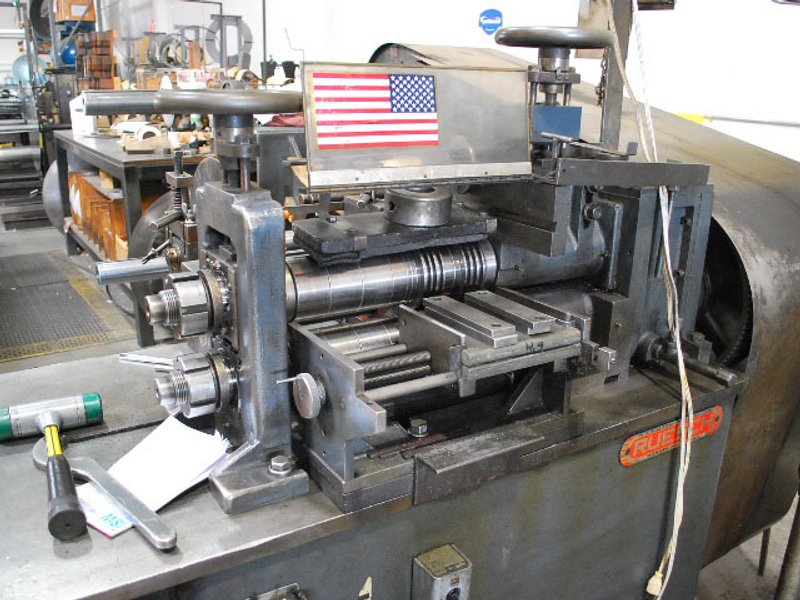

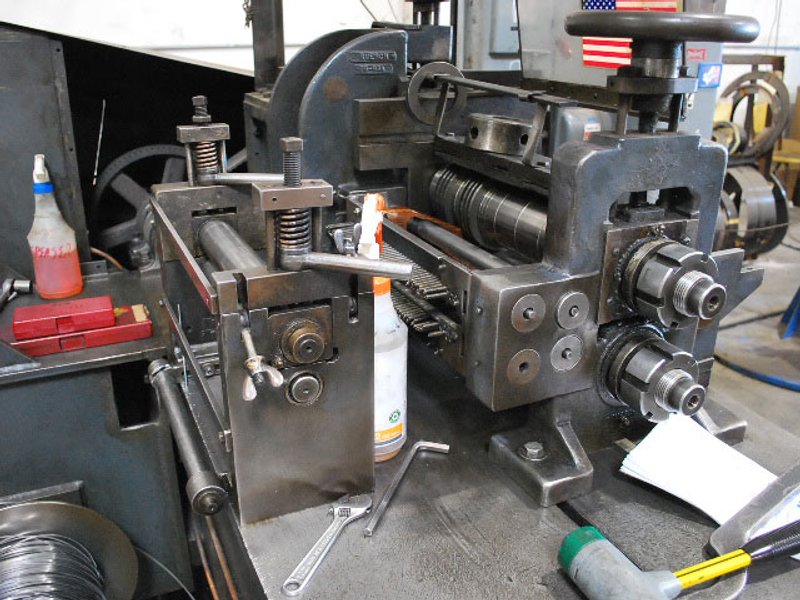

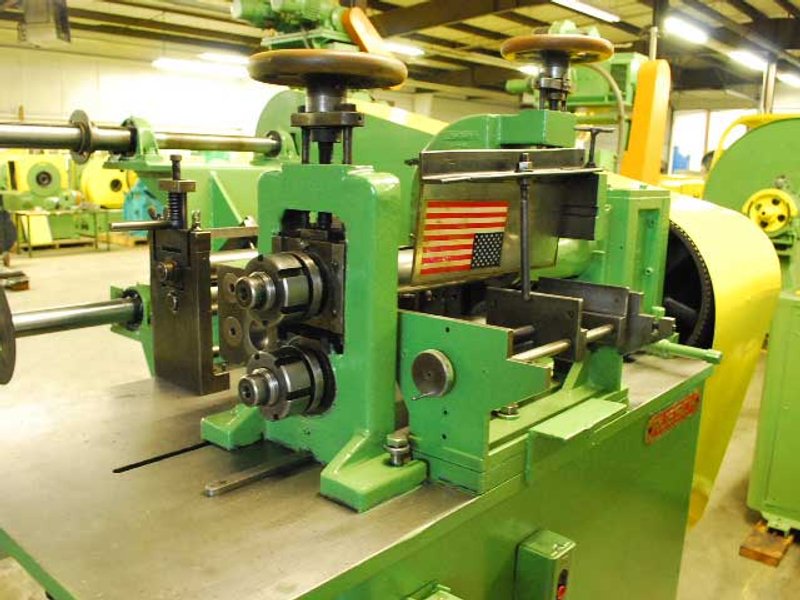

SLITTER HEAD:
 ARBOR SIZE: 2 1/2" (63.5mm) DIA. x 14" (355mm) WIDTH

SLITTER:
 CUTTER DIAMETER: 5 1/2" (140mm)
 SPACER DIAMETER: 3 3/4" (94mm)
 ARBOR DIAMETER: 2 1/2" (63mm)
 SLITTING SPEED: 0 - 250 FPM (0 - 76m/min.)
 NUMBER OF CUTS: 15 IN .020" (.050mm) THICK MATERIAL @ 250 FPM (76m/min.)
 MAXIMUM STOCK WIDTH: 12" (305mm)
 FLOOR TO TIP OF CUTTERS: 38" (965mm) APPROX.
 ENTRY SIDE GUIDES: MANUAL ADJUSTMENT
 SLITTER HOUSING: RUESCH 76-93A
 DUAL HANDWHEEL ADJUST
 WOODEN FINGERS
 FINGER STABILIZER: SCREW TYPE
 DIGITAL COUNTER: RED LION
 DRIVE MOTOR: 7 1/2 HP, 1745 RPM, 440 V, 3 PH, 60 HZ, VARIABLE SPEED

  w/EATON DYNAMATIC ADJUSTOSPEED DRIVE
 EXIT PINCH ROLLS:  2" (50mm) DIA. x 13" (330mm) WIDTH
  MANUFACTURER: RUESCH MACHINE CO.
  MODEL No.: 104 A

SCRAP WINDER:
 DRUM DIAMETER: 5 1/2" (140mm)
 DRUM WIDTH: 14 1/2" (368mm)
 DRIVEN FROM MAIN DRIVER

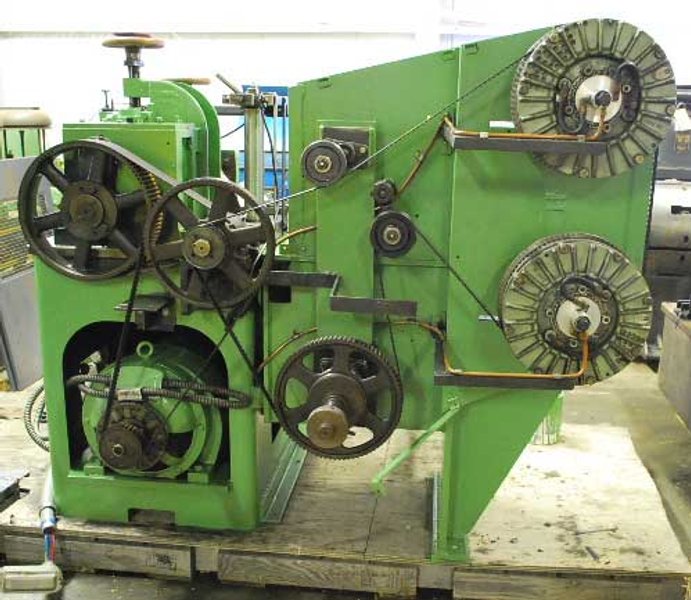

RECOILERS:
 QUANTITY: 2
 SHAFT DIAMETER: 2 7/8" (71.12mm)
 SHAFT WIDTH: 16" (406mm)
 CHAIN DRIVEN FROM MAIN DRIVE
 USES SEPARATOR DISKS
 APPROX. WEIGHT OF MACHINE: 2,200 LBS. (1000 KG)

LARGE QUANTITY OF TOOLING AVAILABLE

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
