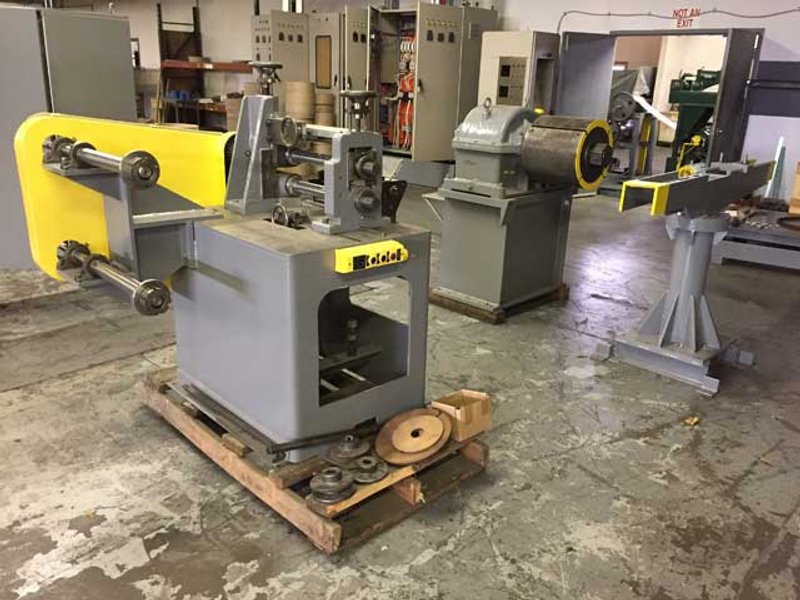

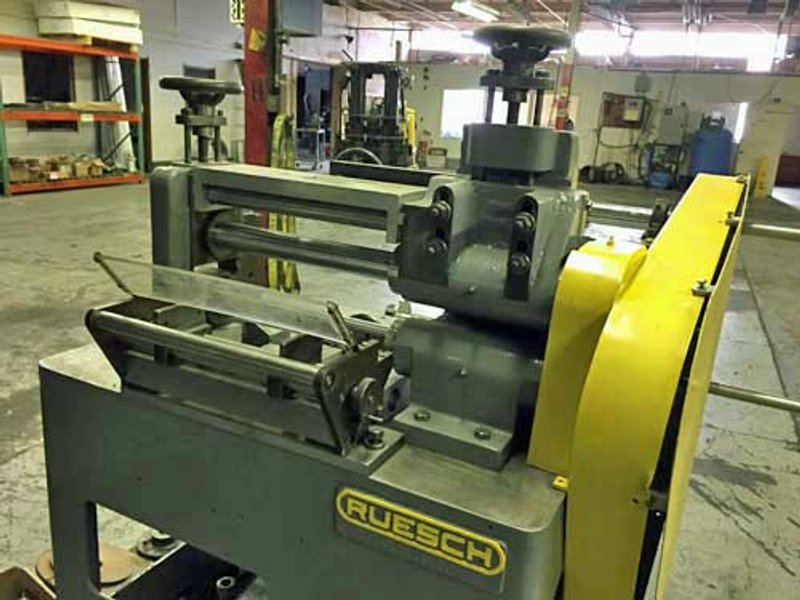

12" x 2 1/2" RUESCH MODEL 76 SLITTING LINE WITH DUAL WINDERS (13035)

MACHINE# 13035

SLITTING LINE:
 MANUFACTURER: RUESCH MACHINE CO
 MODEL NUMBER: 76
 SERIAL NUMBER: 4968
 ARBOR SIZE: 14" (355mm) x 1 7/8" (47.6mm) DIAMETER
 DIRECTION: RIGHT TO LEFT

MATERIAL:
 TYPE: BRASS, COPPER, HIGH CARBON OR STAINLESS STEEL
 WIDTH: 2" TO 12" (50mm - 305mm)
 THICKNESS: .001" TO .020" (.025mm - .050mm)

COIL SIZE:
 MINIMUM I.D.: 6" (152mm)
 MAXIMUM O.D.: 16" (406mm) APPROX.
 MAXIMUM COIL WEIGHT: 600 LBS. (270 KG)

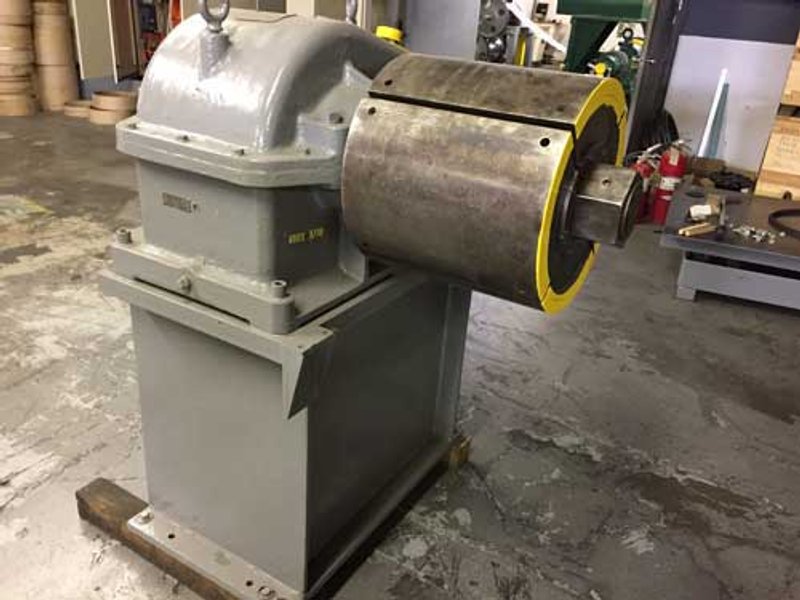

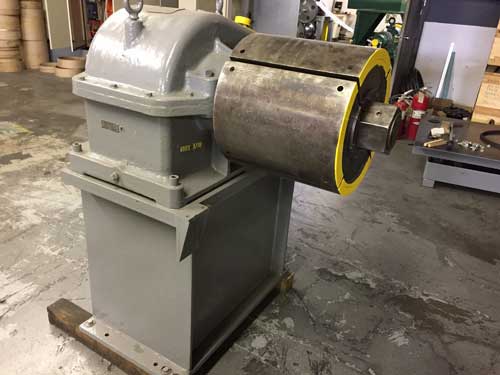

PAYOFF:
 TYPE: FORMER RECOILER WITH DRIVE REMOVED
 DRUM SIZE: 15 1/2" / 16" I.D. x 15" FACE
 PASSLINE HEIGHT: 48" (1219mm)
 FLOOR TO CENTERLINE: 40" (1016mm)

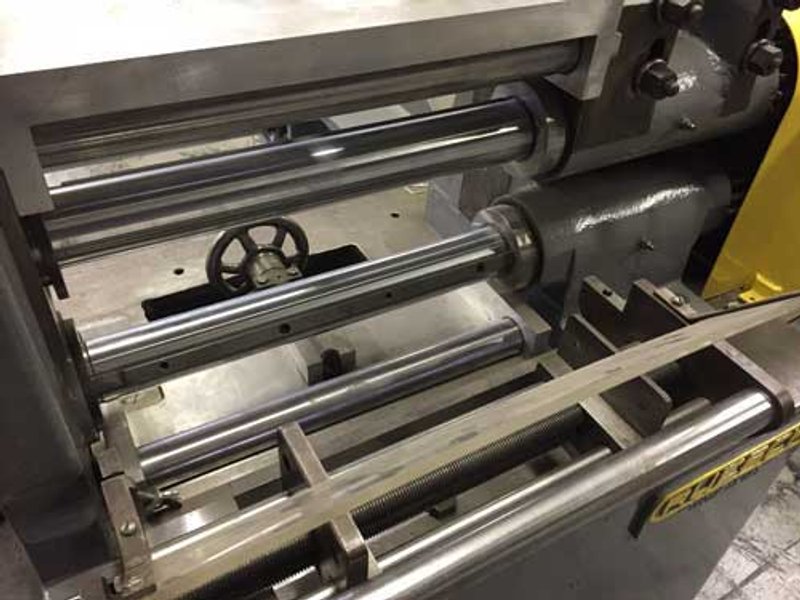

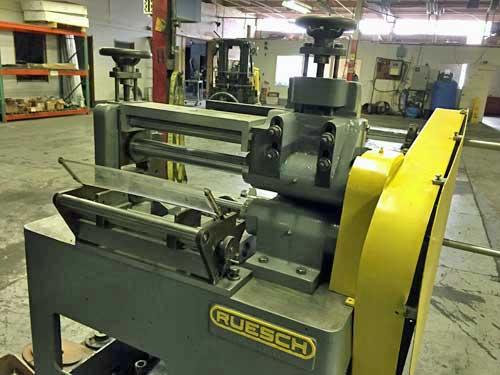

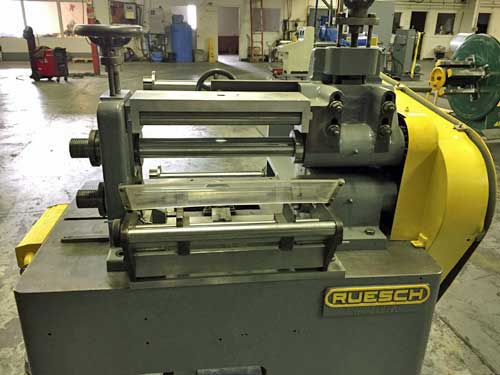

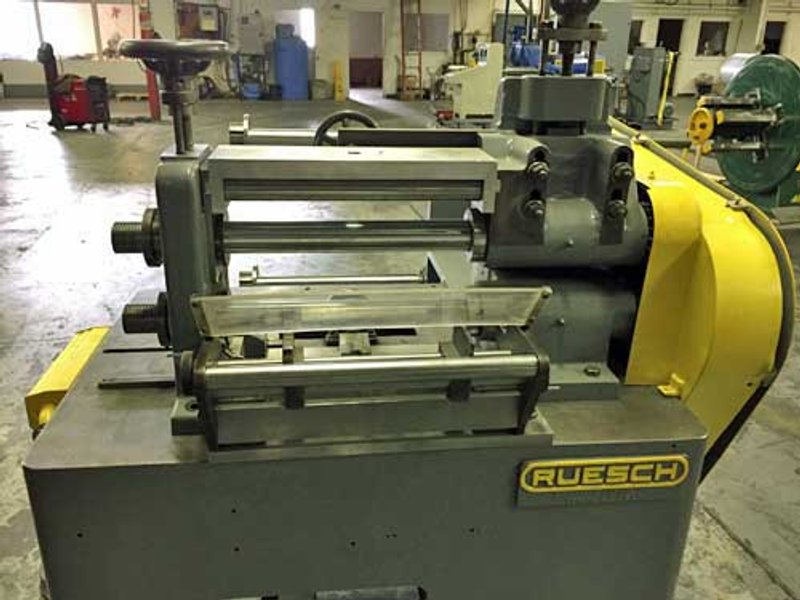

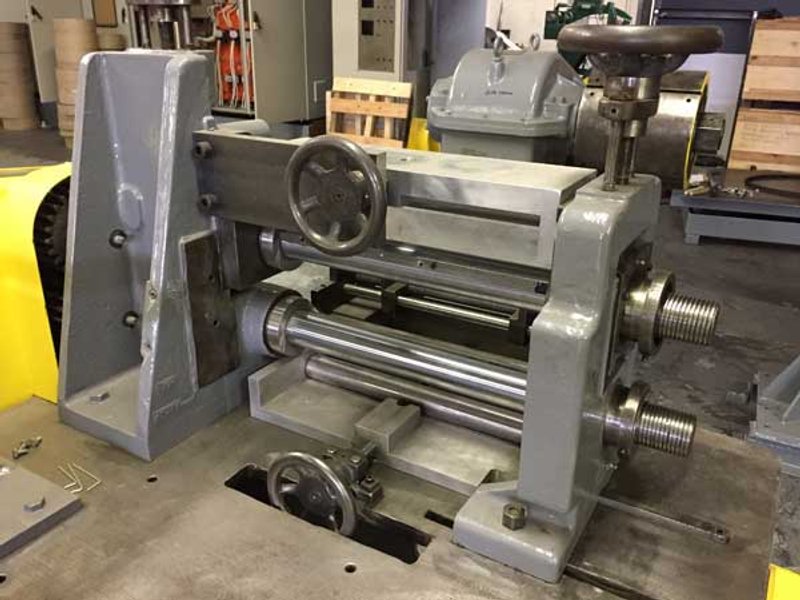

SLITTER HEAD:
 ARBOR SIZE: 2 1/2" (63.5mm) DIA. x 14" (355mm) WIDTH

SLITTER:
 CUTTER DIAMETER: 5 1/2" (140mm)
 SPACER DIAMETER: 3 3/4" (94mm)
 ARBOR DIAMETER: 1 7/8" (47.6mm)
 SLITTING SPEED: 0 - 250 FPM (0 - 76m/min.)
 TYPICAL No. OF CUTS: 15 IN .020" (.050mm) THICK MATERIAL @ 250 FPM (76m/min.)
 MAXIMUM STOCK WIDTH: 12" (305mm)
 FLOOR TO TIP OF CUTTERS: 38" (965mm) APPROX.
 ENTRY SIDE GUIDES: MANUAL ADJUSTMENT
 SLITTER HOUSING: RUESCH 4968
 DUAL HANDWHEEL ADJUST
 DRIVE MOTOR: 5 HP, 3.7 KW, 1760 RPM, 3 PH, 60HZ, 230/460V, MARATHON ELECTRIC

 INTO FOOTE BROS. GEARBOX, 5.06 TO 1.1 RATIO, INPUT RPM 1750, OUTPUT RPM 30
 EXIT PINCH ROLLS:  2" (50mm) DIA. x 13" (330mm) WIDTH
  MANUFACTURER: RUESCH MACHINE CO.
  MODEL No.: 104 A

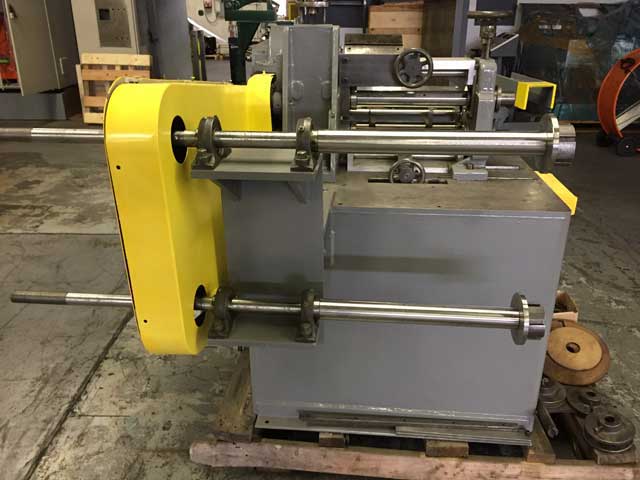

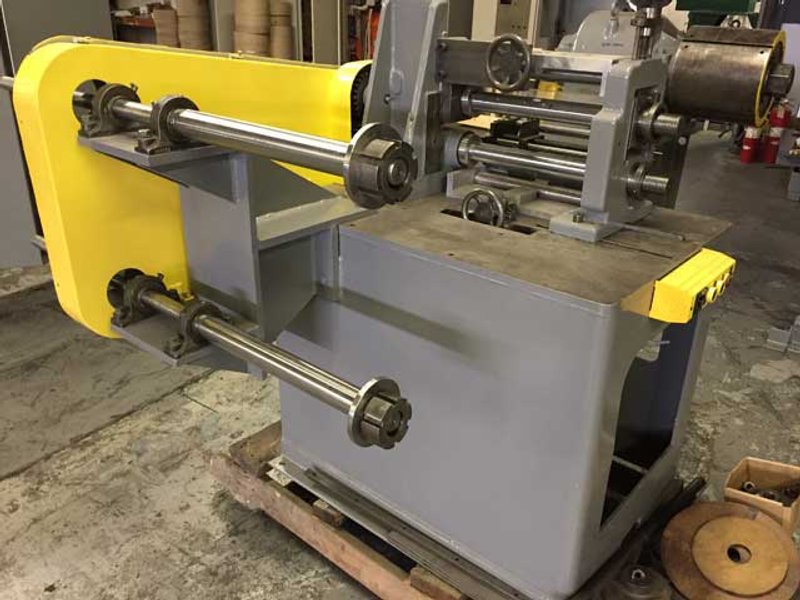

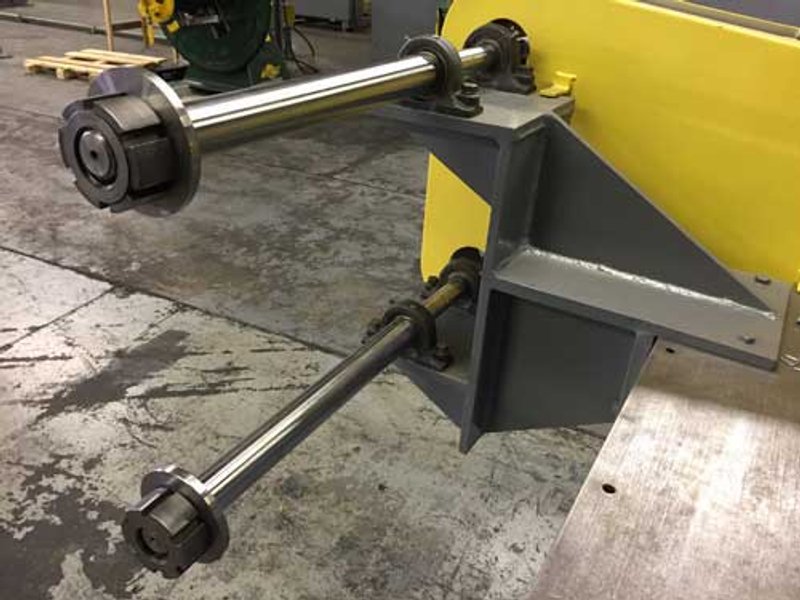

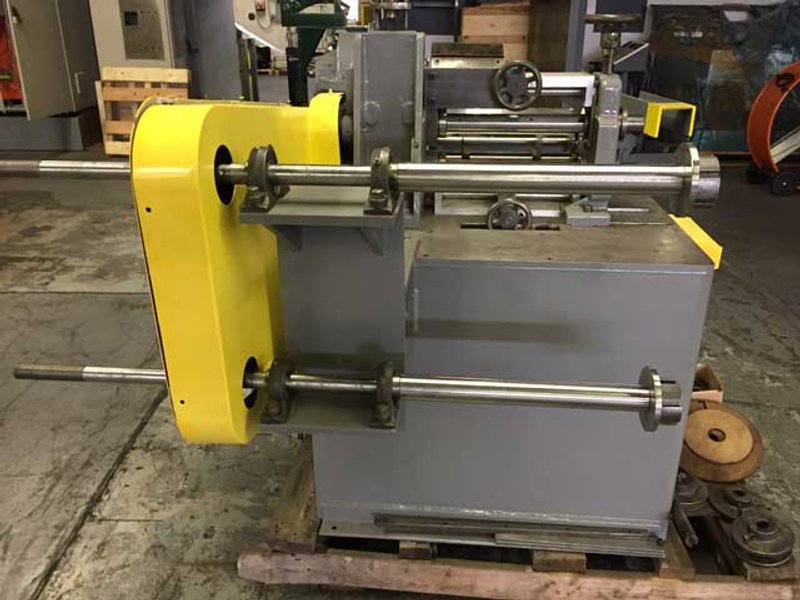

RECOILERS:
 QUANTITY: ............ 2
 SHAFT DIAMETER: ...... 2 7/8" (71.12mm)
 SHAFT WIDTH: ......... 16" (406mm)
 CHAIN DRIVEN FROM MAIN DRIVE
 MAXIMUM COIL WEIGHT 600 LBS. (270 KG)
 USES SEPARATOR DISKS
 APPROX. WEIGHT OF MACHINE: 2,200 LBS. (1000 KG)
 DUAL ARM TURNSTILE: 26" (660mm) ARM

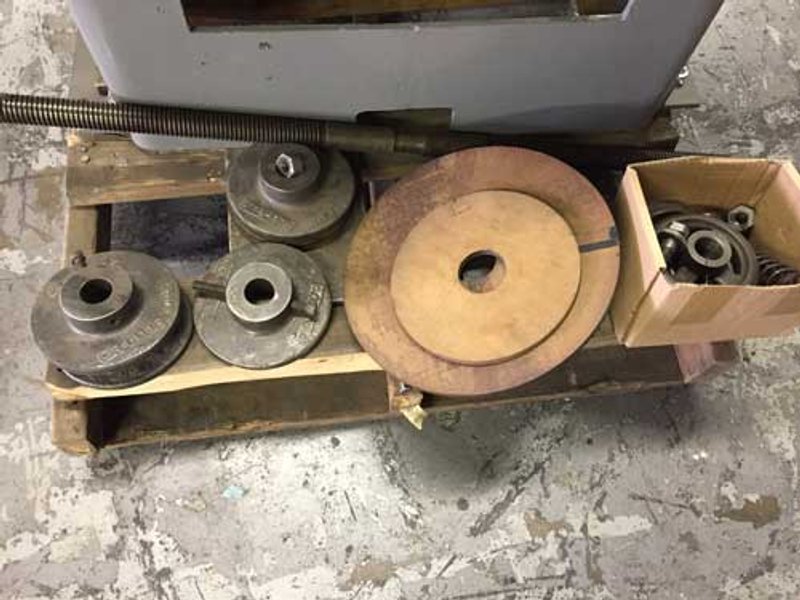

PURCHASER TO SUPPLY TOOLING AND SOME DRIVE SPROCKETS. LINE IS NOT INSTALLED.

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
