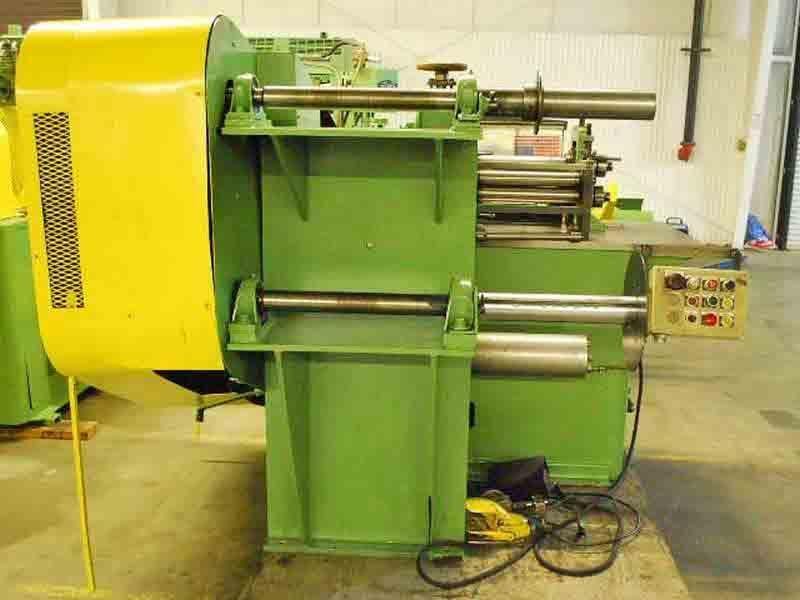

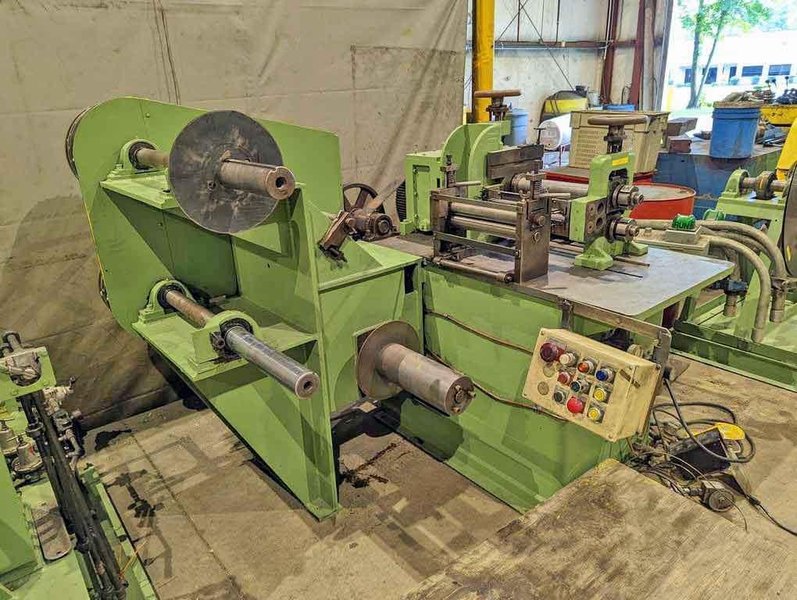

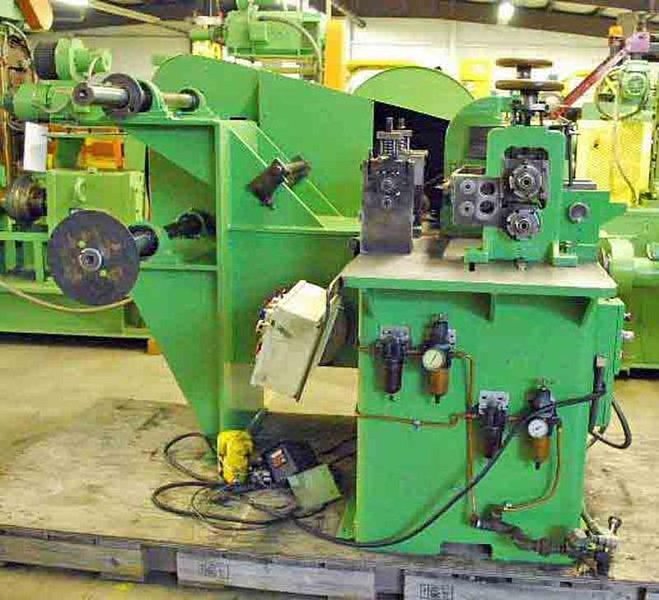

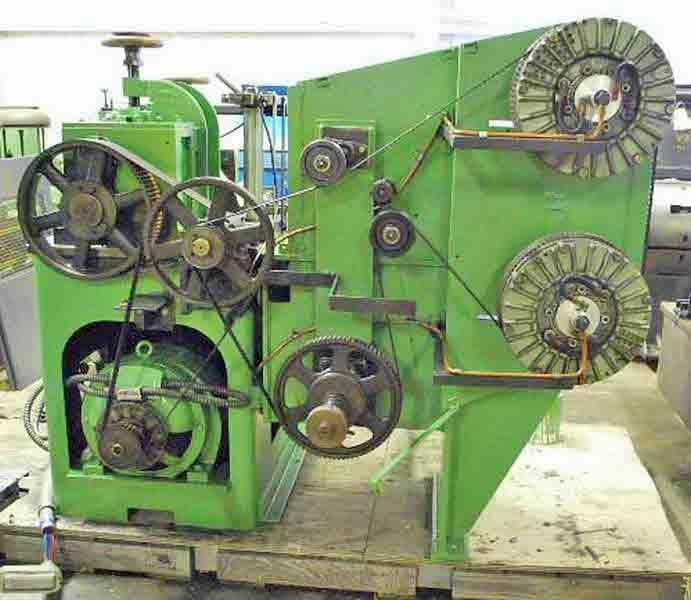

12" x 2.50" x 1,000# Ruesch Slitting Line STOCK#3201

-Ruesch Model Number:         76

-Type Slitter:                Pull Through Finger Set Up

-Line Direction:              Right to Left

Material:

 Type:  Beryllium Copper, High Carbon and Stainless Steel

 Width:  2" to 12" (50mm - 305mm)

 Thickness:

 -Per Original Specs:  0.001" - 0.020" (0.025mm) - 0.508mm)

 -As Used:  0.003" - 0.025" (0.076mm - 0.625mm)

Coil Size:

  Minimum I.D.:  6" (152mm)

  Maximum O.D.:  16" (406mm) Approx.

  Max. Coil Weight:

  -Per Original Specs:  600 lbs. (270 KG)

  -As Used:  1,000 lbs. (450 KG)

Consisting of the following:

-Note: Payoff to be supplied by the purchaser

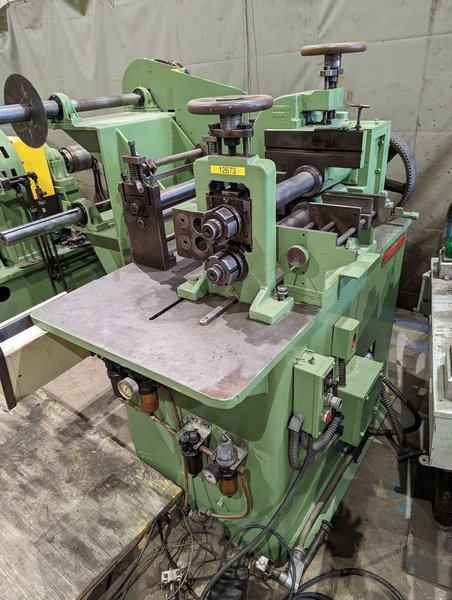

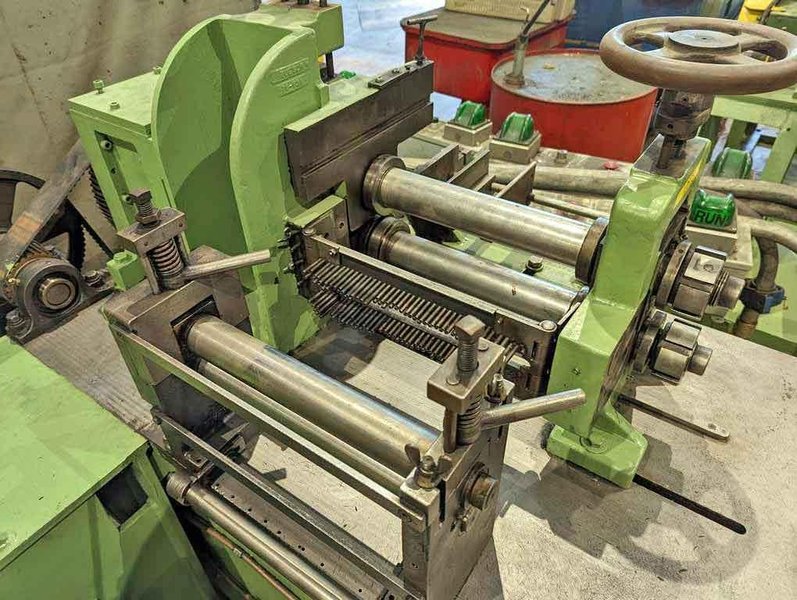

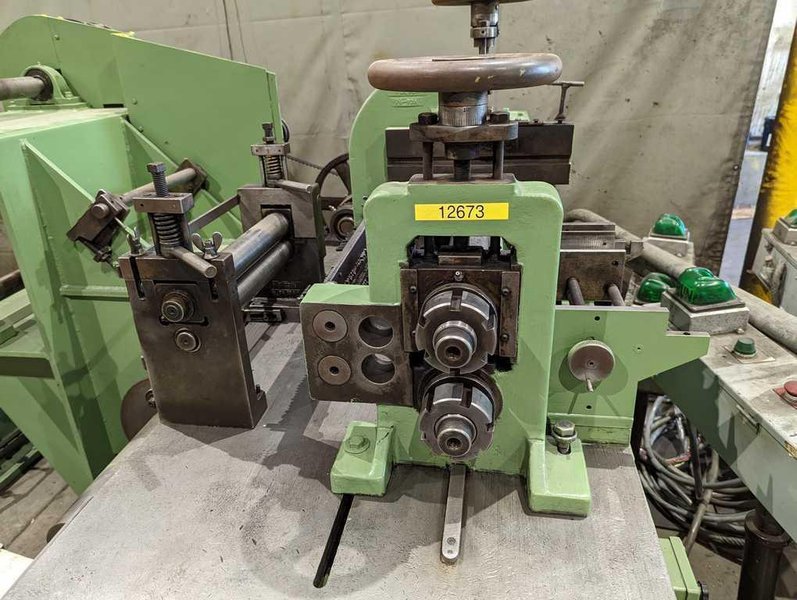

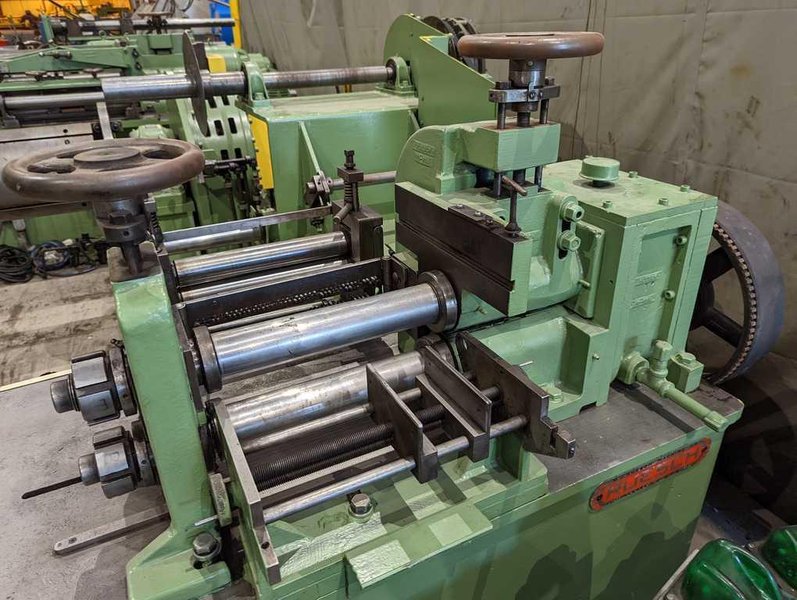

-Slitter Head:

  Arbor Size:  2.50" (63.5mm) Dia. x 13" (330mm) Face Width

  Knife Diameter:  5.50" (140mm) Max.

  Spacer Diameter:  3.750" (94mm)

  Slitting Speed:  0 - 250 FPM (0 - 76M/Min.)

  Number of Cuts:  15 in 0.020" (0.050mm) Thick Material @ 250 FPM (76M/Min.)

  Maximum Stock Width:  12" (305mm)

  Floor to Tip of Cutters:  38" (965mm) Approx.

  Entry Side Guides:  Manual Adjustment

  Slitter Housing:  Ruesch 76-93A

  Dual Handwheel Adjust

  Wooden Fingers

  Finger Stabilizer:  Screw Type

  Digital Counter:  Red Lion

  Drive Motor:  7.50 HP, 1745 RPM, 440 V., 3 PH, 60 HZ, Variable Speed

    With Eaton Dynamatic Adjustospeed Drive

  Exit Pinch Rolls:  2" (50mm) Dia. x 13" (330mm) Width

-Scrap Winder:

  Drum Diameter:  5.50" (140mm)

  Drum Width:  14.50" (368mm)

  Driven from Main Drive

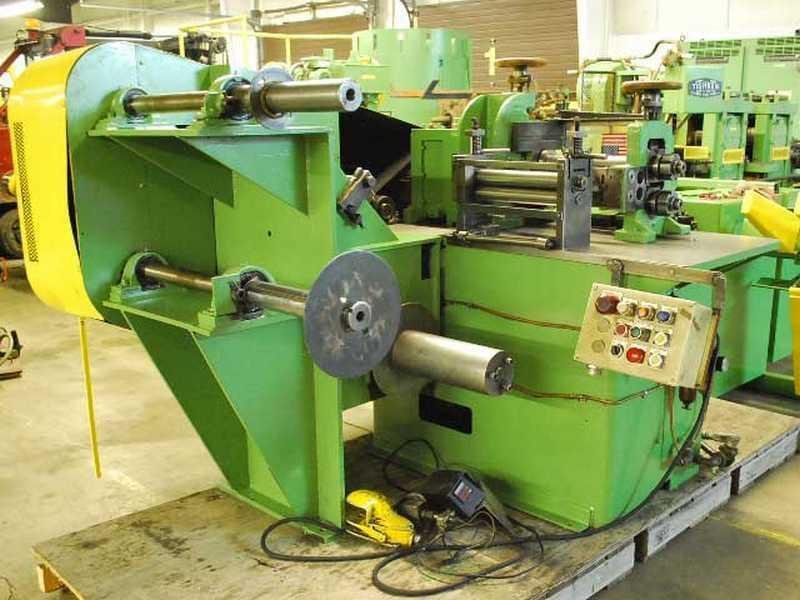

-Recoiler:

  Quantity:  2

  Shaft Diameter:  2.875" (71.12mm)

  Shaft Width:  16" (406mm)

  Chain Driven from Main Drive

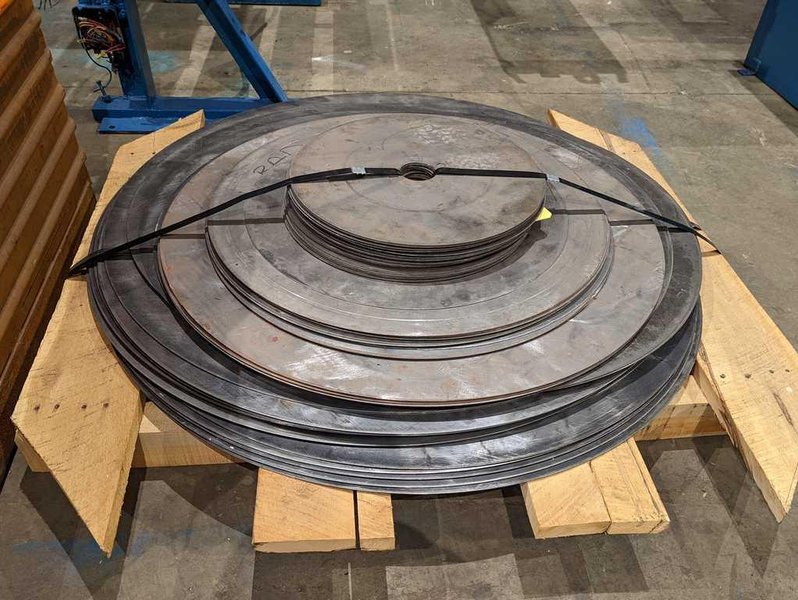

  Uses Separator Disks

-Overall Size: 77" L x 73" W x 59" High

-Approx. Weight of Machine:  2,200 lbs. (1000 KG)

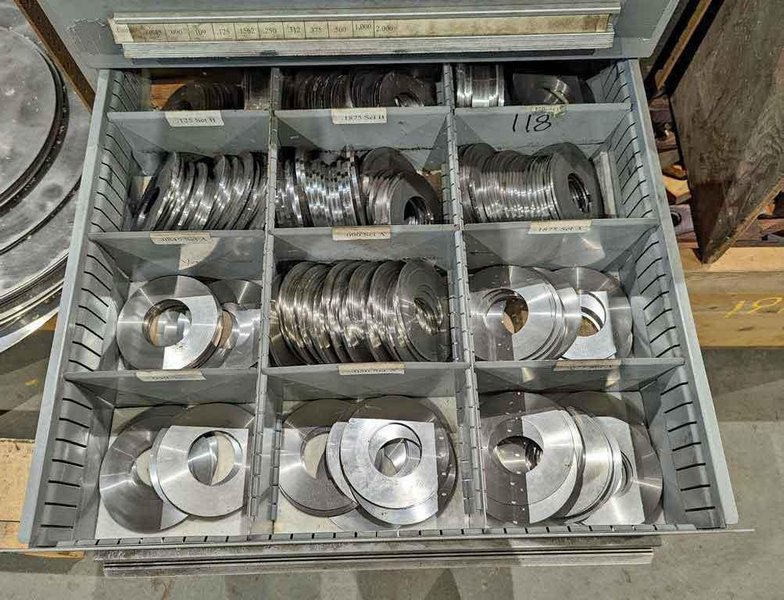

-Large Quantity of Tooling Available

-In Storage:Toledo, OH
