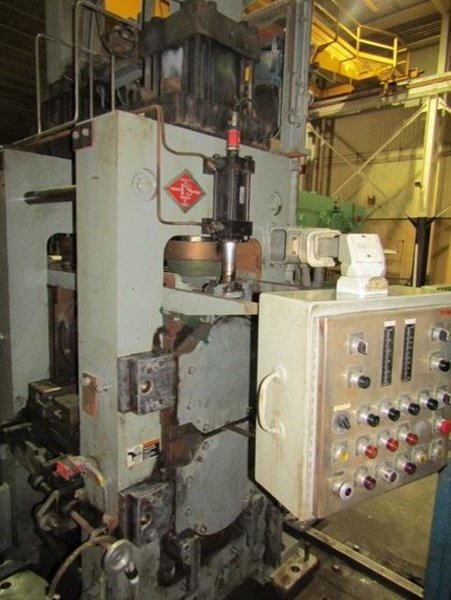

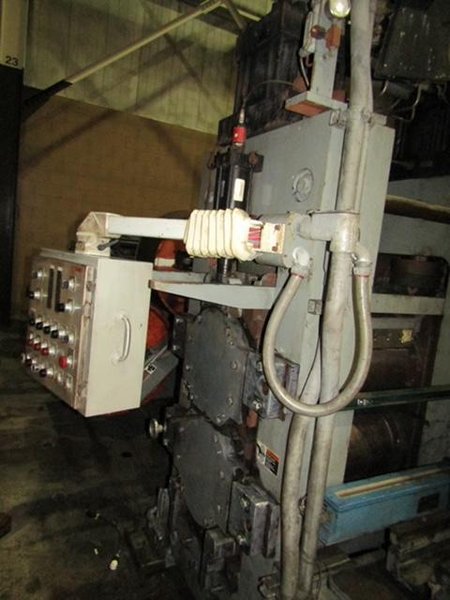

One used 16"(417mm)DIA x 19"(457mm)FACE I2S ONE WAY 2HI MILL W/ HYD. SCREWDOWNS. NEW 2002 (13873)
Category
Type
Model
Not specified
Stock #
13873
Year
Not specified
Condition
Not specified
Location
Connecticut
|
16" (419mm) DIA. x 18" (457mm) FACE I2S 2HI MILL W/ HYD. SCREWDOWNS, NEW 2002
MACHINE 13873 MANUFACTURER - INTEGRATED INDUSTRIAL SYSTEMS (I2S) YEAR - 2002 STRIP RANGE - .250" - .063" (6.35mm - 1.60mm) STRIP WIDTH - 14.25" - 4.12" (368mm - 76mm) SPEED - 500 FPM (152 MPM) THREADING SPEED - 30 FPM STRIP ENTRY/EXIT TENSION - 1500 LBS (680 kg) SEPERATING FORCE - 575,000 LBS (3,000 MT) ROLL FACE - 18" (457mm) ROLL DIAMETER - 16" (419mm) MOTOR - 250 HP DC ABB MOTOR, 300V 850/2400 RPM MILL GEARBOX RATIO - BRAD FOOTE 20:1 SERVICE FACTOR 2.0 ROLL COUNTERBALANCE - HYDRAULIC CYLINDER SCREWDOWN - MOOG SERVO POSITIONED HYD. SCREWDOWN SYSEM W/ 10" DIA. SCREW CYLINDERS DIRECTION - LEFT TO RIGHT INCLUDES: 2-ROLL ENTRY "S" TYPE TENSION BRIDLE ROLLS MILL STAND WITH HYDRAULIC SCREWDOWNS MILL ENTRY AND EXIT GAUGES (SOURCE NOT INCLUDED) EXIT BILLY ROLL ROLL CHANGEOUT STAND ELECTRICAL CABINET MILL CONTROLS **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER** |
